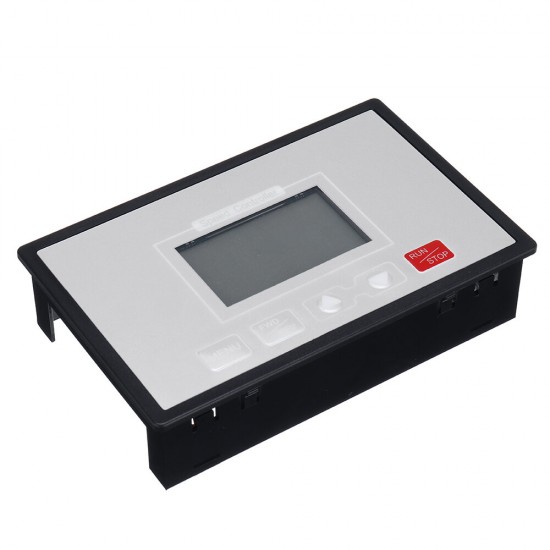

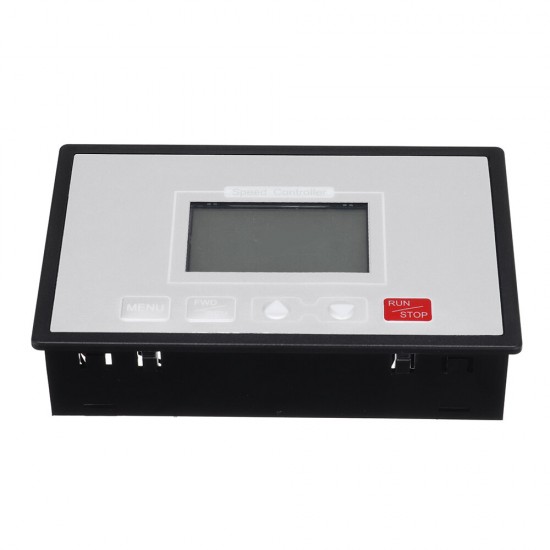

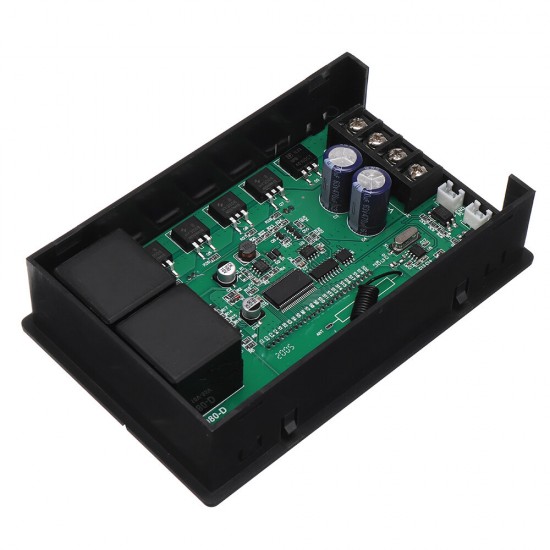

LCD Smart Digital Display 0~100% Adjustable 60A PWM DC Motor Speed Controller Timing Reversible Remote Control 12V 24V 36V 48V

Based on 0 reviews. - Write a review

$23.99

Ex Tax: $23.99

Stock: In Stock
Model: EB0051544
SKU: EB0051544

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Content-Length: 2375 >

>>>Manual: Click here to open<<<

Features:

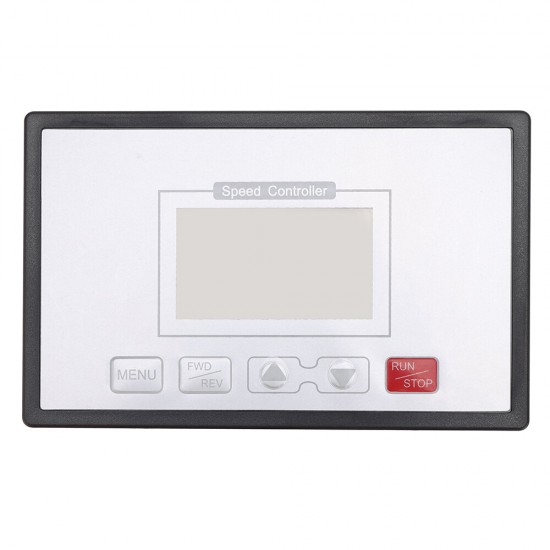

- LCD screen with backlight, can display working time, percentage of rotation speed, current mode, forward rotation, reverse rotation status

- Equipped with wireless remote control

- Multiple limit modes available

- Can be set to start slowly

- Upper and lower speed limits can be set

- Can set the total working time

- Support separate speed regulation of forward speed and reverse speed

- Two modes, manual and automatic, are available

- Touch switch to switch forward and reverse, jog acceleration and deceleration solve the problem of the traditional potentiometer

Specification:

Input voltage: DC10-55V (the specific voltage is equal to the rated voltage of the motor)

Output voltage: linear under load

Instantaneous current: 60A Continuous current: Within 40A

Forward rotation: Support Wireless remote control: Renhotec

Timing timing: Yes Limit function: Yes

Slow start slow stop: can be set Speed digital display: 0-100 percentage table

Speed regulation type: Flow regulation Speed regulation mode: Jog +-

Speed range: 0-100% Control frequency: 15KHZ

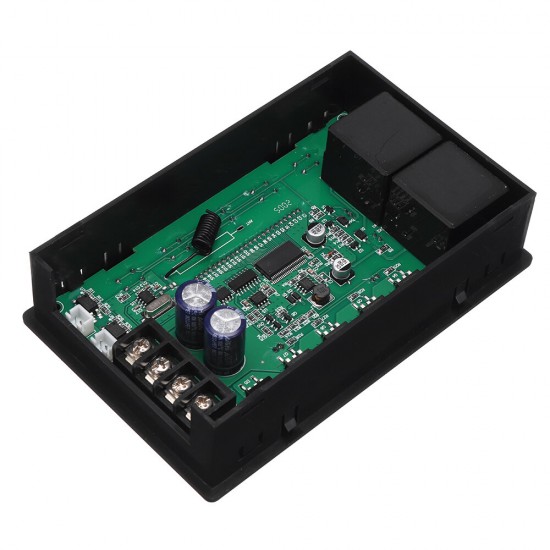

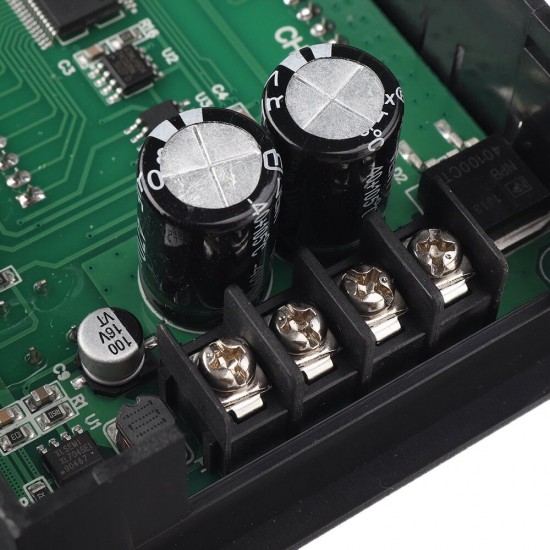

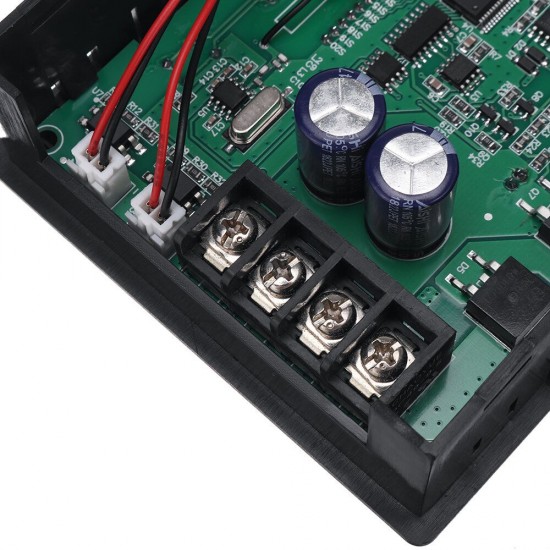

Wiring type: Fence type terminal Support motor: Brushed motor

Module size: length * width * height 148mm * 95mm * 36mm product net weight: 255g

Panel opening: length * width 142mm * 88mm

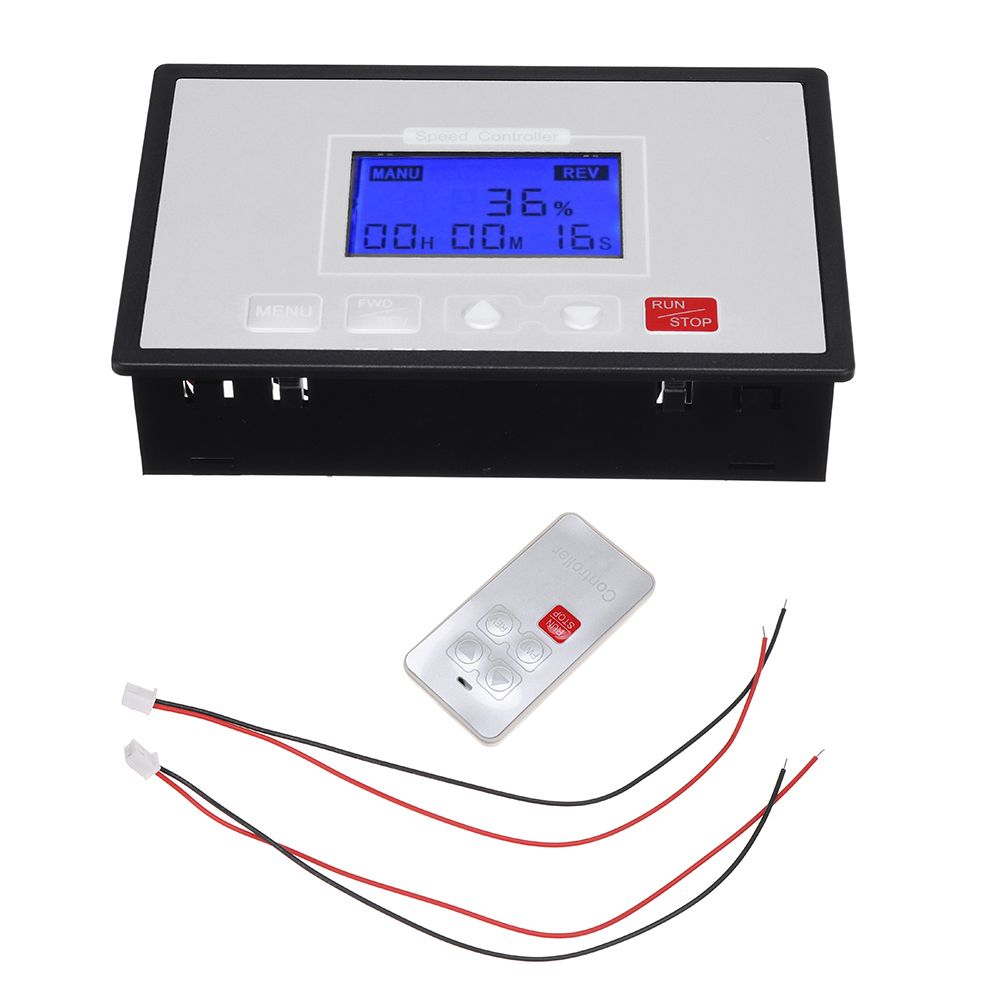

Package Included :

1 x LCD Smart Digital Display 0~100% adjustable 60A PWM DC Motor Speed Controller

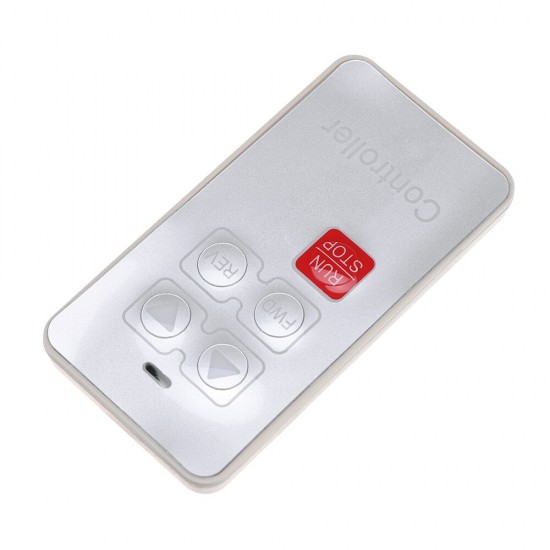

1 x Remote Controller

2 x Cable
