10pcs 1A 4.2V 3.7V Li-ion Li-Po Lithium Battery Multifunction Charger MPPT Solar Controller Module for Solar Panel Mobile Power USB SD05CRMA

Based on 0 reviews. - Write a review

$22.99

Ex Tax: $22.99

Stock: In Stock
Model: EB0049036
SKU: EB0049036

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Descriptions:

- 3.7V 4.2V Li-ion Li-Po Lithium Battery Charger Module with automatic current limiting function

- Power supply voltage DC 4.4-6V(DC 5V),Charging output voltage DC 4.2V;

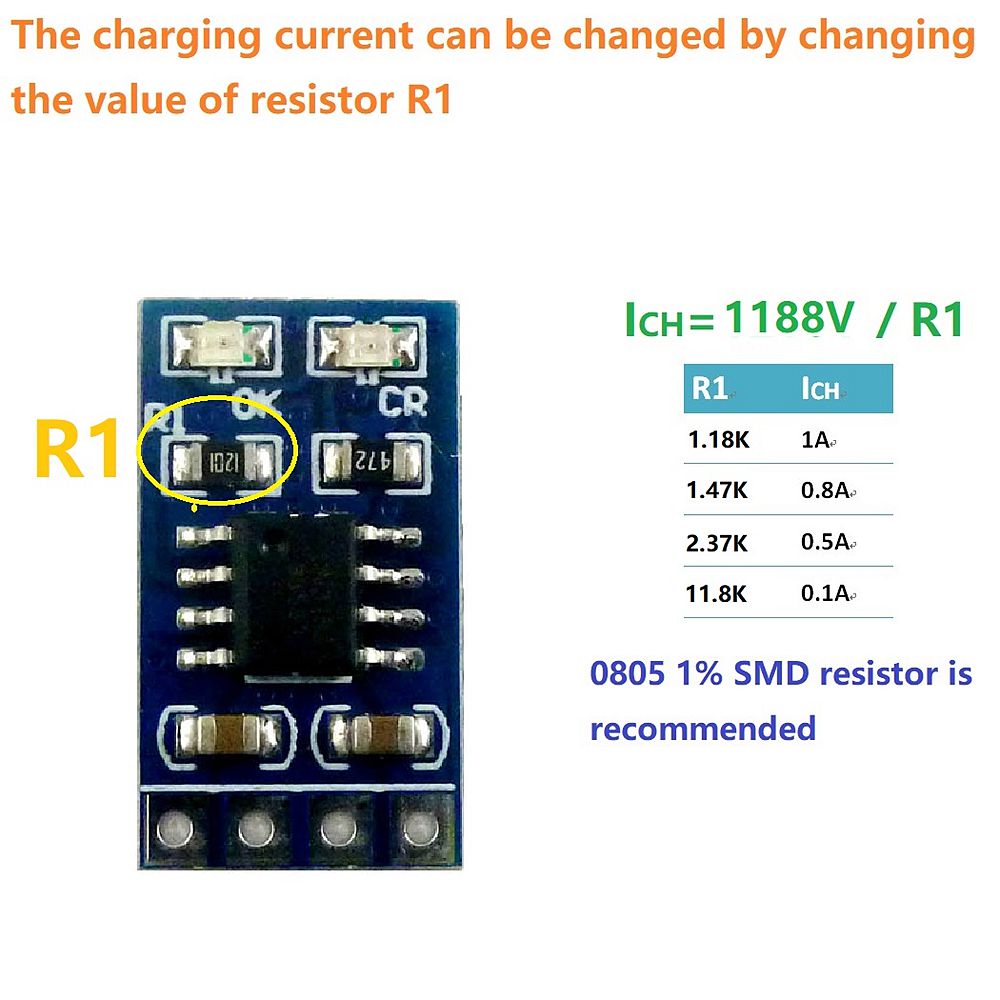

- The maximum charge current / output current is 1A, but you can change the current by changing the value of the R1 resistor.

- Automatic charge current adjustment based on the output capability of input power supply

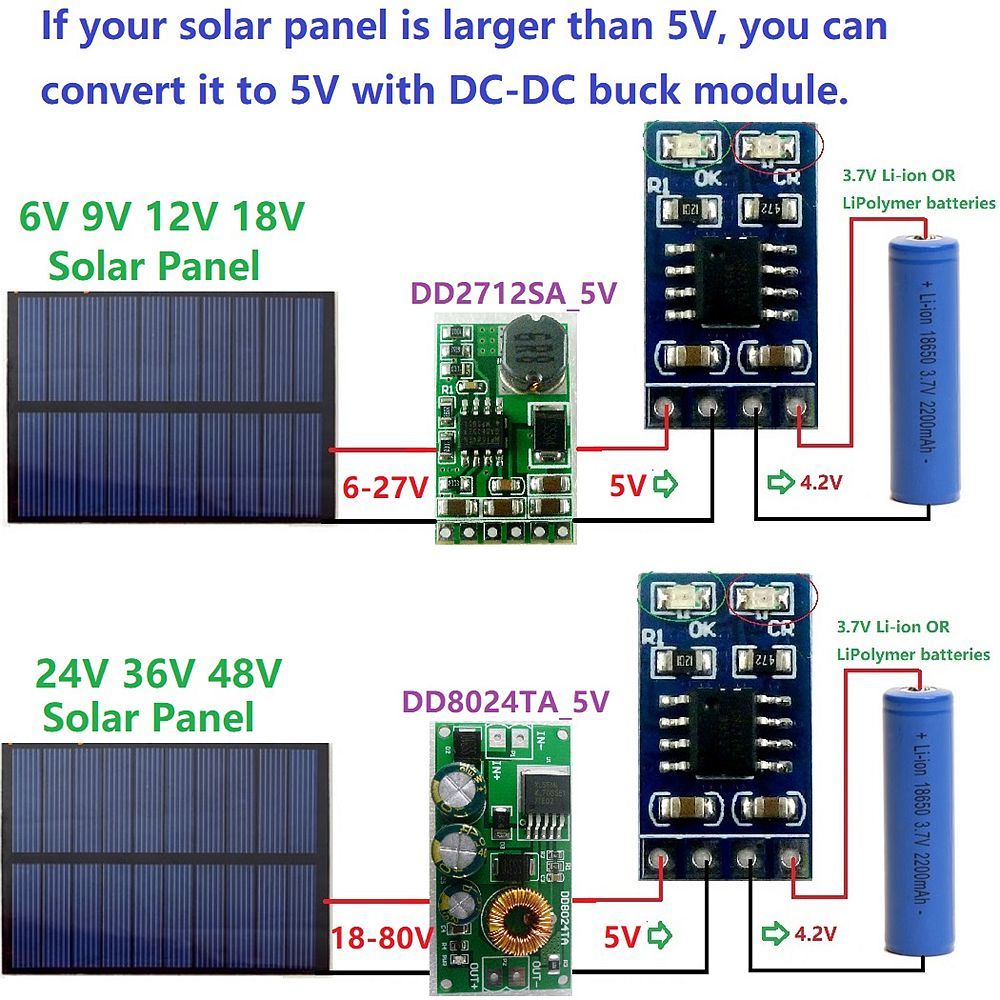

- Suitable for Solar-Powered System

- Precharge Conditioning for Reviving Deeply Discharged Cells and Minimizing Heat Dissipation During Initial Stage of Charge

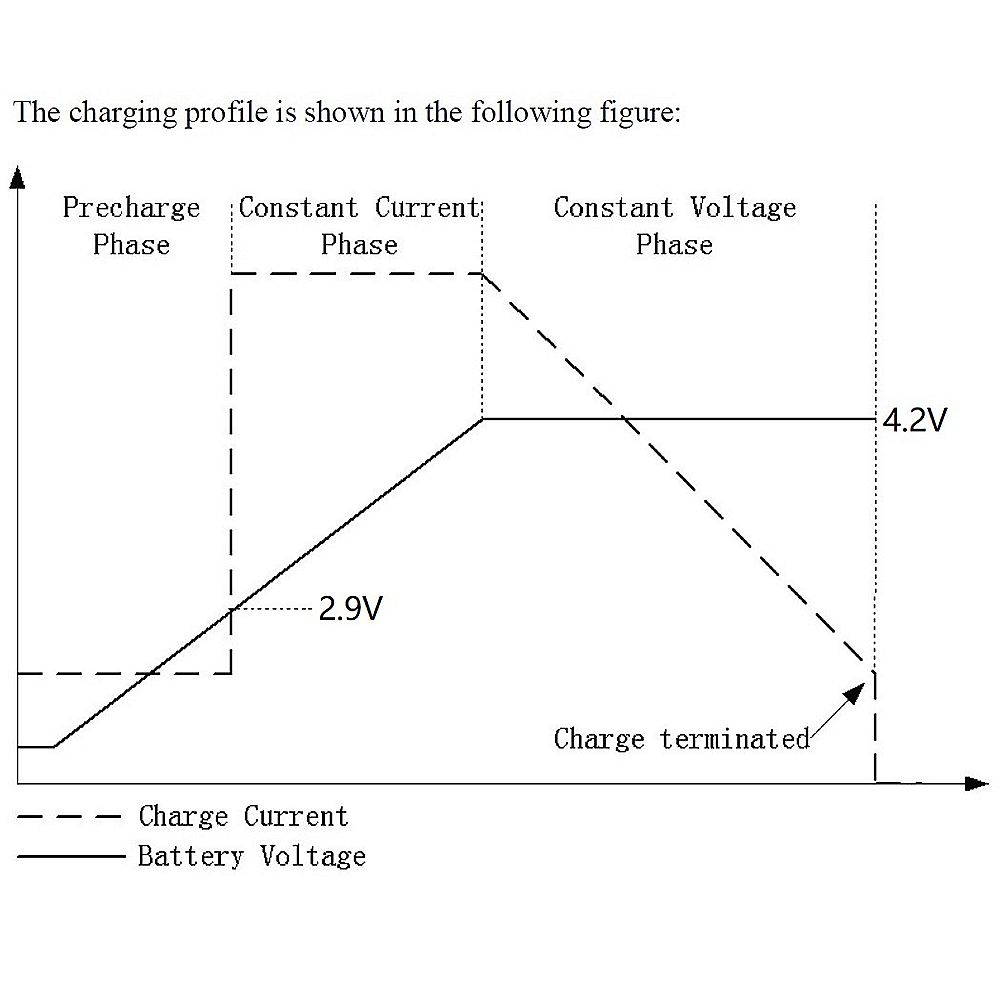

- Constant-Current/Constant-Voltage Operation with Thermal Regulation to Maximize Charge Rate Without Risk of Overheating

- Automatic Low-Power Sleep Mode When Input Supply Voltage is Removed

- C/10 Charge Termination

- Automatic Recharge

- Battery Overvoltage Protection

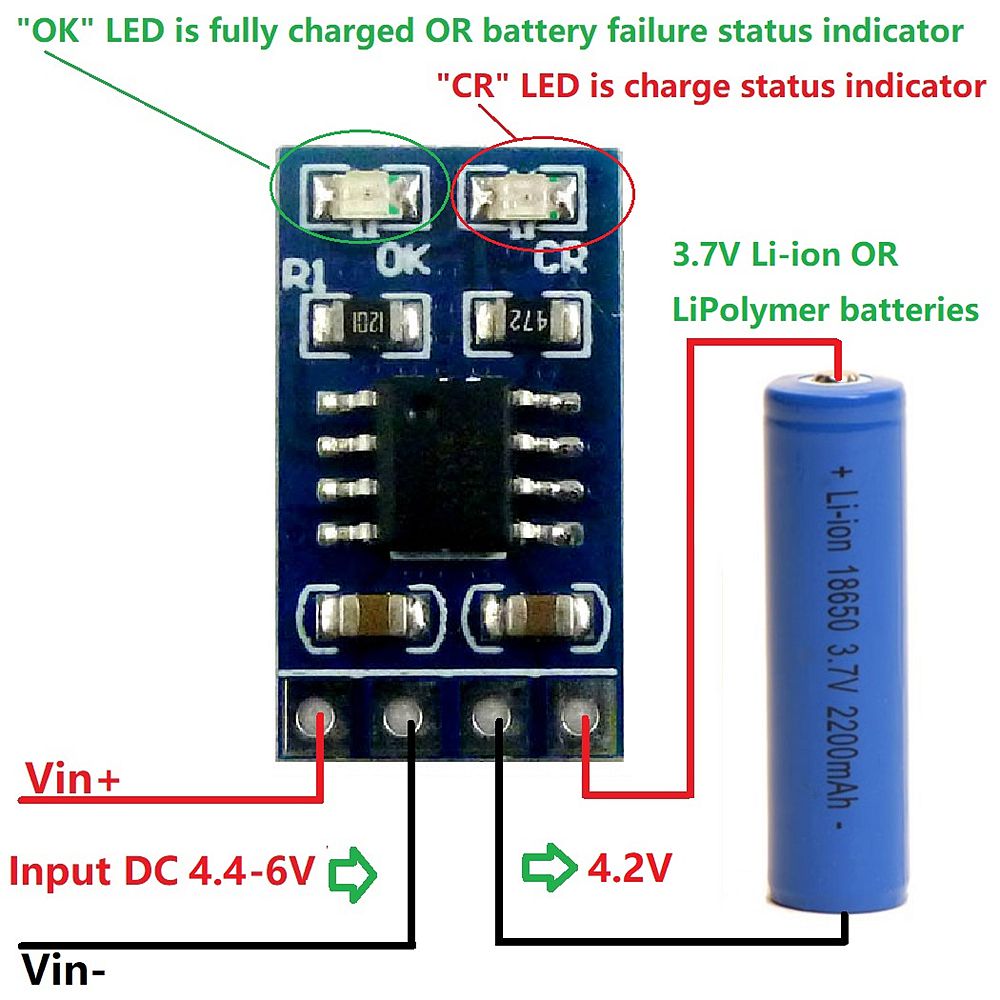

- Led indicator : ''CR'' LED is charge status indicator

''OK'' LED is fully charged OR Constant voltage mode;

- Operating Ambient Temperature:-40℃ to +85℃

- Size: 18 x 10.16 x 2.7mm

Features:

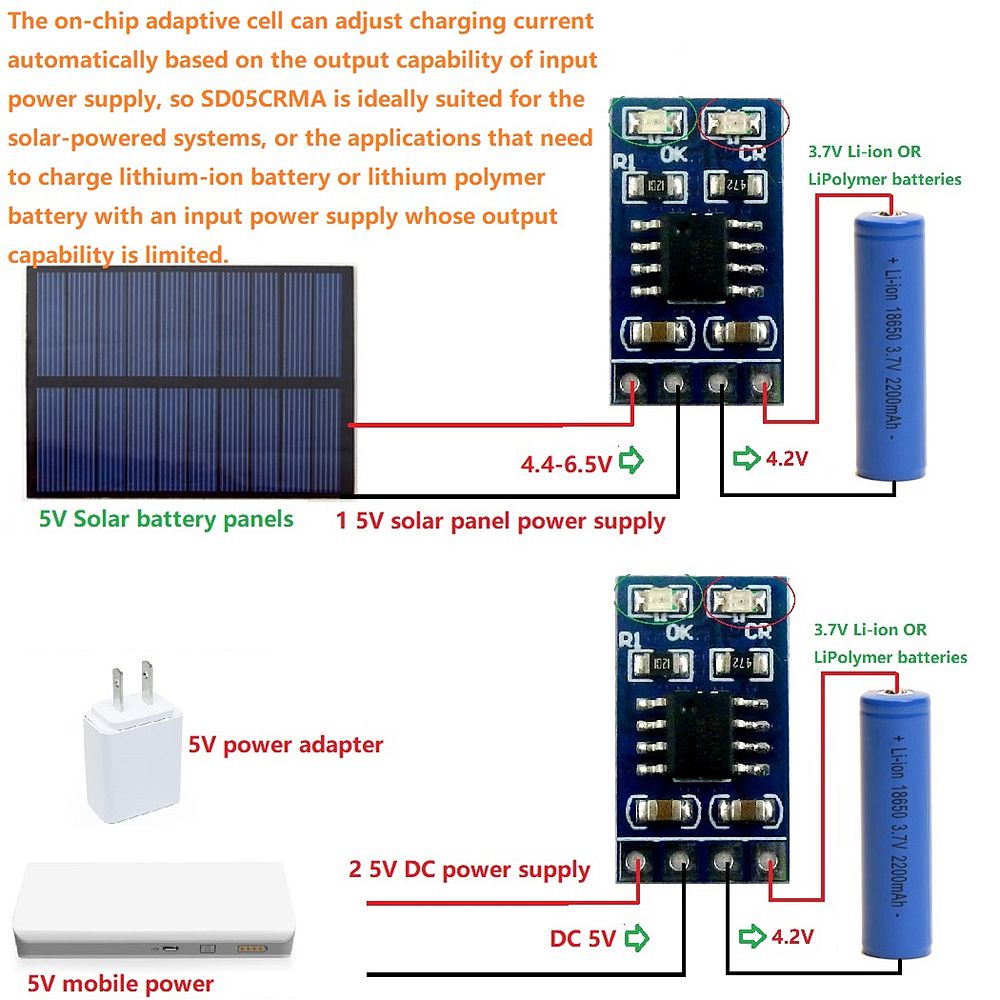

The on-chip adaptive cell can adjust charging current automatically based on the output capability of input power supply, so SD05CRMA is ideally suited for the solar-powered systems, or the applications that need to charge lithium-ion battery or lithium polymer battery with an input power supply whose output capability is limited.

Package Incldued:

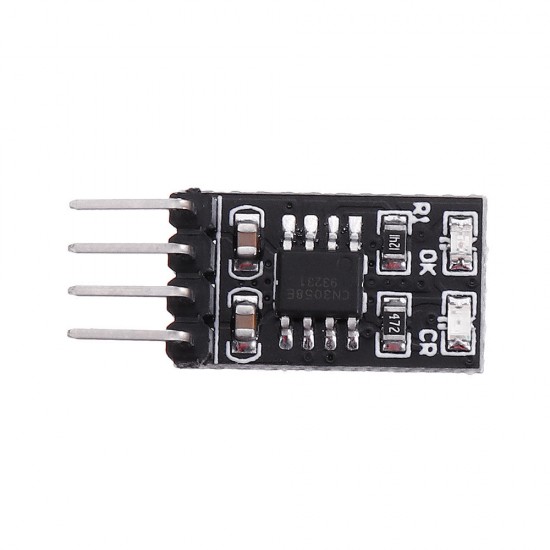

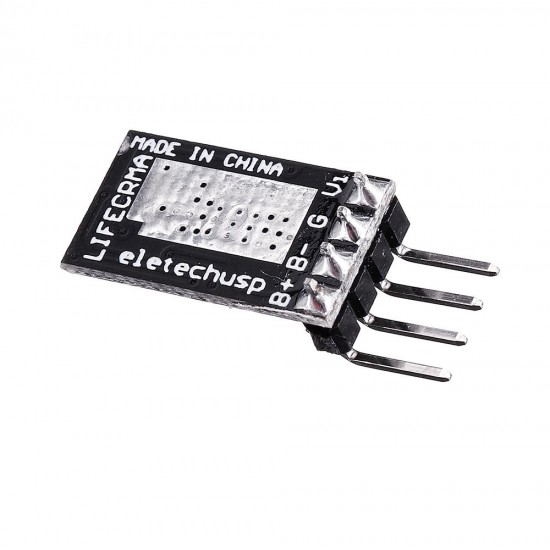

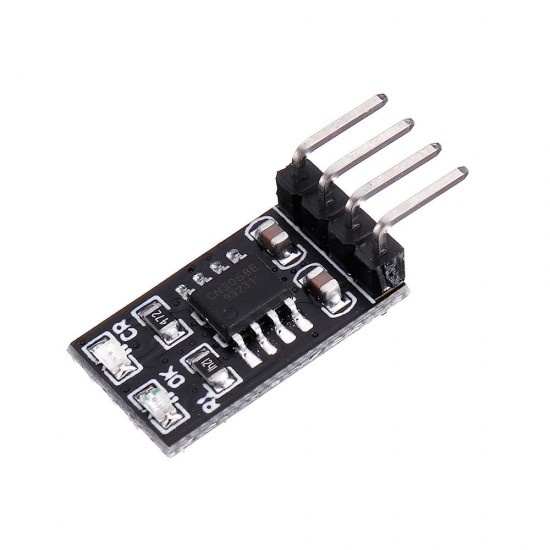

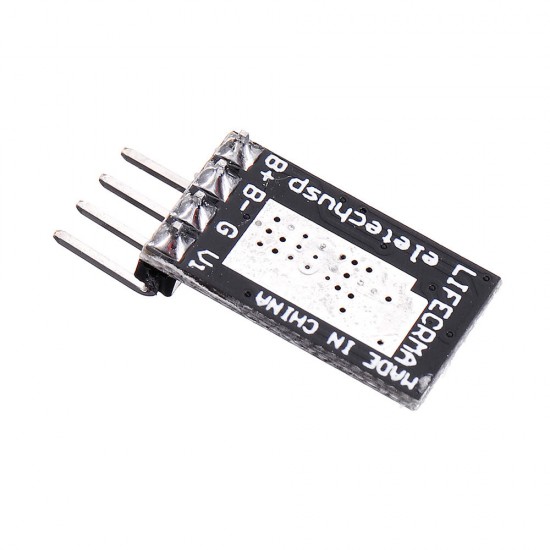

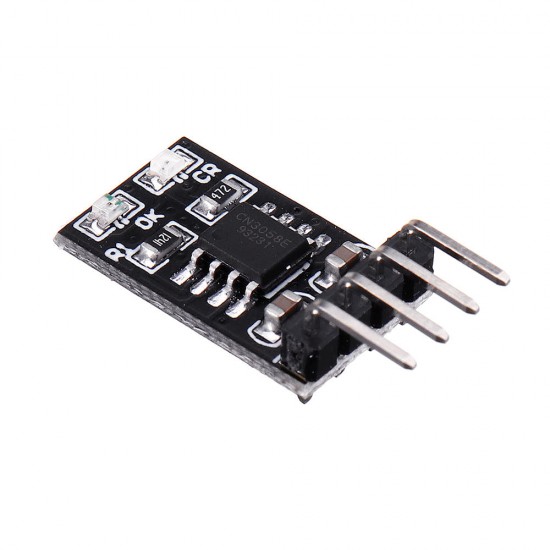

10 x 1A 4.2V 3.7V Li-ion Li-Po Lithium Battery Multifunction Charger Board
