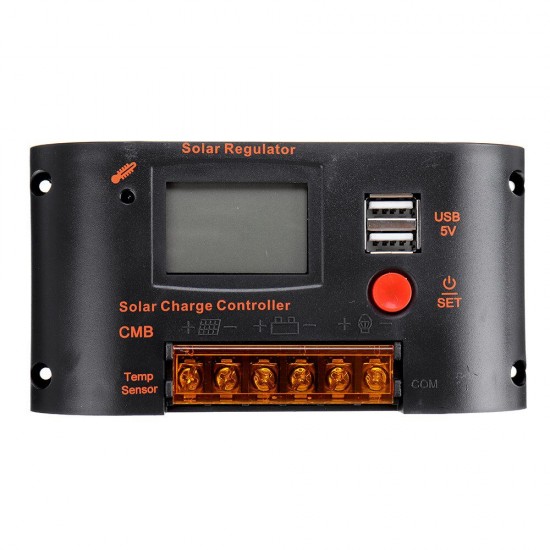

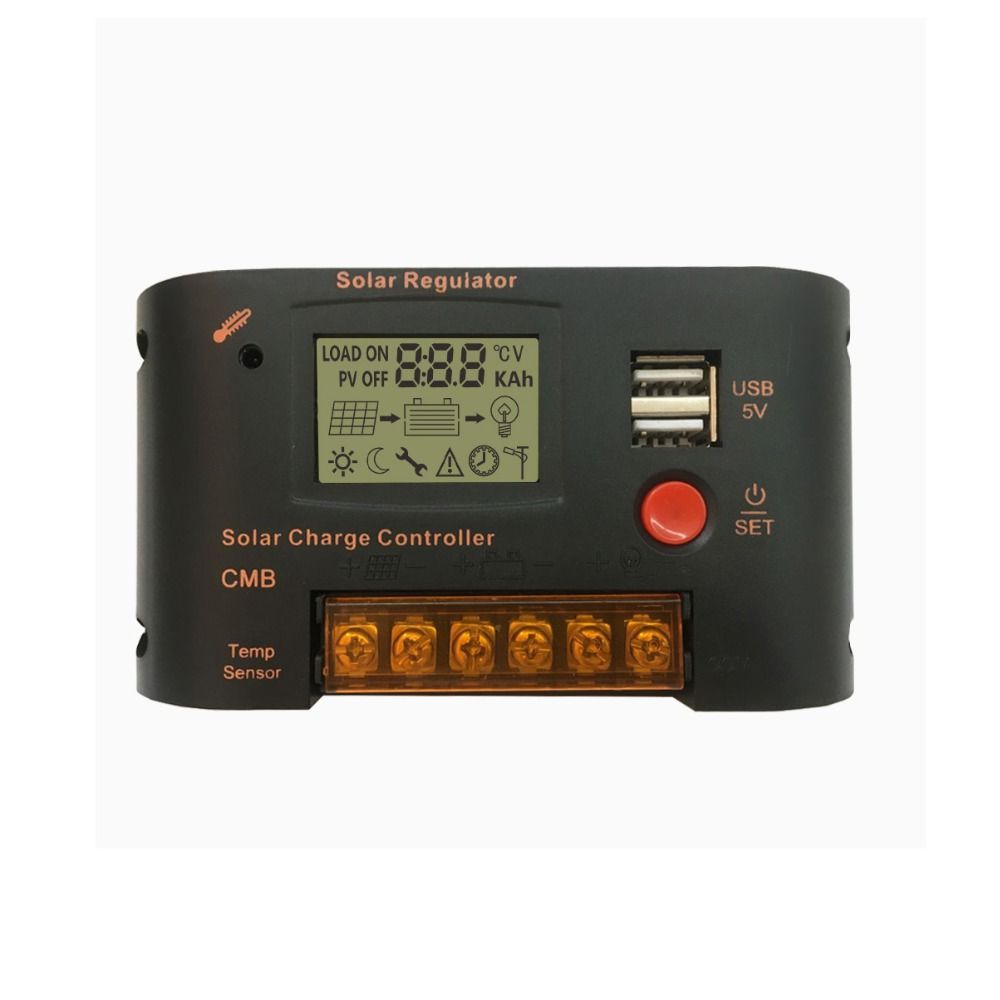

10A/20A PWM Solar Charger Controller 12V 24V Auto LCD Display Dual USB 5V 2A Output Solar Regulator with Light and Time Control
- Stock: In Stock
- Model: EB0044347
- SKU: EB0044347
Overview:
The controller is equipped with PV-Power technology, which can be activated at either end of the solar panel or battery. When battery is under voltage, the solar panel also can charge; the product can be used directly as a charger.

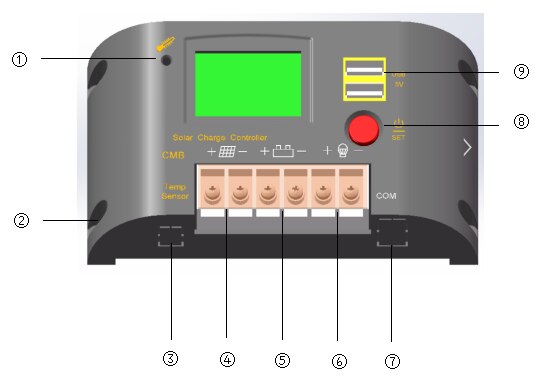

Features:
| NO. | Name | NO. | Name |
| ① | Built-in temperature sensor | ⑥ |
Load interface |
| ② | Mounting locating holes | ⑦ | RS485 communication interface |
| ③ | | ⑧ |
Switch / setting button |
| ④ |
Photovoltaic array interface | ⑨ |
USB 5V output interface |
| ⑤ | Battery interface |
|
Connection:

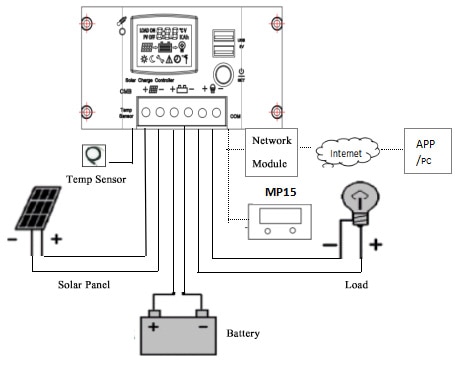

As picture, the connection of solar energy, battery, load, temperature probe, MP15 (reserved), please pay attention to the connection, do not connect wrong, reverse.
Note:1.External temperature sensor, remote display unit, network connection module are optional.
2.Temp Sensor
External temperature sensor probe interface: When the external temperature sensor is not connected, the system default value is the built-in temperature sensor; when the external temperature sensor is connected, the internal temperature sensor is automatically disconnected.
Specifications:
| Model |
| CMB-3210W | CMB-3220W | |
| Maximum charging current |
| 10A | 20A |
|
| Maximum discharge current |
| 20A | 30A |
|
| Maximum photovoltaic | ≤55V | |||
| USB output | 5V 2A | |||
| Feature | No-load loss | |||
| Operating temperature | -20℃ | |||
Package Included:
