10Pcs DC 7V-24V To DC 5V 3A USB Output Converter Step Down Module KIS3R33S Power Supply Board
- Stock: In Stock
- Model: EB0045030
- SKU: EB0045030
Description:

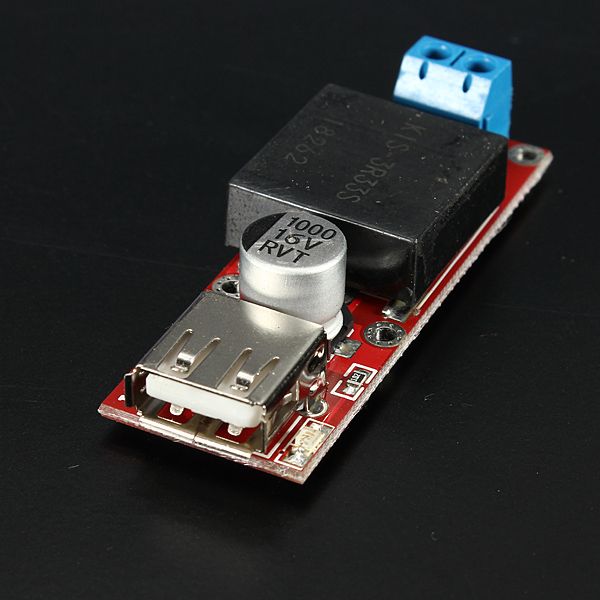

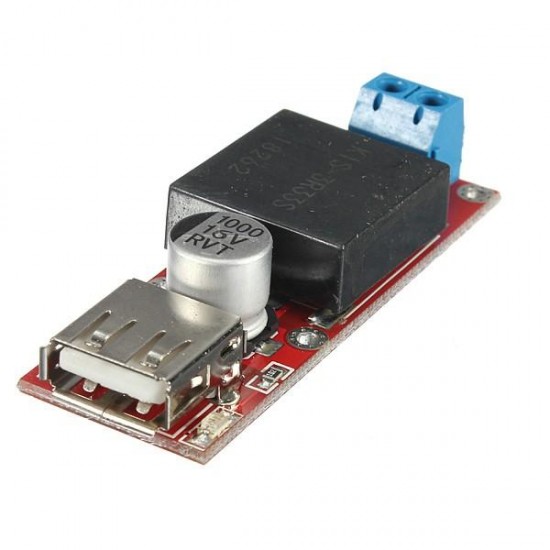

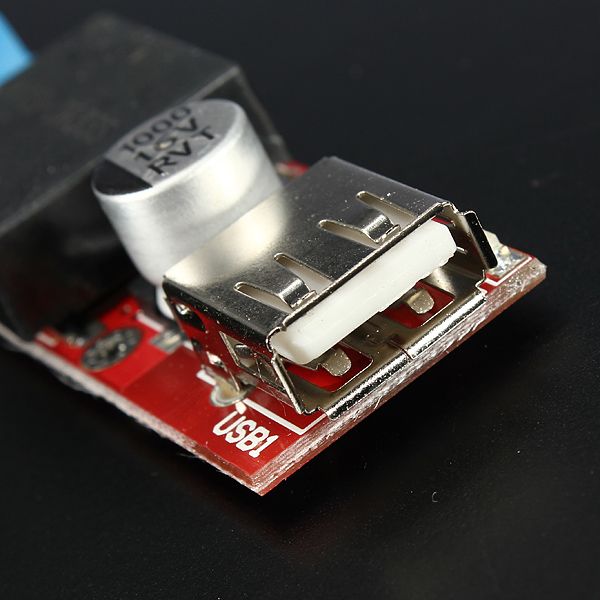

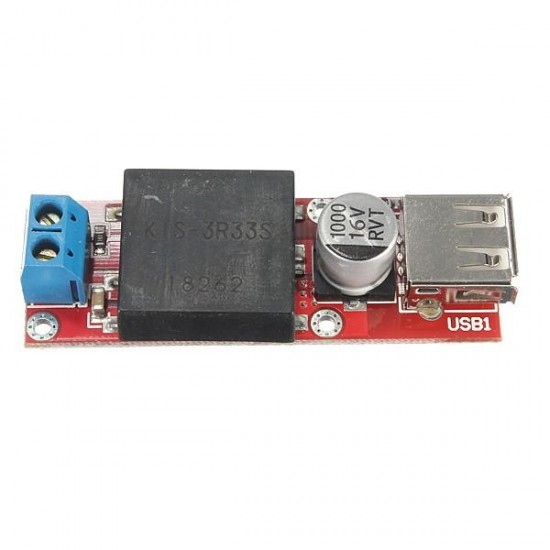

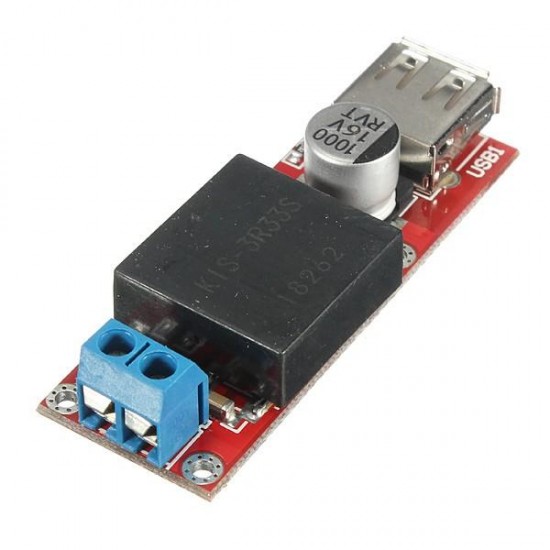

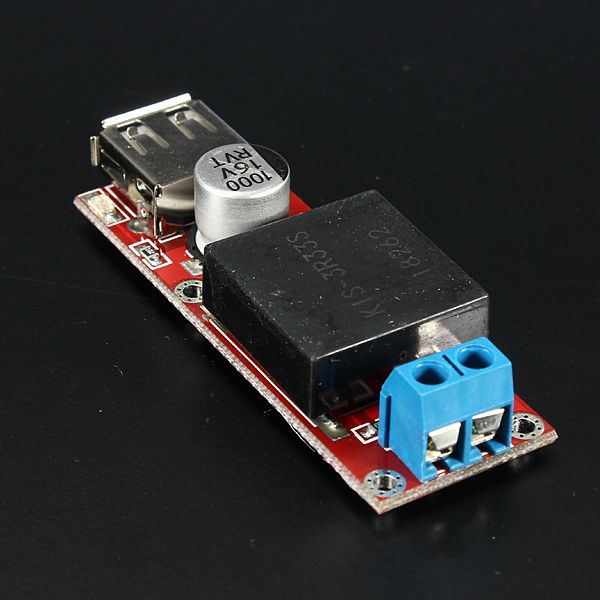

This 5V USB output converter module is based on the KIS3R33S module specific design, the input voltage 7V to 24V, output voltage 5.01V 2.5A peak output current of 4A continuous output. Able to provide 3A continuous load current. The majority of players professional testing, with high efficiency, ultra-low loss characteristics, beyond perfect lm2596 power module. This module has a USB recognition. This module uses the original Sanyo low ESR filter capacitor voltage as low as possible so that the ripple 30mV, fully capable and linear power comparable. IN-(input negative), IN + (positive input), OUT-(negative output), OUT + (positive output) must be connected to the right, otherwise may cause damage to the module.
The USB output converter module has short circuit protection, 5A current automatic protection.
Specification:
Modules nature: non-isolated buck
Rectification: non-synchronous rectification
Input voltage: DC 7V - 24V
Output voltage: DC 5V
Output current: 4A(short time)
Conversion efficiency: 96% (MAX)
Switching frequency: 340KHz
Output ripple: 30mV(max)
Load regulation: ± 0.5%
Voltage regulation: ± 2.5%
Operating temperature: -40°C to +85°C
With overcurrent protection
Size: 60 x 21 x 14mm
Notice:
DIY mobile power supply, to achieve 5V output for charging Phone, MP3, MP4, PSP etc.

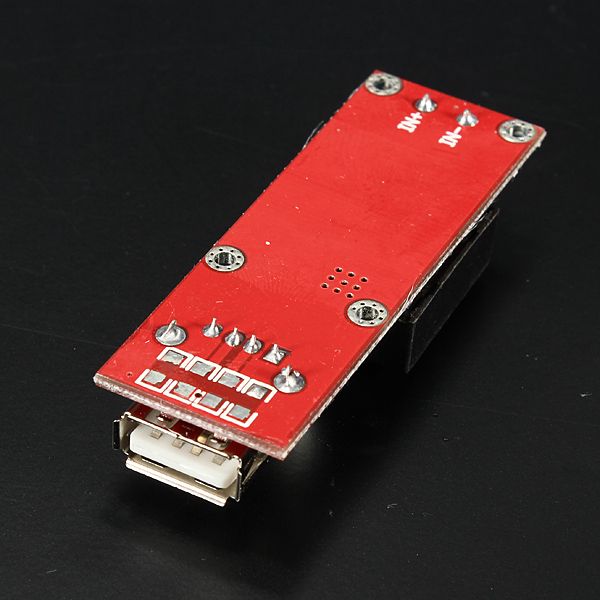

Please connect right as the printed: IN-
May not charge for the IPAD
Package included:
10 x KIS3R33S USB output converter module
