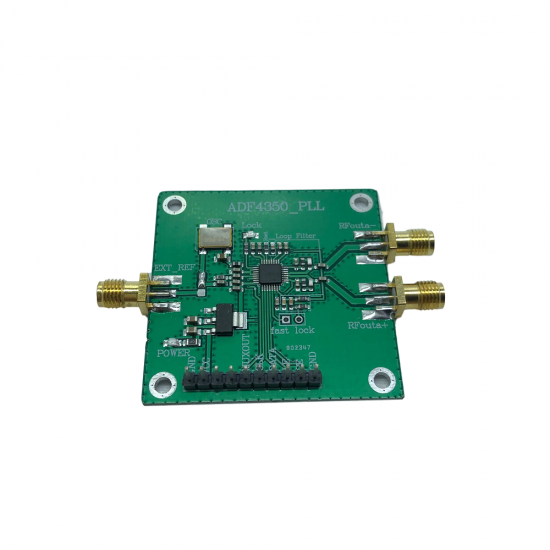

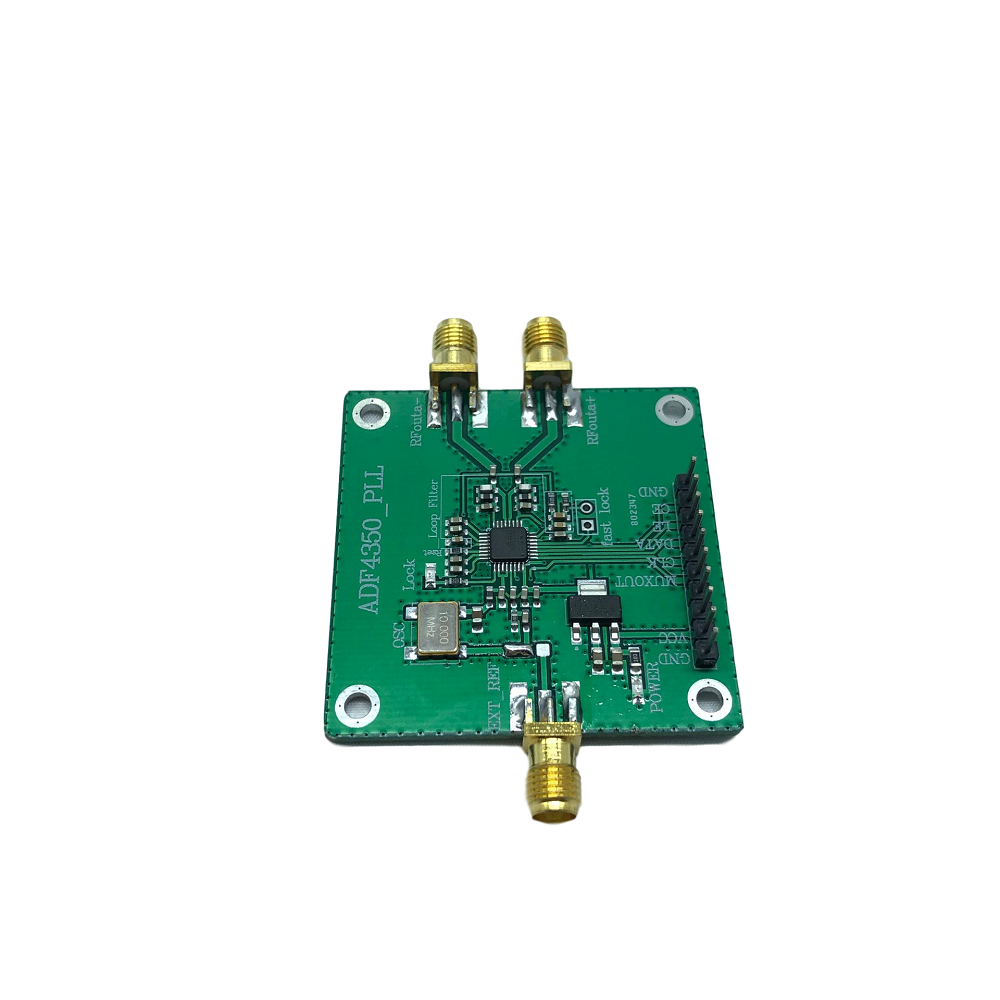

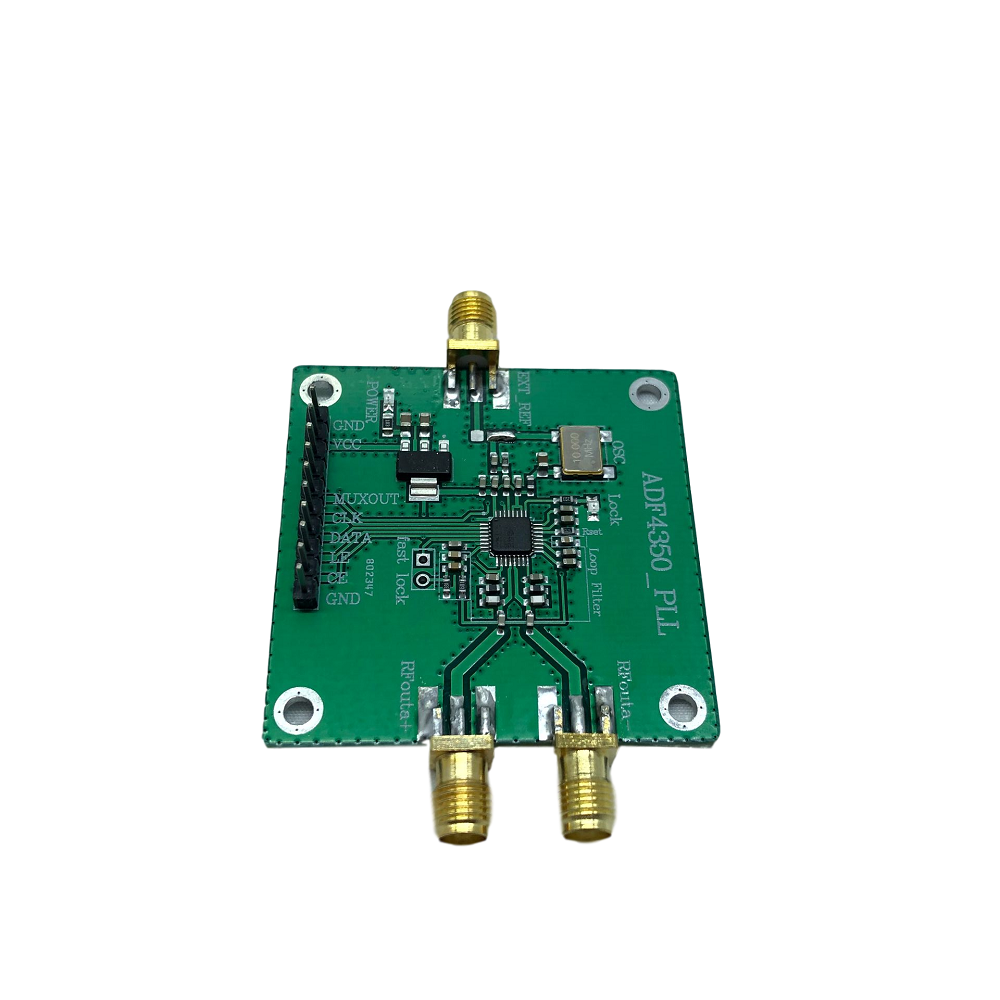

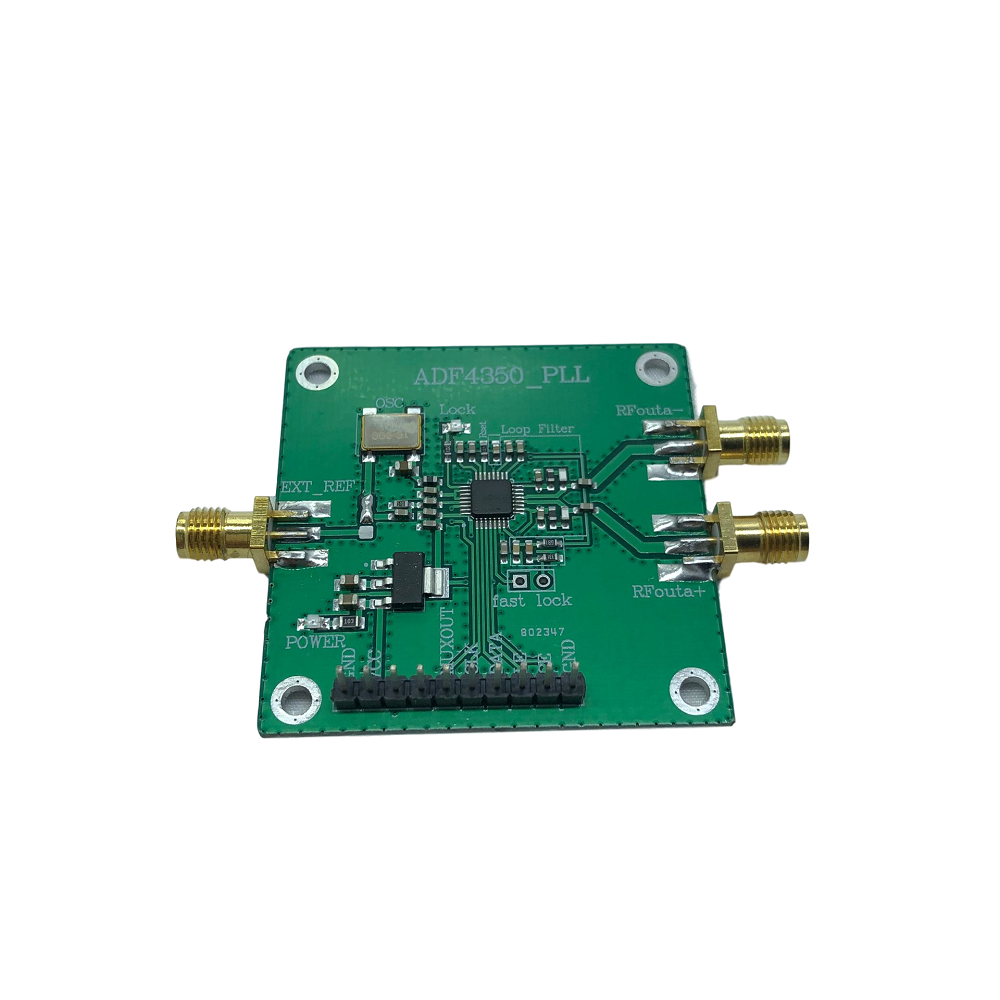

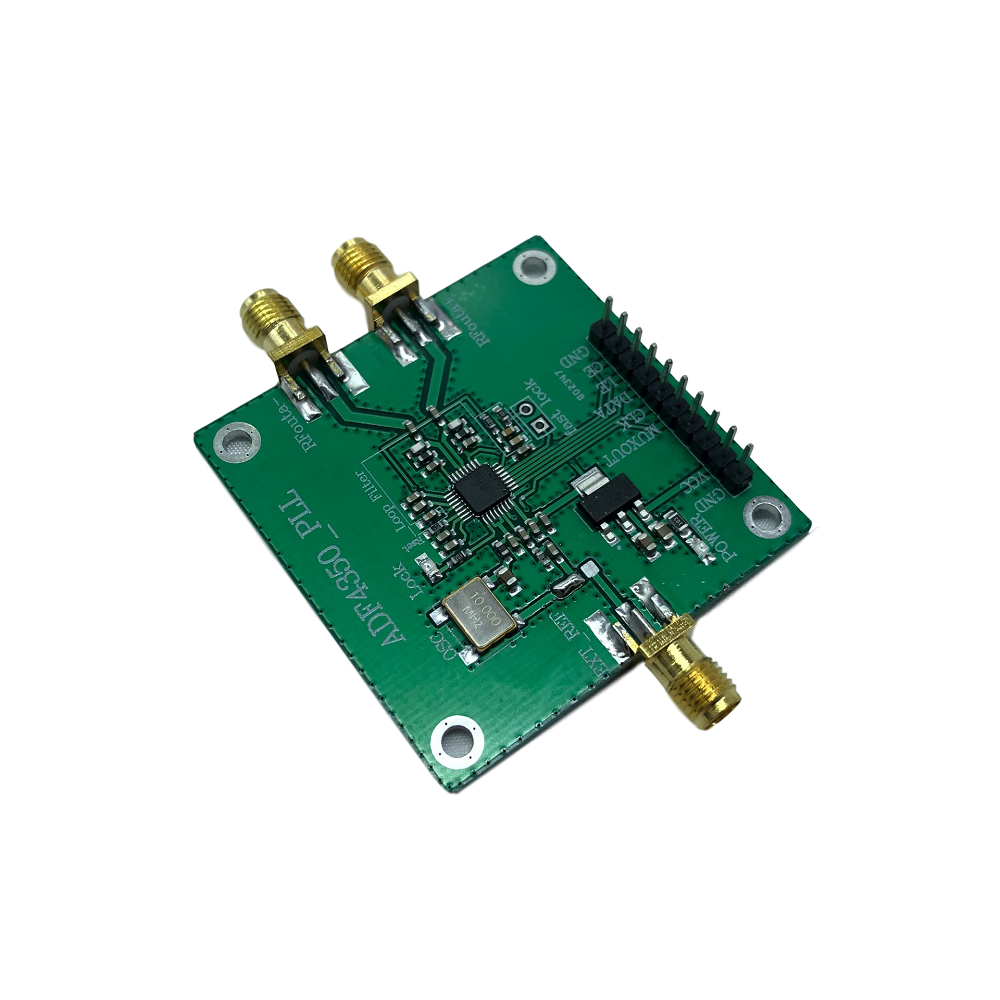

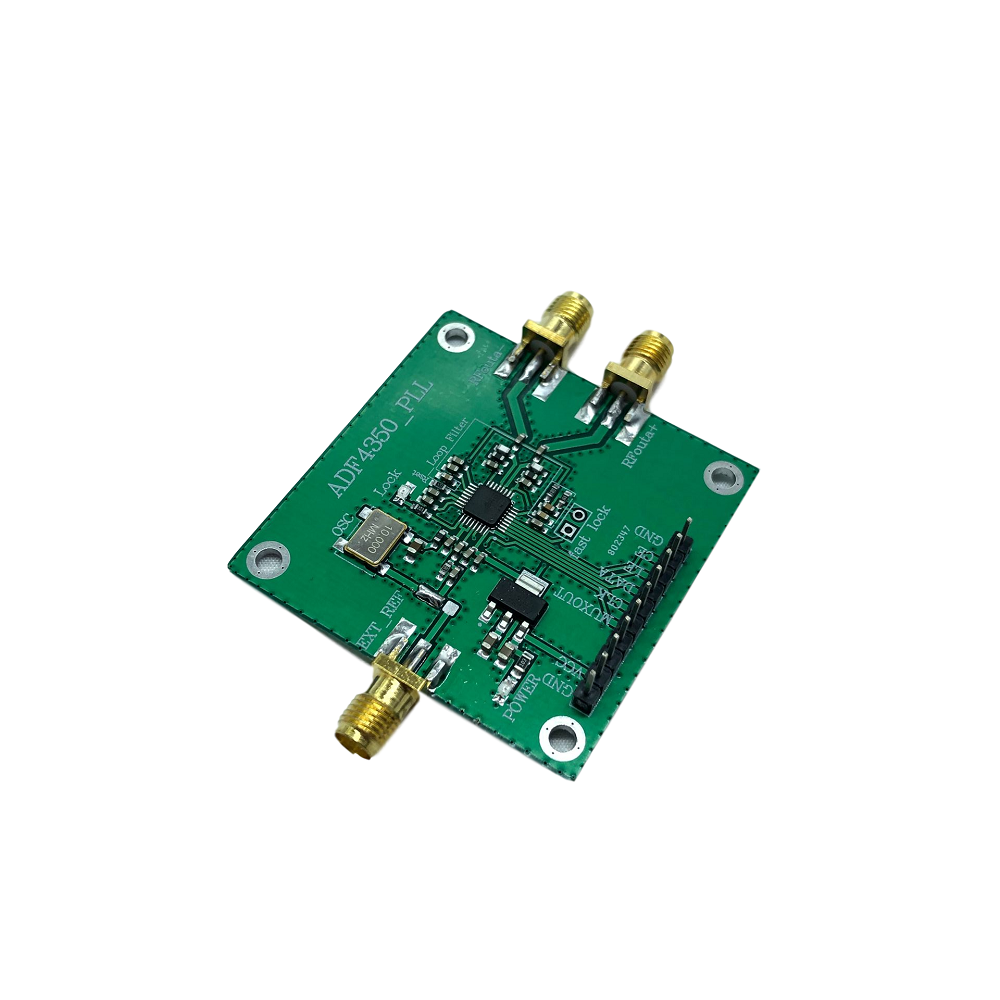

ADF4351 PLL Phase Locked Loop RF Signal Source Frequency Synthesizer

Based on 0 reviews. - Write a review

$24.99

Ex Tax: $24.99

Stock: In Stock
Model: 1750653
SKU: 1750653

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Voltage: DC5V

Precise details>>

Content-Length: 2344 >

Parameters:

1. Output frequency range: 35MHz--4.4GHz (ADF4351)

2. Power supply voltage: 4-9V (5VDC)

3. Output signal:

2.2GHZ--4.4GHz sine wave (fundamental wave)

35MHZ---2.2GHz (ADF4351) square wave (fundamental frequency division)

4. Output signal: the output is broadband, signal strength: +5dBm (programmable setting)

5. RF connector: SMA female

6. Control interface: three-wire SPI

7. Reference clock: 10.000MHZ (default), can be externally connected through the SMA interface

8. Weight: 15g

Wiring method:

This module can be connected with the pins of the LCD12864 module on the single-chip microcomputer (it can be directly plugged upside down), which is convenient for software debugging and has a lock indication (Lock). The corresponding pins are as follows:

LCD12864 ADF4351

1. GND------------------------GND

2. VDD（5V）-------------------VCC

3. VO--------------------------NC (empty)

4. RS--------------------------NC (empty)

5. R/W-------------------------MUXOUT

6. EN--------------------------CLK

7. DB0-------------------------DATA

8. DB1-------------------------LE

9. DB2-------------------------CE (10K has been pulled up)

10. DB3-------------------------GND (can not be connected)

Package included:

1 x RF Signal Source Frequency Synthesizer
