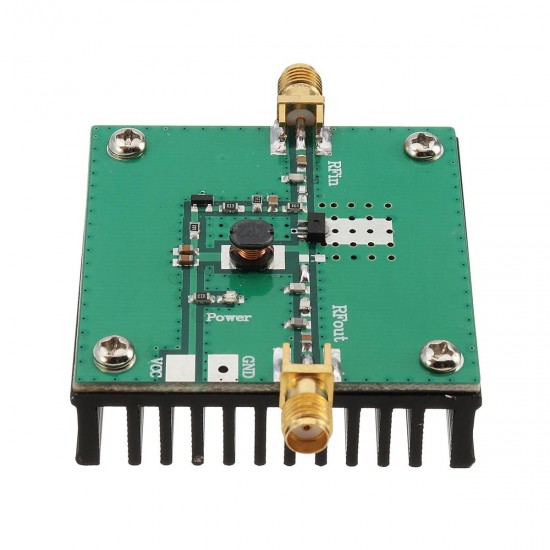

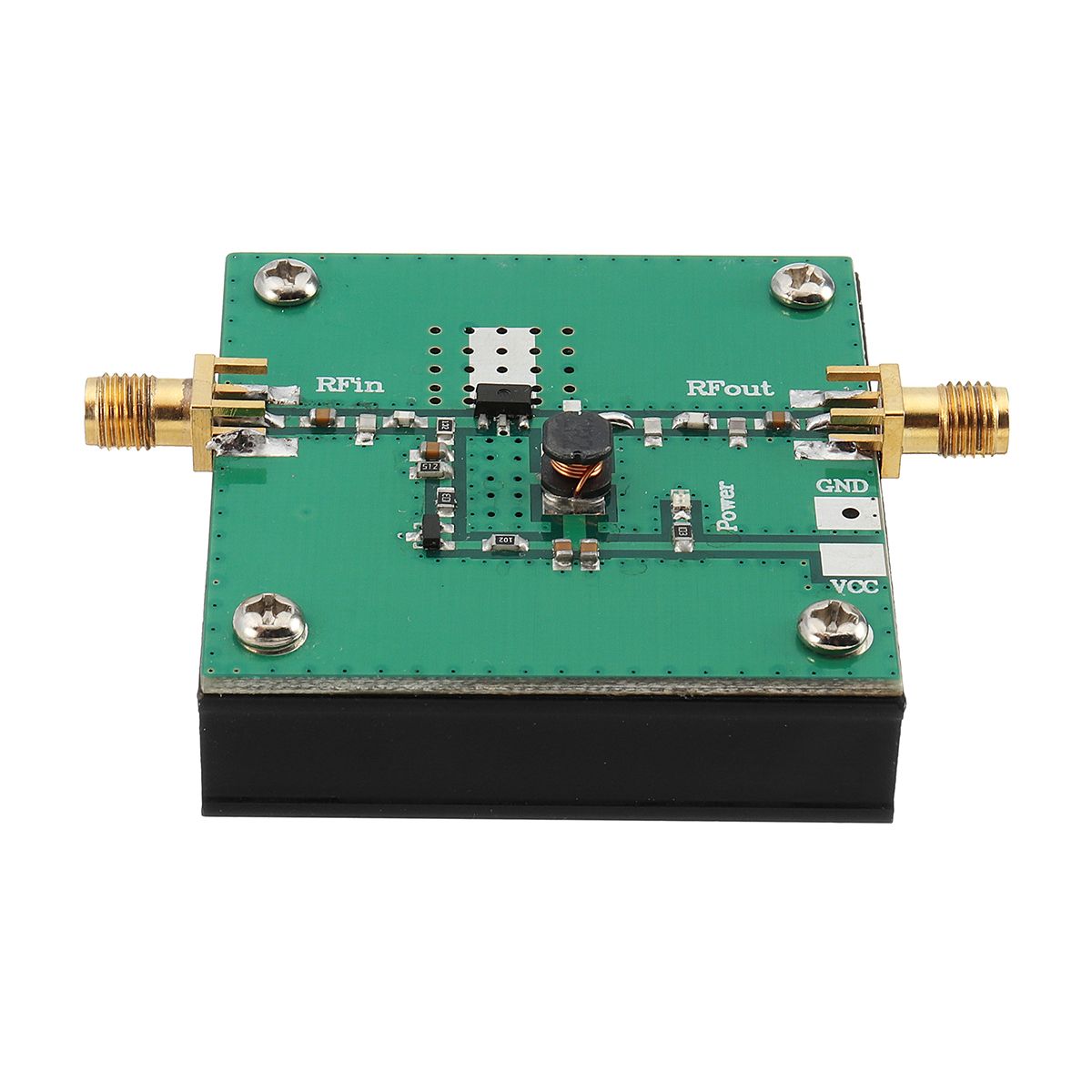

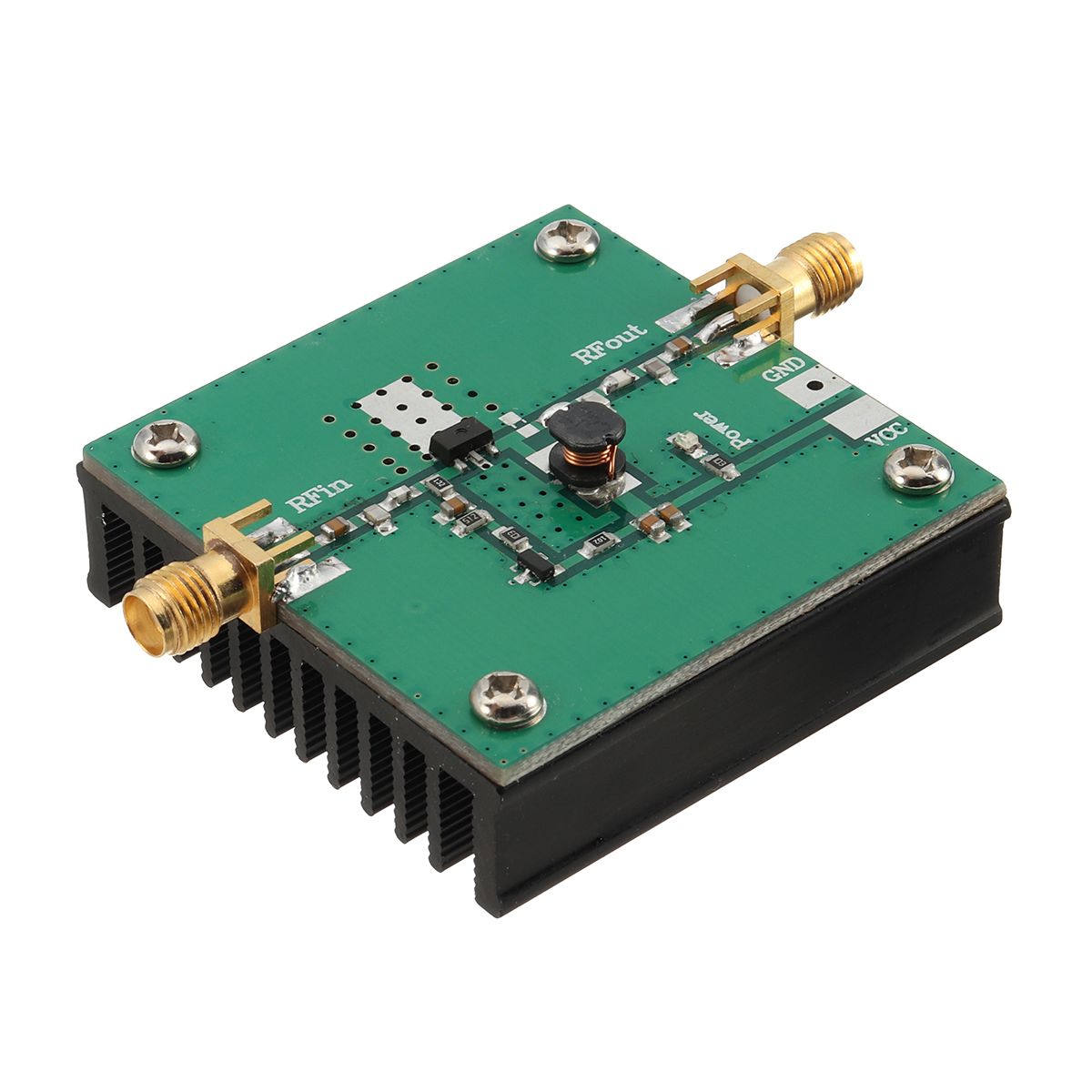

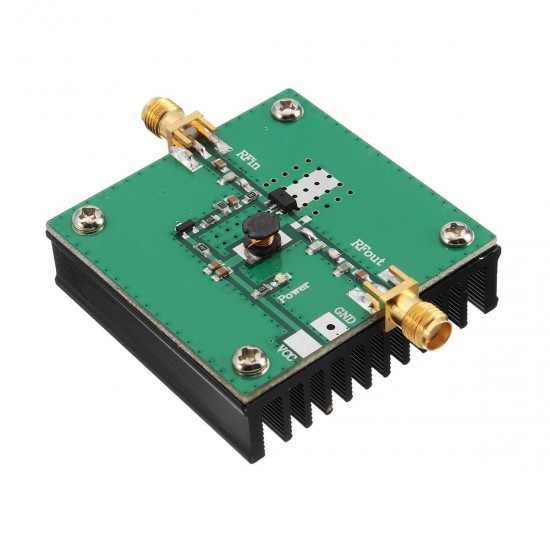

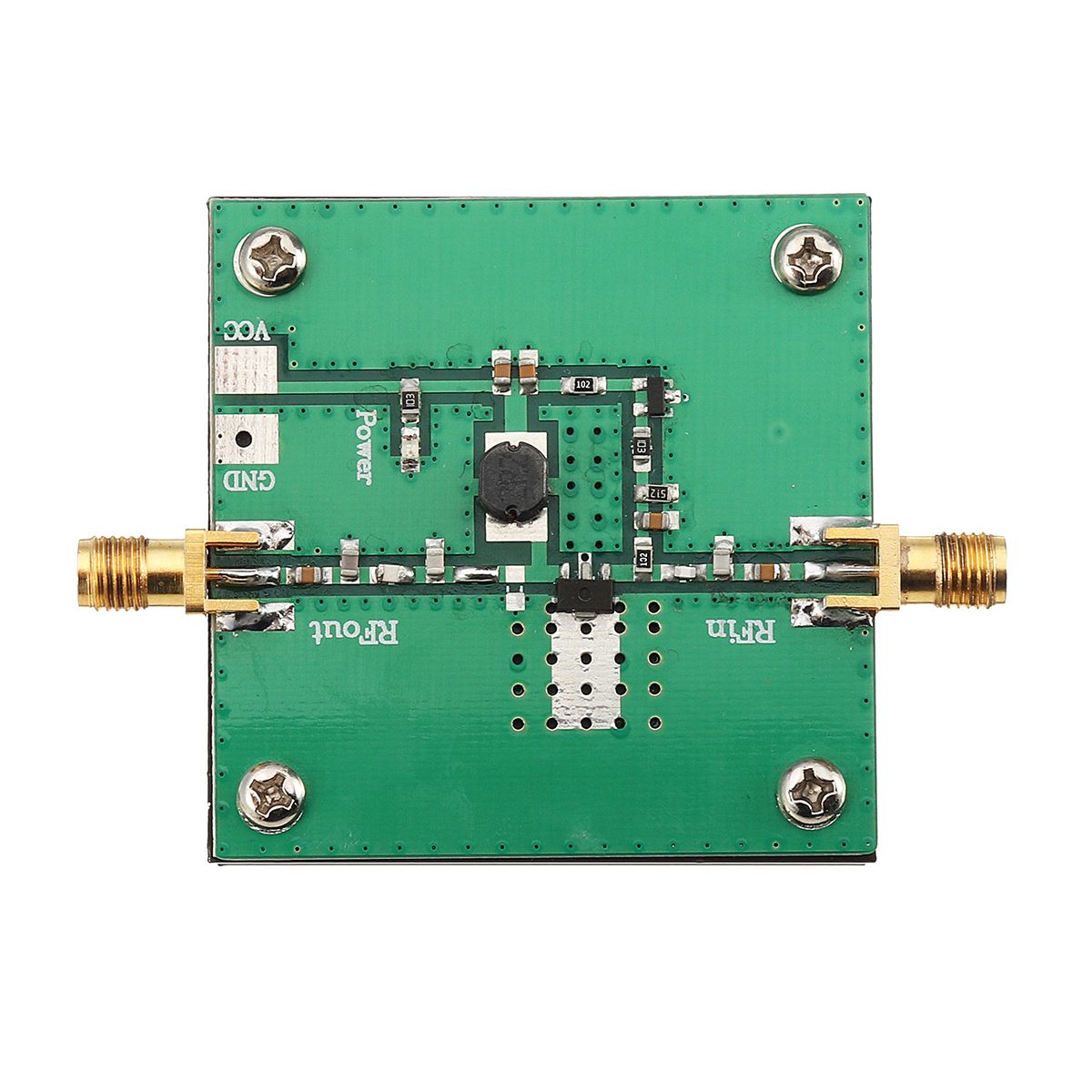

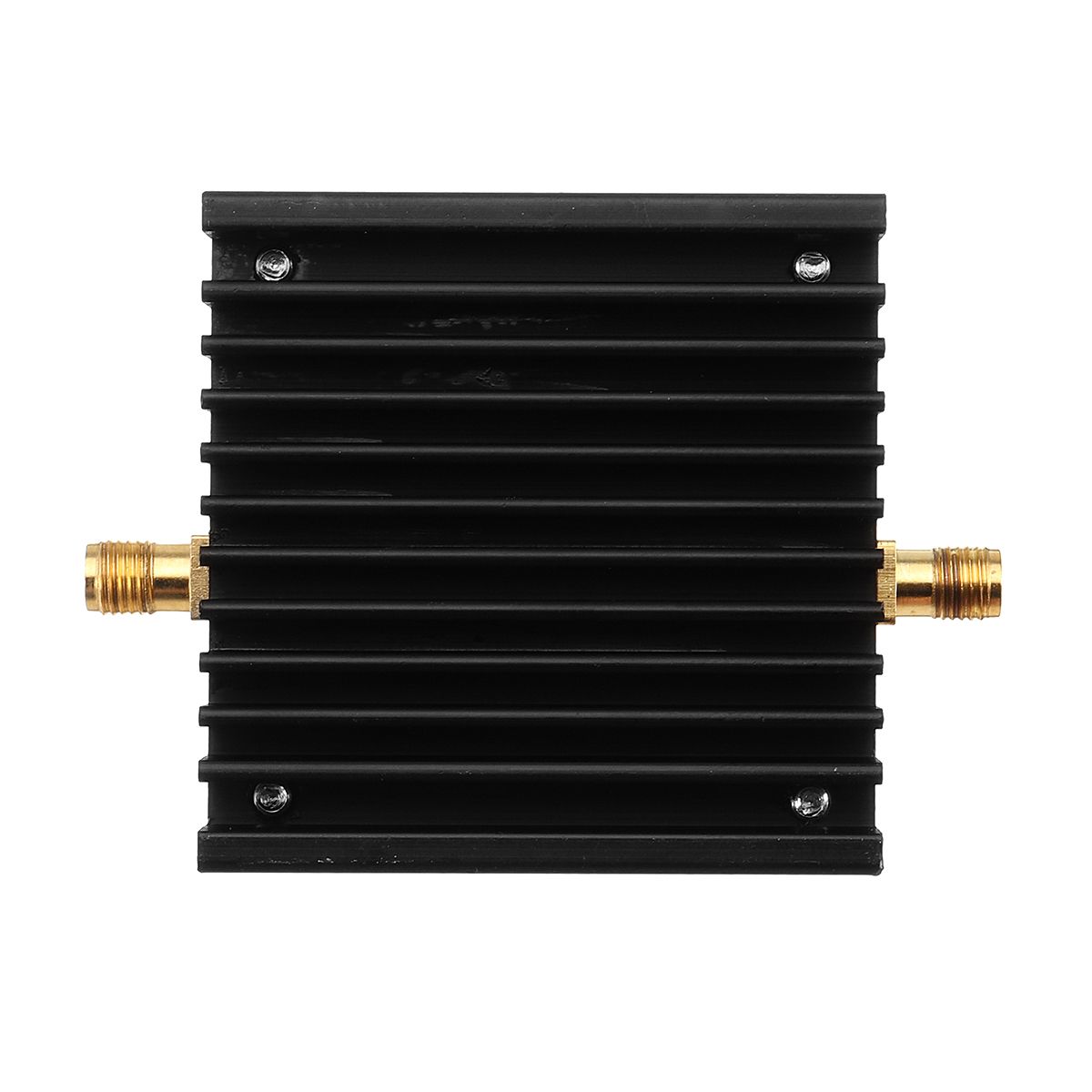

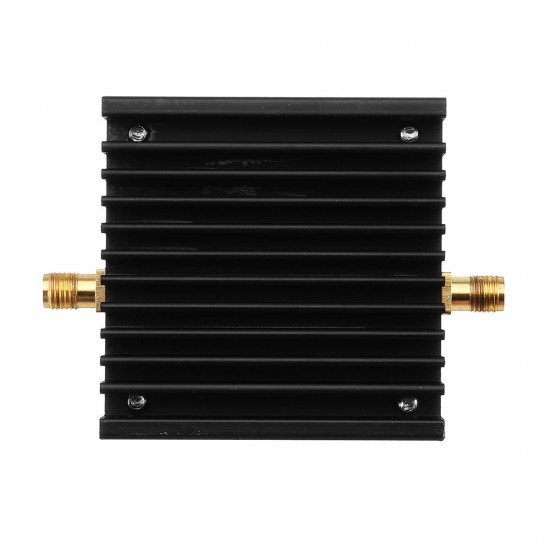

RF 144MHz 5W Power Amplifier

RF 144MHz 5W Power Amplifier
RF 144MHz 5W Power Amplifier
RF 144MHz 5W Power Amplifier
RF 144MHz 5W Power Amplifier
RF 144MHz 5W Power Amplifier
RF 144MHz 5W Power Amplifier
RF 144MHz 5W Power Amplifier
RF 144MHz 5W Power Amplifier
RF 144MHz 5W Power Amplifier
RF 144MHz 5W Power Amplifier
RF 144MHz 5W Power Amplifier
RF 144MHz 5W Power Amplifier
RF 144MHz 5W Power Amplifier
RF 144MHz 5W Power Amplifier
RF 144MHz 5W Power Amplifier
RF 144MHz 5W Power Amplifier
RF 144MHz 5W Power Amplifier
RF 144MHz 5W Power Amplifier
RF 144MHz 5W Power Amplifier
$22.99
Ex Tax: $22.99
  • Stock: In Stock
  • Model: 1324739
  • SKU: 1324739
Content-Length: 2107 v>
Product Usage:

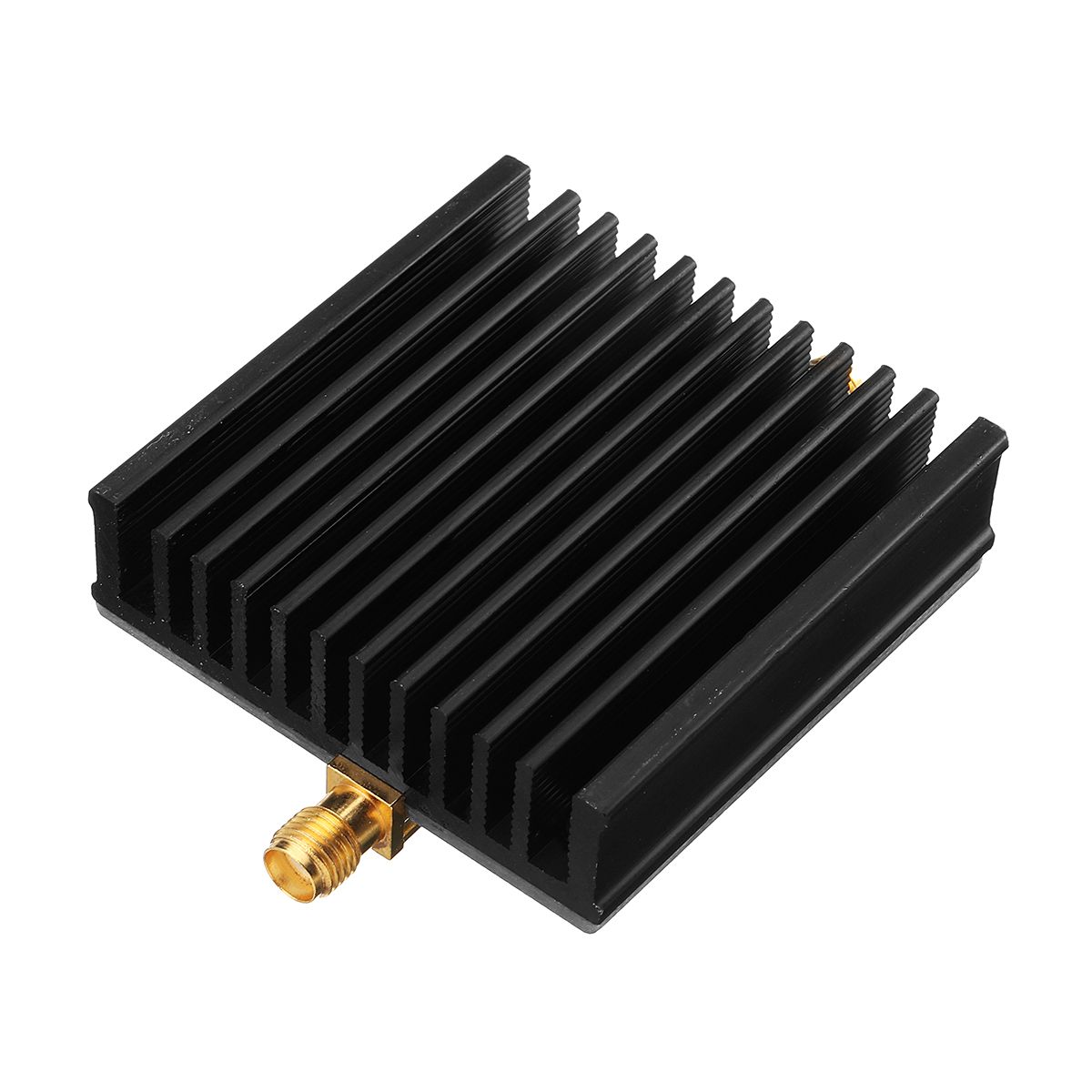

The width RF low power amplifier is suitable for 144MHz (130-180Mz) radio emission learning research. It can output 5.0W@7.2V power when inputting 0.1W, and has high conversion efficiency. The amplifier is equipped with a heat sink for long-term. Stable work.

Technical Parameters:

Operating frequency: 130-180MHz
Input power: 0.1W (20dBm)
Maximum output: 2.5W (34dBm) 5.0V power supply
                                5.0W (37dBm) 7.2V power supply
                                8.0W (39dBm) 10.0V power supply (not recommended)
Working voltage: DC5-7.2V
Operating current: 1-2A (determined by output power)

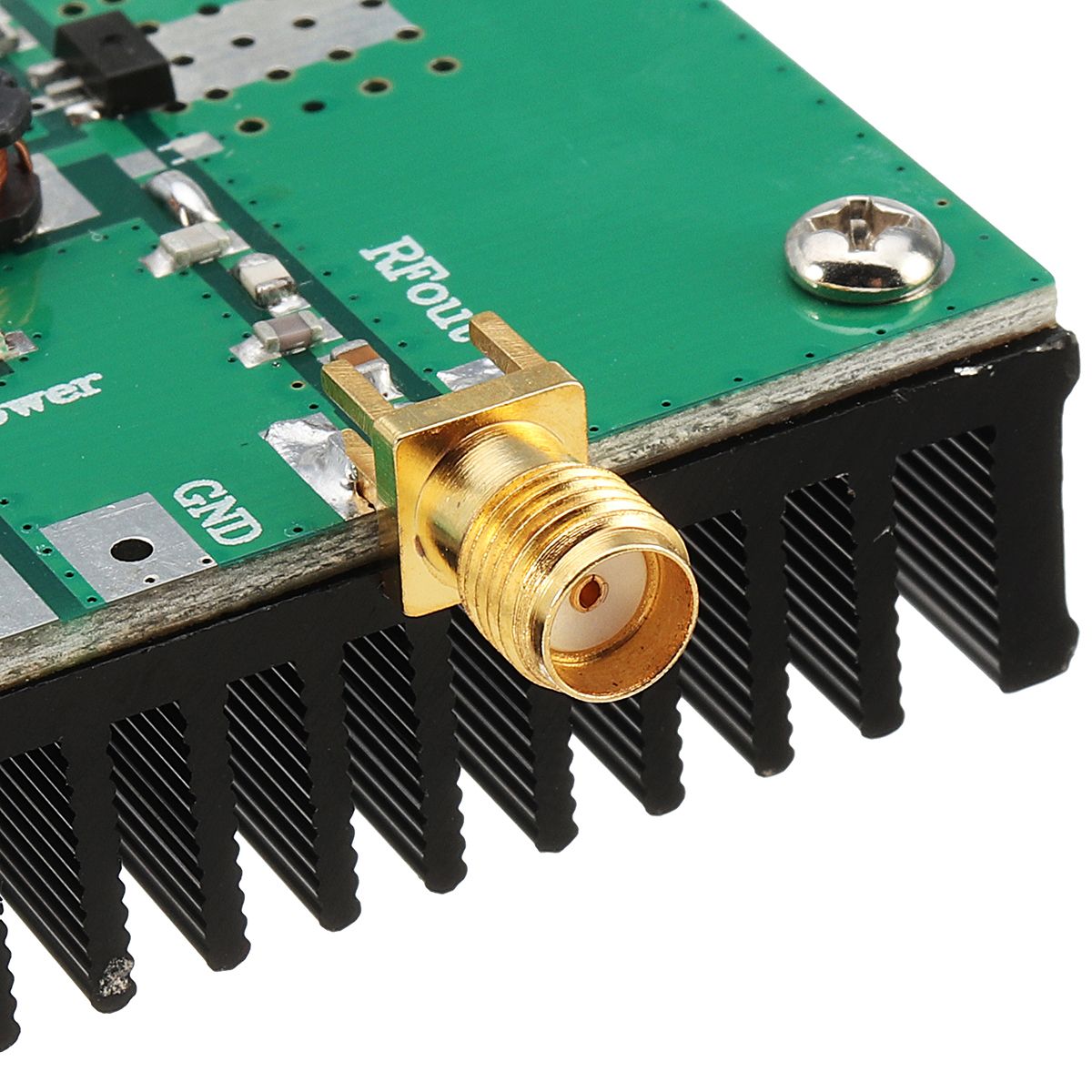

RF connector: standard SMA female

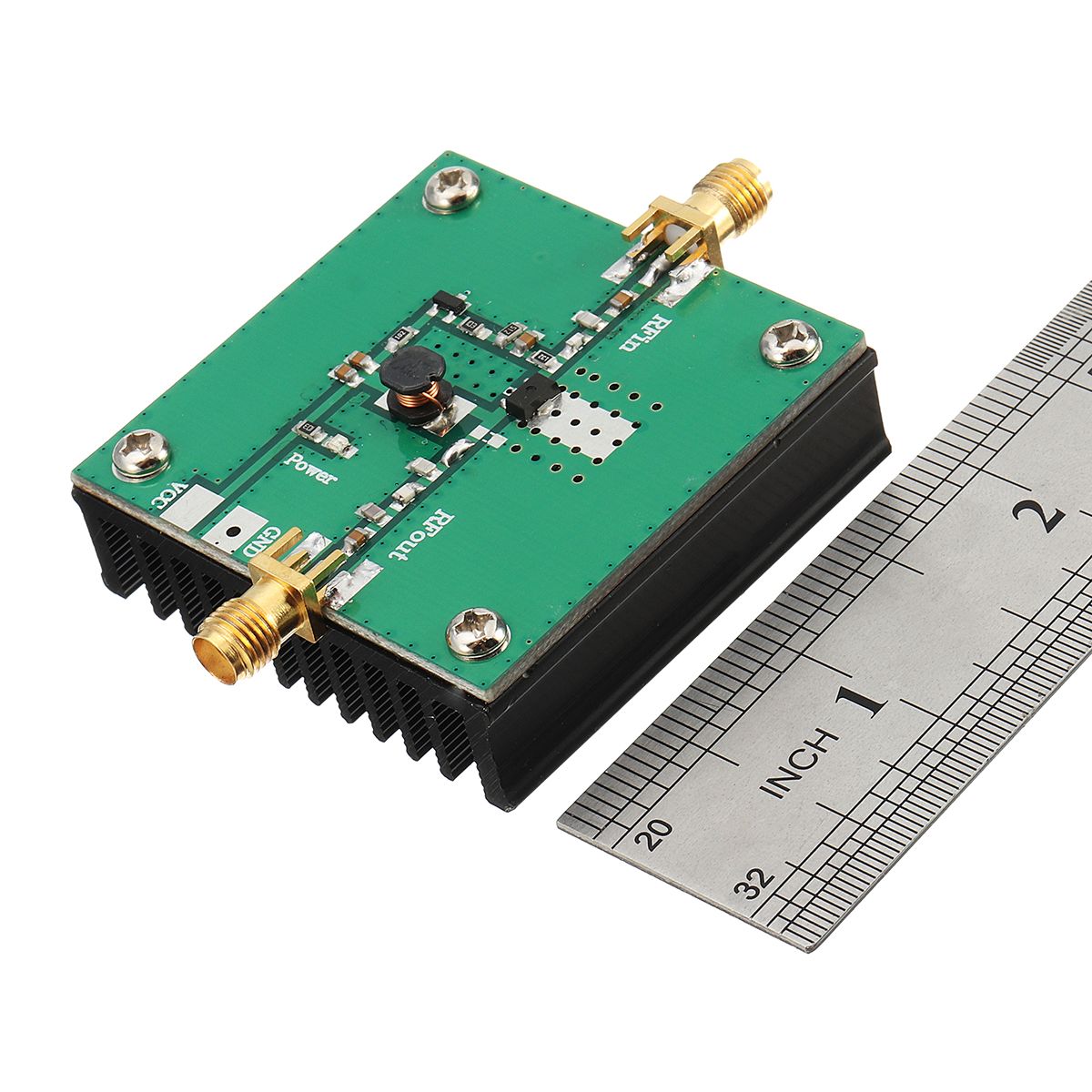

Dimensions: 50*50*15mm
Product weight: 55g (heat sink blackening)

Package included:

1 x RF 144MHz 5W Power Amplifier
