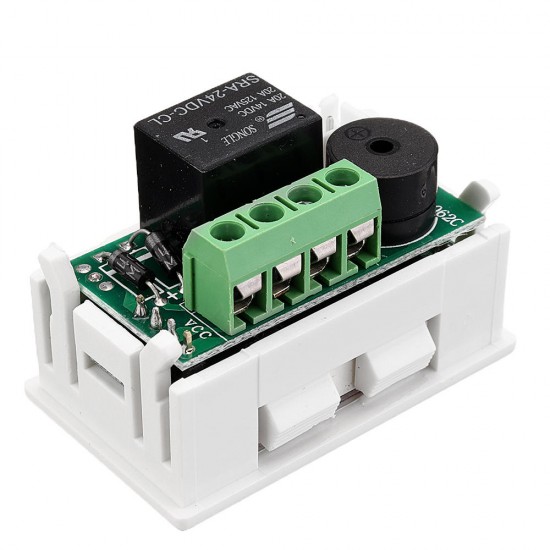

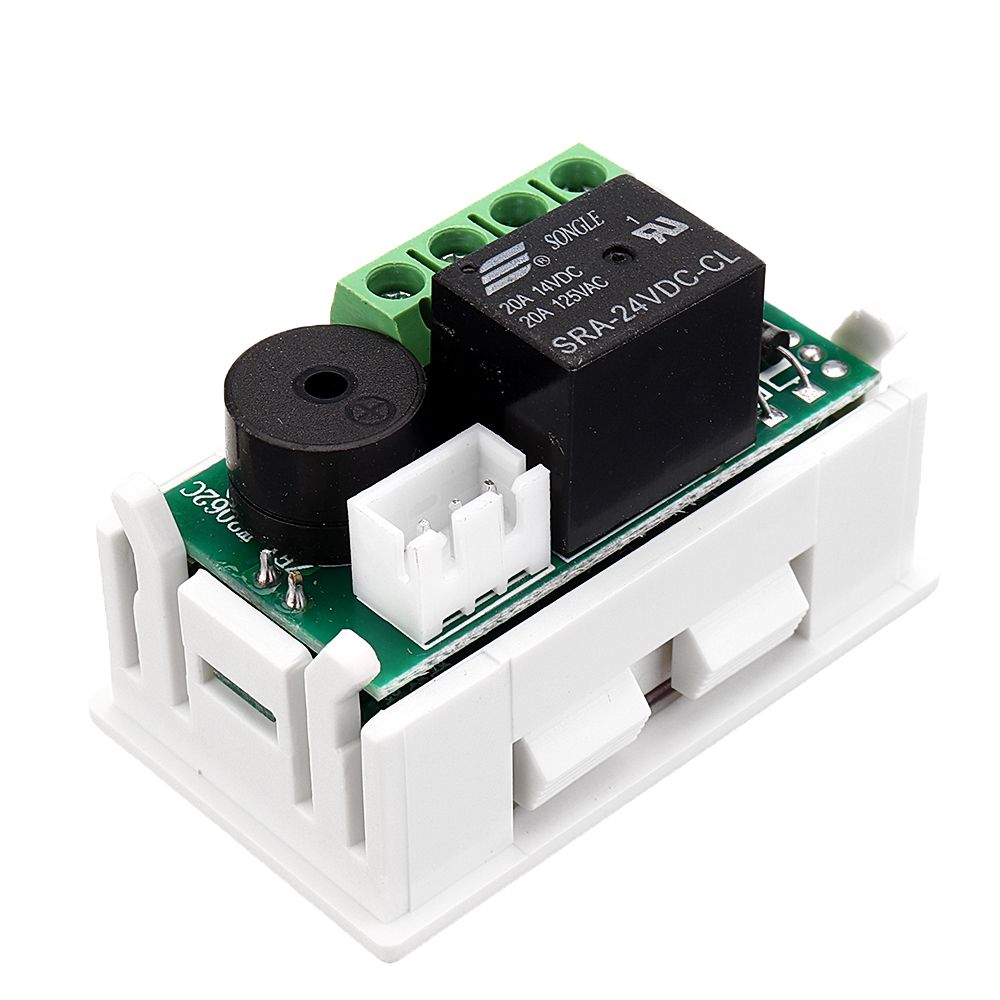

W2026C DC 24V 10A Digital Hygrometer Humidity Meter with Red/Blue LED Display Hygrometer Adjustable Humidity Controller Sensor Switch

W2026C DC 24V 10A Digital Hygrometer Humidity Meter with Red/Blue LED Display Hygrometer Adjustable Humidity Controller Sensor Switch
W2026C DC 24V 10A Digital Hygrometer Humidity Meter with Red/Blue LED Display Hygrometer Adjustable Humidity Controller Sensor Switch
W2026C DC 24V 10A Digital Hygrometer Humidity Meter with Red/Blue LED Display Hygrometer Adjustable Humidity Controller Sensor Switch
W2026C DC 24V 10A Digital Hygrometer Humidity Meter with Red/Blue LED Display Hygrometer Adjustable Humidity Controller Sensor Switch
W2026C DC 24V 10A Digital Hygrometer Humidity Meter with Red/Blue LED Display Hygrometer Adjustable Humidity Controller Sensor Switch
W2026C DC 24V 10A Digital Hygrometer Humidity Meter with Red/Blue LED Display Hygrometer Adjustable Humidity Controller Sensor Switch
W2026C DC 24V 10A Digital Hygrometer Humidity Meter with Red/Blue LED Display Hygrometer Adjustable Humidity Controller Sensor Switch
W2026C DC 24V 10A Digital Hygrometer Humidity Meter with Red/Blue LED Display Hygrometer Adjustable Humidity Controller Sensor Switch
W2026C DC 24V 10A Digital Hygrometer Humidity Meter with Red/Blue LED Display Hygrometer Adjustable Humidity Controller Sensor Switch
W2026C DC 24V 10A Digital Hygrometer Humidity Meter with Red/Blue LED Display Hygrometer Adjustable Humidity Controller Sensor Switch
W2026C DC 24V 10A Digital Hygrometer Humidity Meter with Red/Blue LED Display Hygrometer Adjustable Humidity Controller Sensor Switch
W2026C DC 24V 10A Digital Hygrometer Humidity Meter with Red/Blue LED Display Hygrometer Adjustable Humidity Controller Sensor Switch
W2026C DC 24V 10A Digital Hygrometer Humidity Meter with Red/Blue LED Display Hygrometer Adjustable Humidity Controller Sensor Switch
W2026C DC 24V 10A Digital Hygrometer Humidity Meter with Red/Blue LED Display Hygrometer Adjustable Humidity Controller Sensor Switch
W2026C DC 24V 10A Digital Hygrometer Humidity Meter with Red/Blue LED Display Hygrometer Adjustable Humidity Controller Sensor Switch
W2026C DC 24V 10A Digital Hygrometer Humidity Meter with Red/Blue LED Display Hygrometer Adjustable Humidity Controller Sensor Switch
W2026C DC 24V 10A Digital Hygrometer Humidity Meter with Red/Blue LED Display Hygrometer Adjustable Humidity Controller Sensor Switch
W2026C DC 24V 10A Digital Hygrometer Humidity Meter with Red/Blue LED Display Hygrometer Adjustable Humidity Controller Sensor Switch
W2026C DC 24V 10A Digital Hygrometer Humidity Meter with Red/Blue LED Display Hygrometer Adjustable Humidity Controller Sensor Switch
W2026C DC 24V 10A Digital Hygrometer Humidity Meter with Red/Blue LED Display Hygrometer Adjustable Humidity Controller Sensor Switch
W2026C DC 24V 10A Digital Hygrometer Humidity Meter with Red/Blue LED Display Hygrometer Adjustable Humidity Controller Sensor Switch
$11.99
Ex Tax: $11.99
  • Stock: In Stock
  • Model: EB0045556
  • SKU: EB0045556
Specifications:

Control humidity range: 1%RH-99%RH
Load power: 10A/DC24V
Humidity measurement range: 1% RH-999% RH
Measurement error:±3% RH (good environment temperature is 25℃)
Control humidity accuracy: 1% RH display: 1% RH
Humidity return: adjustable between 1-50% RH
Supply voltage: DC24V

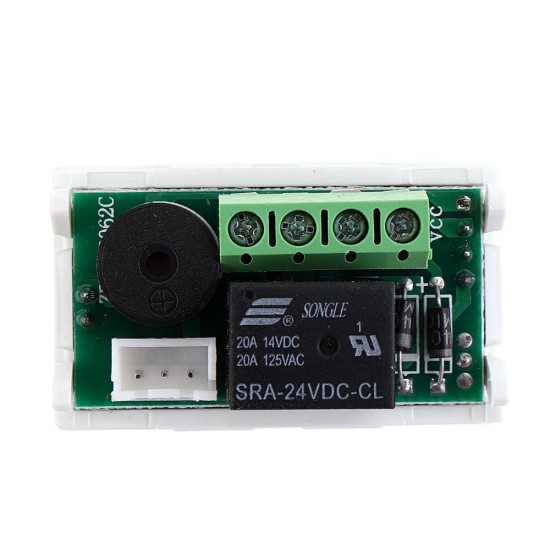

Output type: 10A relay output

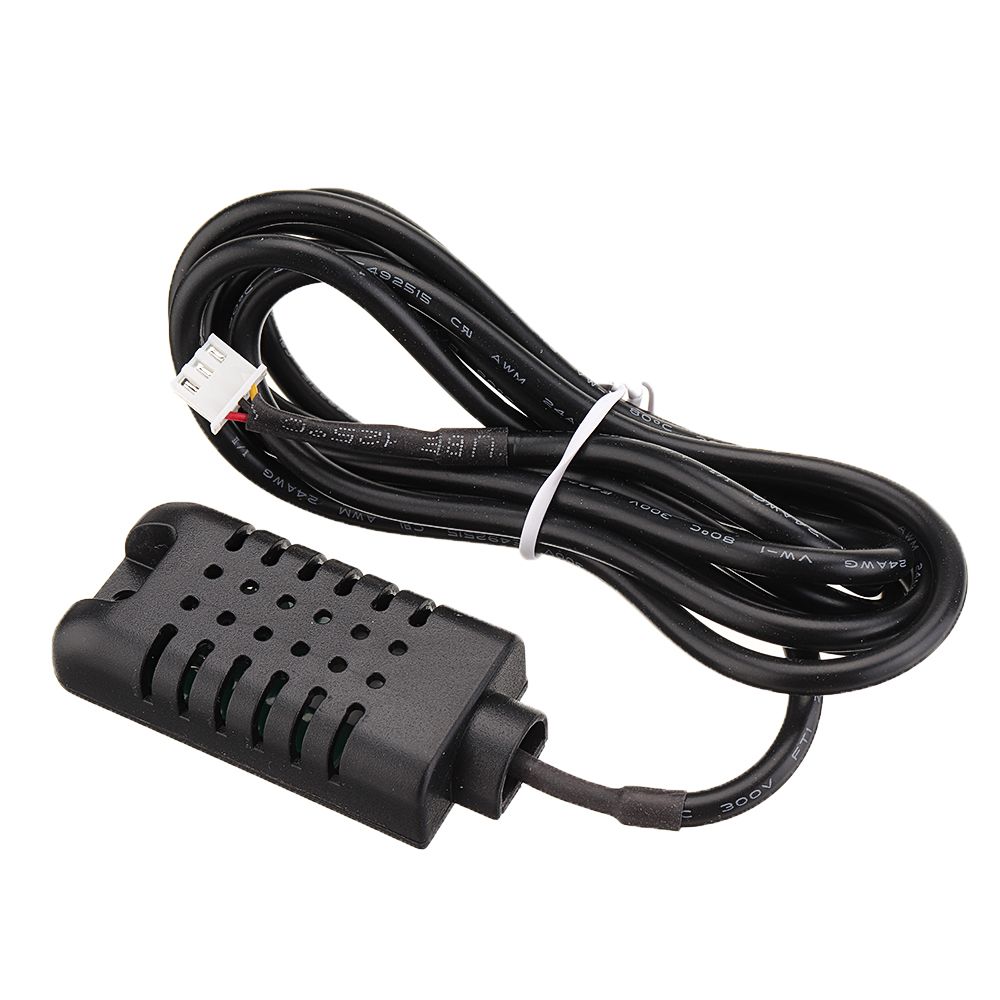

Probe type: humidity resistance sensor

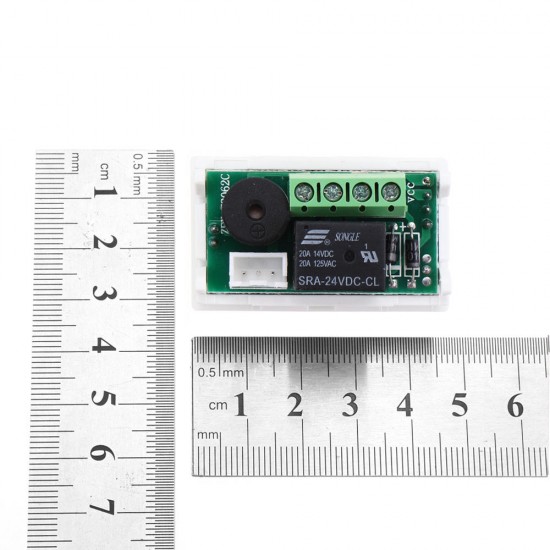

Size: 48*29*22mm
Installation hole: 46*27m
Moisture control object: dehumidification or humidification

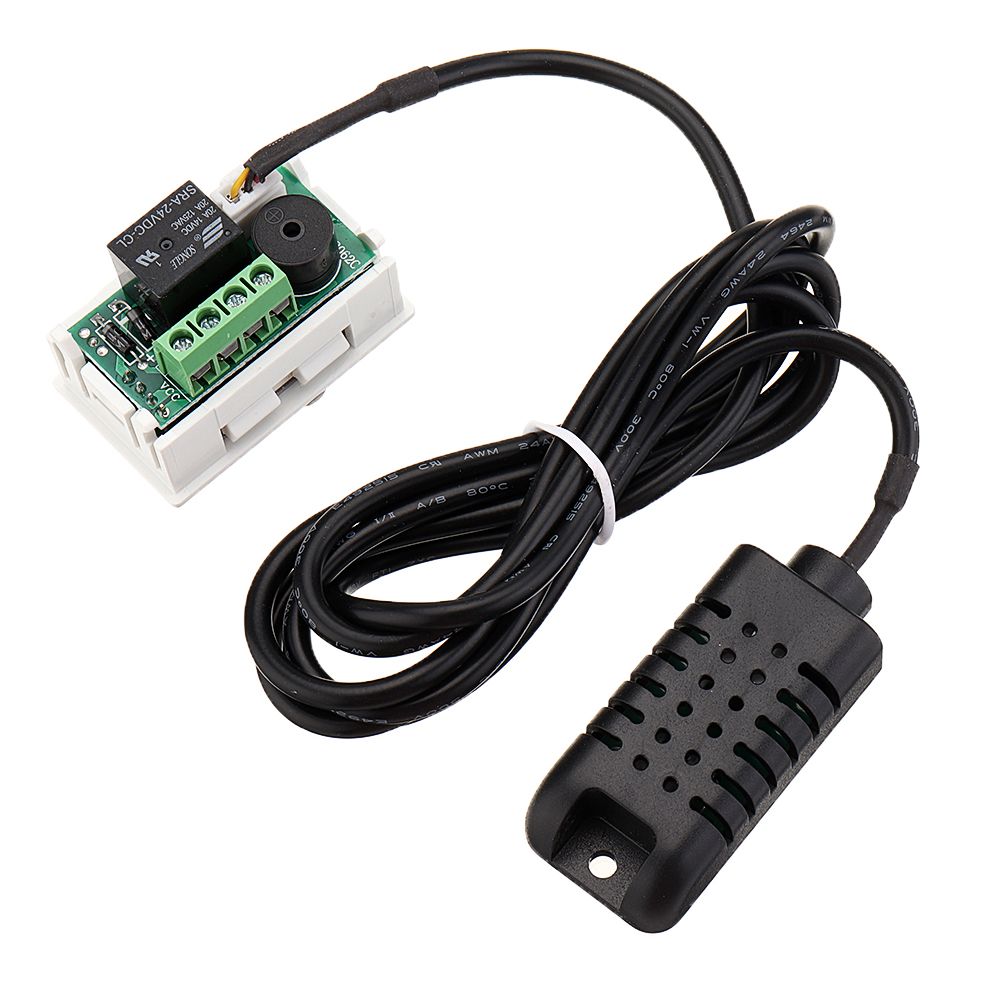

Probe line length: 1.5m line length
Working environment: humidity 90% RH no frosting

Parameter Code and Settings:

Code

Description

range

Factory settings

P0

Humidification/dehumidification

H/C

C

P1

Backlash

1-50%RH



P2

Set the maximum limit

99

95

P3

Set the minimum limit

1

5

P4

Temperature correction

-10

10

P5

Delayed start

0-10

1

P6

Restore Factory settings

ON- OFF

OFF























Setting Instructions:

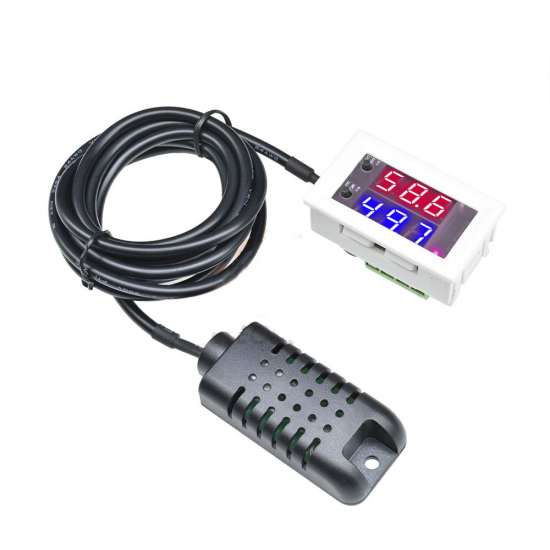

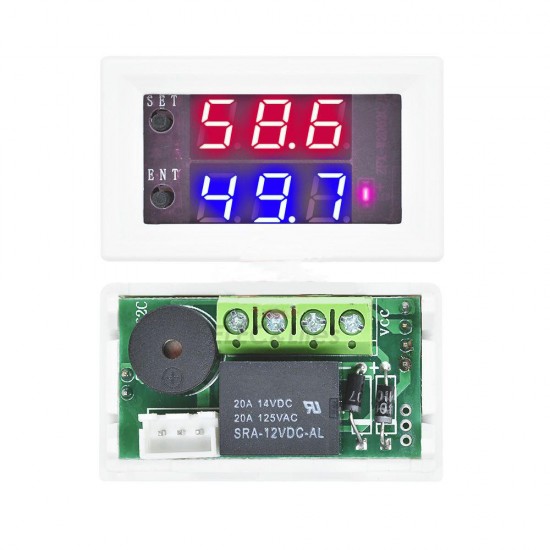

1.Connect the power supply and load to power the controller. The red color above shows the humidity, blue below is displayed as the desired humidity
2. Press STG (+) ENT (-) to set the required humidity,After the setting is completed, wait for 3 seconds to automatically confirm the return. At this time, the controller automatically performs relay energization according to the setting.
3. Press and hold SET for 5 seconds to enter the main menu settings, press SET (+) ENT (-) to switch P0-P8, when adjusting parameters P0-P8 parameters
4. If you need to adjust P0, press SET button (+) ENT (-) at the same time, adjust 0K, then control SET (+) ENT (-)
Note: For 10A relays, to meet high power loads, please make sure the line is correct.

Indicator Description:

Indicator light: off means the relay is off, steady light means the relay is closed
Digital tube: The above shows that LL is the sensor open circuit, indicating that HH is out of the measurement range, the humidity will forcibly open the relay.

Package Included:

1 x W2026C DC 24V 10A Digital Hygrometer Humidity Meter




W2026C-DC-24V-10A-Digital-Hygrometer-Humidity-Meter-with-RedBlue-LED-Display-Hygrometer-Adjustable-H-1508674

W2026C-DC-24V-10A-Digital-Hygrometer-Humidity-Meter-with-RedBlue-LED-Display-Hygrometer-Adjustable-H-1508674

W2026C-DC-24V-10A-Digital-Hygrometer-Humidity-Meter-with-RedBlue-LED-Display-Hygrometer-Adjustable-H-1508674

W2026C-DC-24V-10A-Digital-Hygrometer-Humidity-Meter-with-RedBlue-LED-Display-Hygrometer-Adjustable-H-1508674
