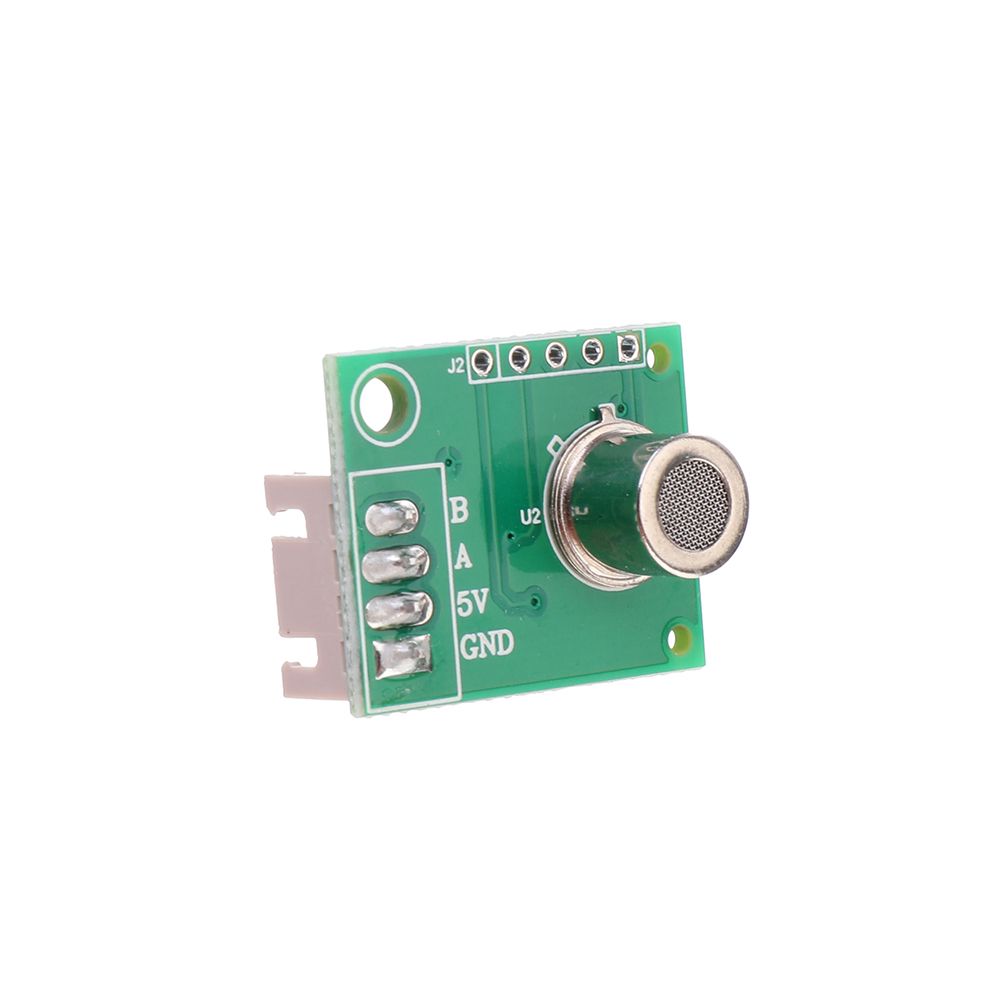

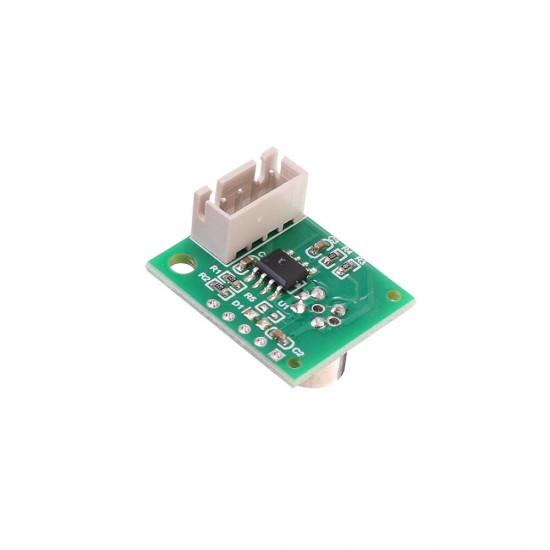

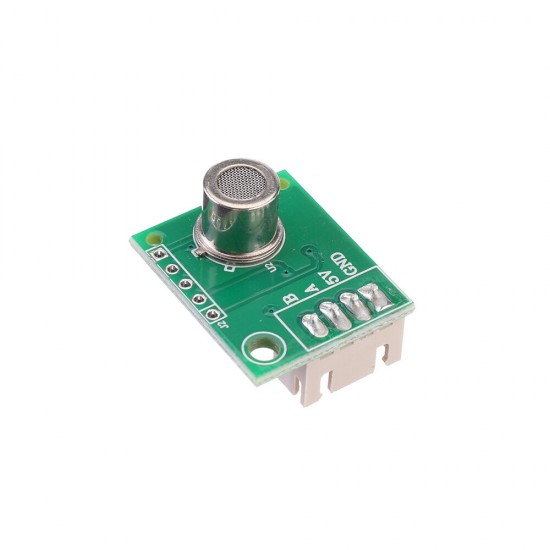

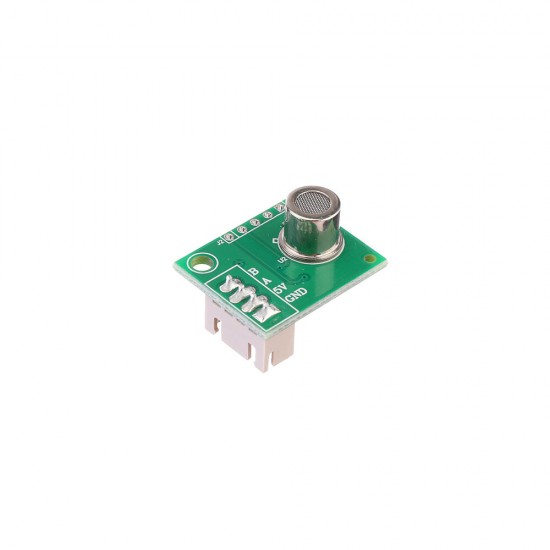

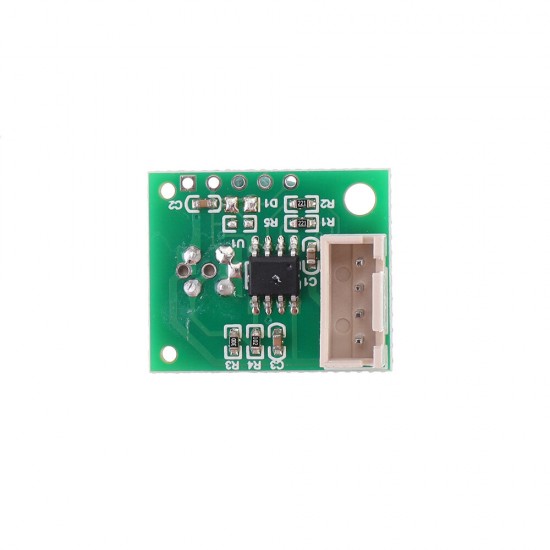

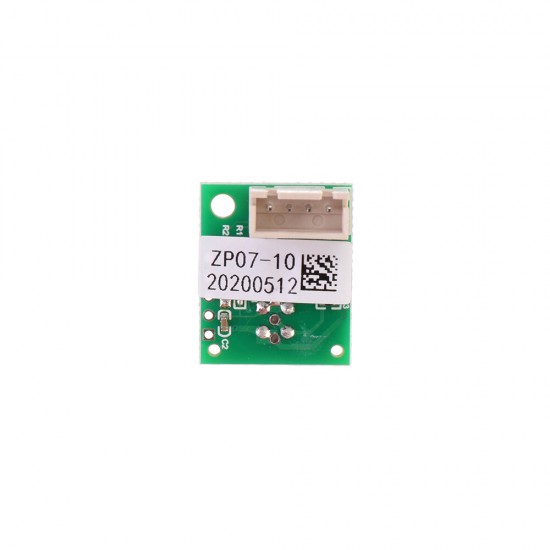

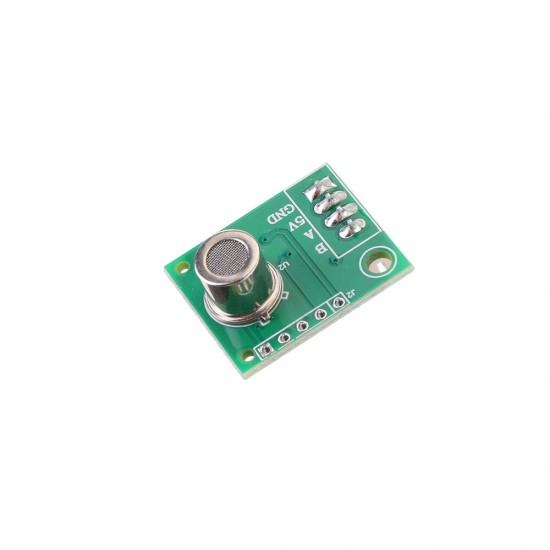

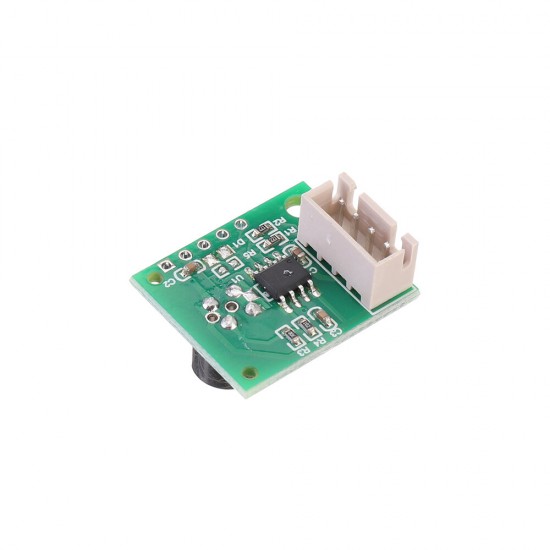

ZP07-MP503 Air-Quality Detection Module Formaldehyde Benzene Carbon Monoxide Hydrogen Ammonia Essence for Air Quality Detector

Based on 0 reviews. - Write a review

$7.99

Ex Tax: $7.99

Stock: In Stock
Model: EB0045598
SKU: EB0045598

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

>>>Manual: Click here to open<<<

Principle Introduction:

ZP07 air-quality module adopts flat surface semiconductor gas sensor. The module has good sensitivity to volatile organic gases such as formaldehyde, benzene, carbon monoxide, ammonia, hydrogen, sence &etc. The module has been aging, debugged, adjusted and calibrated. So it has good consistency and high sensitivity.

Applications :

Air cleaner, fresh-air system, intelligent integrated ceiling, air quality detector, ventilator, air-condition.

Technical Parameters :

Model No.: ZP07

Detection Gas: formaldehyde, benzene, carbon monoxide, hydrogen, ammonia, essence &etc

Physical Interface: XH2.54-4P terminal sockets

Output Data: 0-3 grade pollution signal

Working Voltage: 5.0±0.2V DC (No voltage

reverse connect protection)

Output: TTL level (200ohm protected

resistance inside)

Working Current: ≤60mA

Warm-up Time: ≤3 min

Response Time: ≤20s

Recovery Time: ≤60s

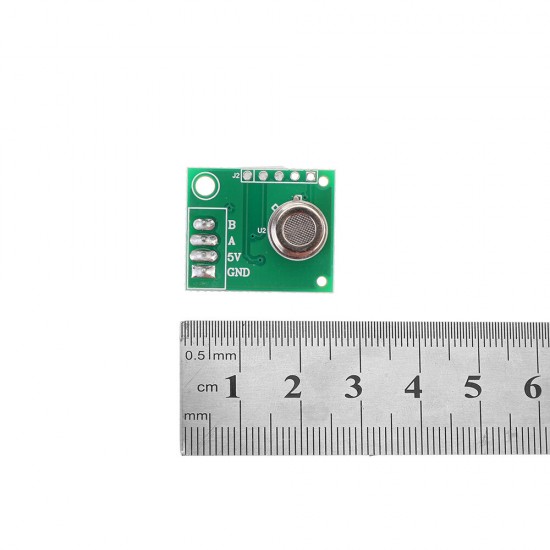

Size: 24×20×16mm(L×W×H)

Package Inlcuded:

1 x ZP07-MP503 Air-Quality Detection Module
