10pcs 433MHZ Wireless Transmitter Receiving Module ASK DC 9V-12V EV1527 Remote Control Switch Board

10pcs 433MHZ Wireless Transmitter Receiving Module ASK DC 9V-12V EV1527 Remote Control Switch Board
10pcs 433MHZ Wireless Transmitter Receiving Module ASK DC 9V-12V EV1527 Remote Control Switch Board
10pcs 433MHZ Wireless Transmitter Receiving Module ASK DC 9V-12V EV1527 Remote Control Switch Board
10pcs 433MHZ Wireless Transmitter Receiving Module ASK DC 9V-12V EV1527 Remote Control Switch Board
10pcs 433MHZ Wireless Transmitter Receiving Module ASK DC 9V-12V EV1527 Remote Control Switch Board
10pcs 433MHZ Wireless Transmitter Receiving Module ASK DC 9V-12V EV1527 Remote Control Switch Board
10pcs 433MHZ Wireless Transmitter Receiving Module ASK DC 9V-12V EV1527 Remote Control Switch Board
10pcs 433MHZ Wireless Transmitter Receiving Module ASK DC 9V-12V EV1527 Remote Control Switch Board
10pcs 433MHZ Wireless Transmitter Receiving Module ASK DC 9V-12V EV1527 Remote Control Switch Board
10pcs 433MHZ Wireless Transmitter Receiving Module ASK DC 9V-12V EV1527 Remote Control Switch Board
10pcs 433MHZ Wireless Transmitter Receiving Module ASK DC 9V-12V EV1527 Remote Control Switch Board
10pcs 433MHZ Wireless Transmitter Receiving Module ASK DC 9V-12V EV1527 Remote Control Switch Board
10pcs 433MHZ Wireless Transmitter Receiving Module ASK DC 9V-12V EV1527 Remote Control Switch Board
$19.99
Ex Tax: $19.99
  • Stock: In Stock
  • Model: EB0042874
  • SKU: EB0042874
Technical request :

Product model: ZF-2 (with code)
Transmission frequency:  433.92MHZ
Working voltage: DC 9V ~12V
Modulation method: ASK
Quiescent current: 0uA
Working current: 8~10mA
Coding type: learning code (EV1527)
Radiated power: 10~15mW
Shooting distance: 100-200 meters (receiver sensitivity -108dBm)

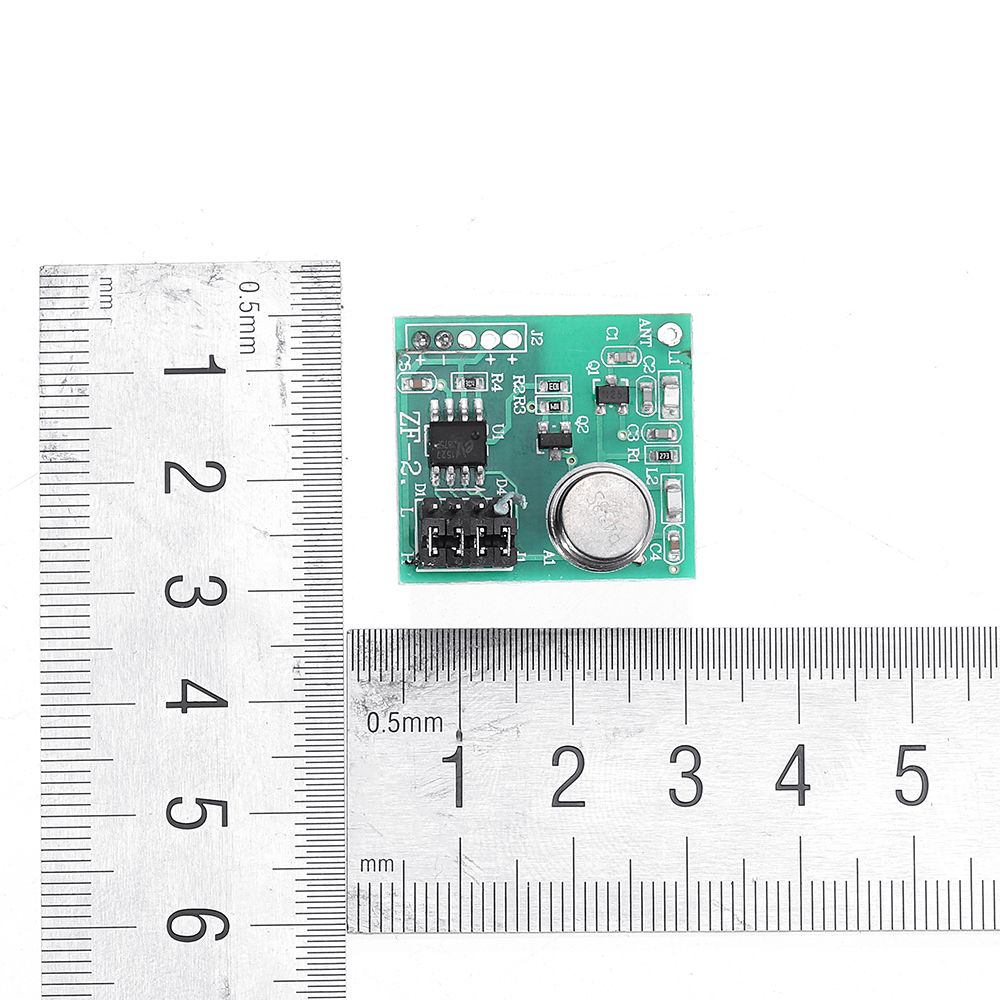

Volume: 26.3mm*23.3mm*9mm

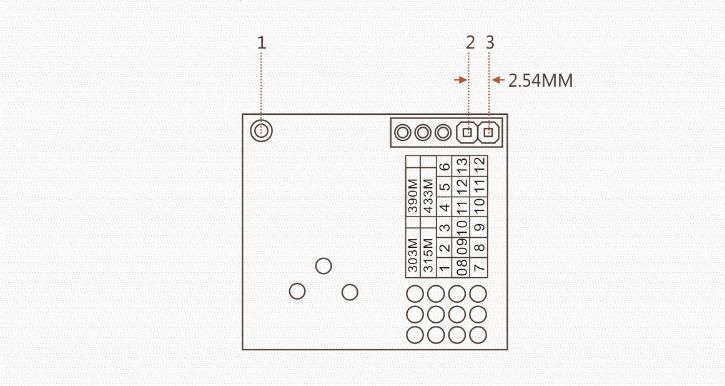

PIN NAME Function
1 ANT RF signal input pin, this pin needs to be connected to the antenna
2 12V- DC power supply negative input pin
3 12V+ DC power supply positive input pin

Rated parameter Symbol Value
DC power supply VDD-VSS 9V-12V
Storage temperature range (TS) TSTG  -12°C to 75°C
Welding temperature  +260°C

10pcs-433MHZ-Wireless-Transmitter-Receiving-Module-ASK-DC-9V-12V-EV1527-Remote-Control-Switch-Board-1616402

Package includes:

10 x Receiving board




10pcs-433MHZ-Wireless-Transmitter-Receiving-Module-ASK-DC-9V-12V-EV1527-Remote-Control-Switch-Board-1616402

10pcs-433MHZ-Wireless-Transmitter-Receiving-Module-ASK-DC-9V-12V-EV1527-Remote-Control-Switch-Board-1616402

10pcs-433MHZ-Wireless-Transmitter-Receiving-Module-ASK-DC-9V-12V-EV1527-Remote-Control-Switch-Board-1616402

10pcs-433MHZ-Wireless-Transmitter-Receiving-Module-ASK-DC-9V-12V-EV1527-Remote-Control-Switch-Board-1616402

10pcs-433MHZ-Wireless-Transmitter-Receiving-Module-ASK-DC-9V-12V-EV1527-Remote-Control-Switch-Board-1616402

10pcs-433MHZ-Wireless-Transmitter-Receiving-Module-ASK-DC-9V-12V-EV1527-Remote-Control-Switch-Board-1616402
