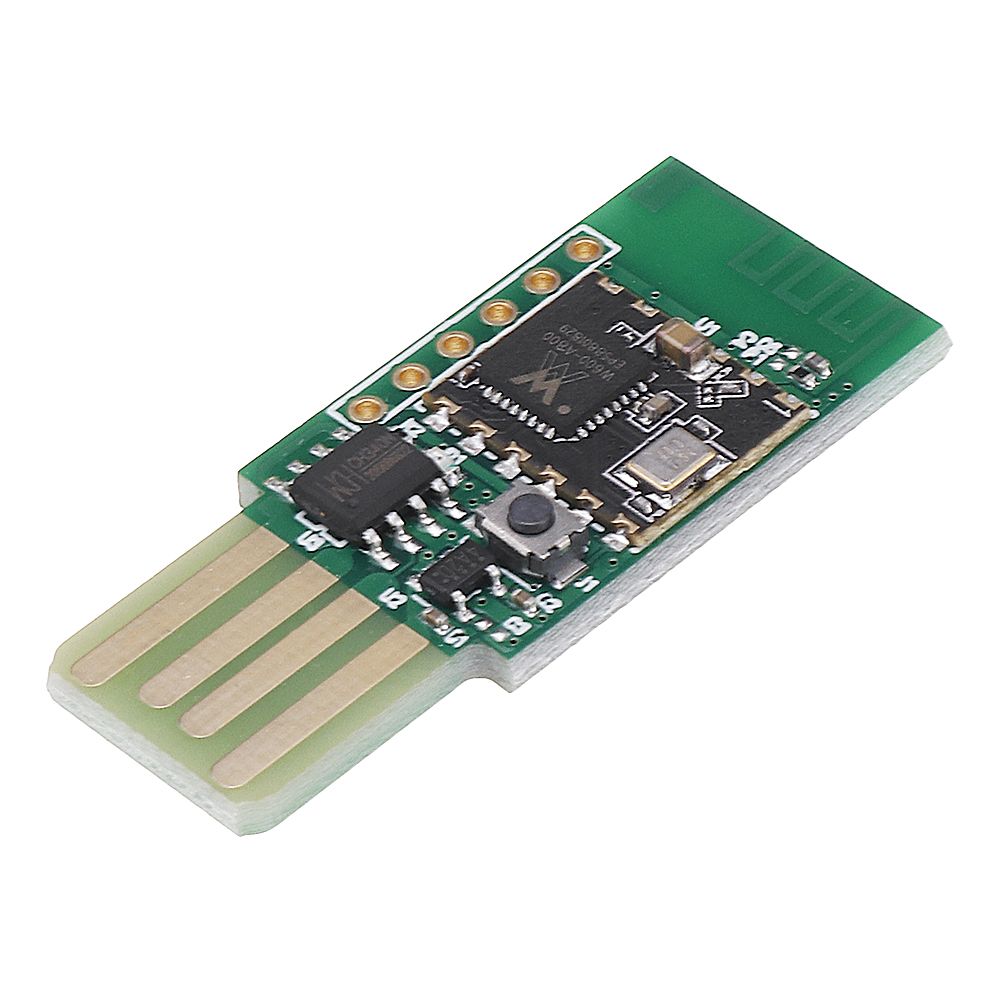

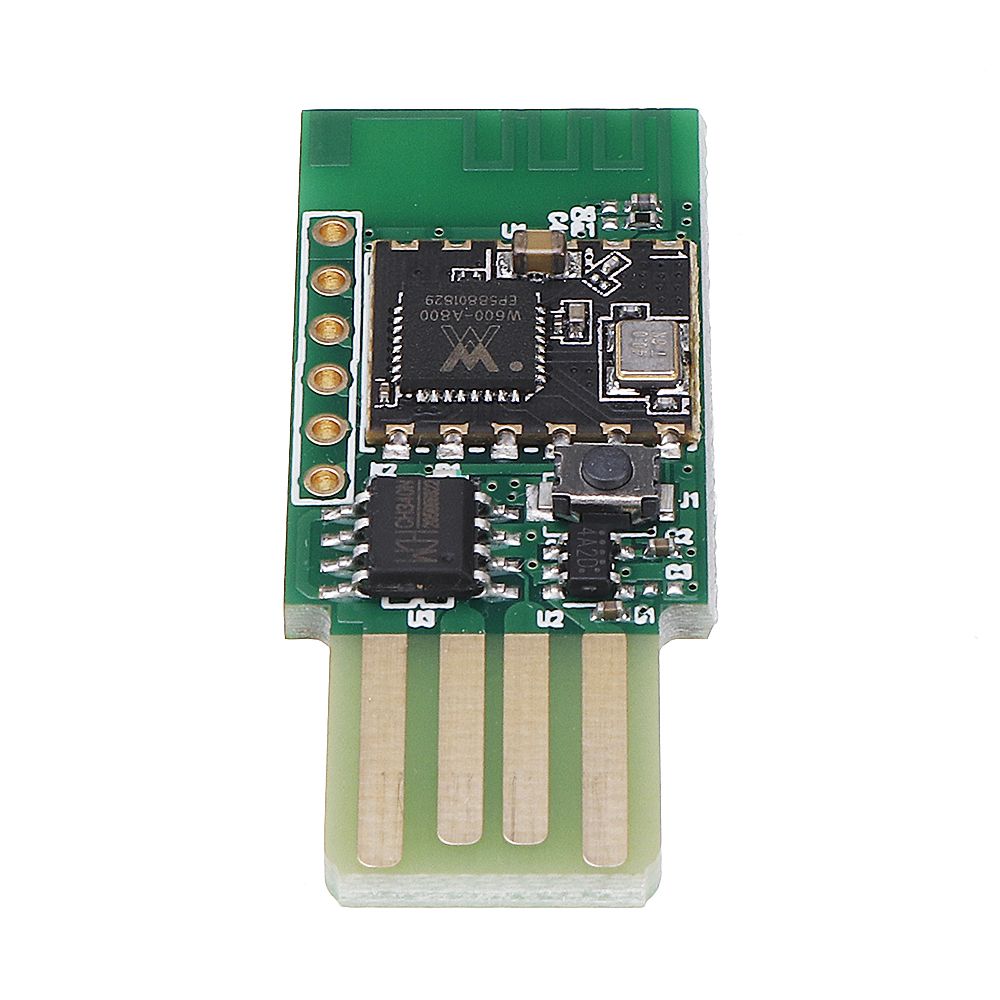

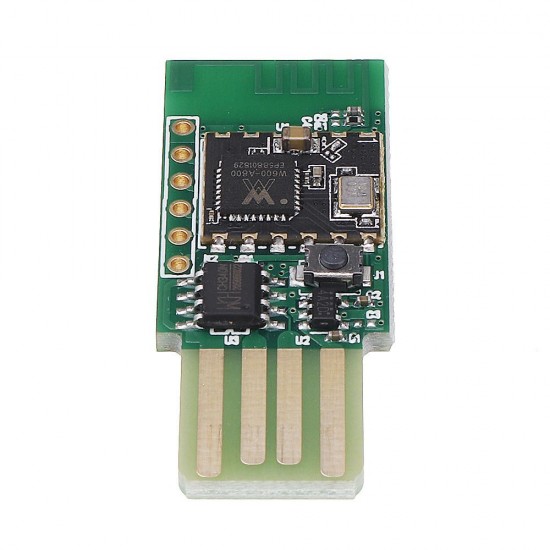

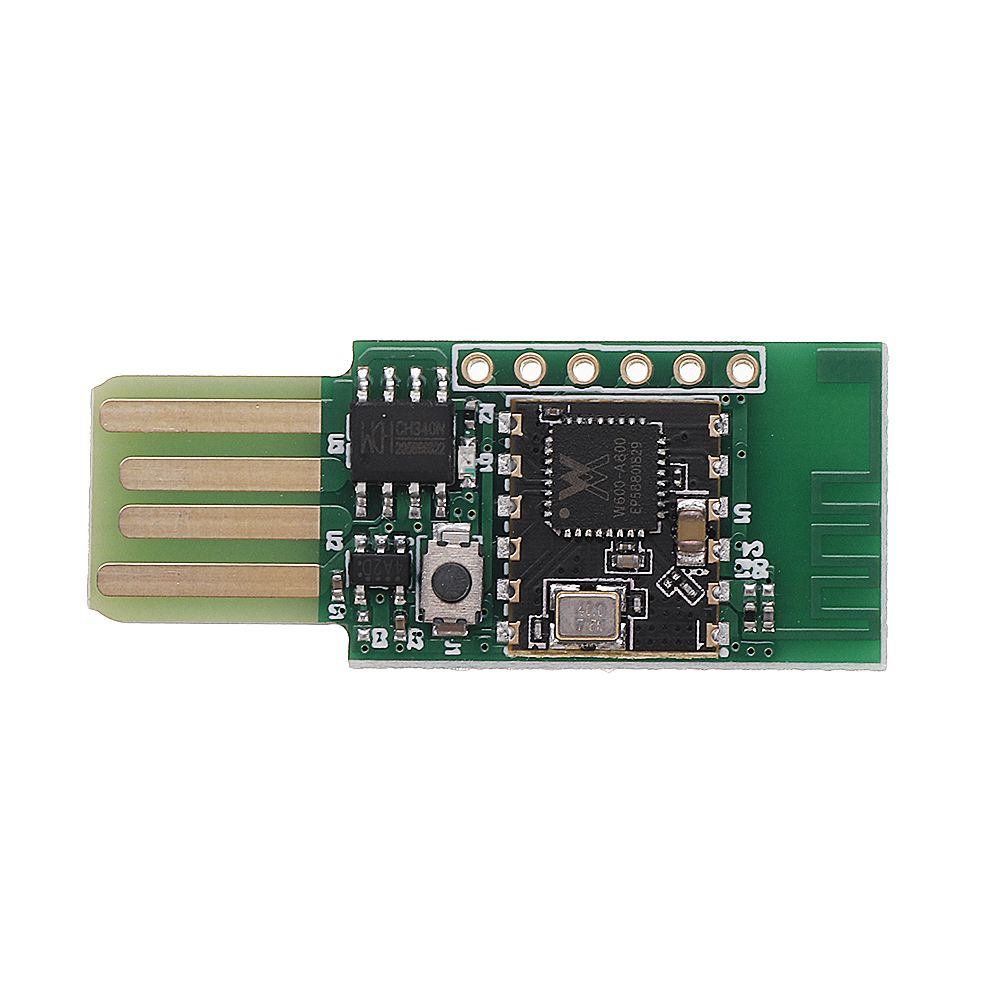

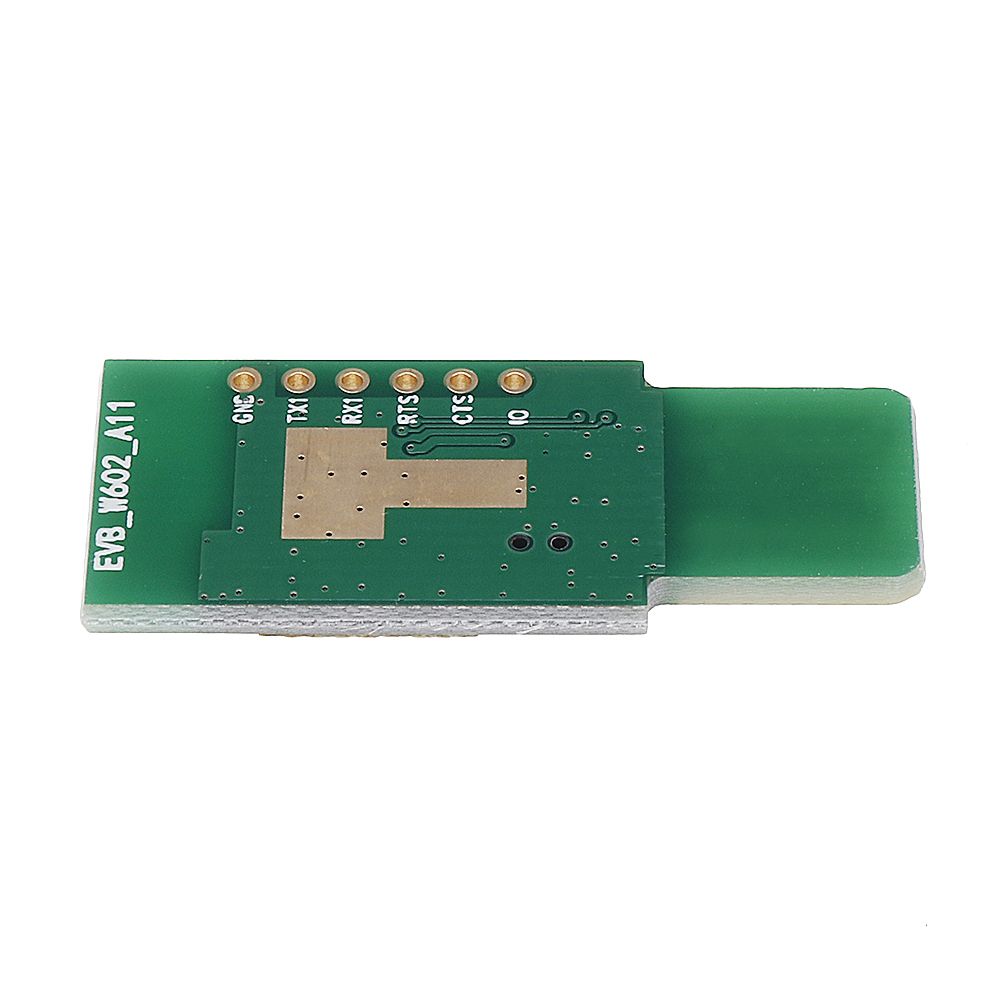

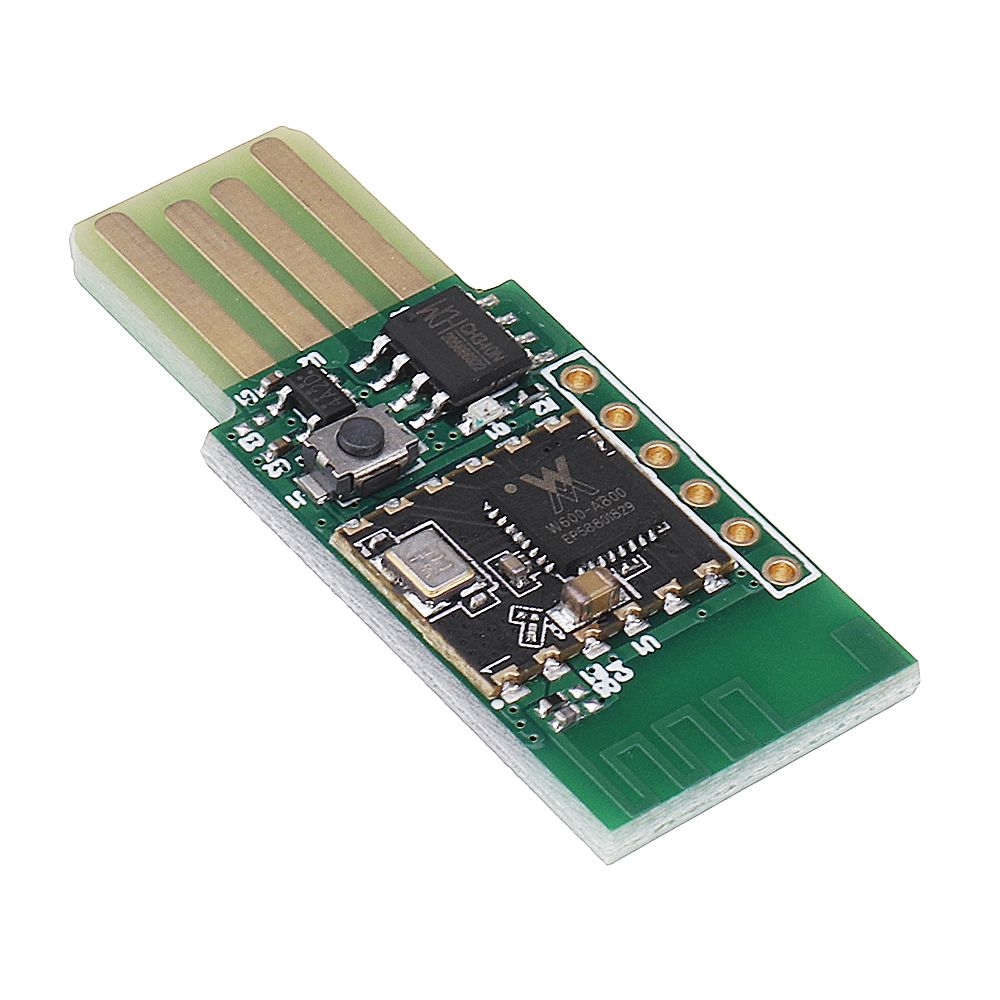

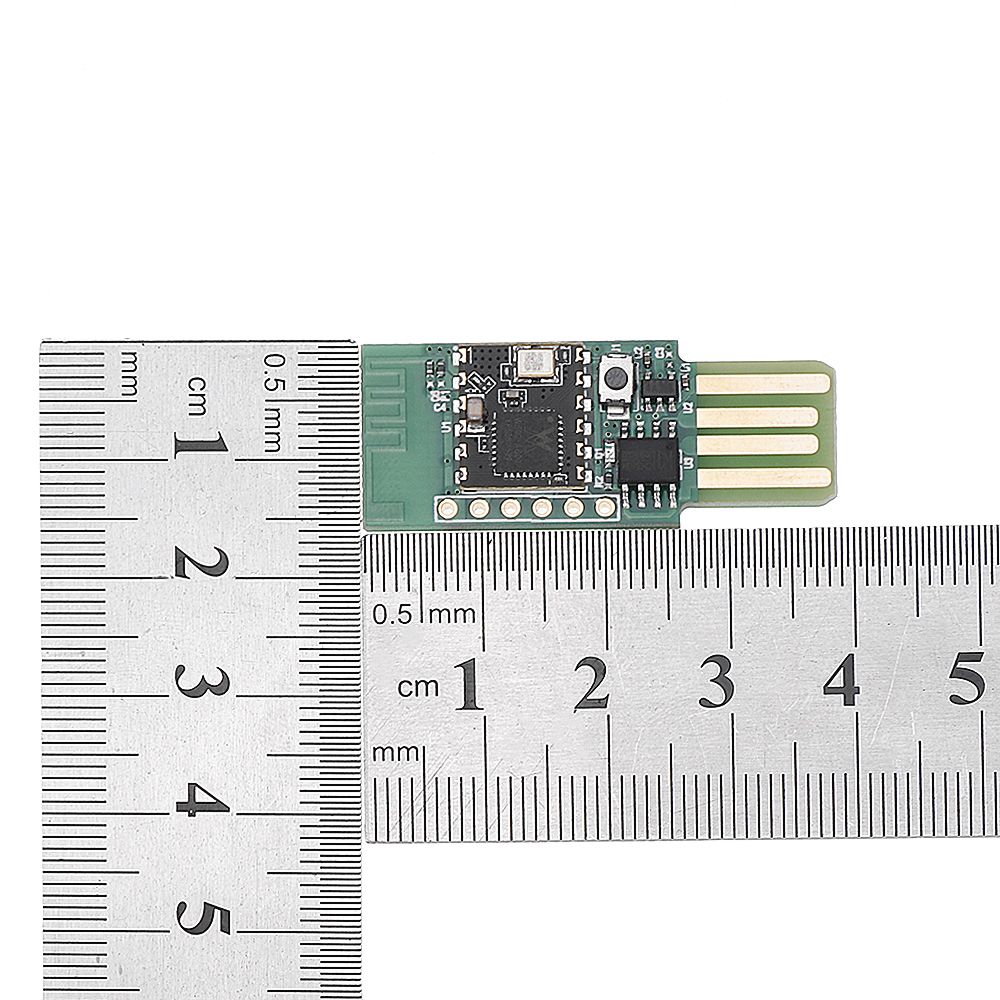

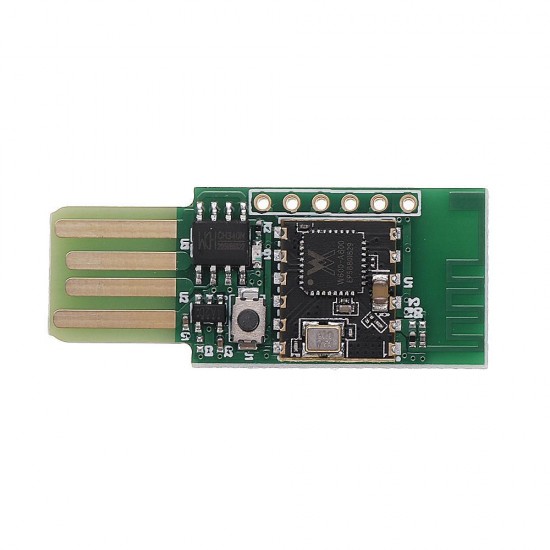

10pcs Air602 W600 WiFi Development Board USB Interface CH340N Module Compatible with ESP8266
- Stock: In Stock
- Model: EB0045270
- SKU: EB0045270
| Project | Parameter |
| Support WiFi standard | IEEE802.11 b/g/n |
| RF system impedance | 50Ω |
| SWR | <-10dB |
| Frequency Range | 2.4〜2.4835 GHz |
| Receiving sensitivity | 20MHz MCS7@-71dBm 40MHz MCS7@-68dBm 54Mbps@-73dBm 11Mbps@-86dBm 1Mbps@-95dBm |
| Physical layer data rate | 802.11n MCS 0-7 150Mbps |
| Modulation | DSSS, OFDM, DBPSK, DQPSK, CCK, QAM16/64 |
| Output Power | IEEE802.11b, DSSS 1Mbps, POUT = +17dBm; IEEE802.11g, OFDM 54Mbps, POUT = +10dBm; IEEE802.11n, OFDM MCS7, POUT = +10dBm; |

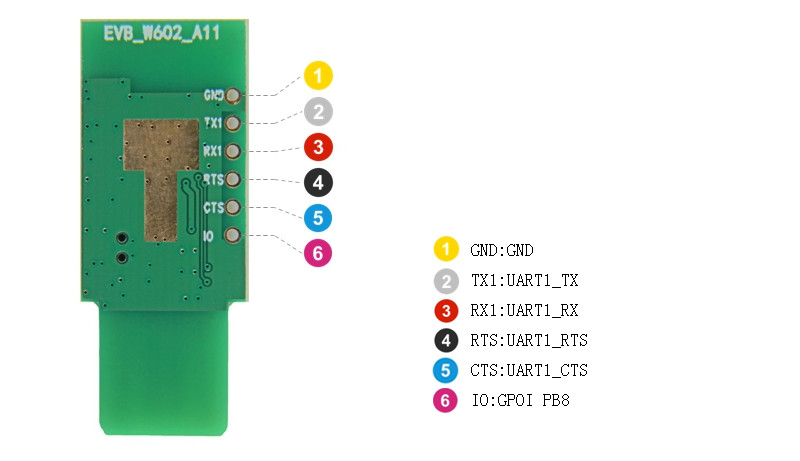

| Interface Type | UART, SPI, GPIO |
| Interface rate | 2Mbps@UART (Max) 50Mbps@SPI (Max) |
| Operating Voltage | 3.3V |
| Working current | 110mA |
| Network Type | STA/AP/AP+STA |
| Encryption | WPA-PSK/WPA2-PSK |
| Network protocol | TCP/UDP/ARP/ICMP/DHCP/DNS/HTTP |
| Interface Protocol | AT+Instruction Set |
Package includes:
10 x WiFi Module
