10pcs DC5-12V With Coded Wireless Transmitter Module 433MHz Remote Control

10pcs DC5-12V With Coded Wireless Transmitter Module 433MHz Remote Control
10pcs DC5-12V With Coded Wireless Transmitter Module 433MHz Remote Control
10pcs DC5-12V With Coded Wireless Transmitter Module 433MHz Remote Control
10pcs DC5-12V With Coded Wireless Transmitter Module 433MHz Remote Control
10pcs DC5-12V With Coded Wireless Transmitter Module 433MHz Remote Control
10pcs DC5-12V With Coded Wireless Transmitter Module 433MHz Remote Control
10pcs DC5-12V With Coded Wireless Transmitter Module 433MHz Remote Control
10pcs DC5-12V With Coded Wireless Transmitter Module 433MHz Remote Control
10pcs DC5-12V With Coded Wireless Transmitter Module 433MHz Remote Control
10pcs DC5-12V With Coded Wireless Transmitter Module 433MHz Remote Control
10pcs DC5-12V With Coded Wireless Transmitter Module 433MHz Remote Control
$26.99
Ex Tax: $26.99
  • Stock: In Stock
  • Model: EB0042775
  • SKU: EB0042775
Overview:

The module has a wide operating voltage range (DC5V-12V), high transmission power, low power consumption, and can be directly applied with a coding IC.
The data code and address code can be directly jumped, which is convenient and widely used in simple data wireless transmission, anti-theft alarm and other occasions.


Instructions for use:

The module has led two wires, which are connected to the positive and negative poles of the power supply, and the voltage is DC5-12V. Each launch can be realized directly by controlling the on/off of the power supply, and the time is not more than 5 seconds. A0~A7 is the 8-bit address code setting area, and the left side D0~D3 is the four-digit data code setting area. The cap sets the coding and data bits, and the antenna is connected (the multi-strand copper wire is about 23CM).

Technical parameter:

Working voltage: 5-12V
Emission current: 10mA
Transmission frequency: 433MHZ
Shooting distance: 200 meters (empty, receiving sensitivity -110dB)

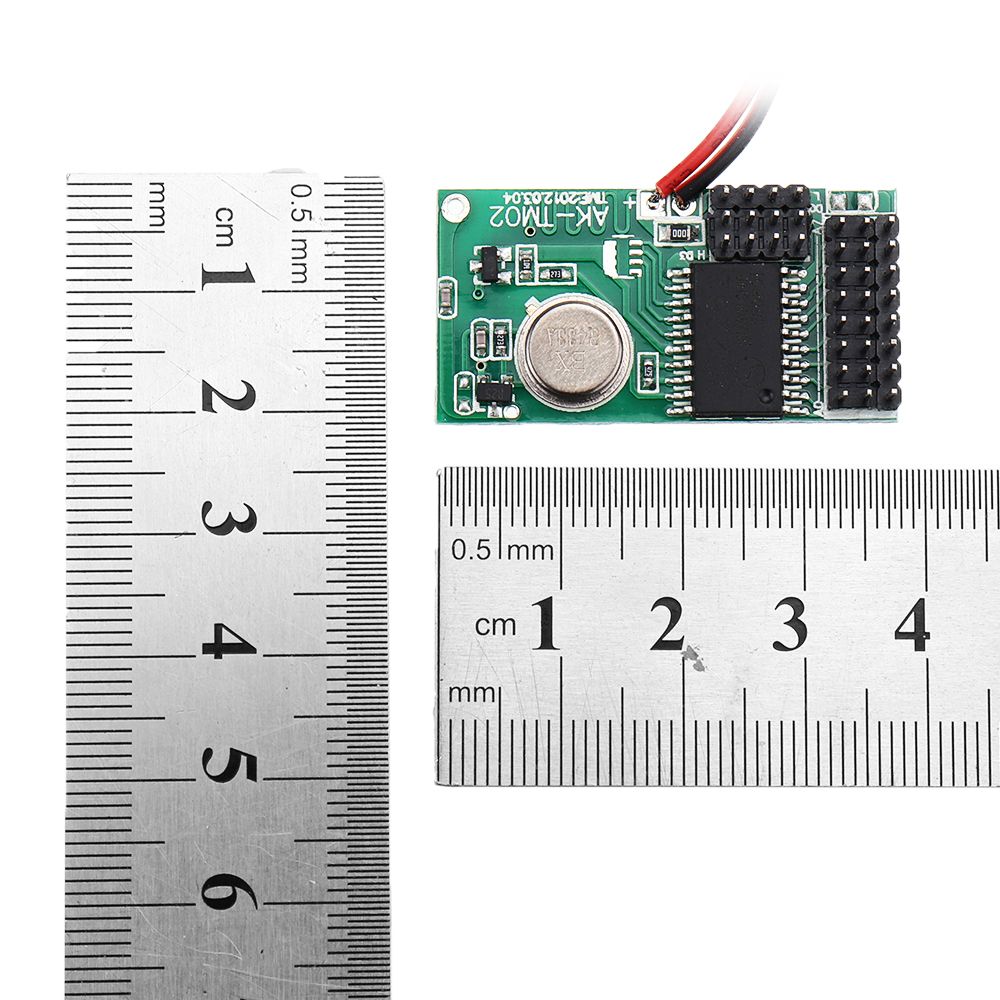

Size: 38.2*19.5*8.7mm
Coding chip: SC2262 (PT2262)
Coding method: Jumper cap interpolation
Oscillation resistance: 4.7M

Package includes:

10 x Wireless Transmitter Module
