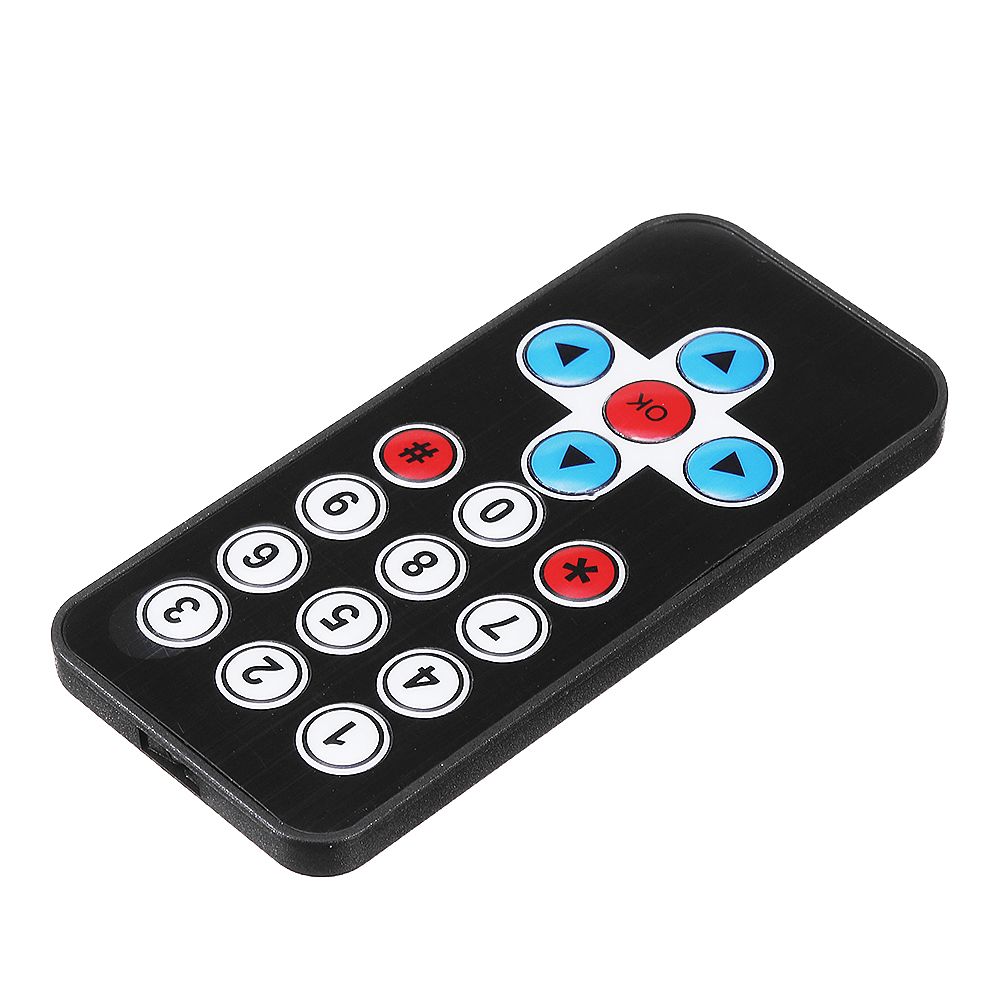

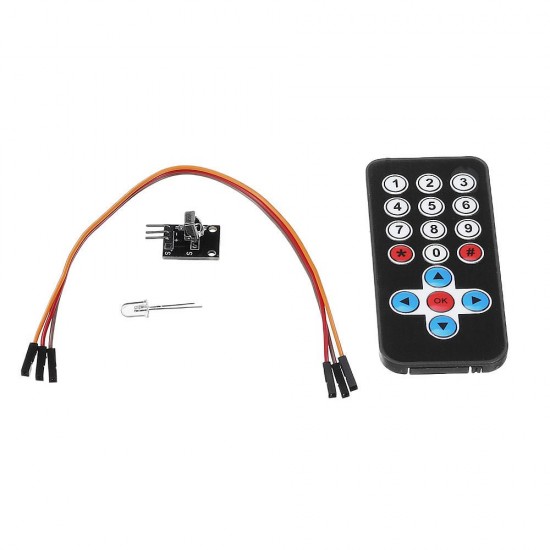

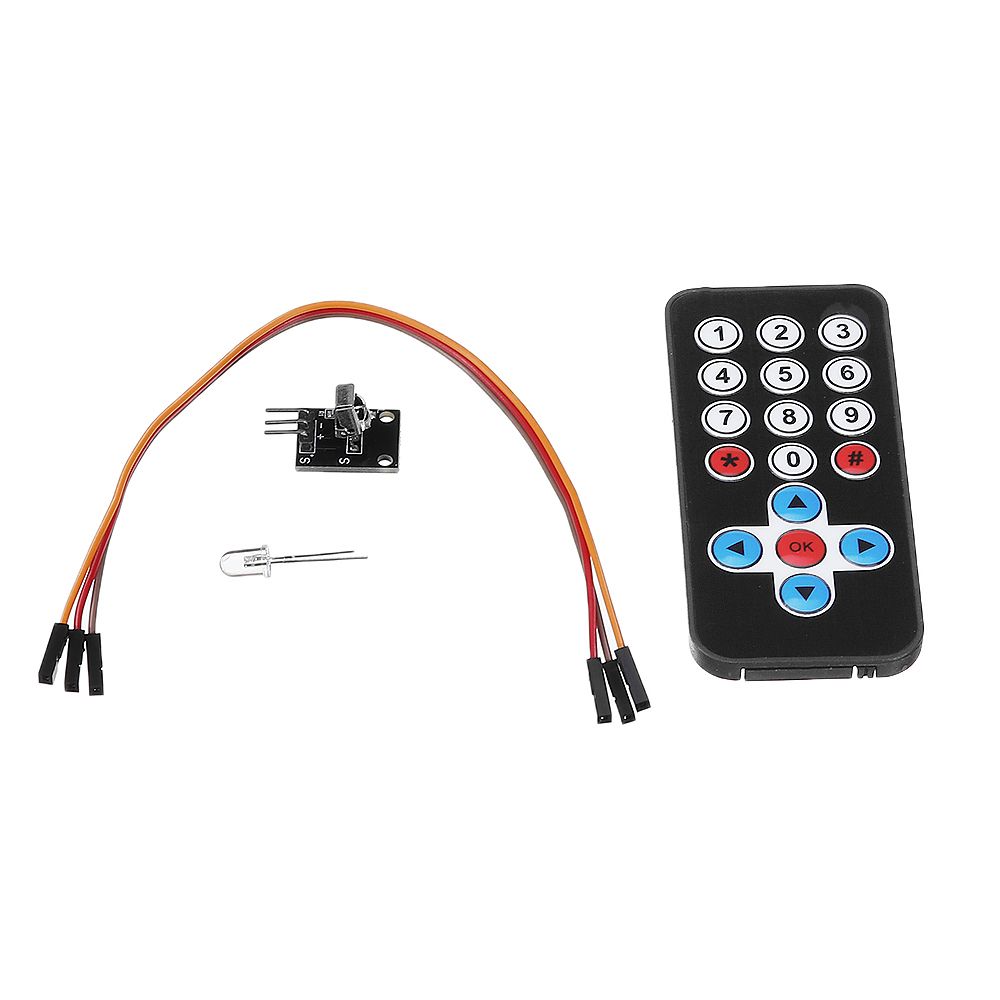

10pcs Infrared IR Wireless Remote Controller Module Kits DIY Kit HX1838 for Arduino - products that work with official Arduino boards
- Stock: In Stock
- Model: EB0045336
- SKU: EB0045336
Features:
- Transmission Distance: 8m above (specific and surroundings, the receiver sensitivity and other factors)
- Effective angle: 60 degrees
- Sticking Material: 0.125mmPET, the effective life of 20,000 times.
- Quiescent current 3-5uA, dynamic current 3-5mA.

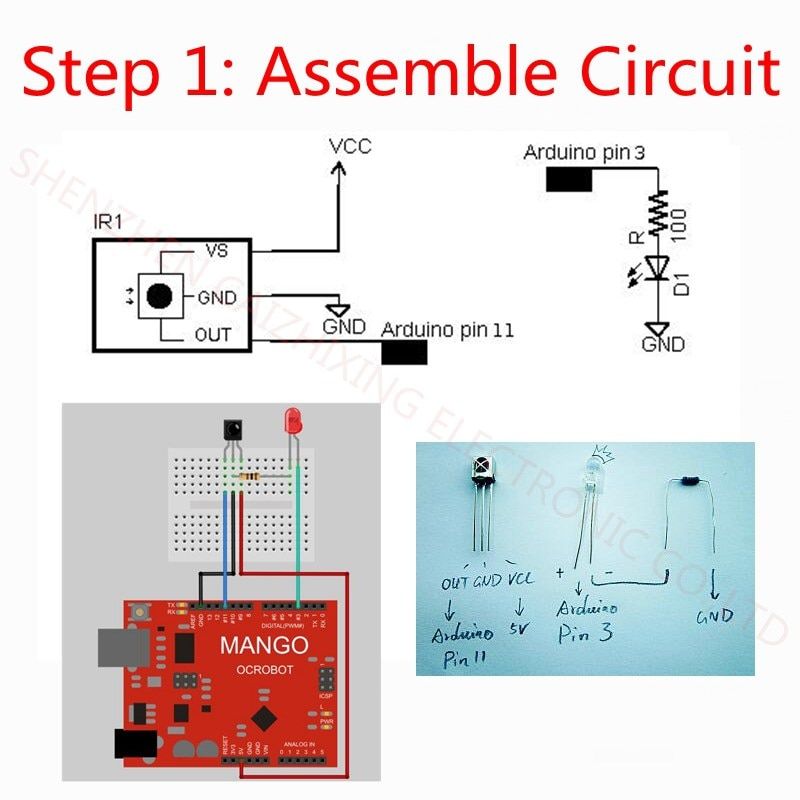

Step 1: Assemble Circuit:

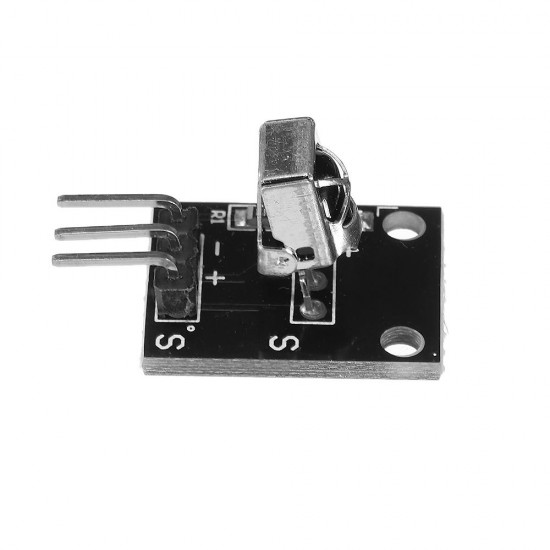

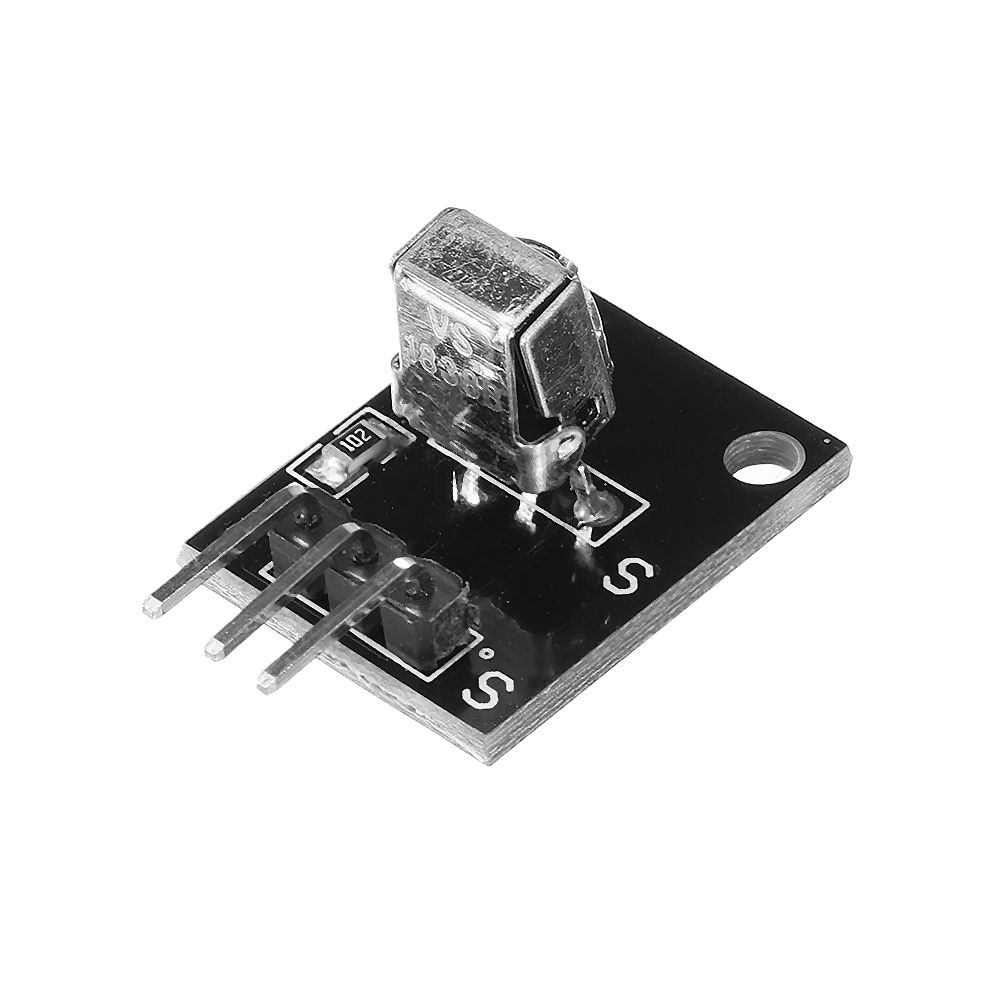

You will need one for this. I used a UNO, but just about any should work. First wire up the infrared receiver that came with your kit. There are 3 wires, PWR, GND, and SIG, I used port 11 for SIG. Note! some readers have reported that their sensor has different wiring, double check it yourself.
Step 2: Download IR Library

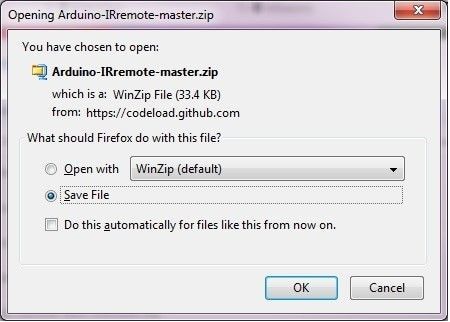

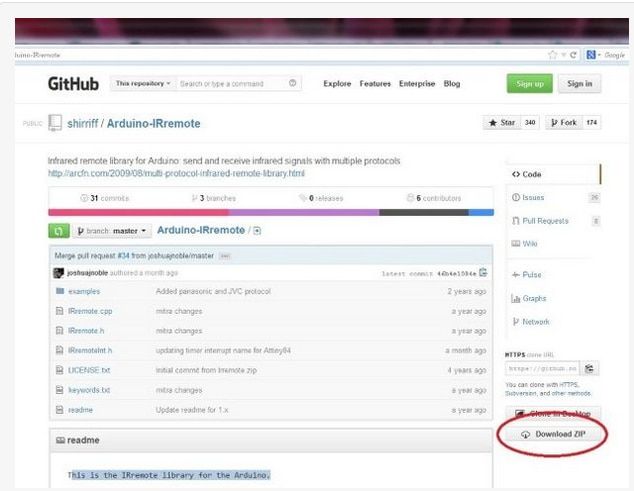

In order to reverse engineer the remote and obtain the codes for each button we are going to need to download and install the following library.
https://github.com/shirriff/-IRremote
Extract the file in your libraries directory. e.g. ( C:electronics-1.0.5libraries )
note: I had to rename the library because the name was too long, I just renamed it to IR.
Step 3: Add Library to sketch
With the IR folder ( or whatever you named it) now in your libraries directory, we can import it into a new sketch.

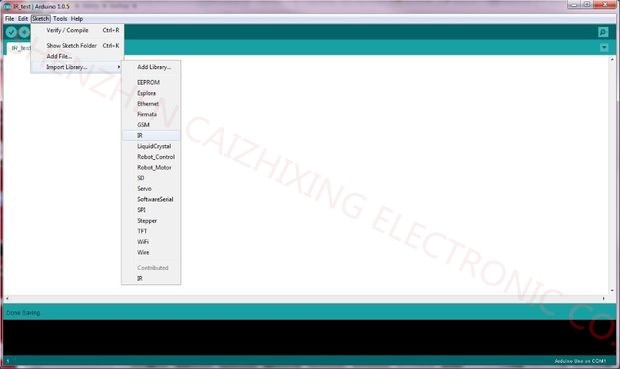

Start a new sketch and the Click
Sketch->Import Library->IR.
Step 4: Paste Code and compile
Paste the following code into the new sketch. Then verify it compiles.
#include
int RECV_PIN = 11;
IRrecv irrecv(RECV_PIN);
decode_results results;
void setup()
{
Serial.begin(9600);
irrecv.enableIRIn(); // Start the receiver
}
