10pcs JDY-31 DC 3.6-6V Bluetooth 2.0/3.0 Module SPP Protocol Android Compatible with HC-05/06 JDY-30

10pcs JDY-31 DC 3.6-6V Bluetooth 2.0/3.0 Module SPP Protocol Android Compatible with HC-05/06 JDY-30
10pcs JDY-31 DC 3.6-6V Bluetooth 2.0/3.0 Module SPP Protocol Android Compatible with HC-05/06 JDY-30
10pcs JDY-31 DC 3.6-6V Bluetooth 2.0/3.0 Module SPP Protocol Android Compatible with HC-05/06 JDY-30
10pcs JDY-31 DC 3.6-6V Bluetooth 2.0/3.0 Module SPP Protocol Android Compatible with HC-05/06 JDY-30
10pcs JDY-31 DC 3.6-6V Bluetooth 2.0/3.0 Module SPP Protocol Android Compatible with HC-05/06 JDY-30
10pcs JDY-31 DC 3.6-6V Bluetooth 2.0/3.0 Module SPP Protocol Android Compatible with HC-05/06 JDY-30
10pcs JDY-31 DC 3.6-6V Bluetooth 2.0/3.0 Module SPP Protocol Android Compatible with HC-05/06 JDY-30
10pcs JDY-31 DC 3.6-6V Bluetooth 2.0/3.0 Module SPP Protocol Android Compatible with HC-05/06 JDY-30
10pcs JDY-31 DC 3.6-6V Bluetooth 2.0/3.0 Module SPP Protocol Android Compatible with HC-05/06 JDY-30
10pcs JDY-31 DC 3.6-6V Bluetooth 2.0/3.0 Module SPP Protocol Android Compatible with HC-05/06 JDY-30
10pcs JDY-31 DC 3.6-6V Bluetooth 2.0/3.0 Module SPP Protocol Android Compatible with HC-05/06 JDY-30
10pcs JDY-31 DC 3.6-6V Bluetooth 2.0/3.0 Module SPP Protocol Android Compatible with HC-05/06 JDY-30
10pcs JDY-31 DC 3.6-6V Bluetooth 2.0/3.0 Module SPP Protocol Android Compatible with HC-05/06 JDY-30
$21.99
Ex Tax: $21.99
  • Stock: In Stock
  • Model: EB0042825
  • SKU: EB0042825

JDY-31 Bluetooth is based on Bluetooth 3.0 SPP design, which can support Windows, Linux, android data transmission, working frequency 2.4GHZ, modulation mode GFSK, maximum transmission power 8db, maximum transmission distance 30 meters, support users to modify device name through AT command The baud rate and other instructions are convenient and quick to use.

Applications:

JDY-31 is a classic Bluetooth protocol that can communicate with Bluetooth-enabled computers (desktops, notebooks) and mobile phones (android). Can be applied
Windows computer Bluetooth serial port transparent transmission
Android Bluetooth serial port transparent transmission
Smart home control
Automotive ODB testing equipment
Bluetooth toy
Share mobile power, share weight
Medical equipment

Model JDY-31
Working frequency 2.4GHZ
Communication Interface UART
Operating Voltage SMD type: 1.8-3.6V (3.3V recommended) with backplane: 3.6-6V (recommended 5V)
Operating temperature -40 ° C - 80 ° C
Antenna Built-in PCB antenna
Transmission distance 30 meters
ma-ster-slave support Slave

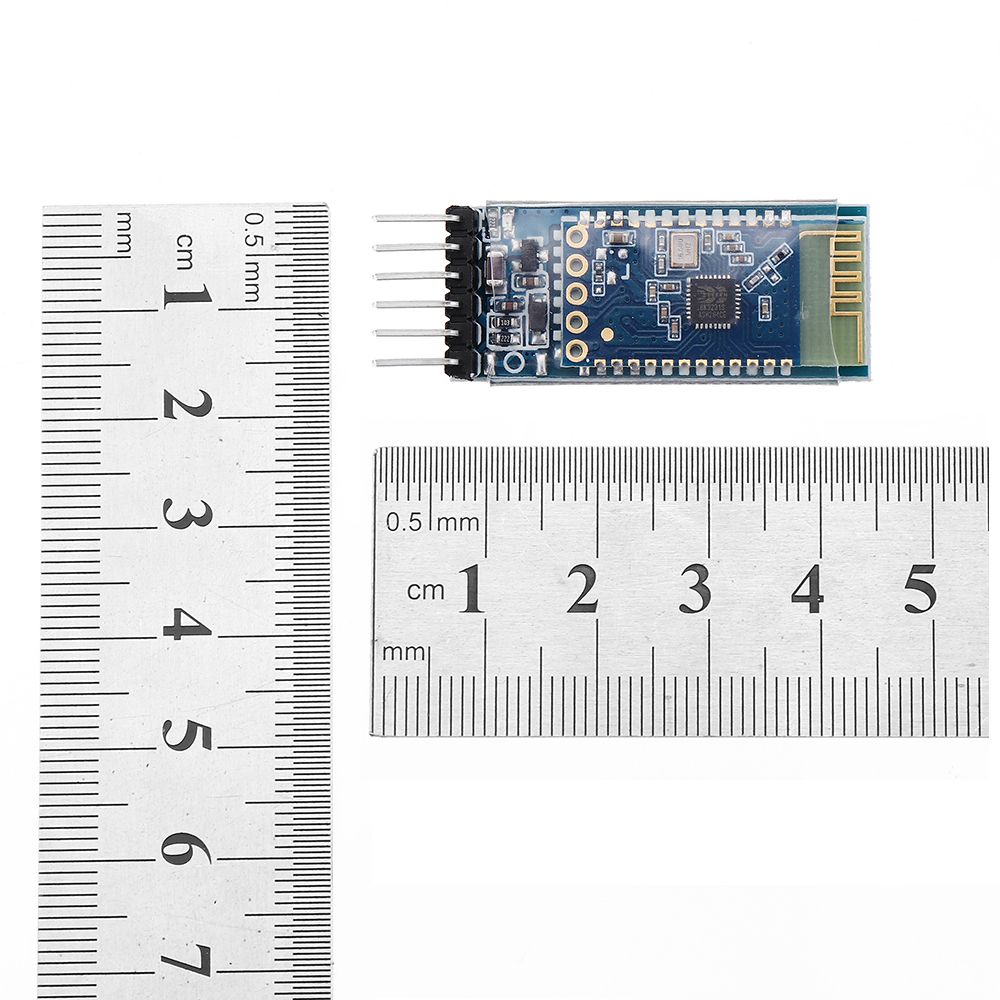

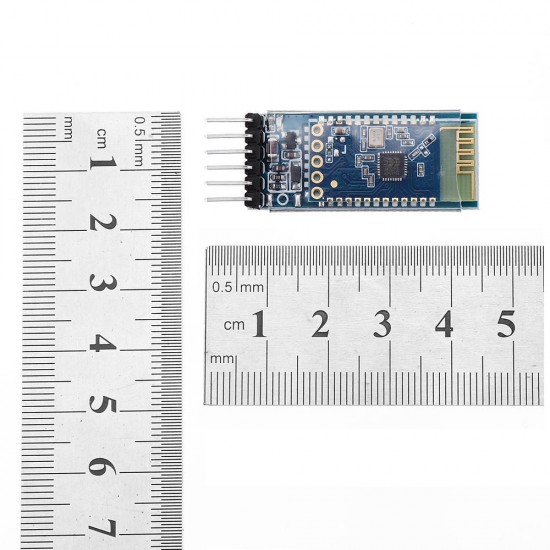

Module size 19.6 * 14.94 *1.8 mm (length, width, height)
Bluetooth version Bluetooth 3.0 SPP
STM soldering temperature <260°C
Unconnected operating current 4.7mA
Current after BLE connection 7.3mA
Transmit power 8db (maximum)
Receiving sensitivity -97dbm
SPP maximum throughput 16K bytes/s (android, windows)

Package includes:

10 x Module
