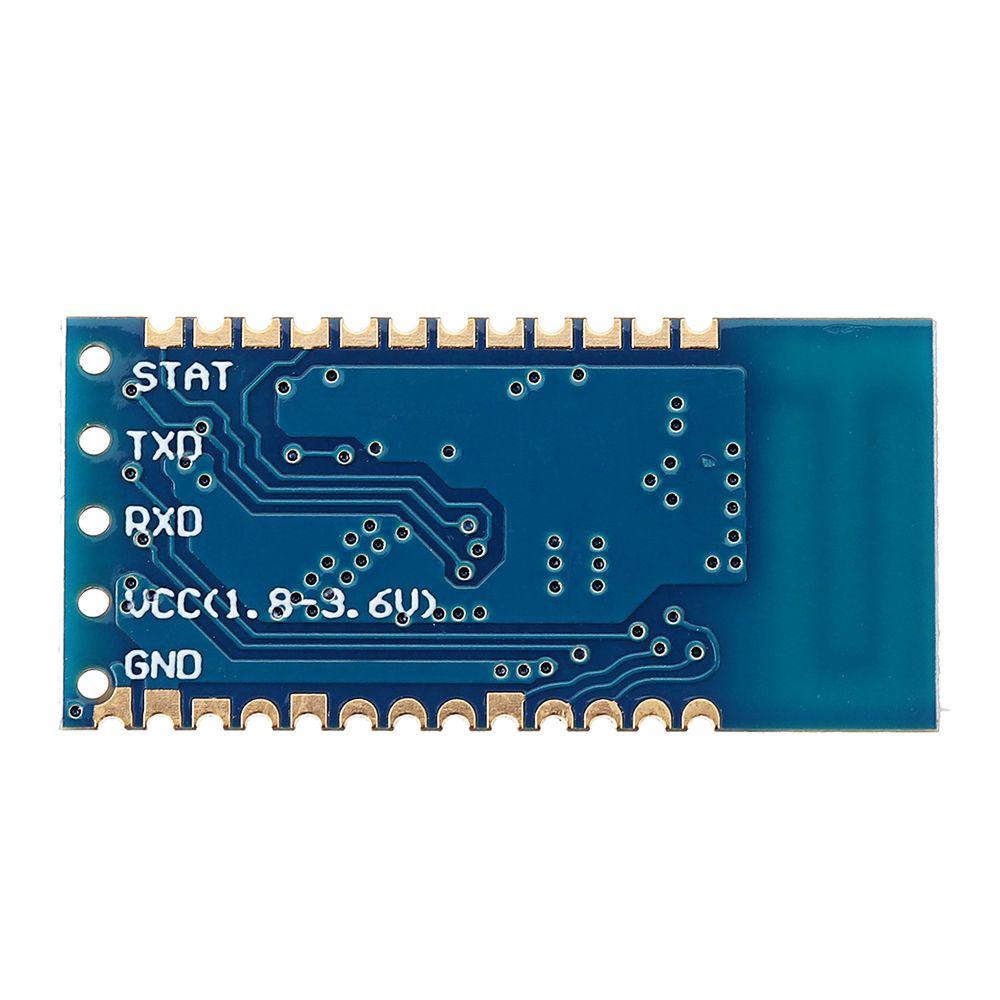

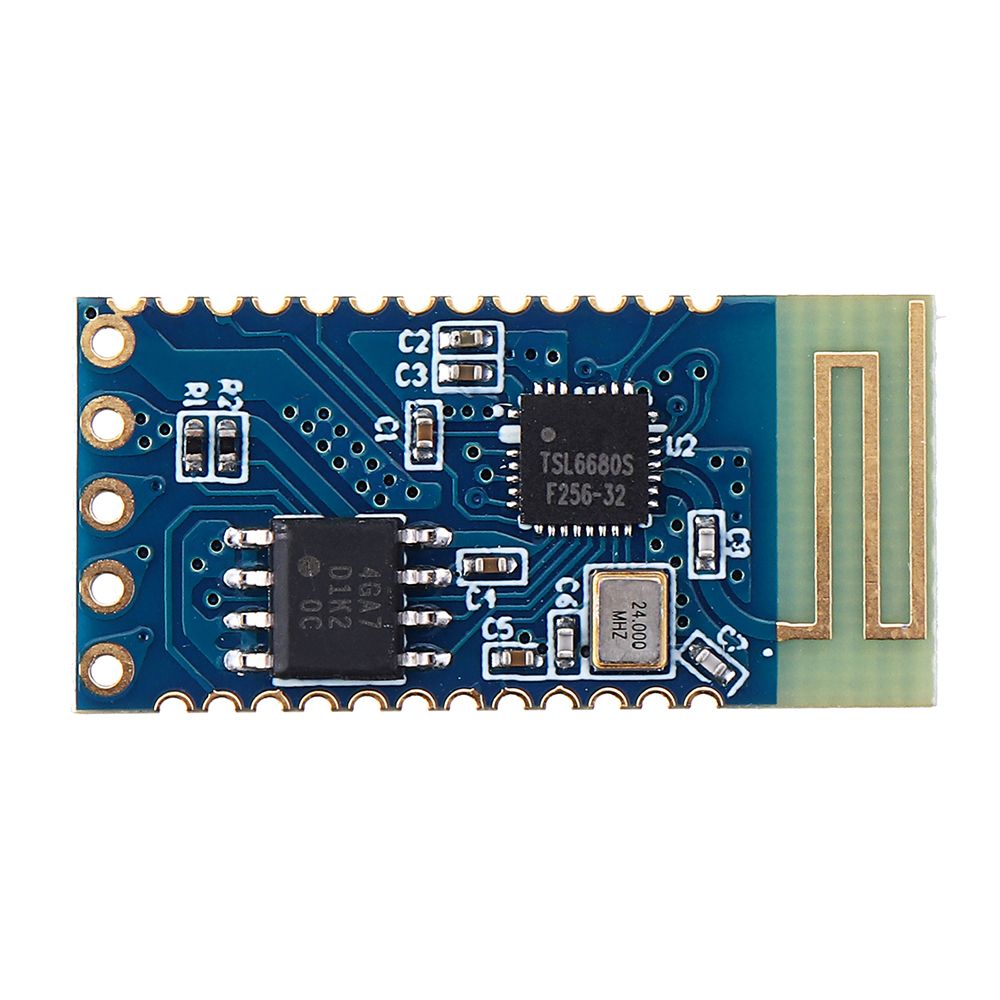

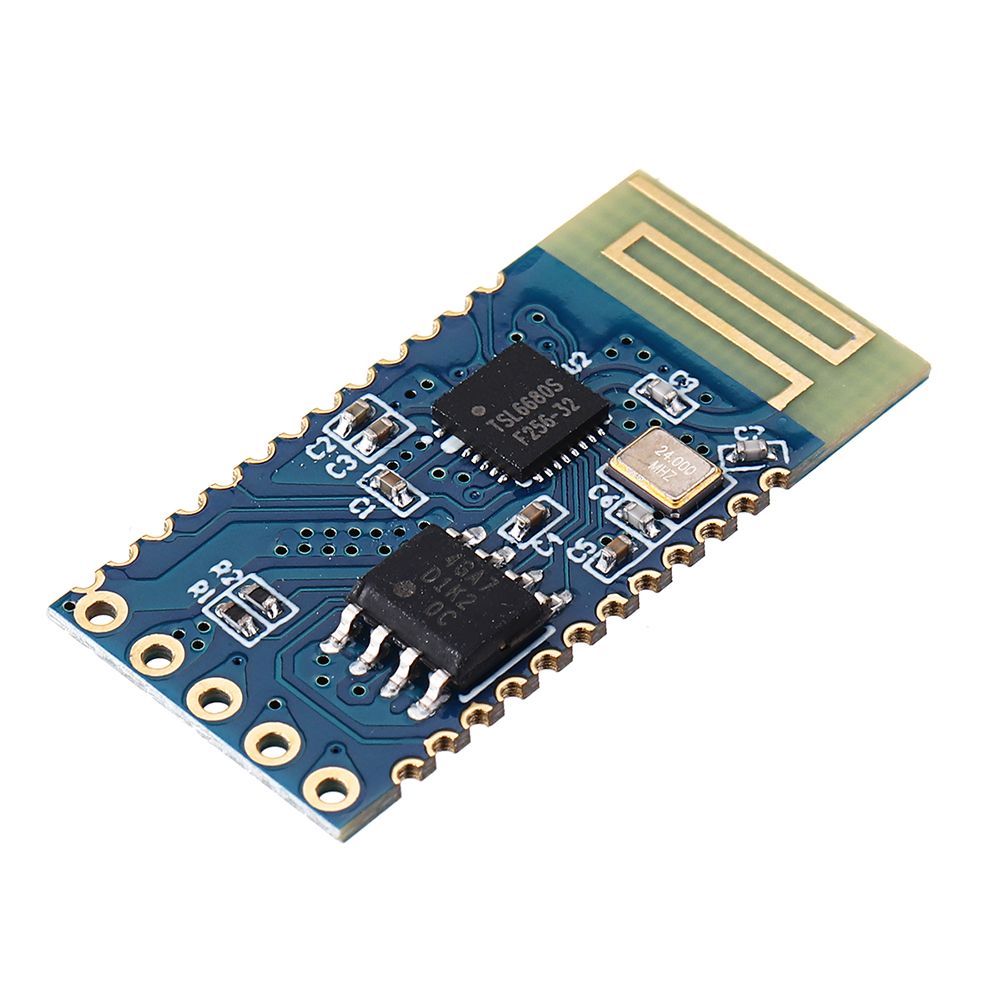

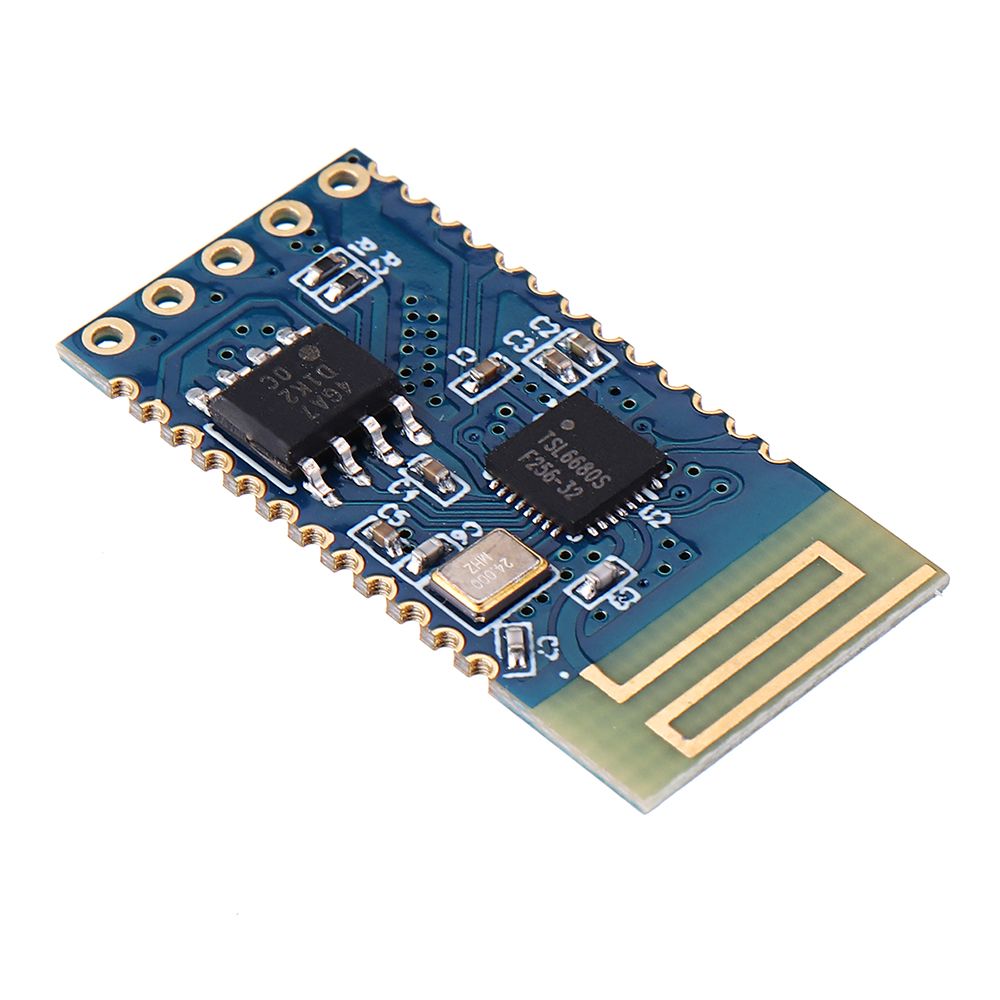

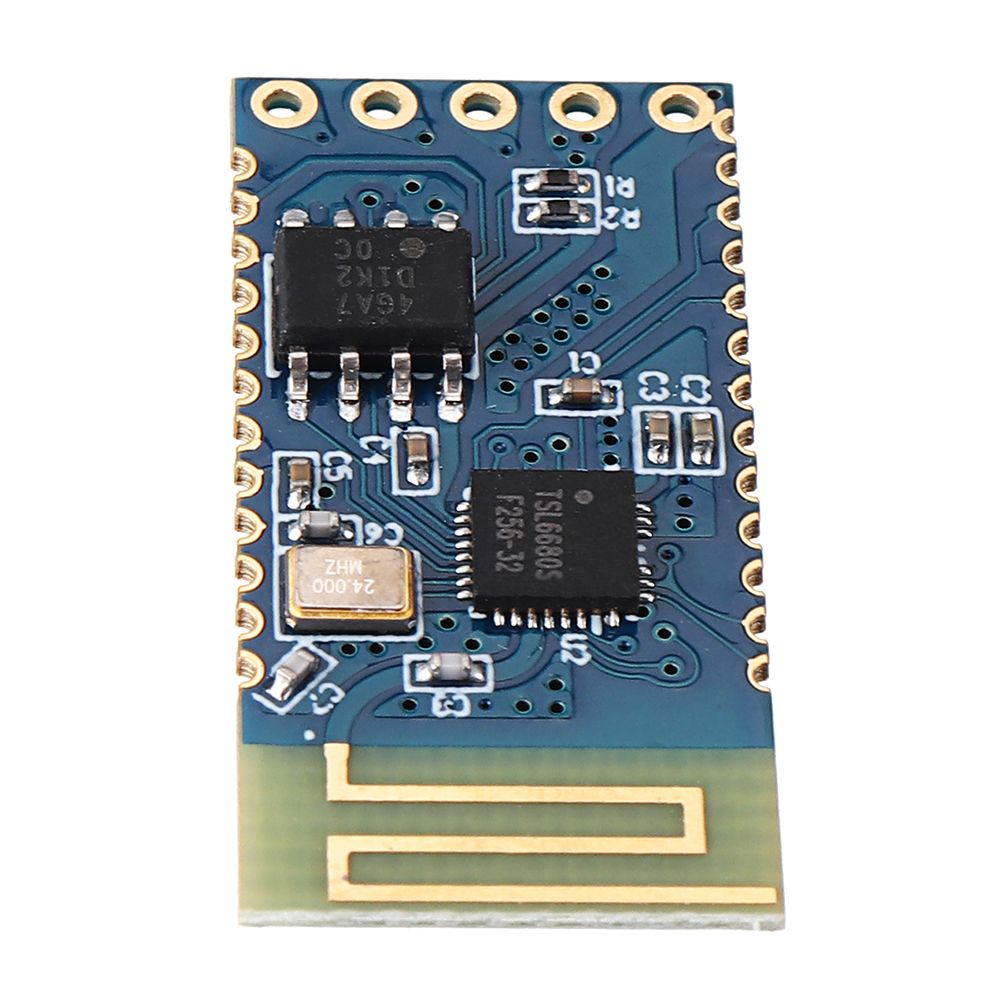

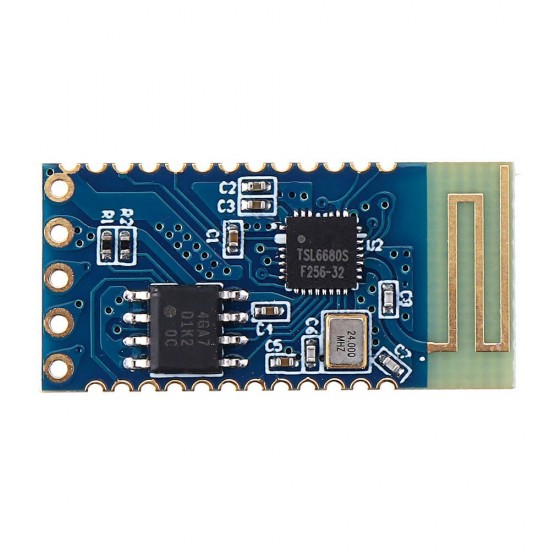

10pcs JDY-32 Dual Mode Bluetooth 4.2 Module SPP BLE Serial Port UART Interface
- Stock: In Stock
- Model: EB0045269
- SKU: EB0045269
| Model | JDY-32 |
| Working frequency | 2.4GHZ |
| Communication Interface | UART |
| Operating Voltage | 1.8-3.6V (3.3V recommended) |
| Operating temperature | -40 ° C - 80 ° C |
| Antenna | Built-in PCB antenna |
| Transmission distance | 40 m |
| ma-ster-slave support | Slave |

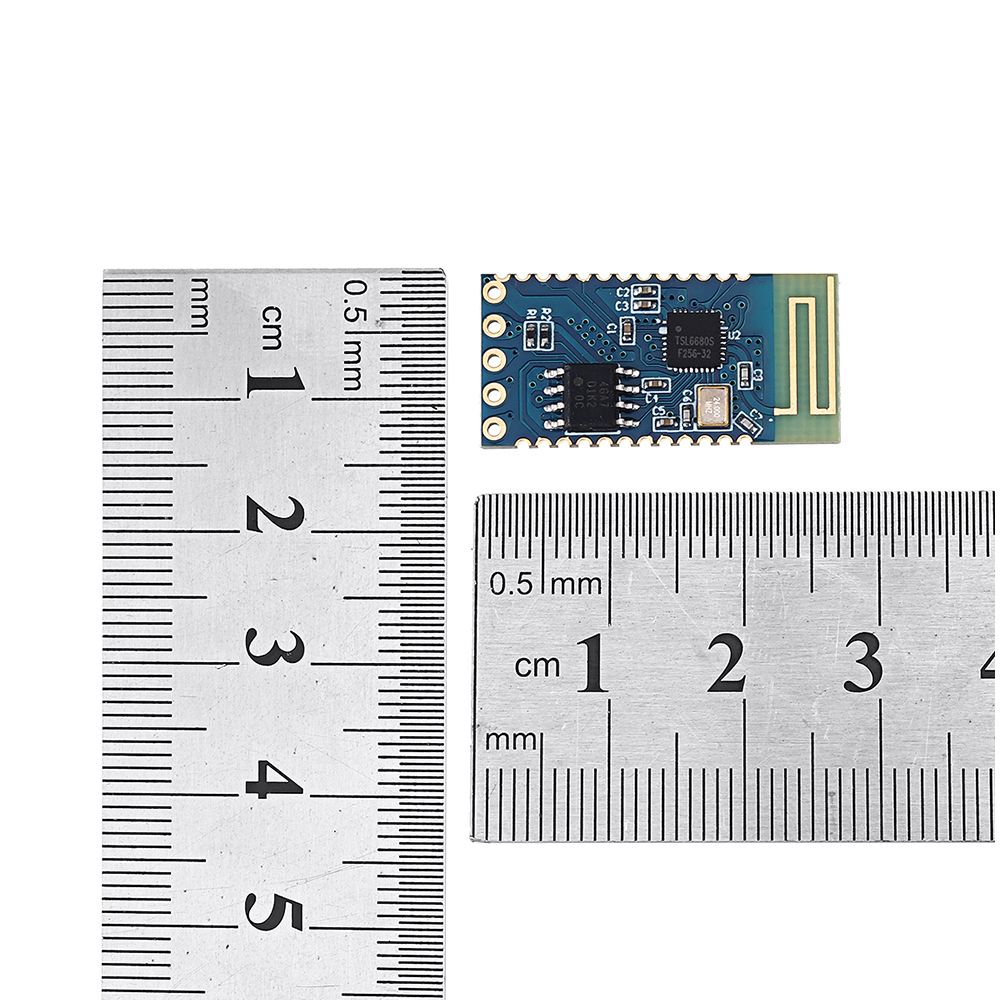

| Module size | 19.6 * 14.94 *1.8 mm (length, width, height) |
| Bluetooth version | Bluetooth 4.2 BLE/Bluetooth 3.0 SPP |
| SMT soldering temperature | <260°C |
| Broadcast current | 4.4mA |
| BLE connected current | 3.8mA |
| SPP connected current | 12mA |
| Transmit power | 5db (maximum) |
| Receiving sensitivity | -97dbm |
Package includes:
10 x Module
