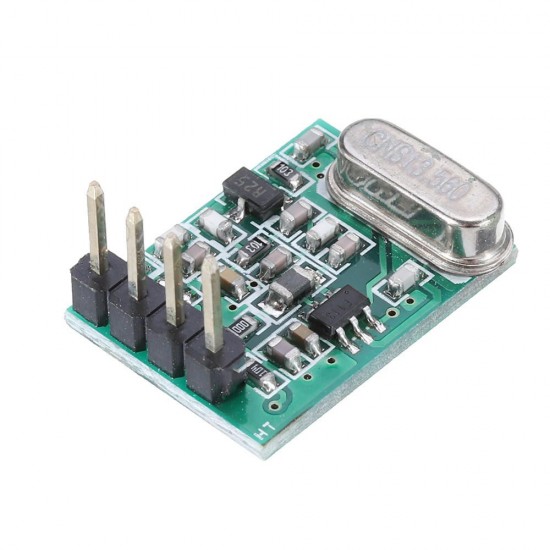

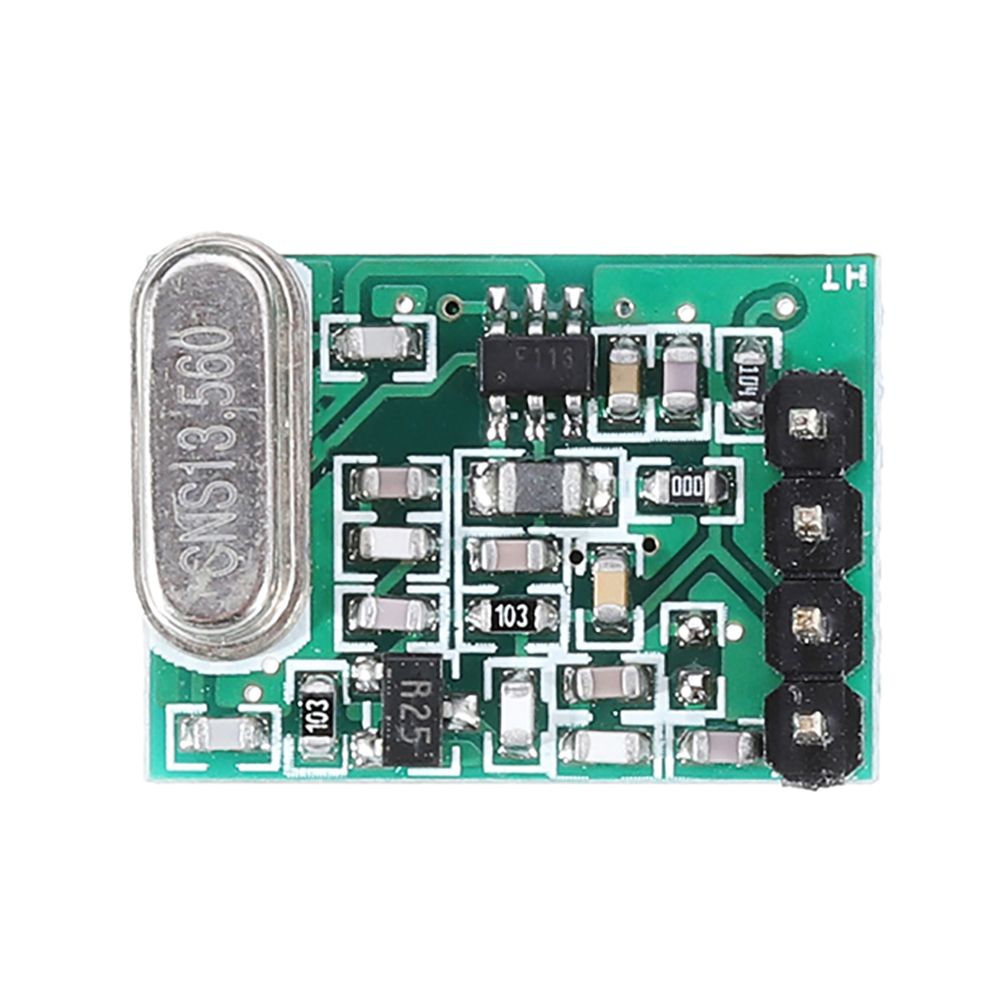

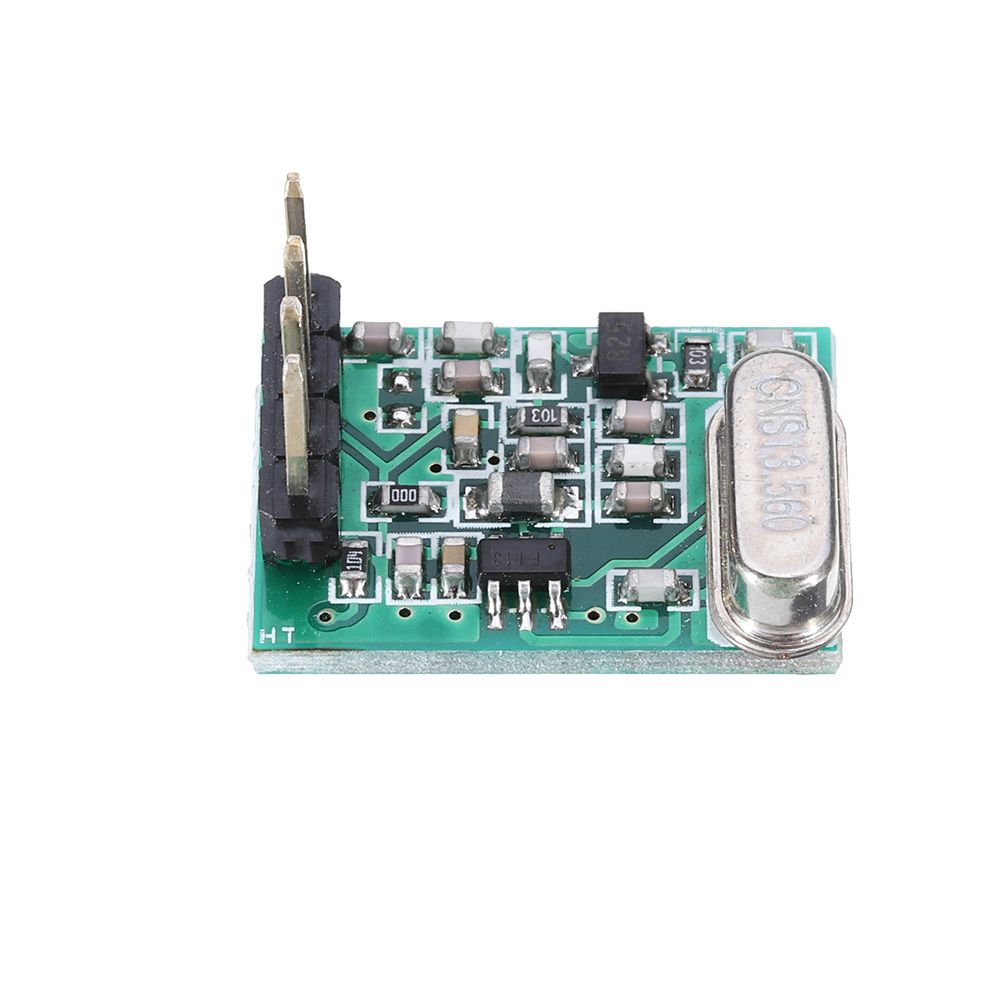

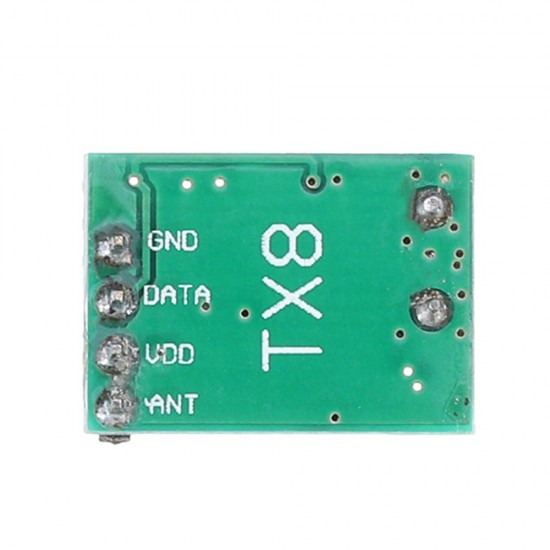

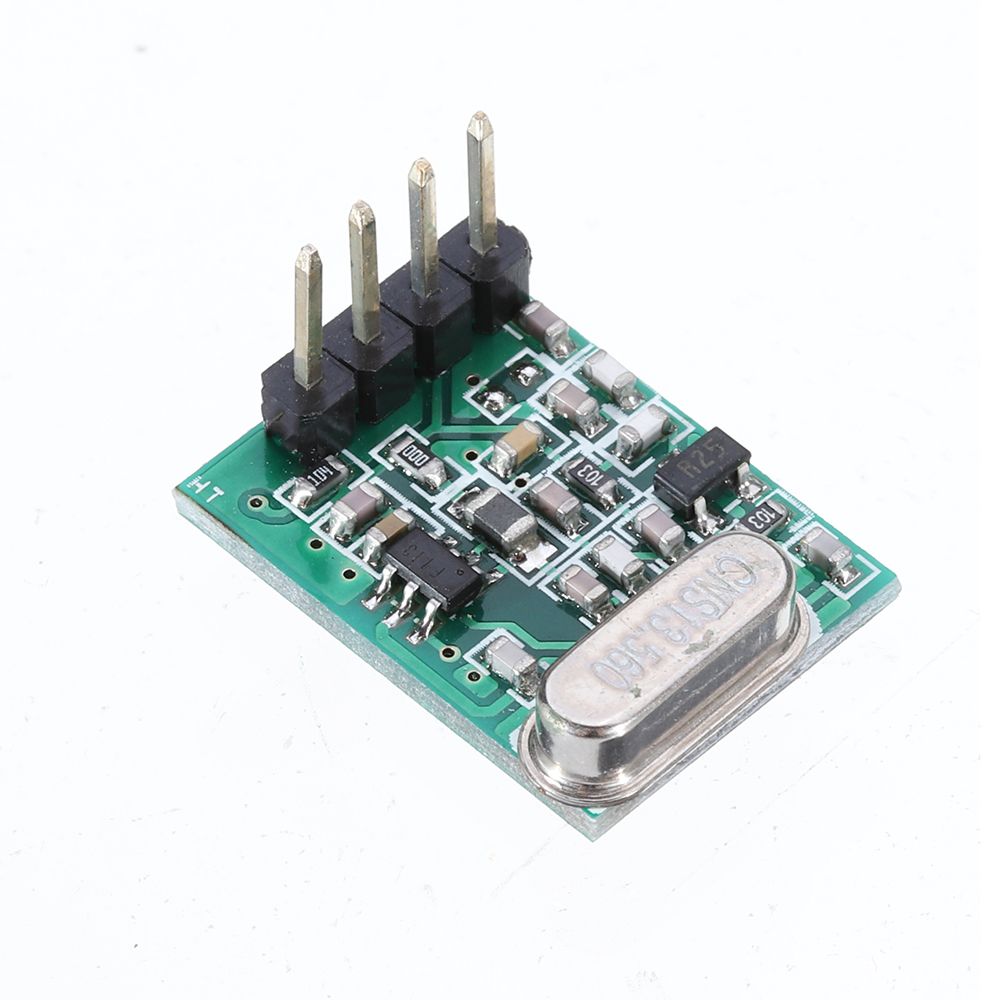

10pcs Low Voltage High Performance Transmitting Module 433MHz TX8 DC1.8V-3.6V ASK TTL Super Heterodyne Wireless Module

10pcs Low Voltage High Performance Transmitting Module 433MHz TX8 DC1.8V-3.6V ASK TTL Super Heterodyne Wireless Module
10pcs Low Voltage High Performance Transmitting Module 433MHz TX8 DC1.8V-3.6V ASK TTL Super Heterodyne Wireless Module
10pcs Low Voltage High Performance Transmitting Module 433MHz TX8 DC1.8V-3.6V ASK TTL Super Heterodyne Wireless Module
10pcs Low Voltage High Performance Transmitting Module 433MHz TX8 DC1.8V-3.6V ASK TTL Super Heterodyne Wireless Module
10pcs Low Voltage High Performance Transmitting Module 433MHz TX8 DC1.8V-3.6V ASK TTL Super Heterodyne Wireless Module
10pcs Low Voltage High Performance Transmitting Module 433MHz TX8 DC1.8V-3.6V ASK TTL Super Heterodyne Wireless Module
10pcs Low Voltage High Performance Transmitting Module 433MHz TX8 DC1.8V-3.6V ASK TTL Super Heterodyne Wireless Module
10pcs Low Voltage High Performance Transmitting Module 433MHz TX8 DC1.8V-3.6V ASK TTL Super Heterodyne Wireless Module
10pcs Low Voltage High Performance Transmitting Module 433MHz TX8 DC1.8V-3.6V ASK TTL Super Heterodyne Wireless Module
10pcs Low Voltage High Performance Transmitting Module 433MHz TX8 DC1.8V-3.6V ASK TTL Super Heterodyne Wireless Module
10pcs Low Voltage High Performance Transmitting Module 433MHz TX8 DC1.8V-3.6V ASK TTL Super Heterodyne Wireless Module
10pcs Low Voltage High Performance Transmitting Module 433MHz TX8 DC1.8V-3.6V ASK TTL Super Heterodyne Wireless Module
10pcs Low Voltage High Performance Transmitting Module 433MHz TX8 DC1.8V-3.6V ASK TTL Super Heterodyne Wireless Module
$16.99
Ex Tax: $16.99
  • Stock: In Stock
  • Model: EB0042920
  • SKU: EB0042920
Characteristic:

(1) The transmission power is large, and the transmission power is greater than 40mW;
(2) Wide operating voltage: 1.8V-3.6V; Rated current: 8 (mA)
(3) Operating frequency: 433 MHz
(4) Using PLL frequency stabilization (+-50KHZ), the working frequency is stable;
(5) With the RXB8 receiving module, the distance can reach 500 meters;
(6) The static power consumption is low, the current consumption during transmission is 20 mA, and there is basically no current consumption when there is no data transmission;
(7) Working temperature: -40 ° C ~ +80 ° C;

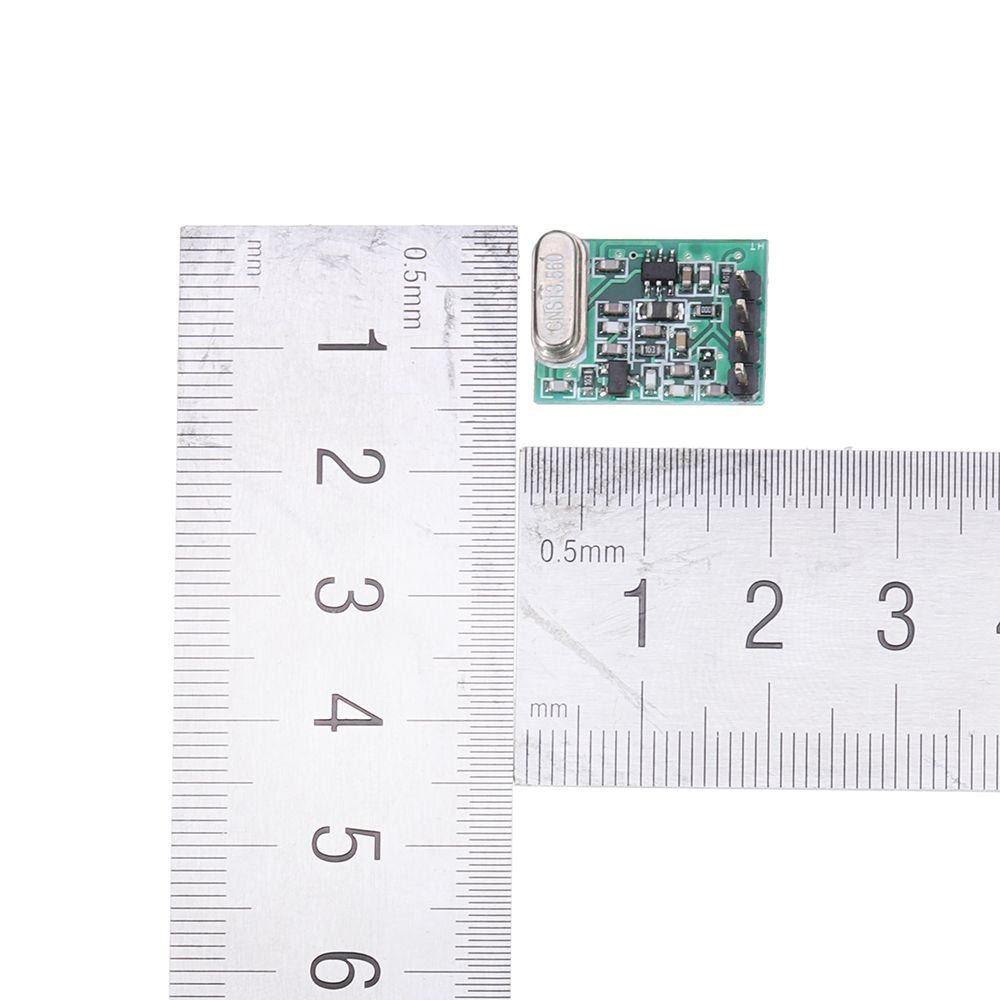

(8) Dimensions: 11x16x5.5mm;
(9) Frequency stability: ±50 KHZ;
(10) Modulation rate: 3 KB/S;
(11) Input signal: TTL level.

Application range:

1) Car remote door switch (RKE);
2) Remote control door opener and gate;
3) Wireless security alarm;
4) remote control curtain machine;
5) Wireless industrial controller;
6) Wireless data transmission.

Package includes:

10 x Transmitting Module
