10pcs NRF24L01 Mini SMD 2.4GHz Wireless Module Power Enhanced Version SMD Receiver Transceiver Low Voltage Oltage Regulator Board 5V

10pcs NRF24L01 Mini SMD 2.4GHz Wireless Module Power Enhanced Version SMD Receiver Transceiver Low Voltage Oltage Regulator Board 5V
10pcs NRF24L01 Mini SMD 2.4GHz Wireless Module Power Enhanced Version SMD Receiver Transceiver Low Voltage Oltage Regulator Board 5V
10pcs NRF24L01 Mini SMD 2.4GHz Wireless Module Power Enhanced Version SMD Receiver Transceiver Low Voltage Oltage Regulator Board 5V
10pcs NRF24L01 Mini SMD 2.4GHz Wireless Module Power Enhanced Version SMD Receiver Transceiver Low Voltage Oltage Regulator Board 5V
10pcs NRF24L01 Mini SMD 2.4GHz Wireless Module Power Enhanced Version SMD Receiver Transceiver Low Voltage Oltage Regulator Board 5V
10pcs NRF24L01 Mini SMD 2.4GHz Wireless Module Power Enhanced Version SMD Receiver Transceiver Low Voltage Oltage Regulator Board 5V
10pcs NRF24L01 Mini SMD 2.4GHz Wireless Module Power Enhanced Version SMD Receiver Transceiver Low Voltage Oltage Regulator Board 5V
10pcs NRF24L01 Mini SMD 2.4GHz Wireless Module Power Enhanced Version SMD Receiver Transceiver Low Voltage Oltage Regulator Board 5V
10pcs NRF24L01 Mini SMD 2.4GHz Wireless Module Power Enhanced Version SMD Receiver Transceiver Low Voltage Oltage Regulator Board 5V
10pcs NRF24L01 Mini SMD 2.4GHz Wireless Module Power Enhanced Version SMD Receiver Transceiver Low Voltage Oltage Regulator Board 5V
10pcs NRF24L01 Mini SMD 2.4GHz Wireless Module Power Enhanced Version SMD Receiver Transceiver Low Voltage Oltage Regulator Board 5V
10pcs NRF24L01 Mini SMD 2.4GHz Wireless Module Power Enhanced Version SMD Receiver Transceiver Low Voltage Oltage Regulator Board 5V
10pcs NRF24L01 Mini SMD 2.4GHz Wireless Module Power Enhanced Version SMD Receiver Transceiver Low Voltage Oltage Regulator Board 5V
$15.99
Ex Tax: $15.99
  • Stock: In Stock
  • Model: EB0042362
  • SKU: EB0042362
More document click to download: NRF24L01

Features:

- 2Mbit / s 1Mbit / s 250Kbit / s transfer rate options
- MultiCeiver hardware to provide the 6 receiver functions at the same time
- Only need an external inductance when match antenna
- 5V input tolerance level
- No need external level converter
- Improved ShockBurst and serial interface can be easily connected with a variety of low-cost MCU
- No MCU with SPI Interface
- 20 pin 4x4mm QFN leadless package very few external components
- The 2Mbit / s rate when the peak current 12.5mA received
- The 2Mbit / s rate @ 0dBm output current of 11mA peak
- 2Mbit / s rate of only a small average current
- 400nA Power-down mode, power consumption
- Power consumption of 32uA in standby mode
- 130us fast switching and wake-up time
- With on-chip voltage regulator oltage regulators
- In the 1.9 to 3.6V low voltage operation
- Possible to reduce noise

Application:

Mouse, keyboard, wireless headsets, intelligent sports equipment, remote controls, voice applications, security devices, VOIP applications.

Package Included:

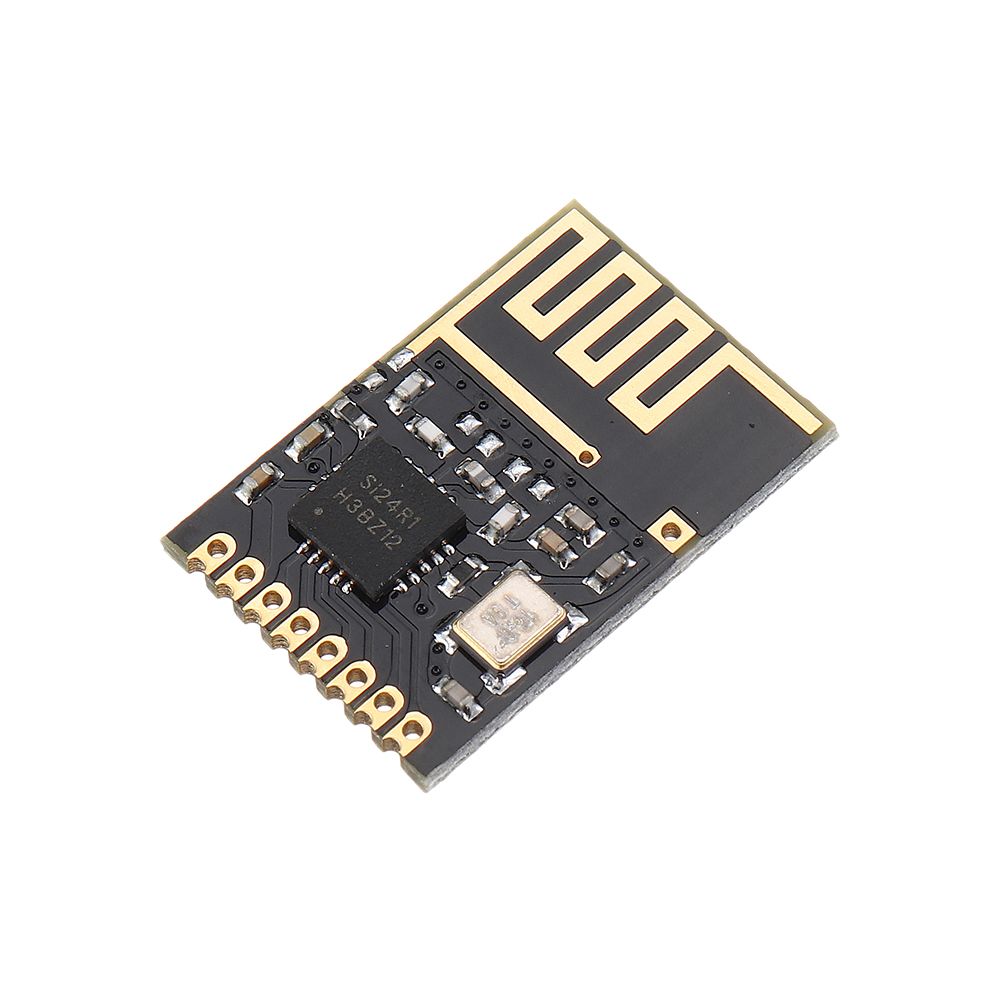

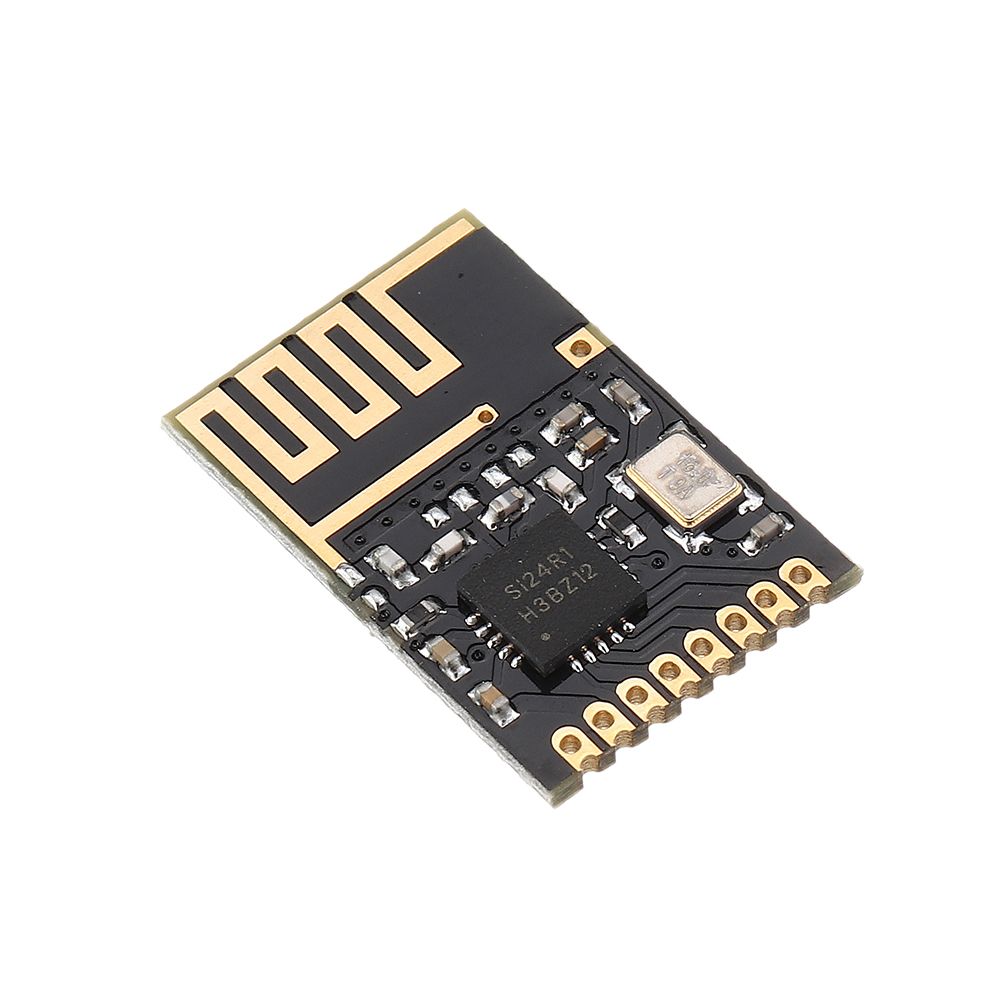

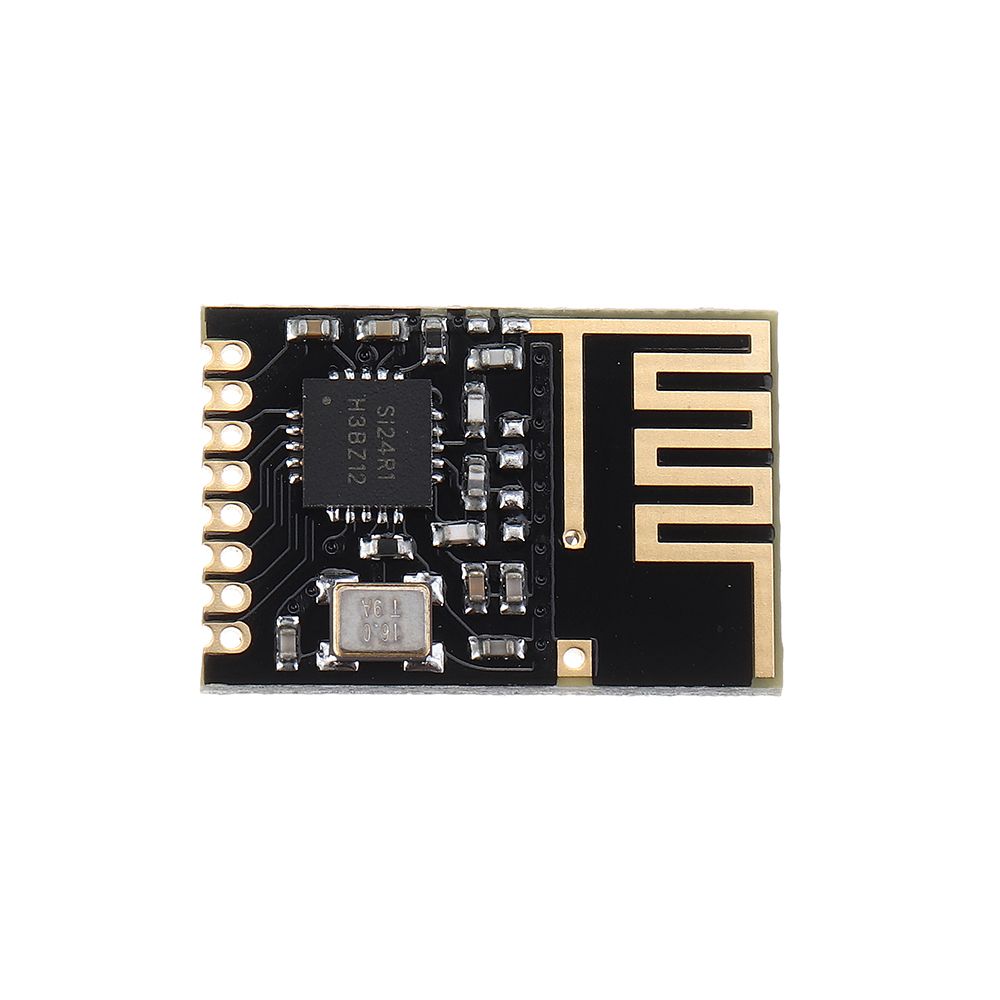

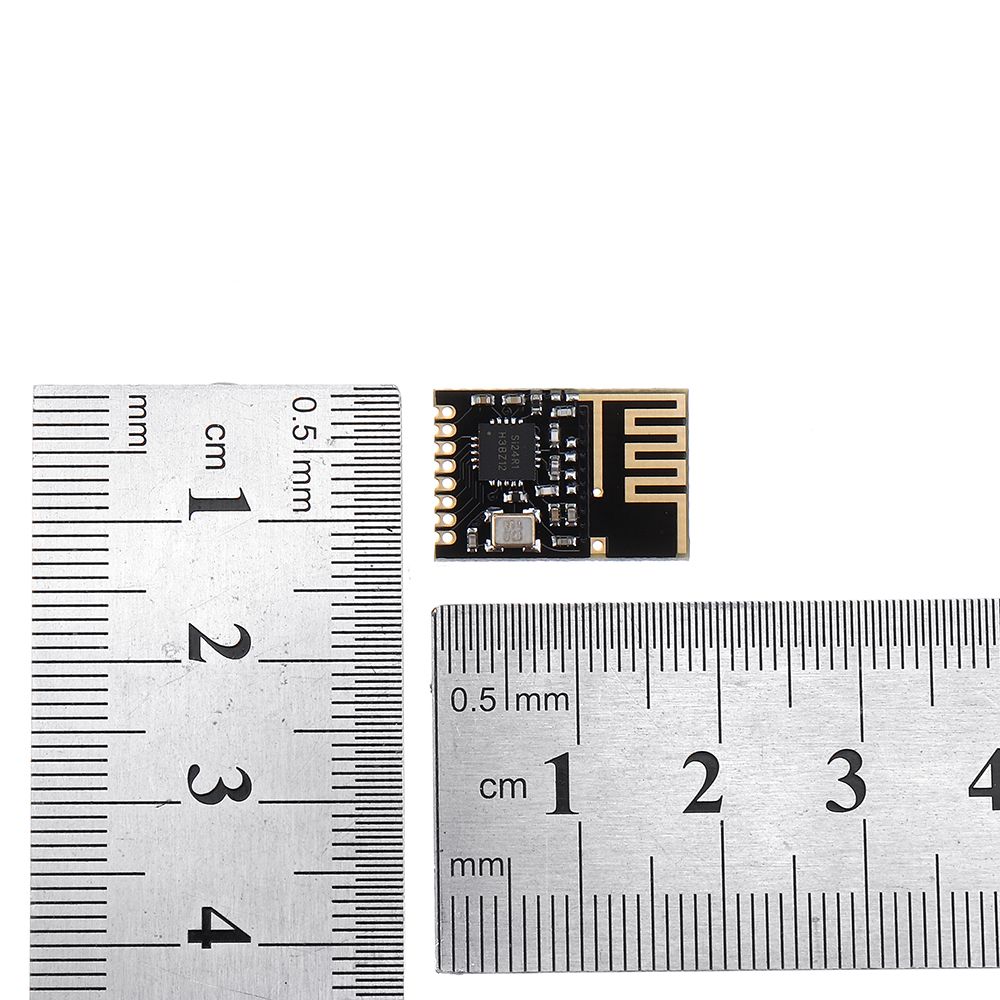

10 x NRF24L01 Mini SMD 2.4GHz Wireless Module
