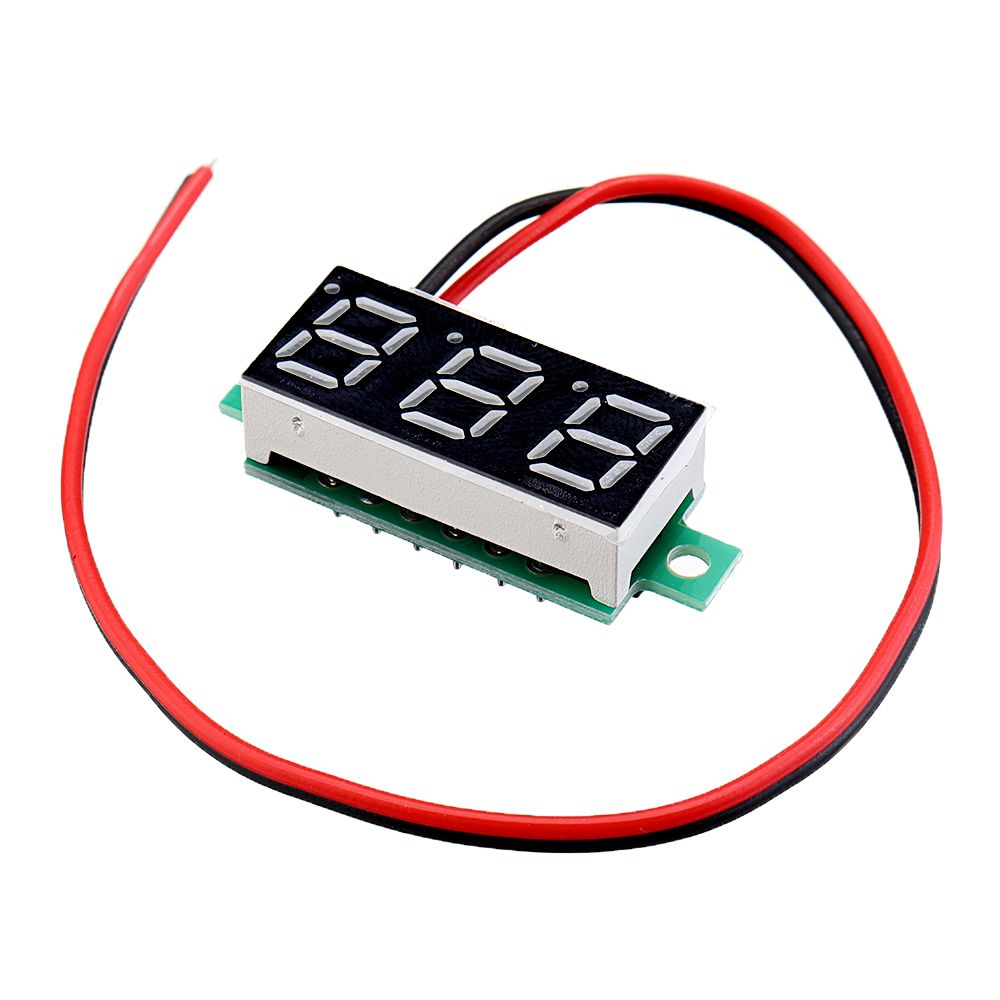

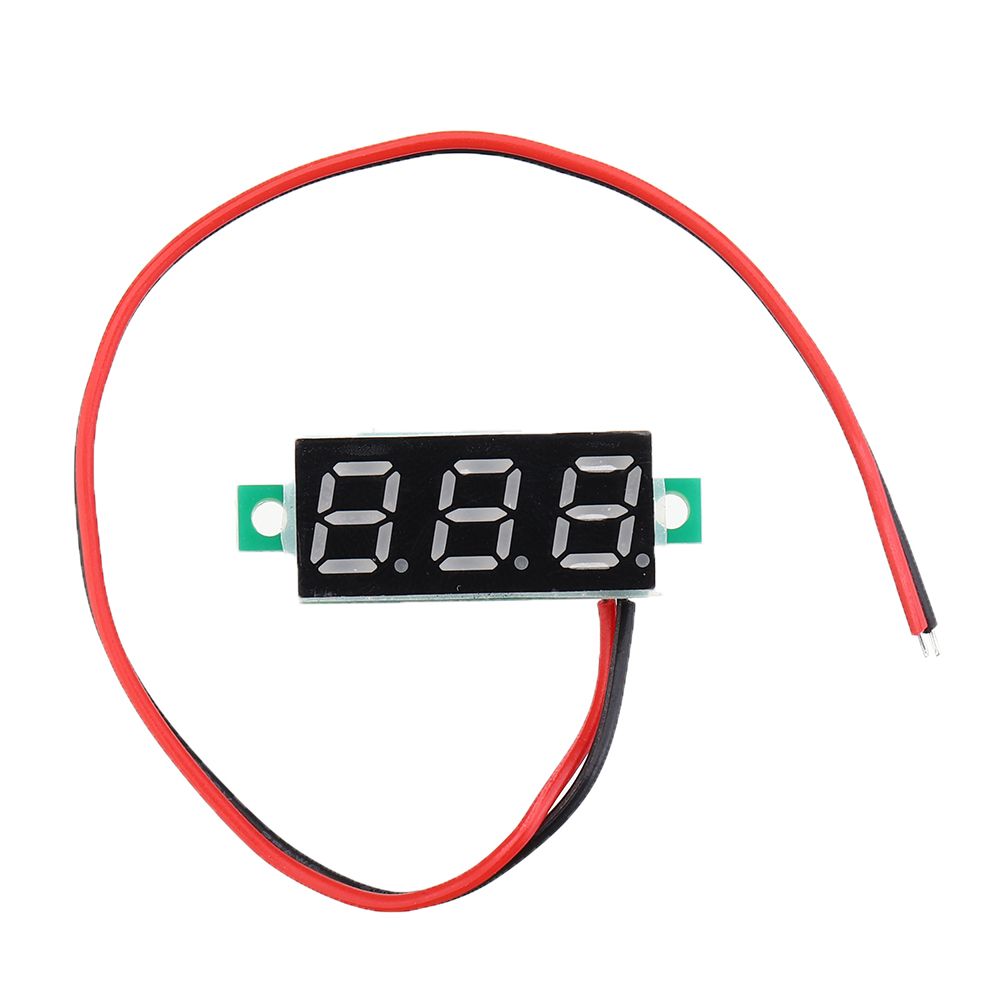

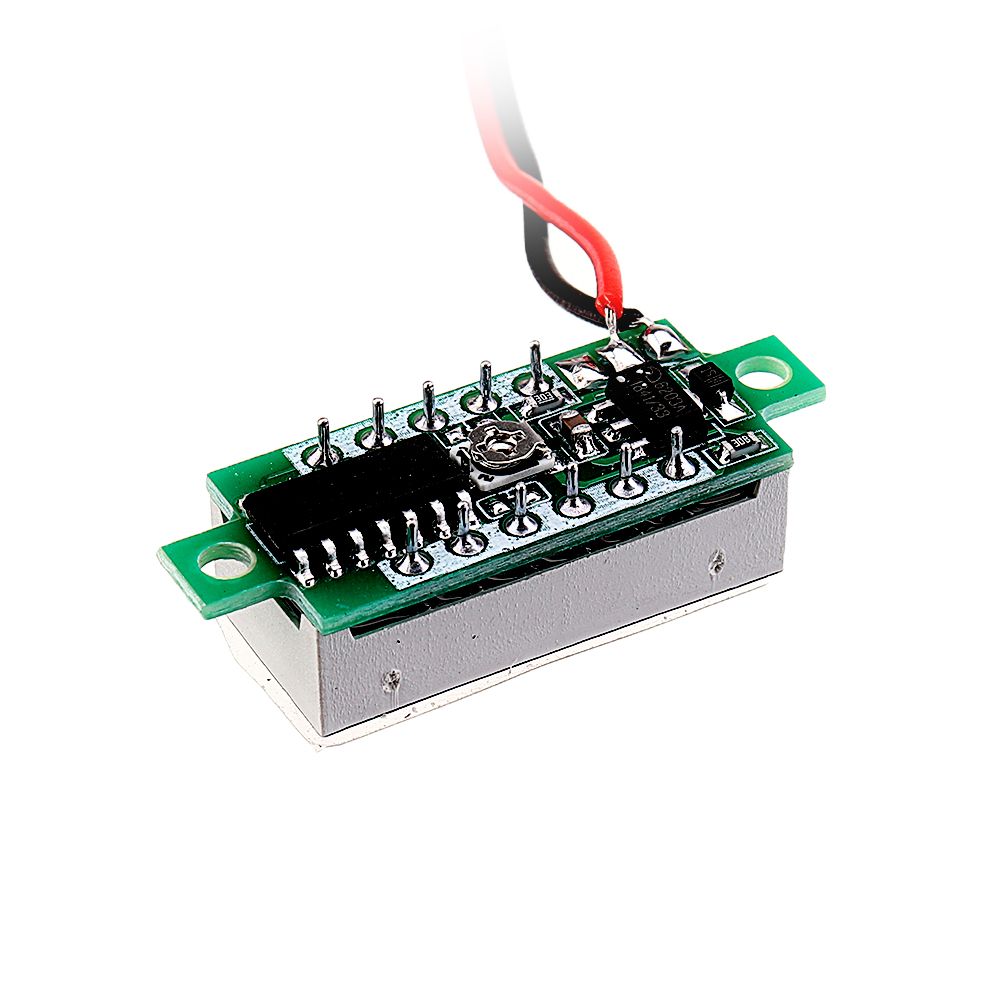

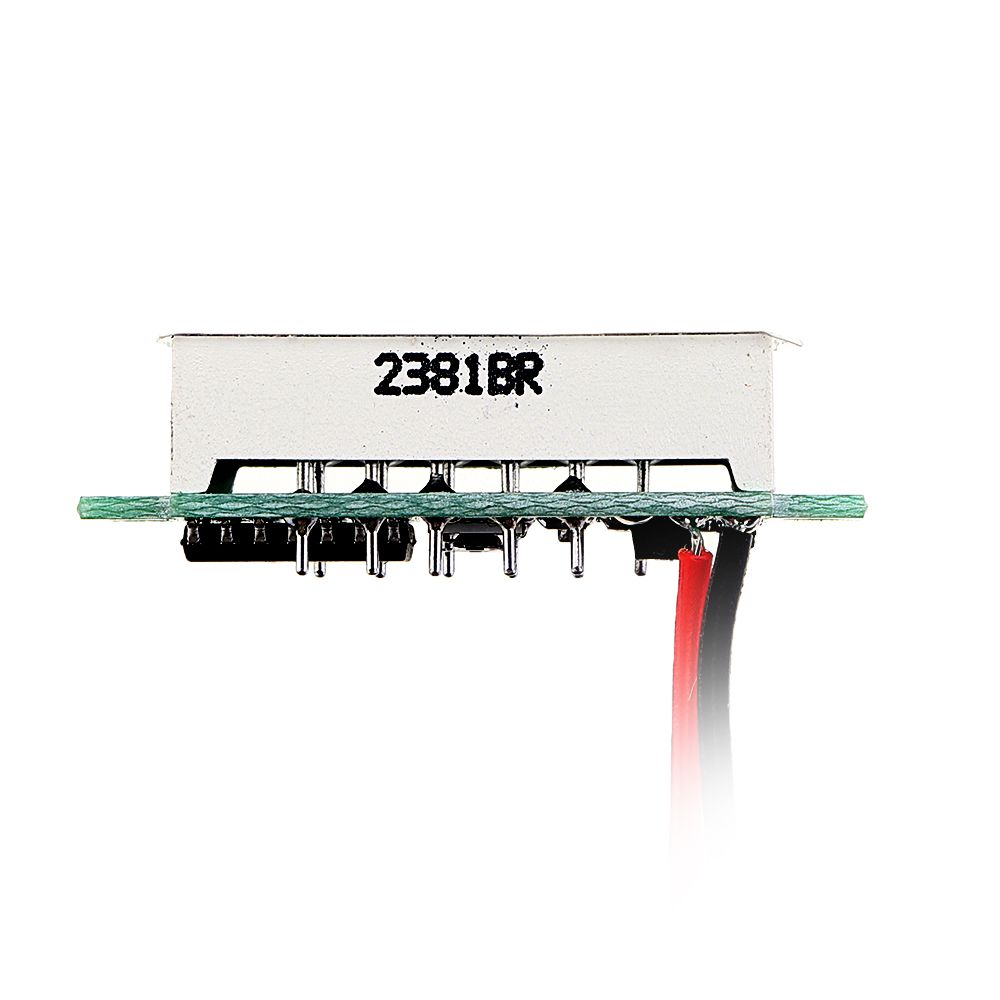

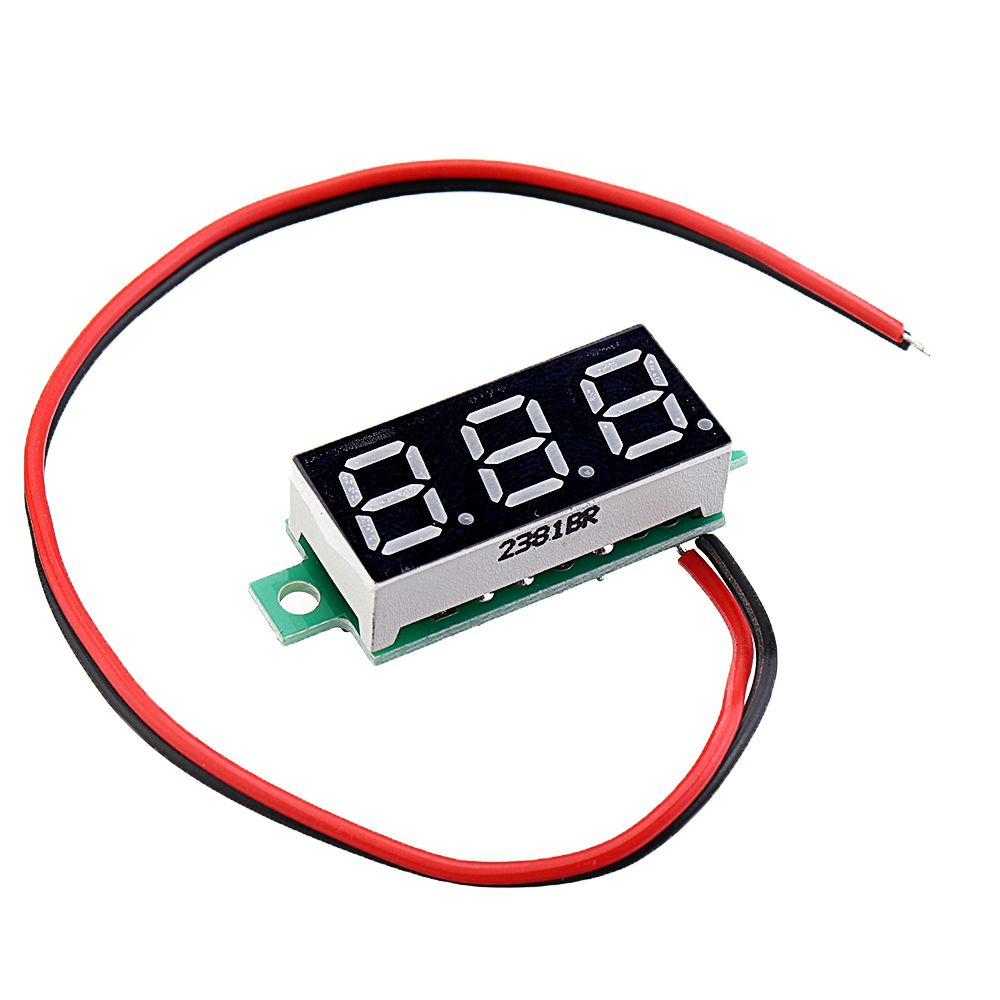

20pcs 0.28 Inch Two-wire 2.5-30V Digital Red Display DC Voltmeter Adjustable Voltage Meter

20pcs 0.28 Inch Two-wire 2.5-30V Digital Red Display DC Voltmeter Adjustable Voltage Meter
20pcs 0.28 Inch Two-wire 2.5-30V Digital Red Display DC Voltmeter Adjustable Voltage Meter
20pcs 0.28 Inch Two-wire 2.5-30V Digital Red Display DC Voltmeter Adjustable Voltage Meter
20pcs 0.28 Inch Two-wire 2.5-30V Digital Red Display DC Voltmeter Adjustable Voltage Meter
20pcs 0.28 Inch Two-wire 2.5-30V Digital Red Display DC Voltmeter Adjustable Voltage Meter
20pcs 0.28 Inch Two-wire 2.5-30V Digital Red Display DC Voltmeter Adjustable Voltage Meter
20pcs 0.28 Inch Two-wire 2.5-30V Digital Red Display DC Voltmeter Adjustable Voltage Meter
20pcs 0.28 Inch Two-wire 2.5-30V Digital Red Display DC Voltmeter Adjustable Voltage Meter
20pcs 0.28 Inch Two-wire 2.5-30V Digital Red Display DC Voltmeter Adjustable Voltage Meter
20pcs 0.28 Inch Two-wire 2.5-30V Digital Red Display DC Voltmeter Adjustable Voltage Meter
20pcs 0.28 Inch Two-wire 2.5-30V Digital Red Display DC Voltmeter Adjustable Voltage Meter
20pcs 0.28 Inch Two-wire 2.5-30V Digital Red Display DC Voltmeter Adjustable Voltage Meter
20pcs 0.28 Inch Two-wire 2.5-30V Digital Red Display DC Voltmeter Adjustable Voltage Meter
$22.99
Ex Tax: $22.99
  • Stock: In Stock
  • Model: EB0047109
  • SKU: EB0047109
>
Feature:

1. The wiring of this voltmeter is simple. The conventional two wires are used, the red is connected to the positive, the black is connected to the negative, and the reverse connection is protected.
2. Conventionally, no external working power supply is required, and the measuring voltage can be directly operated. The measuring voltage range is two-wire 2.50-30V, three-wire 100V.
3. Wide voltage operation, red 2.50V low and safe pressure up to 40V, more than 40V may be damaged.
4. When measuring voltages below 10V, two digits are displayed after the decimal point; when measuring voltages above 10V, one digit is displayed after the decimal point.

Measuring range Two-wire DC2.50~32.0V / three-wire DC0-100V / 500V
Power supply range No need to supply power separately. The measured voltage <40V, higher than 40V may be damaged.
Test accuracy ±1%. >10V error ±0.1V; <10V ±0.03V
Input resistance >50KΩ
Working current <30mA
Refresh rate About 100mS once
Display specification Three digit 0.28 LED digital tubes
Lead length Default 20cm

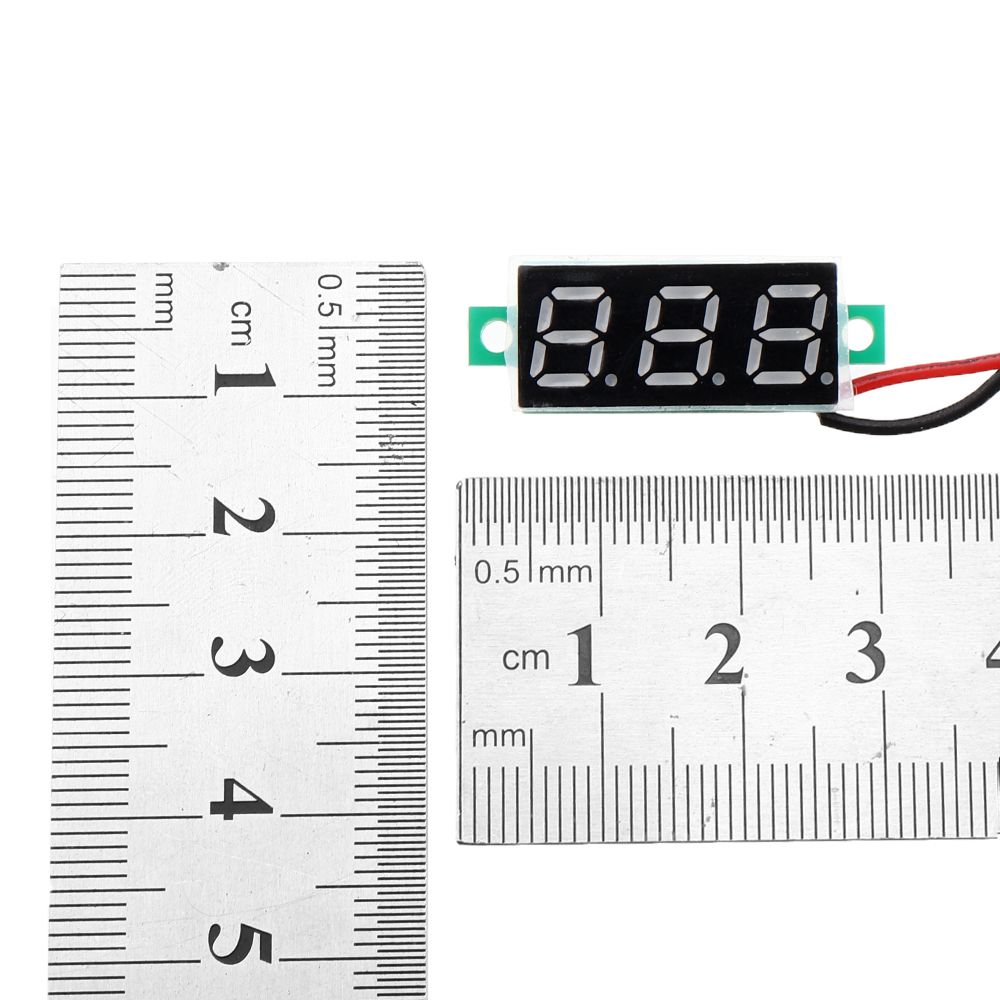

Dimensions 30 x 11.5 x 9 mm
Hole Size Pitch: 26mm Aperture: 2.4mm
Net weight 4g
Operating temperature -10 to +80 °C
Working humidity 10 to 80%
Working pressure 80 to 106 kPa

Package includes:

20 x Voltage meter



20pcs-028-Inch-Two-wire-25-30V-Digital-Red-Display-DC-Voltmeter-Adjustable-Voltage-Meter-1577861

20pcs-028-Inch-Two-wire-25-30V-Digital-Red-Display-DC-Voltmeter-Adjustable-Voltage-Meter-1577861

20pcs-028-Inch-Two-wire-25-30V-Digital-Red-Display-DC-Voltmeter-Adjustable-Voltage-Meter-1577861

20pcs-028-Inch-Two-wire-25-30V-Digital-Red-Display-DC-Voltmeter-Adjustable-Voltage-Meter-1577861

20pcs-028-Inch-Two-wire-25-30V-Digital-Red-Display-DC-Voltmeter-Adjustable-Voltage-Meter-1577861

20pcs-028-Inch-Two-wire-25-30V-Digital-Red-Display-DC-Voltmeter-Adjustable-Voltage-Meter-1577861
