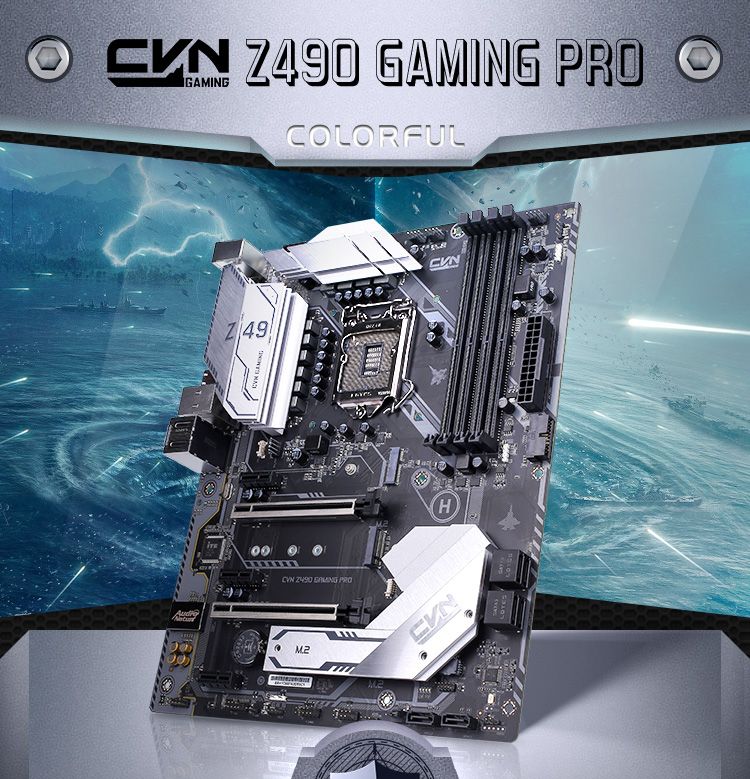

Colorful CVN Z490 GAMING PRO V20 Computer Motherboard4* DDR4 Memory OC Support to 4000MHz Intel 10th Generation Core CNVI WiFi
- Stock: In Stock
- Model: EB0026895
- SKU: EB0026895
Specification:
Motherboard Series | Intel chipset,CVN series |
Chipset | Intel Z490 |
Processor | Intel® 10th Generation Core™ Processor / 10 Core (Including K series) |
Memory | 4 DIMM slots，support dual channel DDR4-4000(OC)/3800(OC)/3600(OC)/3400 (OC)/3200(OC)/3000(OC)/2800(OC)/2666/2400/2133 MHz |
Graphics Renhotec | 1*PCI Express3.0X16 slot |
SATA Ports | 6*SATA3.0 6Gb/s ports |
Board I/O | 1*PS2 port;1*HDMI port,1*DP port; 2*USB 2.0 ports,2*USB 3.2 Gen1 Type-A ports,2*USB3.2 Gen2(1*TYPE-A+1*TYPE-C); 1*RJ45 1000M LAN; 6*audio ports; （onboard： 2*USB2.0 headers,1*USB3.2 Gen1 header） |
Expansion Slots | 1*PCI Express 3.0x4 slot，3*PCI Express3.0x1，1*CNVI WiFi/BT module slot,2*M.2 slots |
BIOS | 128M UEFI |
Power Management | support 125W processors |
Hardware Monitor | CPU Fan speed Controlled，SYSTEM Fan speed Monitoring,CPU Temperature Monitoring，System Temperature Monitoring，and Voltage monitoring |
LAN | Realtek RTL8111H 1000M LAN，Provides 10/100/1000Mb Ethernet |

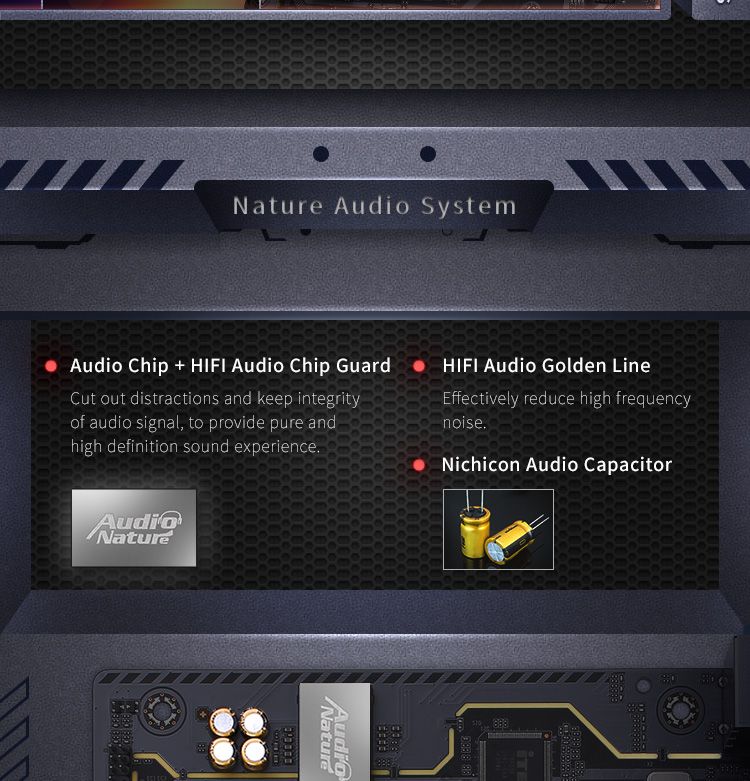

Audio | ALC892 8-channel audio chipset |
Configuration | 305 x 244 mm ATX |
Other Features | Support S3/S4/S5 wake-up;Support USB wake-up;Support PS2 KB/MS wake-up;Support EUP function;Support phone call startup, timing boot, network S5 wake-up |

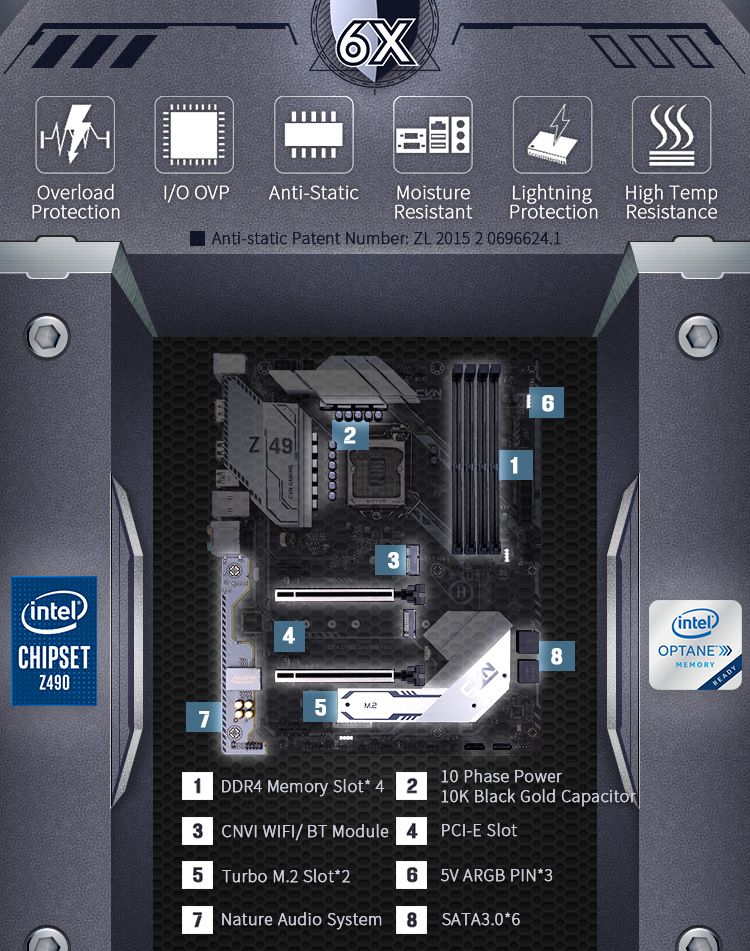

Features:
1. New generation motherboard： Support 10th Generation Intel Core™/10 Core (Including K series) Processors (Socket 1200).
2. Easy to operate：Support S3、S4、S5 wake-up and EUP， Support phone call startup、timing boot、network S5 wake-up.
3. Rich interface： 6*SATA3.0 ports， 2*M.2 slots *silk-screen"NGFF": Support PCIE X4 NVME SSD and Intel Optane technology， *silk-screen"NGFF1": support PCIE X4 NVME SSD， *all support 2242/2260/2280 size SSD， 6*USB2.0 ,2*USB3.2 Gen2(1*Type-A+1*Type-C) & 4*USB3.2 Gen1 Type-A ports(include headers).
4. 1*CNVI WiFi/BT module slot and DP+HDMI ports.

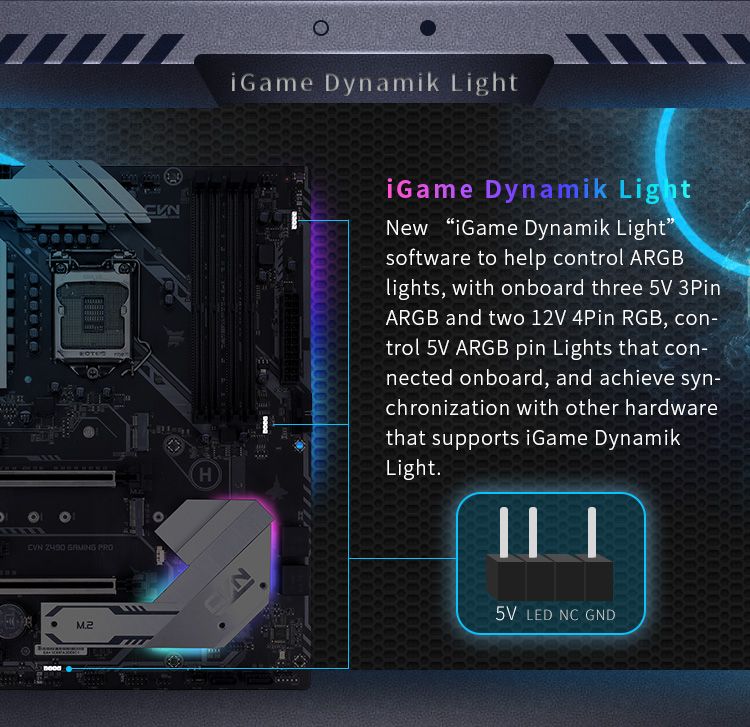

5. Audio isolated LED light and 1*4PIN 12V and 3*5V RGB headers.
6. 4* DDR4 ，Memory OC Support to 4000MHz and 8-ch audio chipset.
Package included:
1. 1*Colorful CVN Z490 GAMING PRO V20 Computer Motherboard.
2. 1*Product Manual
