Mini PC Q190G4 Intel Trail J1900 Quad Core 8GB RAM 64GB ROM With 4 LAN Port Pfsense as Router Firewall

Mini PC Q190G4 Intel Trail J1900 Quad Core 8GB RAM 64GB ROM With 4 LAN Port Pfsense as Router Firewall
Mini PC Q190G4 Intel Trail J1900 Quad Core 8GB RAM 64GB ROM With 4 LAN Port Pfsense as Router Firewall
Mini PC Q190G4 Intel Trail J1900 Quad Core 8GB RAM 64GB ROM With 4 LAN Port Pfsense as Router Firewall
Mini PC Q190G4 Intel Trail J1900 Quad Core 8GB RAM 64GB ROM With 4 LAN Port Pfsense as Router Firewall
Mini PC Q190G4 Intel Trail J1900 Quad Core 8GB RAM 64GB ROM With 4 LAN Port Pfsense as Router Firewall
Mini PC Q190G4 Intel Trail J1900 Quad Core 8GB RAM 64GB ROM With 4 LAN Port Pfsense as Router Firewall
Mini PC Q190G4 Intel Trail J1900 Quad Core 8GB RAM 64GB ROM With 4 LAN Port Pfsense as Router Firewall
Mini PC Q190G4 Intel Trail J1900 Quad Core 8GB RAM 64GB ROM With 4 LAN Port Pfsense as Router Firewall
Mini PC Q190G4 Intel Trail J1900 Quad Core 8GB RAM 64GB ROM With 4 LAN Port Pfsense as Router Firewall
Mini PC Q190G4 Intel Trail J1900 Quad Core 8GB RAM 64GB ROM With 4 LAN Port Pfsense as Router Firewall
Mini PC Q190G4 Intel Trail J1900 Quad Core 8GB RAM 64GB ROM With 4 LAN Port Pfsense as Router Firewall
$217.12
Ex Tax: $217.12
  • Stock: In Stock
  • Model: EB0029860
  • SKU: EB0029860
QOTOM Mini PC Q190G4 Quad Core 8GB RAM 64GB ROM With 4 LAN Port Pfsense as Router Firewall (No Wifi)

Description:

With hackers working around the clock to identify the next potential victim, it’s more important than ever for you to prioritize security. Without security solutions, your personal privacy and business are at risk.

With 4 Intel Gigabit NIC and Intel Bay Trail j1900 Processor, QOTOM Mini PC Q190G4U is perfect fit to build a advanced Firewall Router and ensure that hardware and software work together to protect your business from malware and secure all the important, private data and content you create and share.

Specification:

Onboard CPU: Intel Celeron Processor J1900 (Quad-Core 2M Cache, 2 GHz, up to 2.41 GHz) Don't support AES-NI

Memory: Support DDR3L 1333/1600 MHz, 1.35V ;1 x DDR3 DIMM Memory Slot ; Max. Support up to 8GB Memory


Hard Disk: supports 1 * mSATA SSD

Integrated graphics: Intel HD Graphics

Onboard LAN: 4 x Intel I211-AT- 10/100/1000 Controller

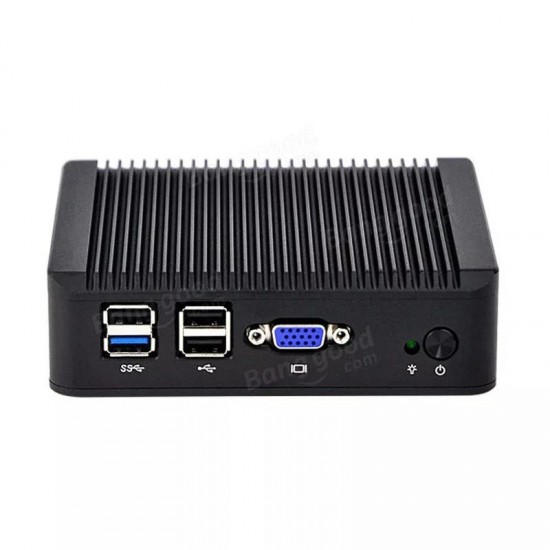

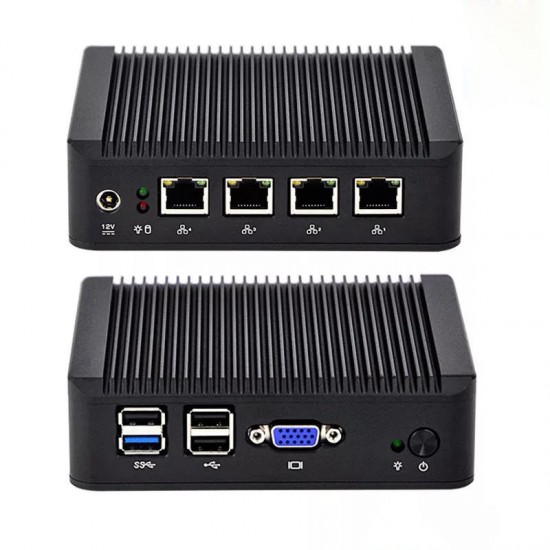

Front-Panel Connectors:  Power on/off ; Power LED ; 3 x USB 2.0 Ports ; 1 x USB 3.0 Port ; 1 x VGA Port
Specifications:

General
Brand Renhotec
Type Q190G4
Color Black
Type Mini PC
RAM 8GB DDR3
ROM 64GB
CPU Intel Bay Trail j1900
Core Qual Core,2 GHz, up to 2.42 GHz
Media Supported
Decoder Format H.263,H.264,H.265,HD MPEG4
Video format All
Audio format All
Photo Format All
Support 5.1 Surround Sound Output Yes
Product Details
5G WiFi No
bluetooth Support USB Signal wirelss Module only
Power Supply Charge Adapter
Operating Support Windows 7 Windows 8 Windows 10 Linux/Pfsense etc
Language Multi-language
HDMI Function HDCP
Power Consumption 15W

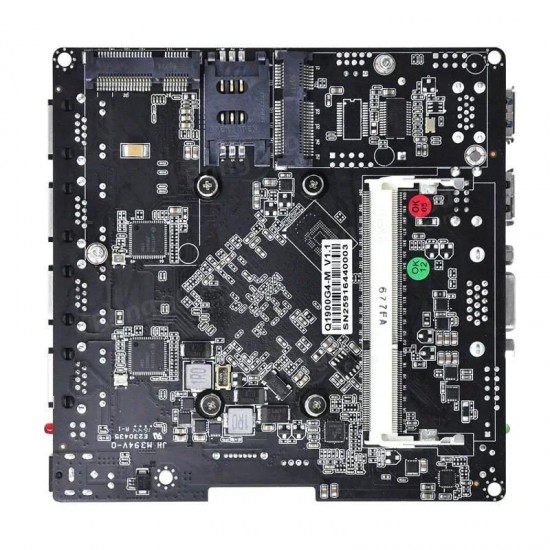

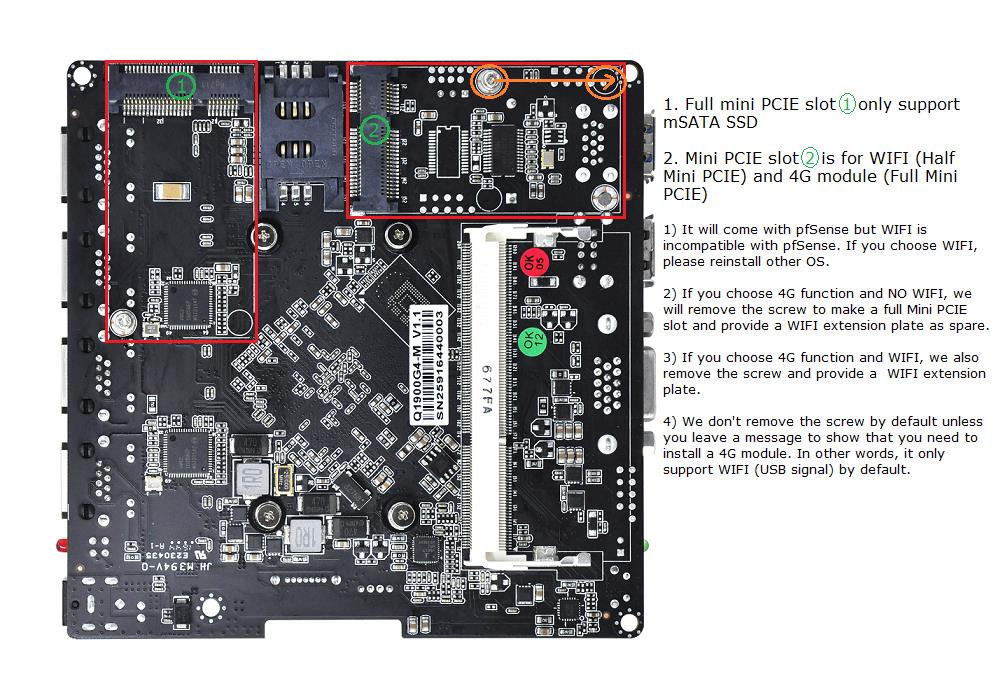

Internal Connectors 1 x Minipcie port (for mSATA SSD)
1 x Minipcie port (for WIFI/BLUETOOT Module,support USB Signal wirelss Module only)
1 x DDR3L SO-DIMM Memory Slot
1 x SATA Port
1 x SATA power connector
1 x Automatically boot jumper
1 x RS232 header (optional)
1 x SIM Card slot (optional)

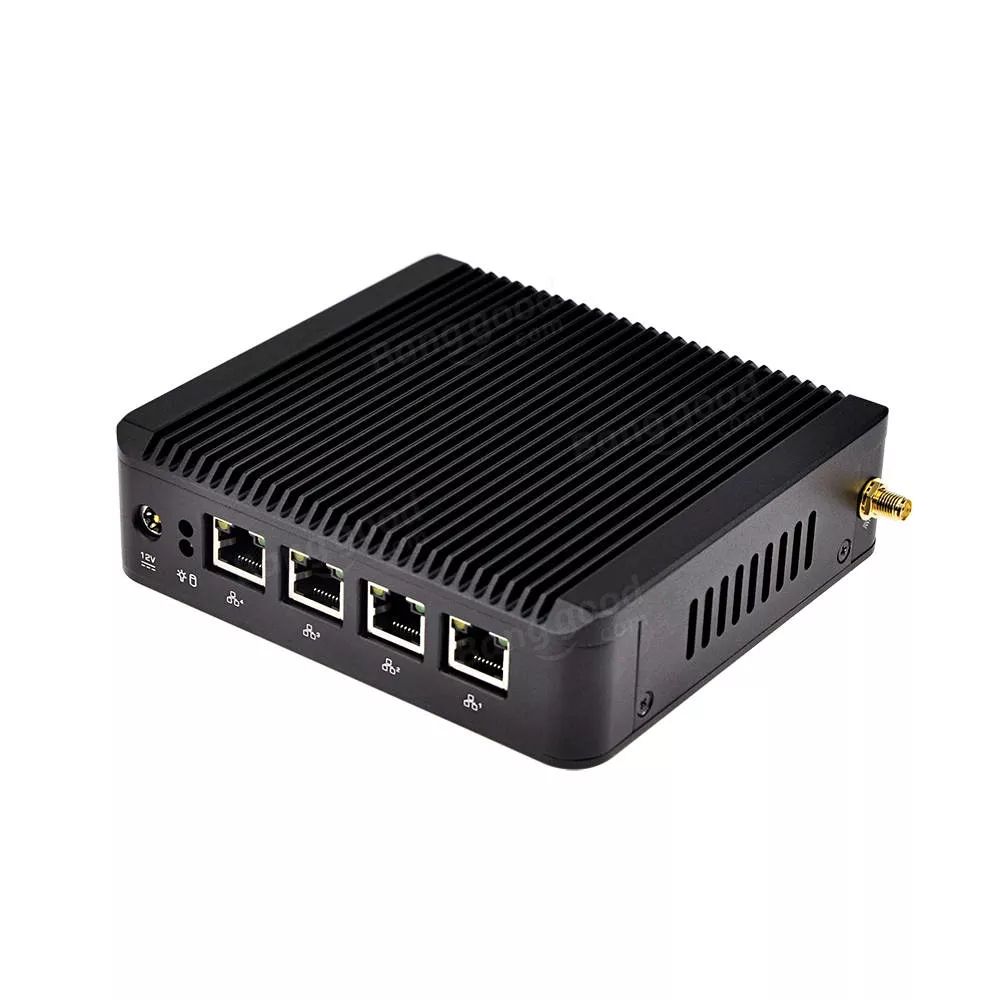

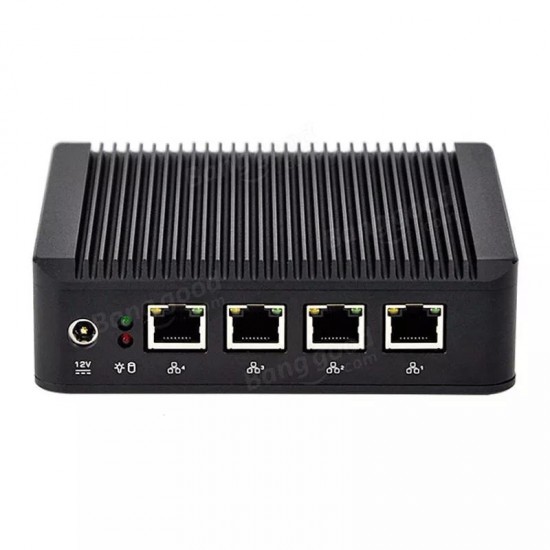

Back-Panel Connectors 1 × DV 12V input
 Power LED,HDD LED
4 x RJ-45 Ports
WIFI and Bluetooth (support USB Signal wirelss Module only)
Power Requirement
Power Type External Power Adapter Mode
Power Input Vol 100-240V / 50-60Hz
Dimension and Weight
Product weight 0.8000 kg
Package weight 1.5500 kg

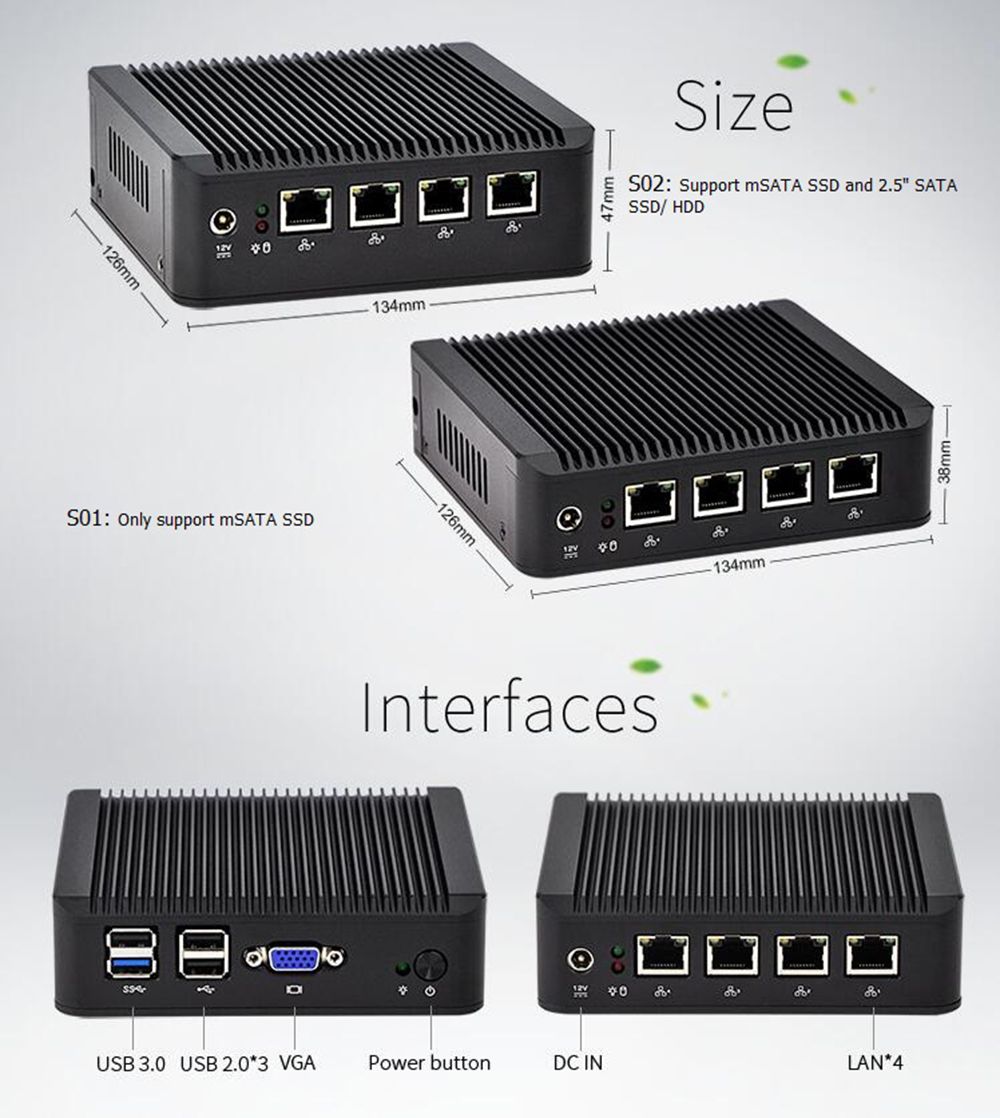

Product size (L x W x H) 12.50 x 12.50 x 4.50 cm
Package size (L x W x H) 20.80 x 18.60 x 7.50 cm
Package Contents

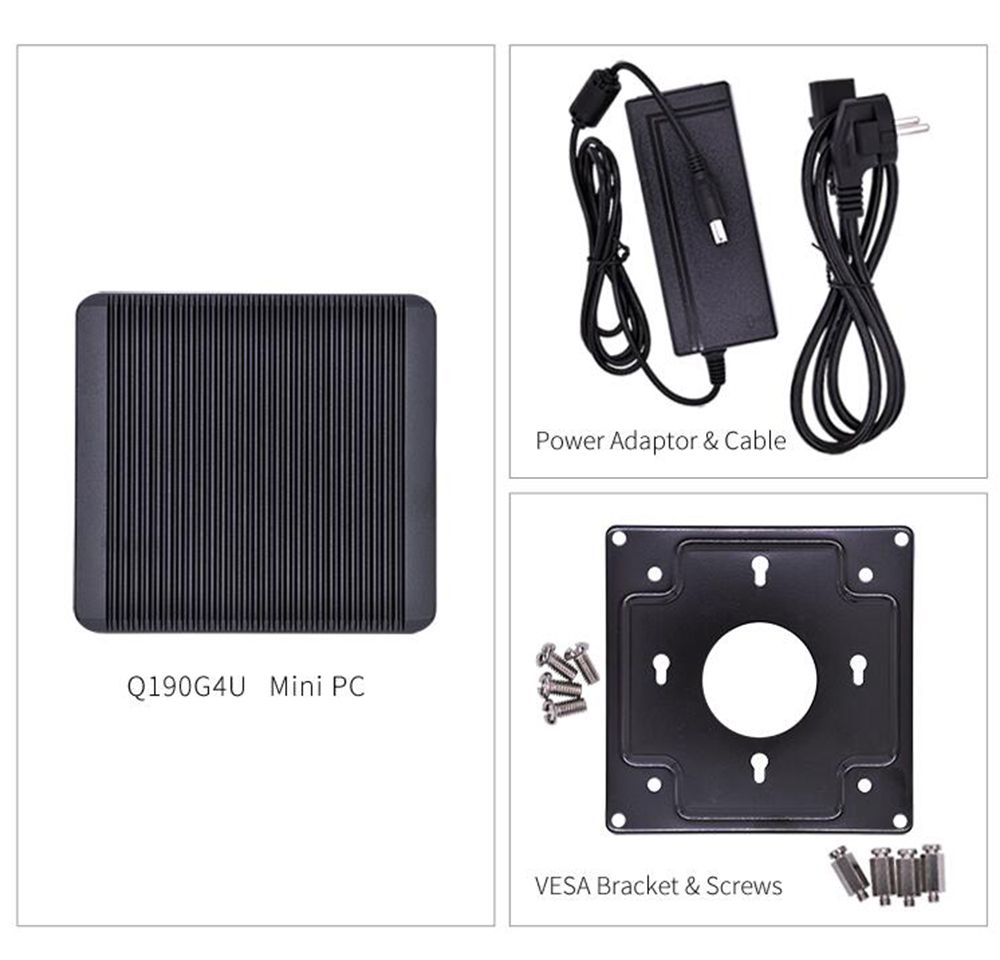

Package Contents 1 x Mini PC, 1 x Power Adapter, 1 x  User Manual
