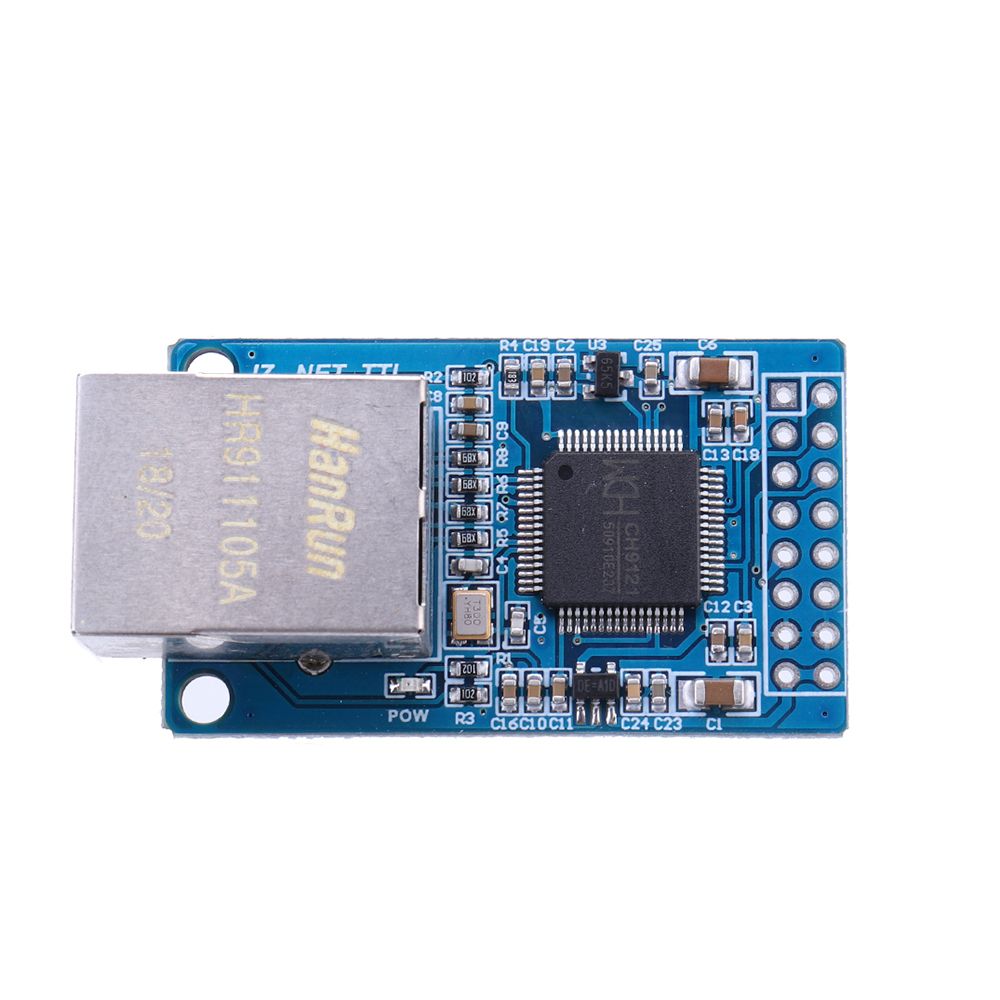

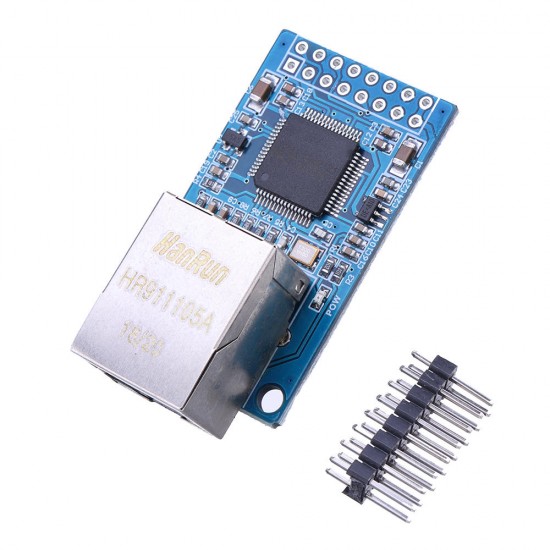

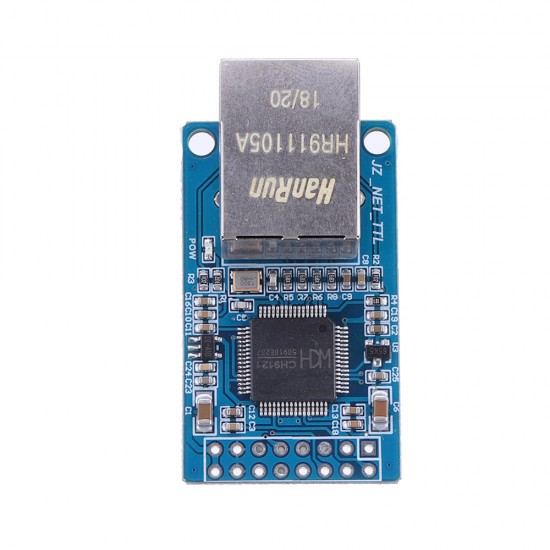

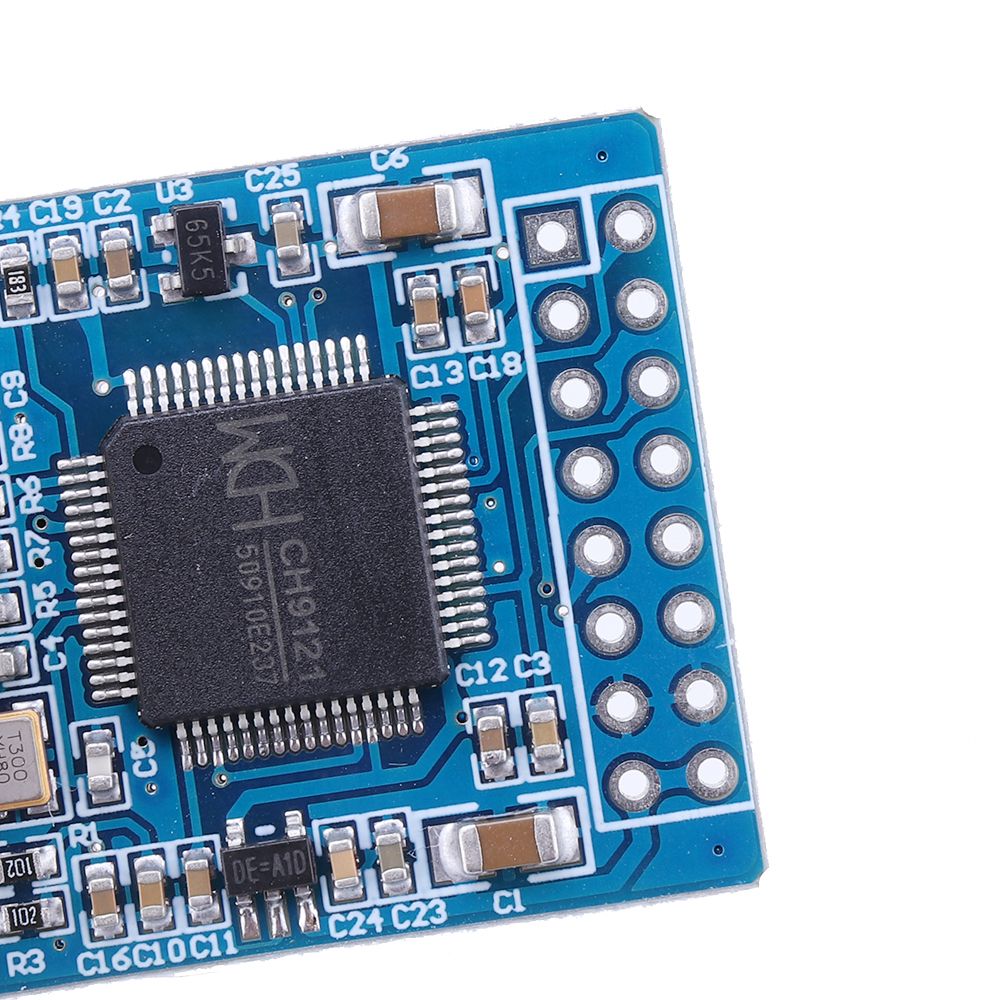

CH9121 STM32 Serial Port RS232 to Ethernet Network Converter Module TTL Transmission Module Industrial Microcontroller Geekcreit for Arduino - products that work with official Arduino boards

Based on 0 reviews. - Write a review

$14.45

Ex Tax: $14.45

Stock: In Stock
Model: 1441584
SKU: 1441584

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Overview:

RS232 to Ethernet, 5~18V power supply, one-button setting parameters, AT means to modify the module parameters in real time, automatically obtain IP, one button to restore factory settings. The module is a universal serial-to-Ethernet transparent transmission device, which can be connected to MCUs such as 51, AVR, PIC, ARM, etc. or other serial port (TTL) devices.

Features:

- Support 5V or 3.3V power supply, choose one;

- Serial TTL level, pin IO compatible with 3.3V and 5V voltage;

- Serial port baud rate supports 300 ~ 921600bps;

- The serial port supports full-duplex and half-duplex serial communication, and supports RS485 transceiver automatic switching;

- Two-way transparent transmission of serial data and network data;

- Support MDI/MDIX polarity automatic conversion, cross-connect or directly connect the network cable to any connection, the module automatically switches;

- Support DHCP to automatically obtain IP address and support DNS domain name access;

- Support KEEPALIVE mechanism;

- Support virtual serial port software, virtualize the network port into a computer COM port;

- Working mode supports TCP CLIENT, TCP SERVER, UDP CLIENT and UDP SERVER 4 modes;

- Supports 10/100M, full-duplex/half-duplex adaptive Ethernet interface, compatible with 802.3 protocol;

Set the serial port and network parameters of the chip through software and serial commands, and save the parameters after power off;

- Search and query all devices in the LAN through the UDP broadcast protocol to facilitate unified management of devices;

Speciications:

Ethernet Parameters:

Number of ports: 1

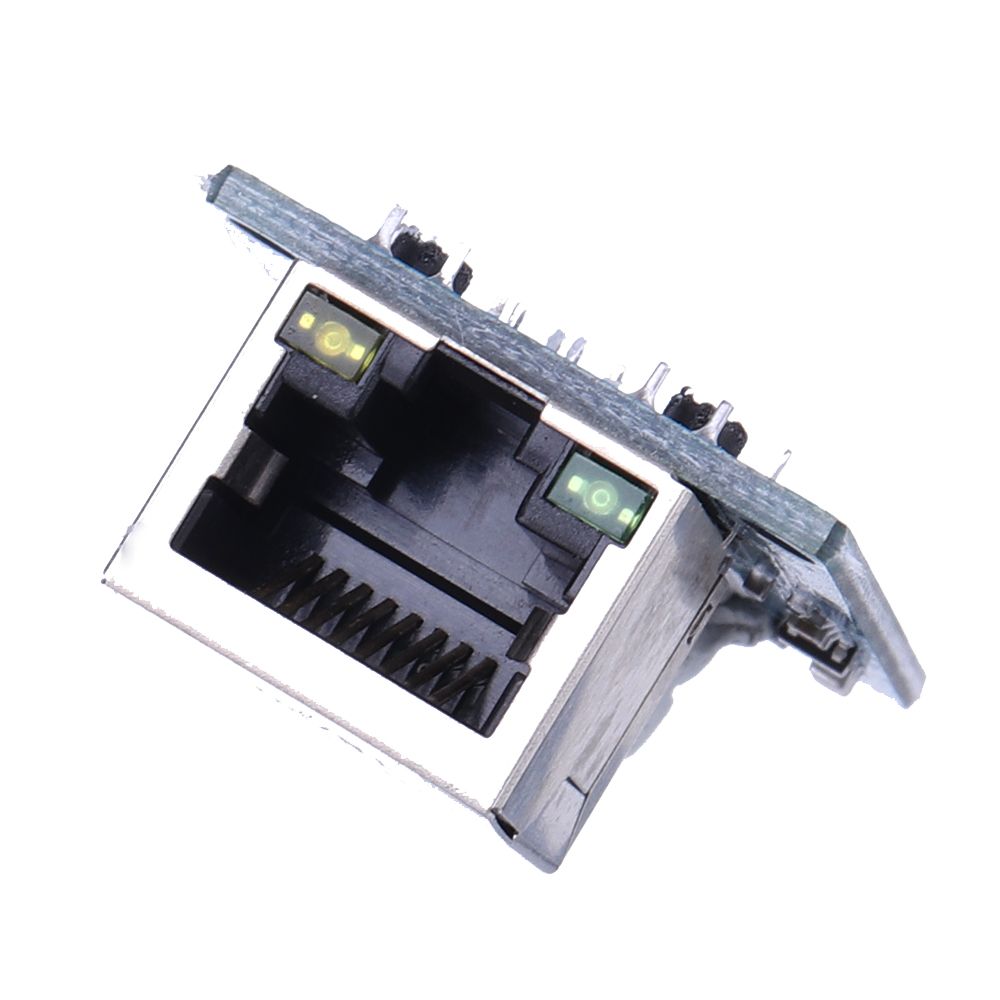

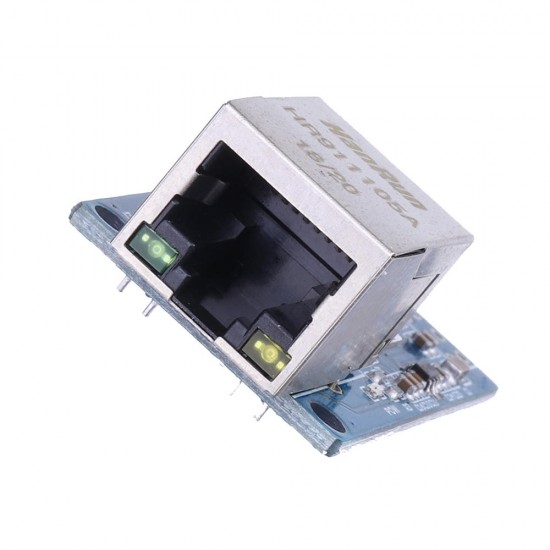

Interface standard: RJ45 interface

LAN Ethernet: 10 / 100Mbps

Data cache: 6K bytes

Protection: 2KV electromagnetic isolation

Network protocols: IP, ARP, TCP, UDP, ICMP, IGMP, DCHP and so on

Serial Port Parameters:

Number of ports: 1

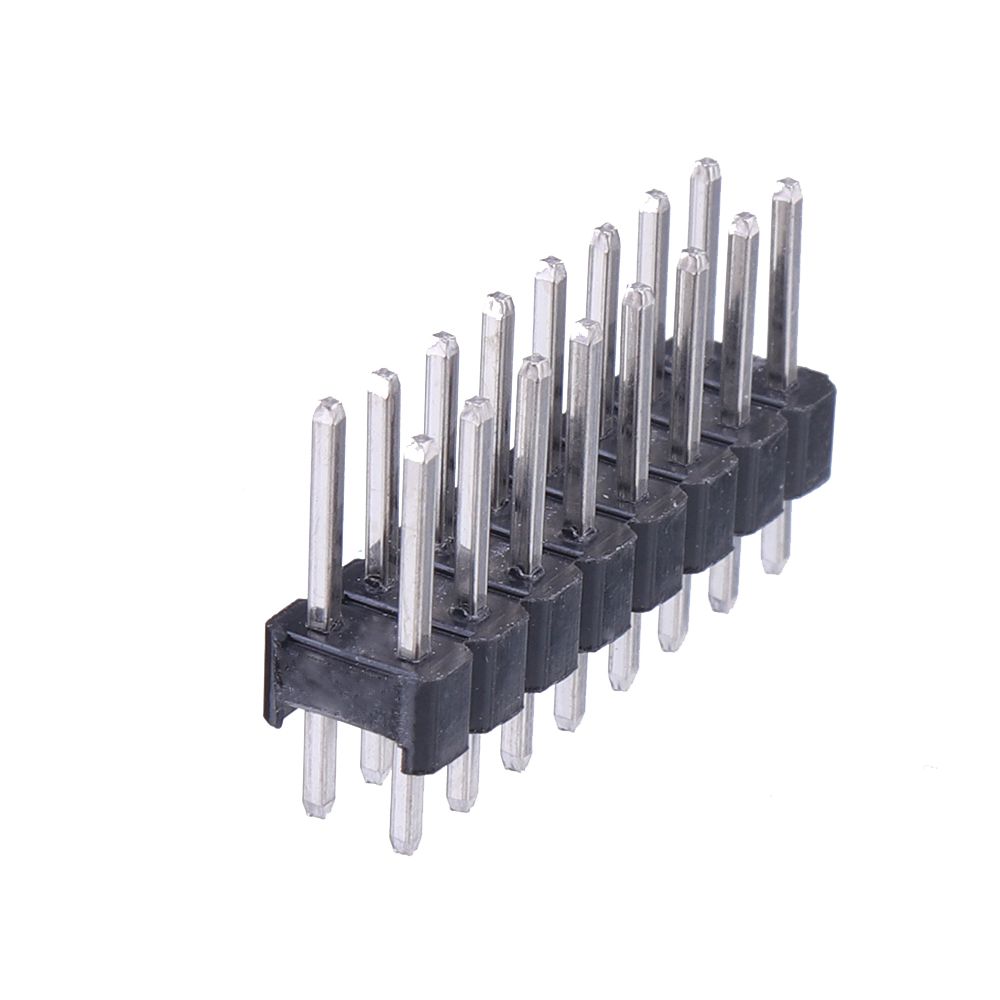

Interface standard: TTL serial port, 2.54MM pin, 3.3V or 5V level

Baud rate: 300 ~ 921600bps

Data bits: 5,6,7,8,9

Stop bit: 1,2 bit

Parity: no parity, odd parity, even parity

Flow Control: None

Cache: 2K bytes

Supporting Software:

Parameter configuration: network configuration software, serial AT command

Module testing: test software (network, serial one)

Basic Parameters:

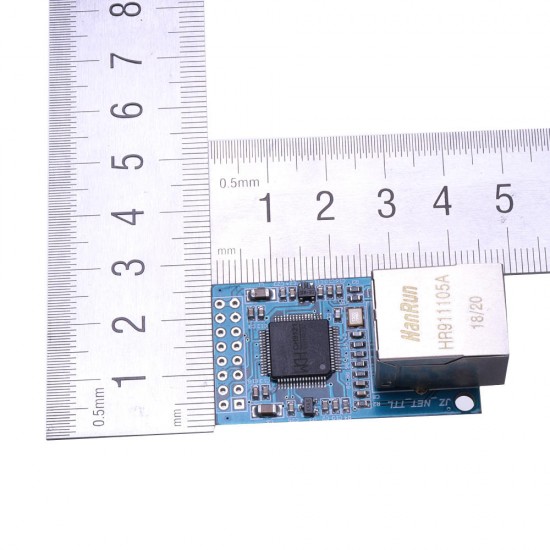

Size 43mmx23mmx14.5mm (length x width x height)

Working voltage DC3.3V / 5V

Operating current 200mA @ 5V

Power consumption ≤ 1W

Operating temperature -40 ~ 85 ° C

Storage temperature -55 ~ 125 ° C

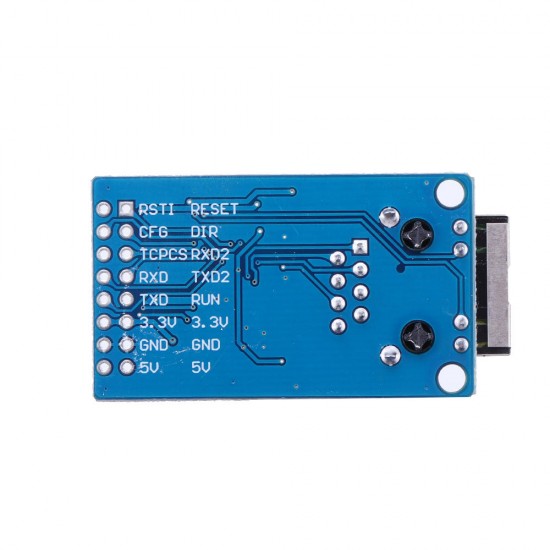

Pin Description:

1. RESET: Factory reset pin, the module power-on detection, active low

2. DIR: RS485 receive, send switch control pin

3. TCPCS: TCP client mode, the port connection status indicator pin, the connection is successful output low

4. RUN: module running status indication pin, input 2Hz square wave

5. GND: Power Ground Pin

6. 3.3V: 3.3V DC power input pin, greater than 200mA, and 5V DC power supply optional

7. GND: Power Ground Pin

8. 5V: 5V DC power input pin, greater than 200mA, and 3.3V DC power supply can choose one of two

9. RSTI: reset pin, the internal pull-up, low-effective, can not be vacant

10. CFG: serial port configuration module enable pin, built-in pull-up, low-effective, do not have to be vacant

11. RXD: Serial data receive pin, serial port TTL level, compatible with 3.3V and 5V

12. TXD: serial data transmission pin, serial TTL level, compatible with 3.3V and 5V

13. GND: Power Ground Pin

14. 3.3V: 3.3V DC power input pin, greater than 200mA, and 5V DC power supply optional

15. GND: Power Ground Pin

16. 5V: 5V DC power input pin, greater than 200mA, with the optional 3.3V DC power supply can be.

Package Included:

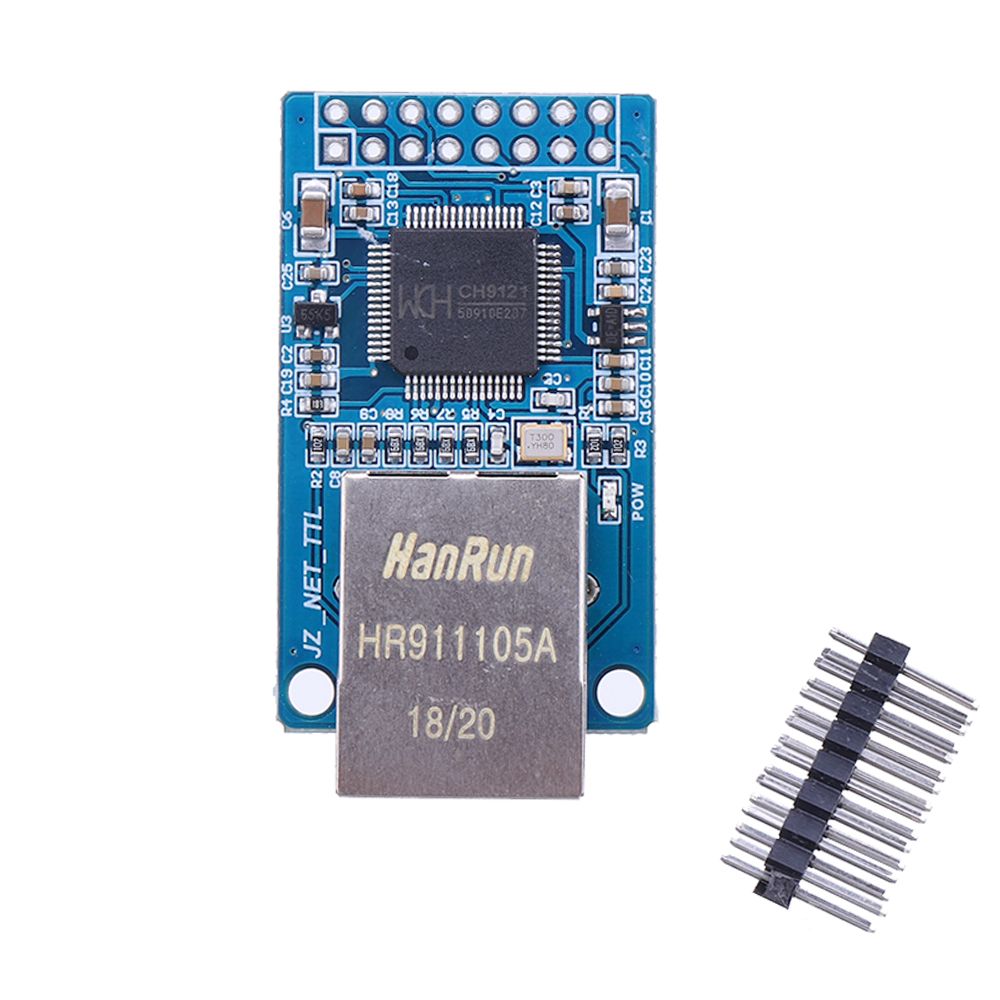

1 x CH9121 Serial Port RS232 to Ethernet Network Module
