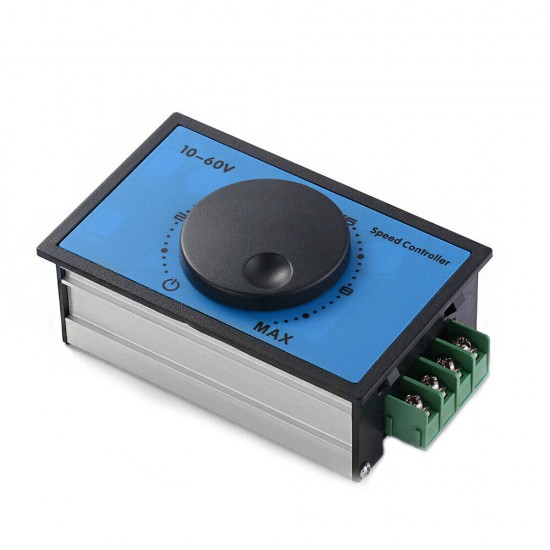

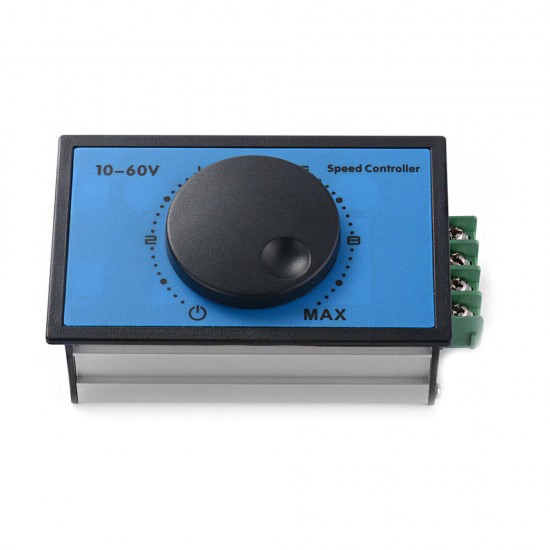

DC 10-60V 12V 24V 48V 20A PWM DC Motor Speed Controller Soft Start Switch TE1255 775 Motor

Based on 0 reviews. - Write a review

$8.49

Ex Tax: $8.49

Stock: In Stock
Model: EB0051631
SKU: EB0051631

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Voltage: 28V,48V,DC 12V,DC 24V

Precise details>>

Content-Length: 1923 >

Feature:

- Soft start: Can solve the damage caused by instantaneous high current to speed controller

- Blocking protection (20A current limited): Limit the high current produced by the blocking of the motor

- Panel switch control, more easy to control the speed for the project

Specification:

Input voltage: DC 10-60A (The specific voltage must be the same as the rated voltage of the motor)

Output voltage: Linear output under load

Support motor: DC brush motor

Output current: Max 20A (Limited value 20A)

Continuous working current: within 18A

Max power: 240W

Regulating type: regulating current

Regulating method: potentiometer (270° linear)

Regulating speed range: 0-100%

Control frequency: 15KHZ

Knob: 10K (with switch)

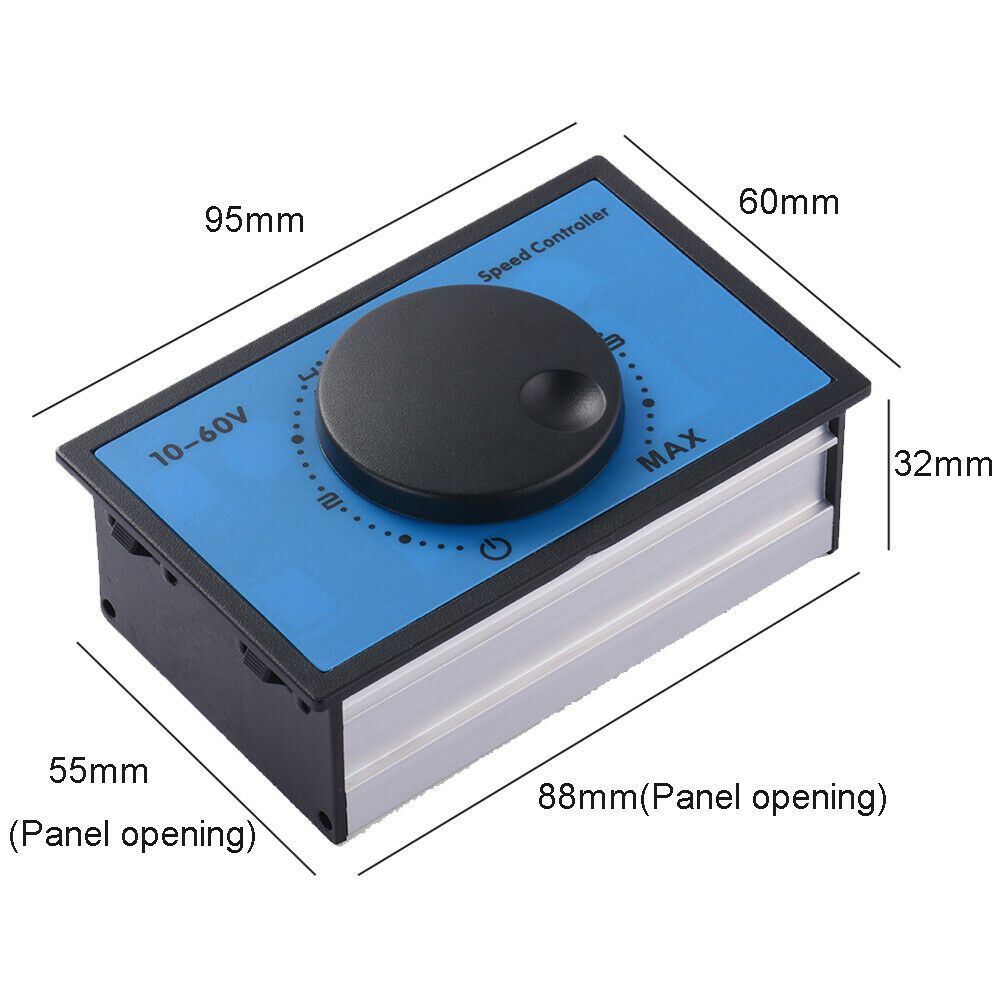

Size: 95mm*60mm*32mm

Panel mounting: 88mm*55mm

Package Included:

1 x DC 10-60V 20A PWM DC Motor Speed Controller
