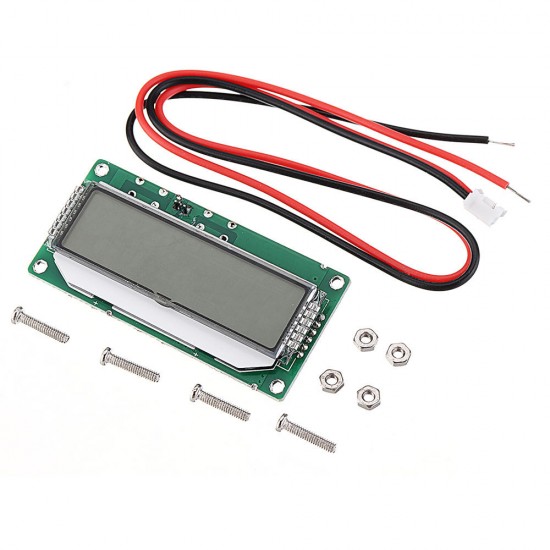

DC 12V-60V 2S-15S LCD Lead Acid Lithium Battery Voltmeter Power Meter Display Battery Capacity Indicator

DC 12V-60V 2S-15S LCD Lead Acid Lithium Battery Voltmeter Power Meter Display Battery Capacity Indicator
DC 12V-60V 2S-15S LCD Lead Acid Lithium Battery Voltmeter Power Meter Display Battery Capacity Indicator
DC 12V-60V 2S-15S LCD Lead Acid Lithium Battery Voltmeter Power Meter Display Battery Capacity Indicator
DC 12V-60V 2S-15S LCD Lead Acid Lithium Battery Voltmeter Power Meter Display Battery Capacity Indicator
DC 12V-60V 2S-15S LCD Lead Acid Lithium Battery Voltmeter Power Meter Display Battery Capacity Indicator
DC 12V-60V 2S-15S LCD Lead Acid Lithium Battery Voltmeter Power Meter Display Battery Capacity Indicator
DC 12V-60V 2S-15S LCD Lead Acid Lithium Battery Voltmeter Power Meter Display Battery Capacity Indicator
DC 12V-60V 2S-15S LCD Lead Acid Lithium Battery Voltmeter Power Meter Display Battery Capacity Indicator
DC 12V-60V 2S-15S LCD Lead Acid Lithium Battery Voltmeter Power Meter Display Battery Capacity Indicator
DC 12V-60V 2S-15S LCD Lead Acid Lithium Battery Voltmeter Power Meter Display Battery Capacity Indicator
DC 12V-60V 2S-15S LCD Lead Acid Lithium Battery Voltmeter Power Meter Display Battery Capacity Indicator
DC 12V-60V 2S-15S LCD Lead Acid Lithium Battery Voltmeter Power Meter Display Battery Capacity Indicator
DC 12V-60V 2S-15S LCD Lead Acid Lithium Battery Voltmeter Power Meter Display Battery Capacity Indicator
DC 12V-60V 2S-15S LCD Lead Acid Lithium Battery Voltmeter Power Meter Display Battery Capacity Indicator
DC 12V-60V 2S-15S LCD Lead Acid Lithium Battery Voltmeter Power Meter Display Battery Capacity Indicator
$8.63
Ex Tax: $8.63
  • Stock: In Stock
  • Model: EB0047882
  • SKU: EB0047882
>
Applicable to the following specifications:

Lead acid battery can be used: 12V 24V 36V 48V
Lithium battery can be used: 2 string 3 string 4 string 5 string 6 string 7 string 8 string 9 string 10 string 11 string 12 string 13 string 14 string 15 string
The default 12V lead acid setting, you need to switch the battery specifications after receiving the goods, set by the back button
Press and hold the 5 button, then after powering on the meter, release the button to enter the setting.

Number of series Nominal voltage Full charge
2 string lithium battery 7.2V 8.4V
3 string lithium battery 10.8V 12.6V
4 string lithium battery 14.4V 16.8V
5 string lithium battery 18V 21V
6 series lithium battery 21.6V 25.2V
7 string lithium battery 24V 29.4V
8 string lithium battery 28.8V 33.6V
9 string lithium battery 32.4V 37.8V
10 string lithium battery 36V 42V
11 string lithium battery 39.6V 46.2V
12 series lithium battery 43.2V 50.4V
13 string lithium battery 48V 54.6V
14 string lithium battery 50.4V 58.8V
15 string lithium battery 54V 63V

Features:

1. The product has reverse connection protection, and the reverse will not burn out.
2. Lead-acid battery lithium battery is universal, can be adjusted by the back button

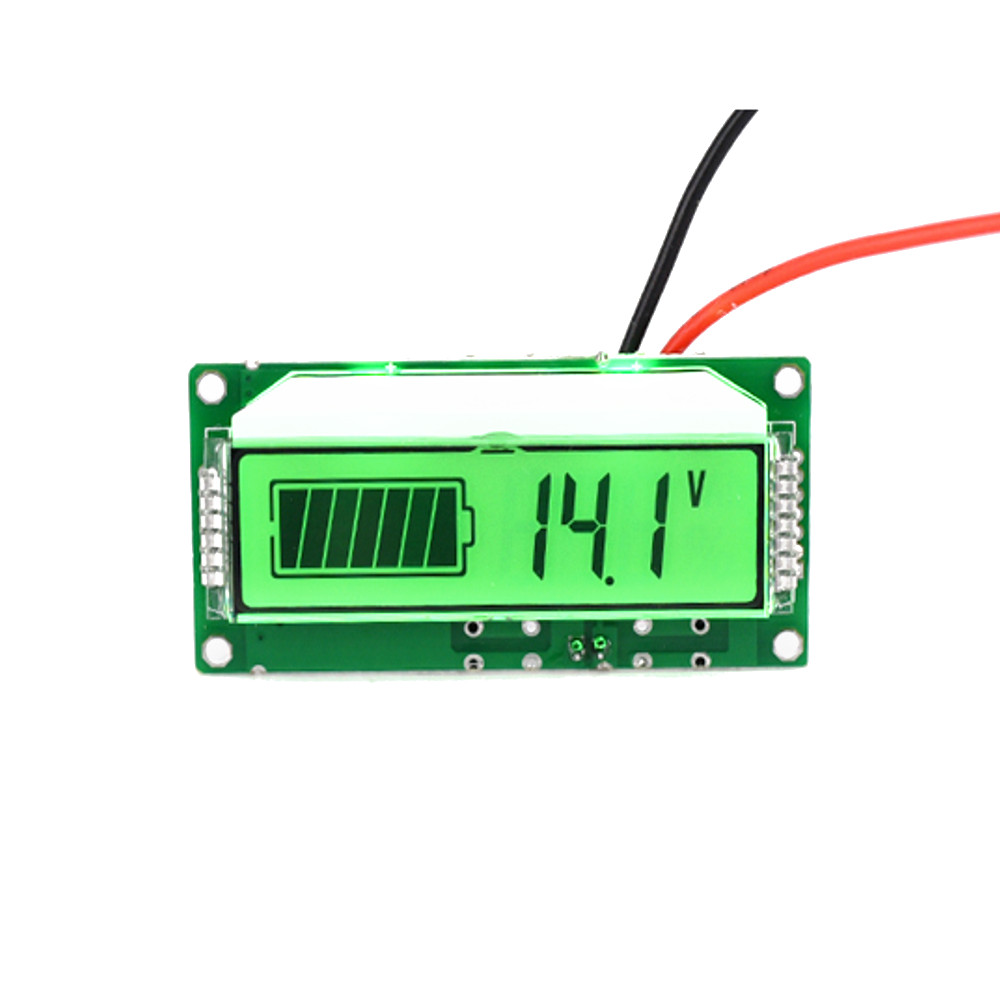

3. Can display battery symbol + percentage or battery symbol + voltmeter, two display modes can be switched at will

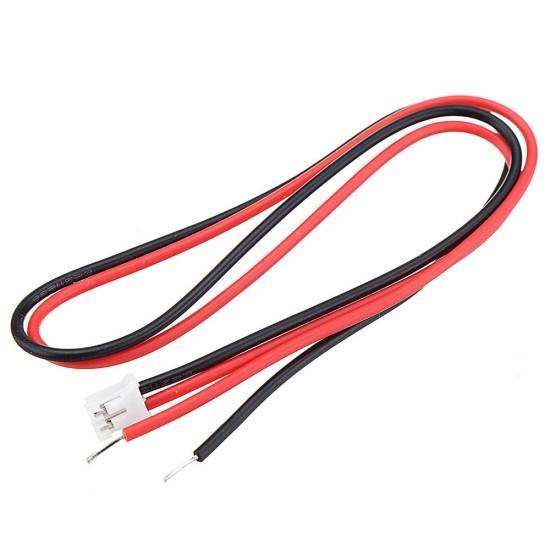

4. The product has only two wires, the wiring is simple, and there is a wiring socket, the wire length is 300mm.

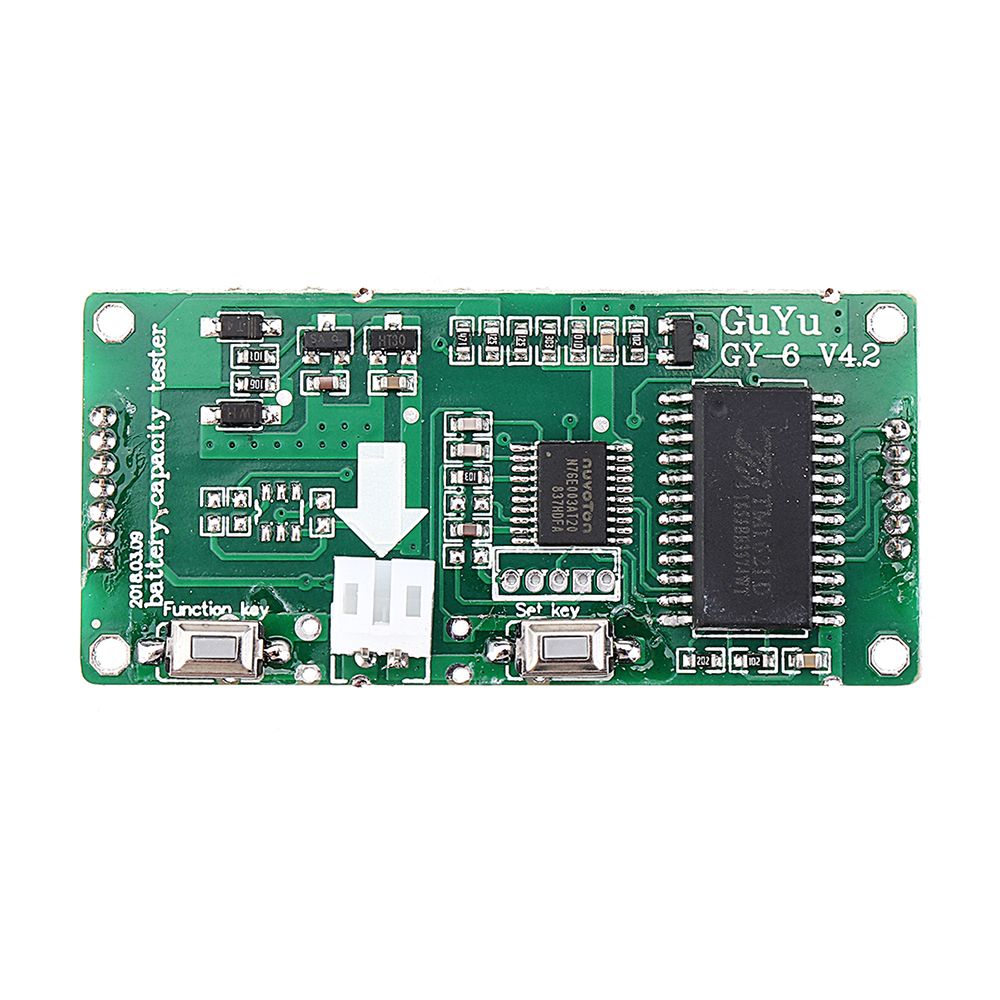

5. All battery specifications and function selections are set via the back button, no soldering iron required

Widely applicable to:

Rapid detection of various instrumentation, measuring equipment, mobile portable equipment, sweeping machines, balance vehicles, battery vehicles and other lithium batteries, lead-acid battery pack capacity. Intuitive battery symbol display plus percentage accurate display. The high-contrast LCD screen can be clearly displayed in the dark or bright light for a long time. The lead-acid battery battery battery water battery winding battery lithium battery 18650 polymer can be used.

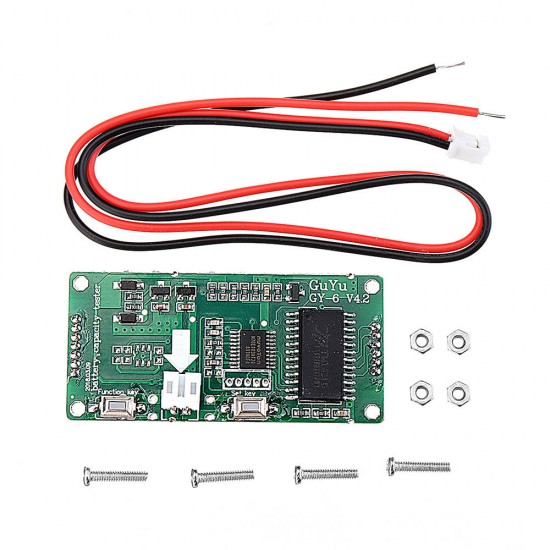

Package includes:

1 x Voltmeter

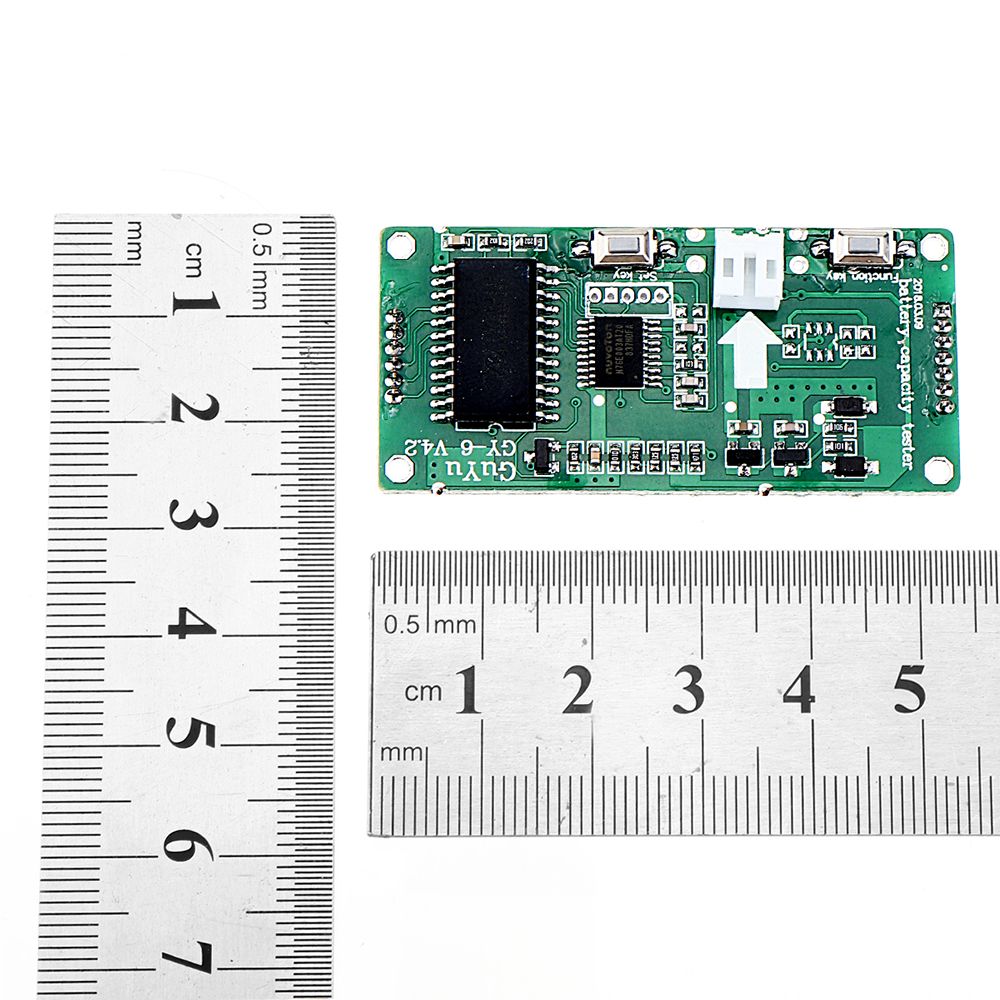

DC-12V-60V-2S-15S-LCD-Lead-Acid-Lithium-Battery-Voltmeter-Power-Meter-Display-Battery-Capacity-Indic-1529556

DC-12V-60V-2S-15S-LCD-Lead-Acid-Lithium-Battery-Voltmeter-Power-Meter-Display-Battery-Capacity-Indic-1529556

DC-12V-60V-2S-15S-LCD-Lead-Acid-Lithium-Battery-Voltmeter-Power-Meter-Display-Battery-Capacity-Indic-1529556

DC-12V-60V-2S-15S-LCD-Lead-Acid-Lithium-Battery-Voltmeter-Power-Meter-Display-Battery-Capacity-Indic-1529556

DC-12V-60V-2S-15S-LCD-Lead-Acid-Lithium-Battery-Voltmeter-Power-Meter-Display-Battery-Capacity-Indic-1529556

DC-12V-60V-2S-15S-LCD-Lead-Acid-Lithium-Battery-Voltmeter-Power-Meter-Display-Battery-Capacity-Indic-1529556
