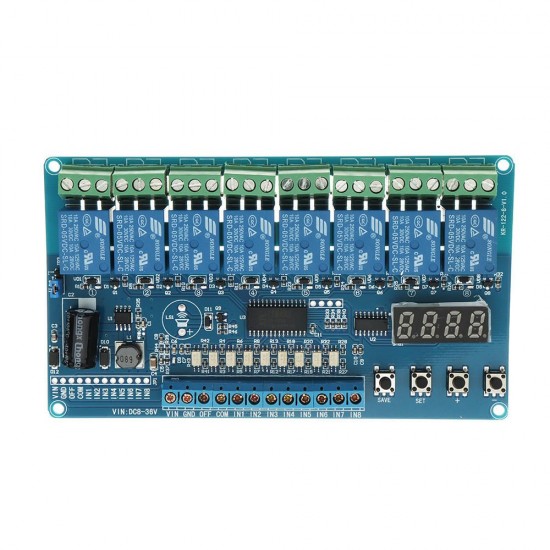

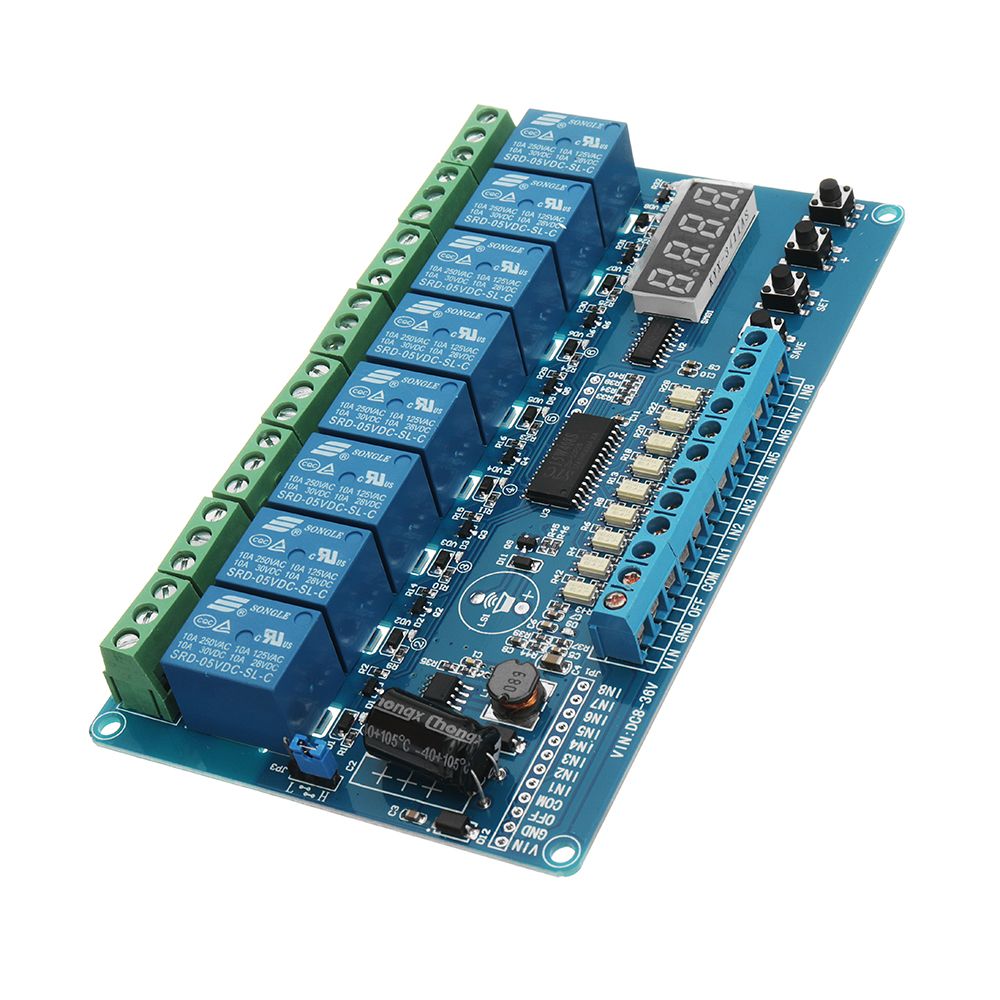

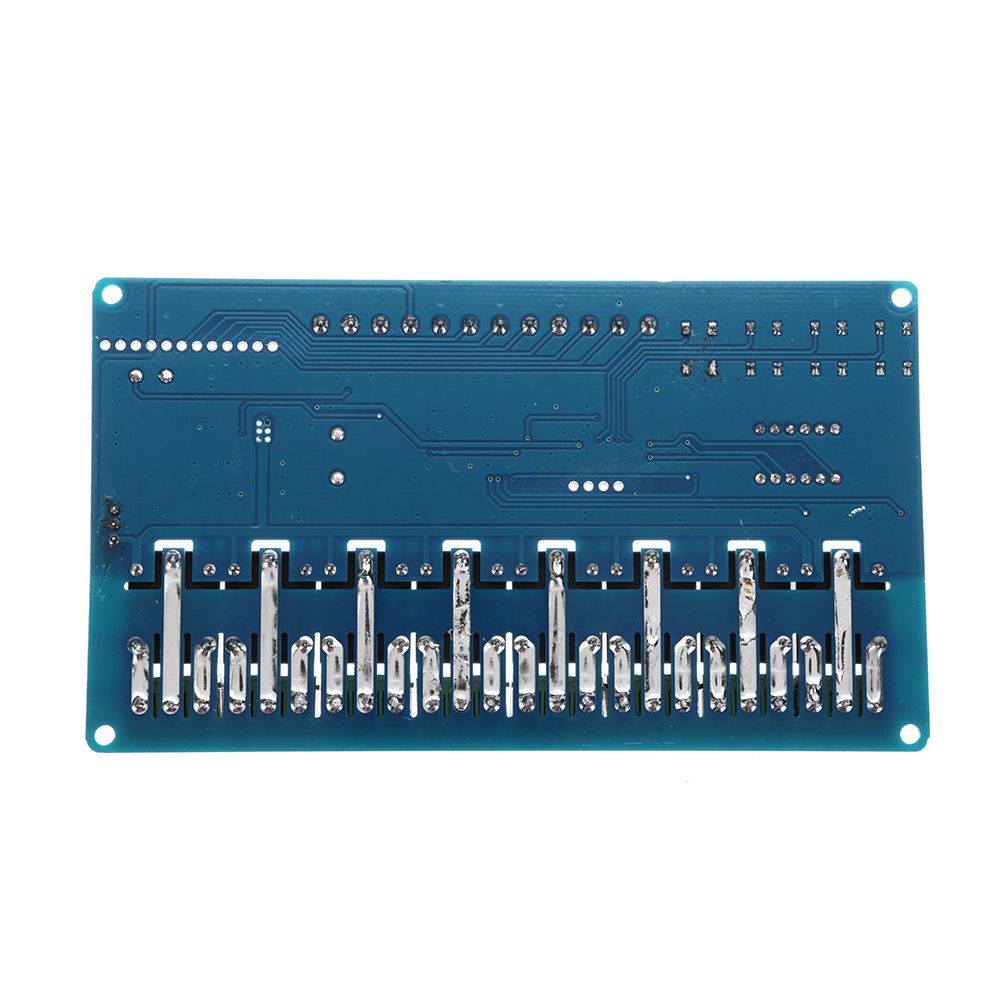

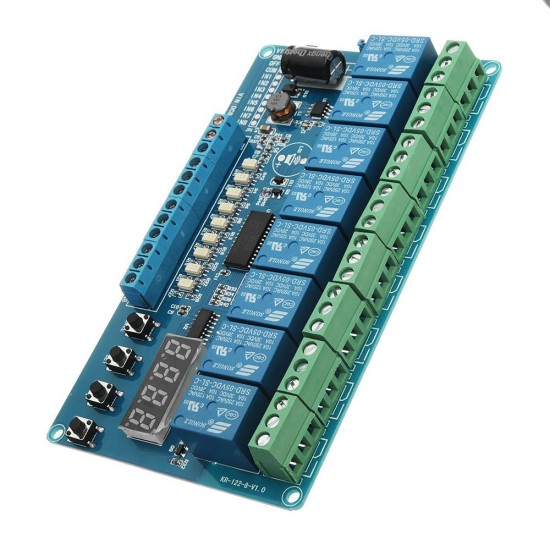

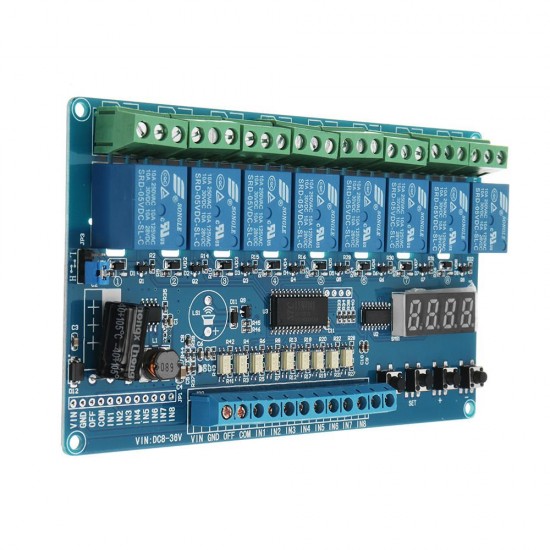

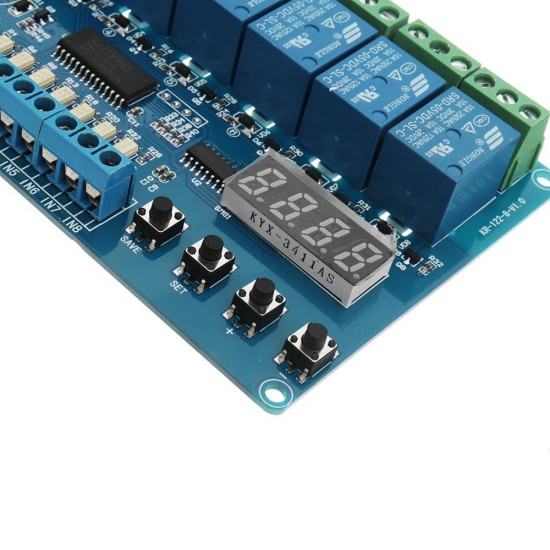

DC 8V To 36V Industrial Grade 8 Channel Multi-function Relay Module Wide Voltage Supply Module

Based on 0 reviews. - Write a review

$33.99

Ex Tax: $33.99

Stock: In Stock
Model: EB0046983
SKU: EB0046983

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Parameter:

Working voltage: DC 8V-36V (limit working voltage DC 6V-45V)

rated power:

Static power < 0.1W (when the relay is not engaged)

Dynamic power < 3.0W (when the relay is fully engaged)

Working temperature: -20°C-60°C (limit operating temperature range -30°C-70°C)

load capacity:

Relay normally open port load capacity: DC 0-30V / 10A, AC 0-250V / 10A

Relay normally closed port load capacity: DC 0-28V / 10A, AC 0-125V / 10A

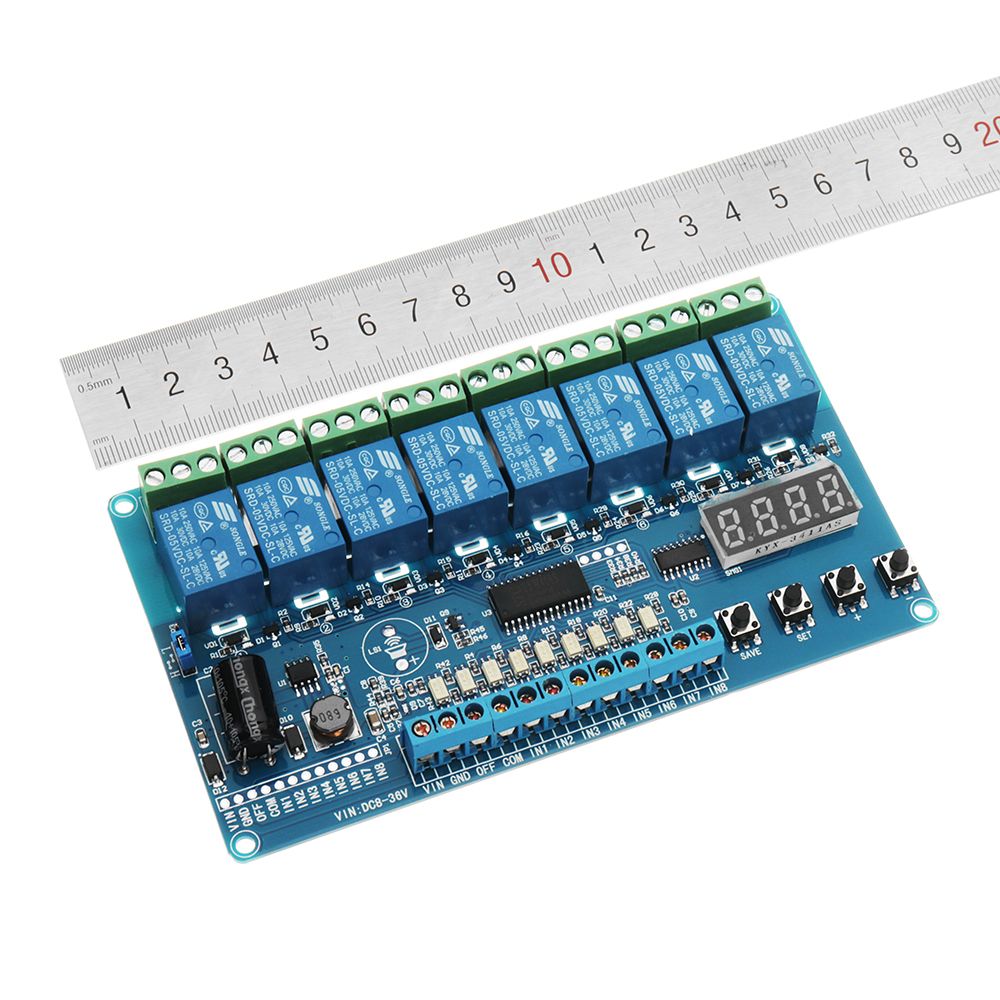

Size: 140*80*20 (length*width*height)

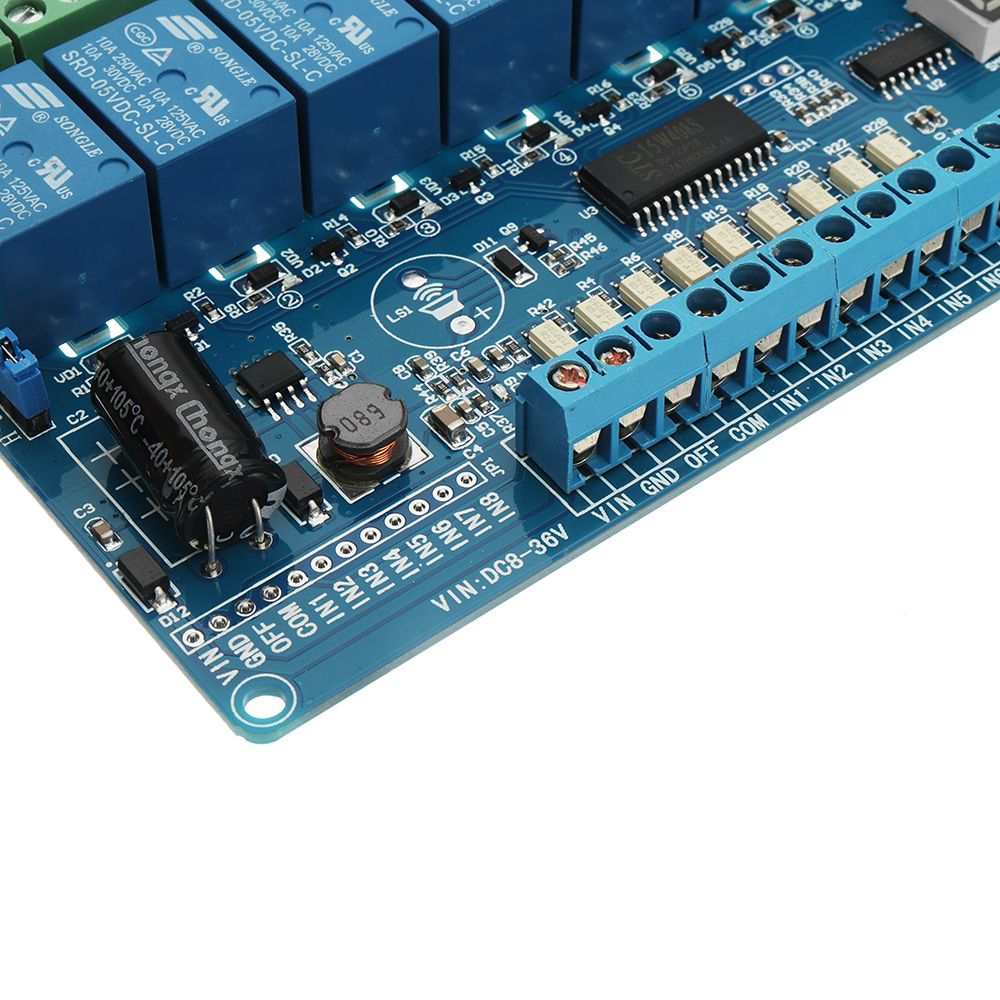

Module interface:

Module voltage / signal input: 12-wire interface, all interfaces have terminal blocks for user convenience

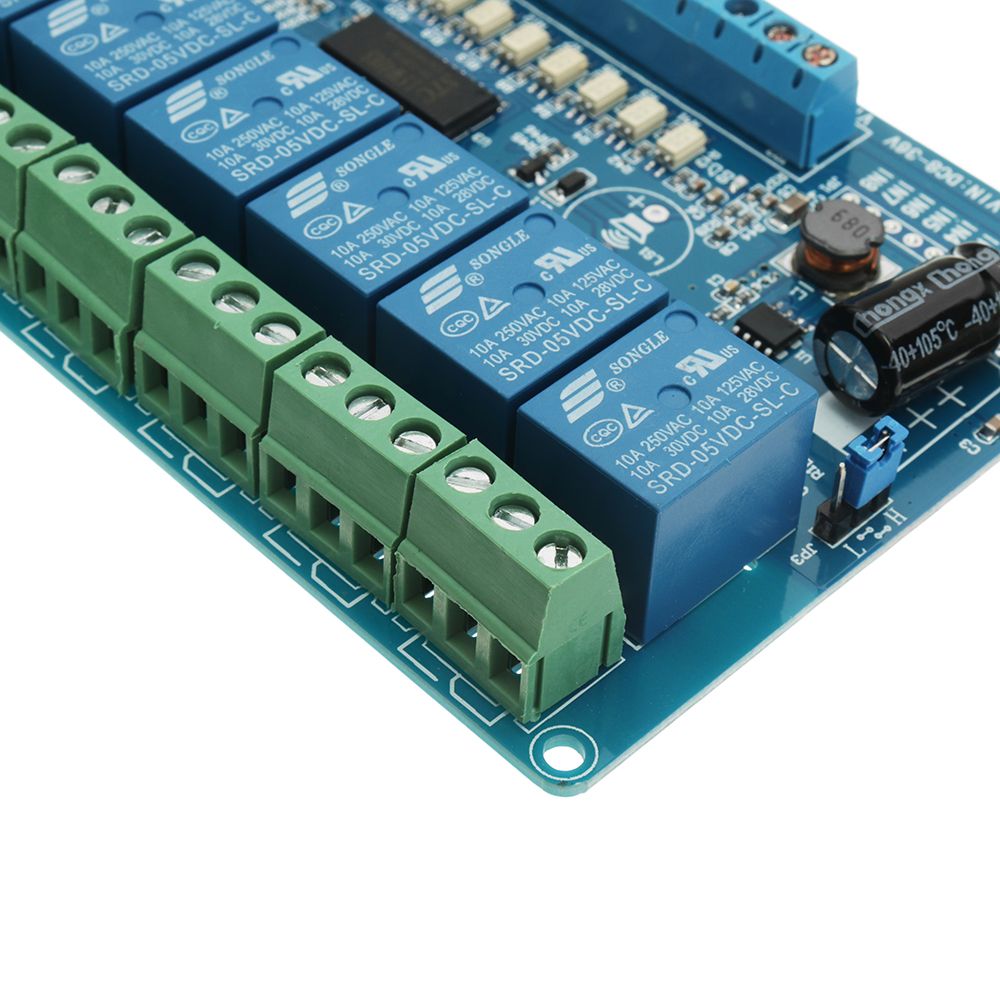

Relay load output: 24-wire interface, all terminals have terminal blocks

1. VIN: DC power supply positive

2. GND: DC power supply negative

3. OFF: power control terminal (power off when high level)

4. COM: the common end of the photoelectric isolation signal input terminal

5. IN1-IN8: input signal detection interface

Note:

1. The input signal detection interface can be either active high or active low. The user can select through the COM port. If COM is connected to H, IN1-IN8 is active high. If COM is connected to L, IN1-IN8 is active low!

2. Trigger voltage (COM, IN1-IN8 port voltage): do not exceed 5V for high level and do not exceed 0.8V for low level.

Package included:

1 X 8 channel multi-function relay module

DC-8V-To-36V-Industrial-Grade-8-Channel-Multi-function-Relay-Module-Wide-Voltage-Supply-Module-1325252
