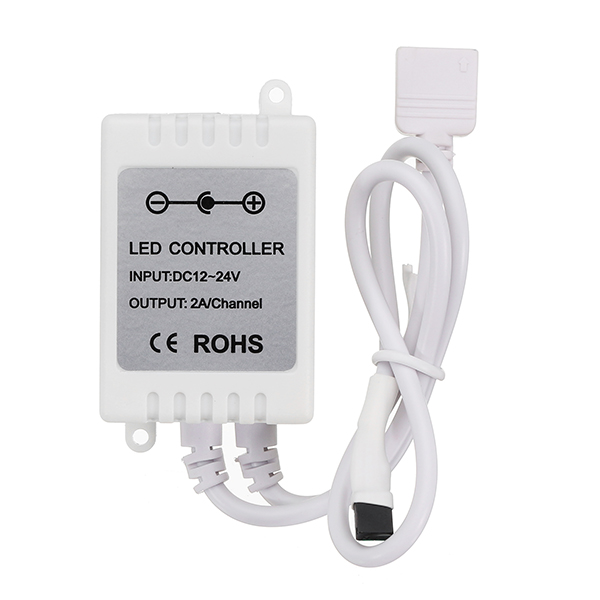

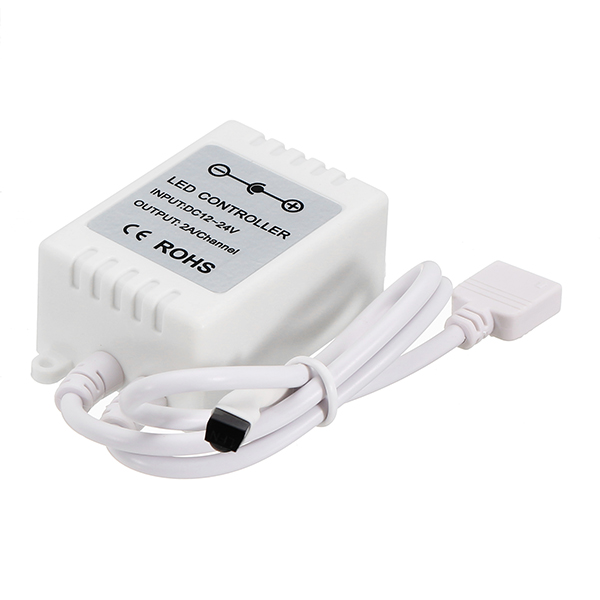

DC12-24V 6A 3 Channels 4Pin LED Controller + 28 Keys Remote Control for RGB Strip Light
- Stock: In Stock
- Model: EB0040070
- SKU: EB0040070
Voltage:DC12-24V
Wattage:12V:<72W, 24V:<144W
Static wattage:<1W
Output current:<2A(each channel)
Connection mode:common anode
Working temperature:-20-55℃
Sensor distance:10-15M
Feature:
Infrared 28 key color temperature controller adopts very mature, infrared remote control technology is used to control the color temperature light bar.
This product USES the infrared remote control, can choose different color temperature effect, also can adjust the lamp brightness as a whole, switch, etc.
This product also has a power storage capabilities, each time on electrical power executed when the last time.
The user can according to their own needs, choose their favorite color temperature by remote control, the remote control has a shortcut, fine-tuning two ways to set the color temperature. Also built-in two dynamic model, the speed is adjustable. Its high cost-effective, flexible wiring, wiring, convenient and simple to use, etc.
Cautions:
1. This products Input voltage is DC12-24V,other input voltage are not allowed.
2. Lead wire should be connected correctly,according to the wire color and the connecting diagram offers;
3. Overload are prohibited.

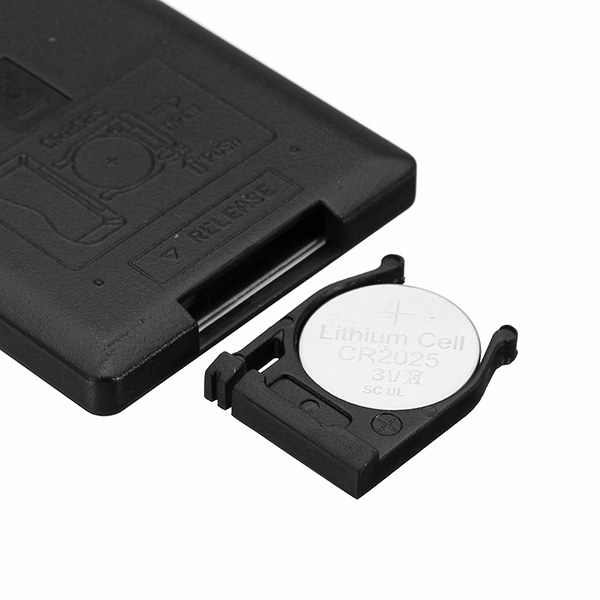

4. In order to promote the touch sensitive of the color wheel, please don’t touching the touch color wheel when installing the battery to the remote, if sensitive are low, please remove the battery and re-install it again.
5. Please do not used the controller around a wide range of mental area or do not used nearby strong electromagnetic wave area, otherwise, it will seriously affect the remote distance.

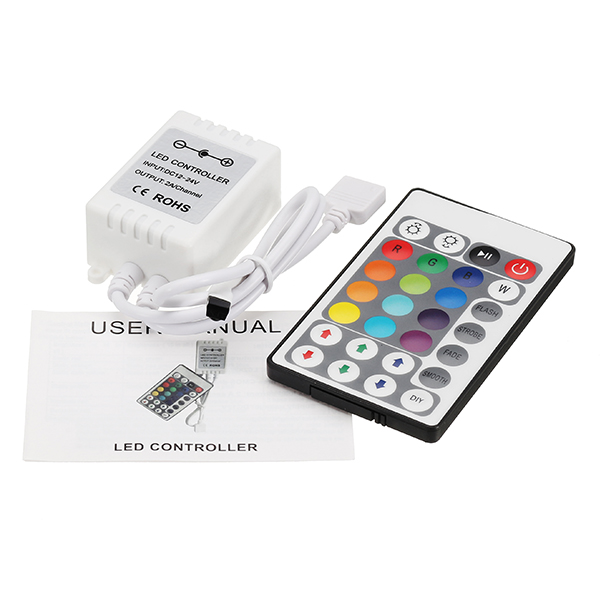

Package included:
1*RGB controller

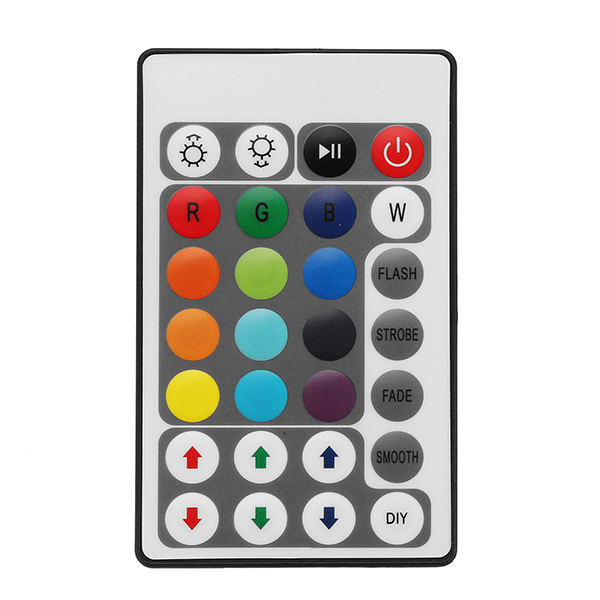

1*28keys remote control
