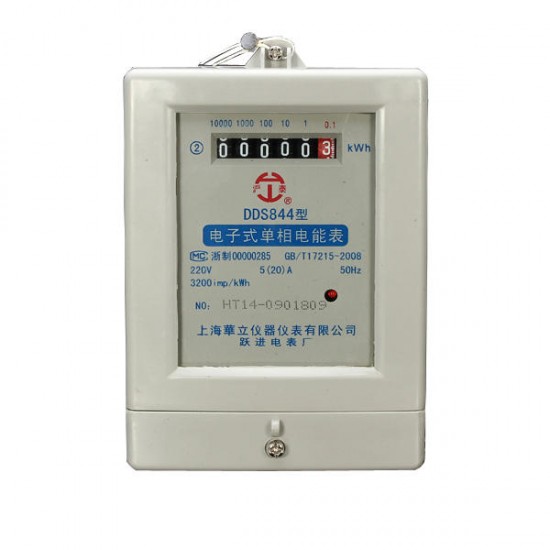

DDS844 5(20)A 220V 50HZ Single Phase Two Wire Electric Energy Meter
- Stock: In Stock
- Model: EB003253
- Dimensions: 167.00mm x 110.00mm x 68.00mm
- SKU: EB003253
DDS844 5(20)A 220V 50HZ Single Phase Two Wire Electric Energy Meter
Specification :
Model : DDS844
Material : ABS
Accuracy : Class 10
Rated Voltage : 220V
Rated Current : 5(20) A
Constant : 3200 imp/kWh
Operation voltage range : Un±20%
Starting current : 0.4%Ib
Rated frequency : 50Hz
Max .operation temperature : -40°C~80°C
Max. storage temperature : -45°C~85°C
Relative humidity : ≤ 85%
Dimension : 167 x 110 x 68 mm
The meter is used to measure 50Hz active energy consumption from single phase two wire AC electricity net.
It adopts LSI (Large-scale Integration) and SMT manufacturing technique, the key components all adopt long life type.
The meter has the features of good reliability, small volume, light weight, specious appearance, etc. It is widely used in office buildings, shopping malls, residences, airports and metro,etc.
Package includes :
1 x DDS844 Electric Energy Meter

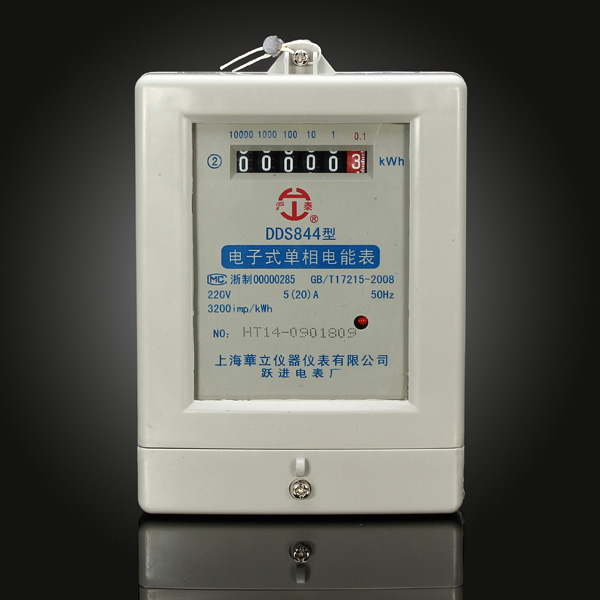

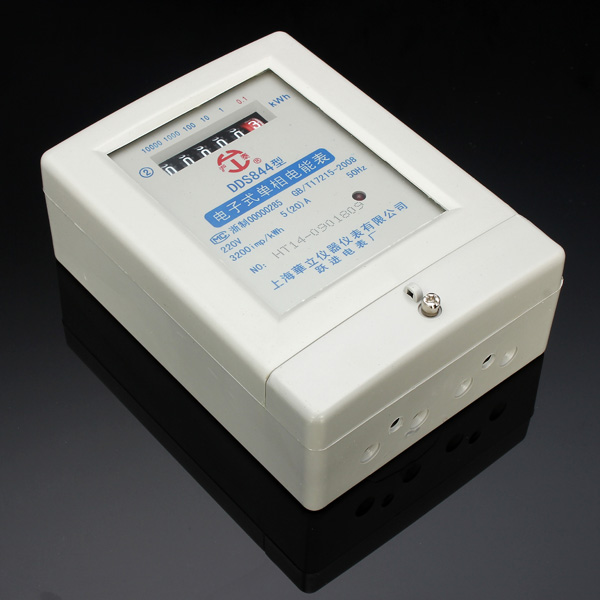

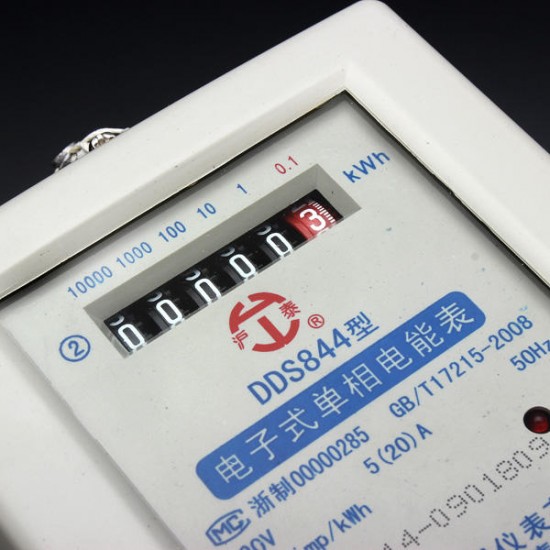

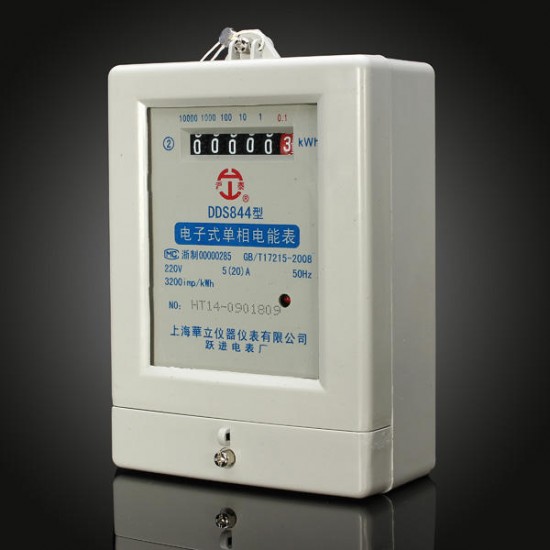

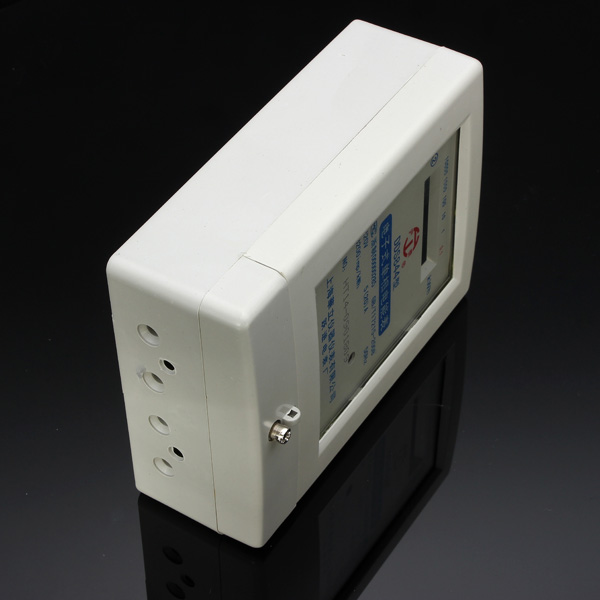

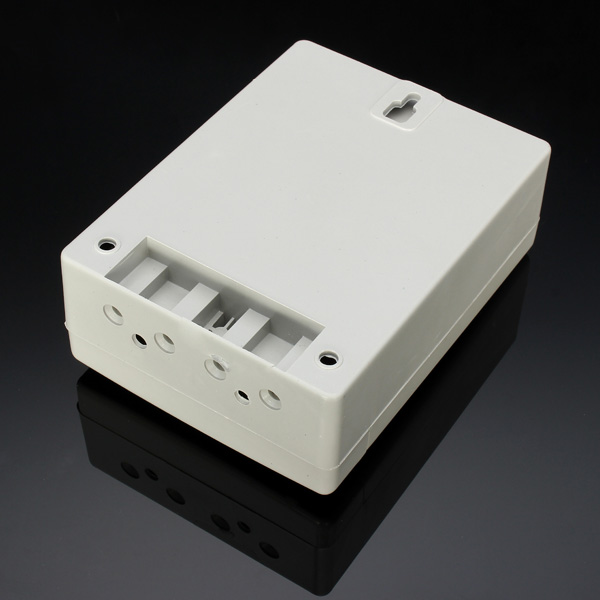

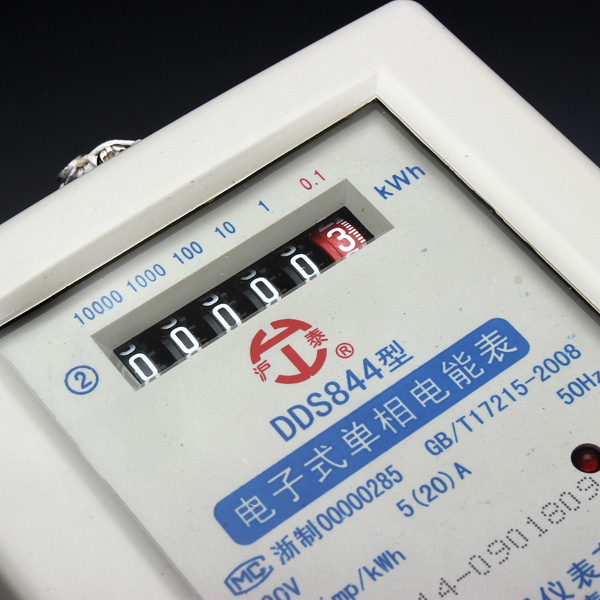

Details pictures :
