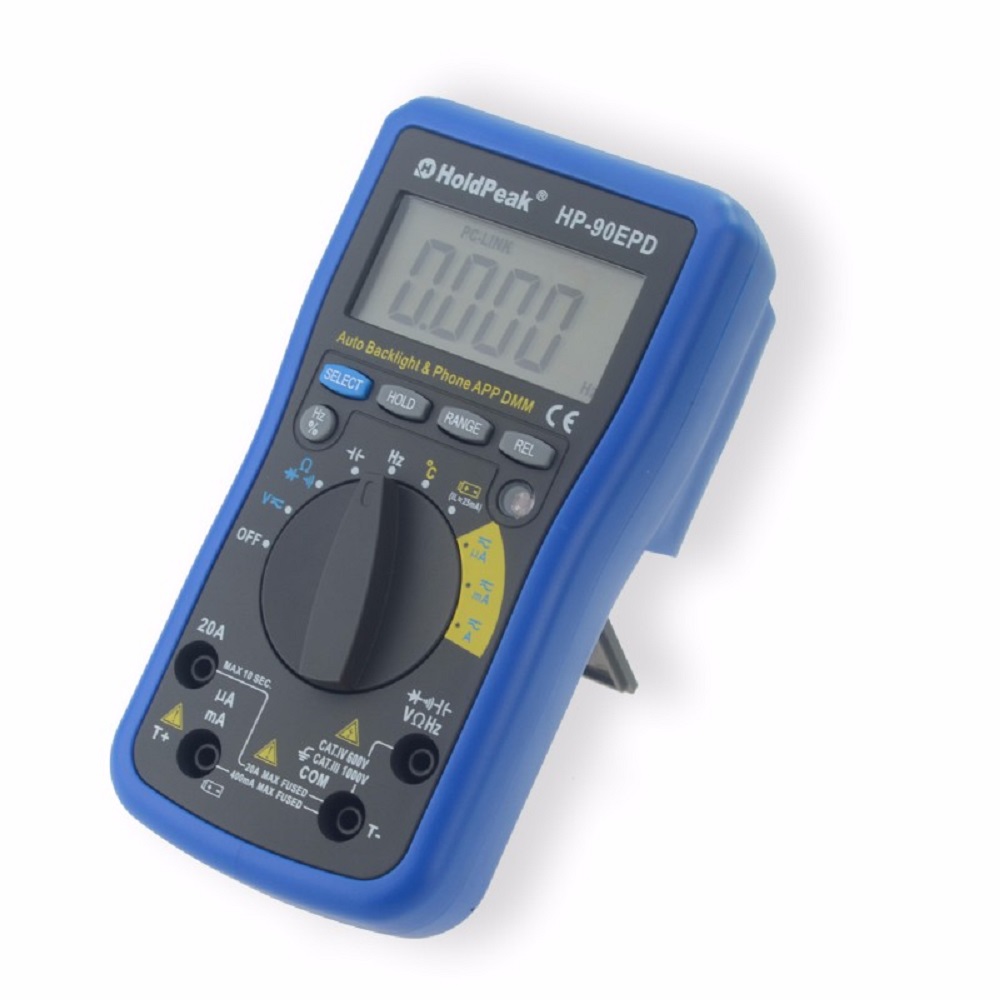

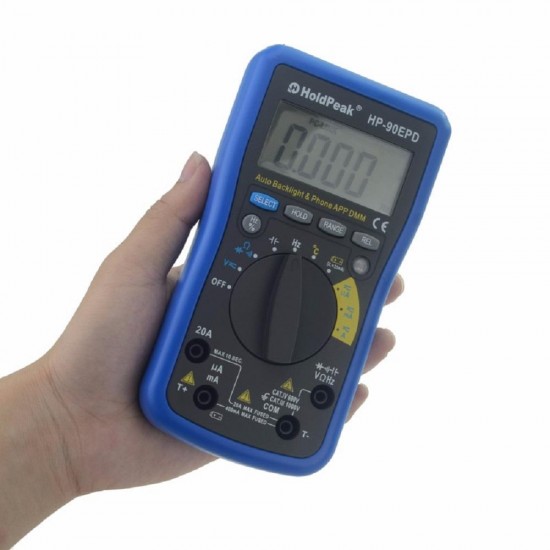

HP-90EPD Mobile APP 4000 Counts True RMS Multimeter Auto Range AC DC Voltage Current Resistance Capacitance Frequency Back light
- Stock: In Stock
- Model: EB004342
- SKU: EB004342
?The intelligent digital multimeter is characterized at slim size, portable, stable performance and anti-dropping capacity. Using 4000 counts digit LCD monitor with character 22mm high, they offer clear readings.
?With overall circuitry design centering on large-scale IC A/D converters in conjunction and over-load protection circuit, the meters give excellent performance and exquisite making as a handy utility instrument.

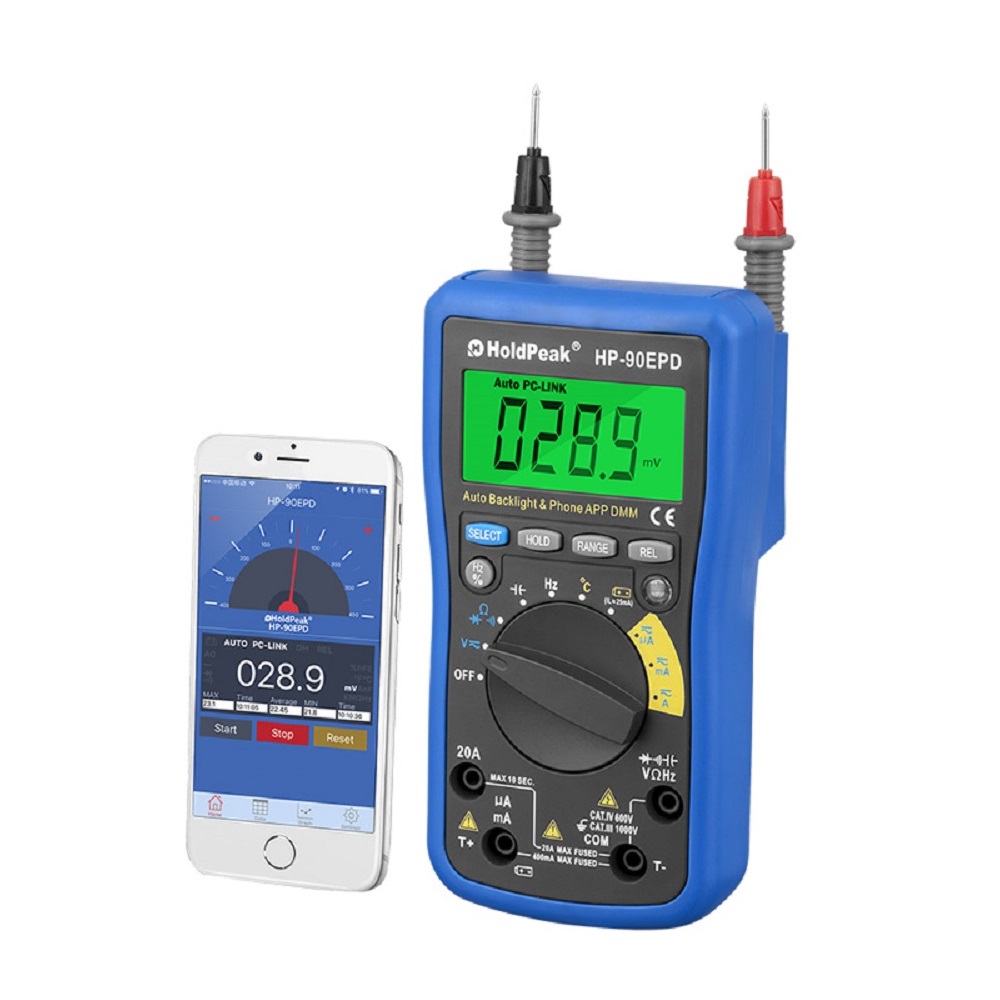

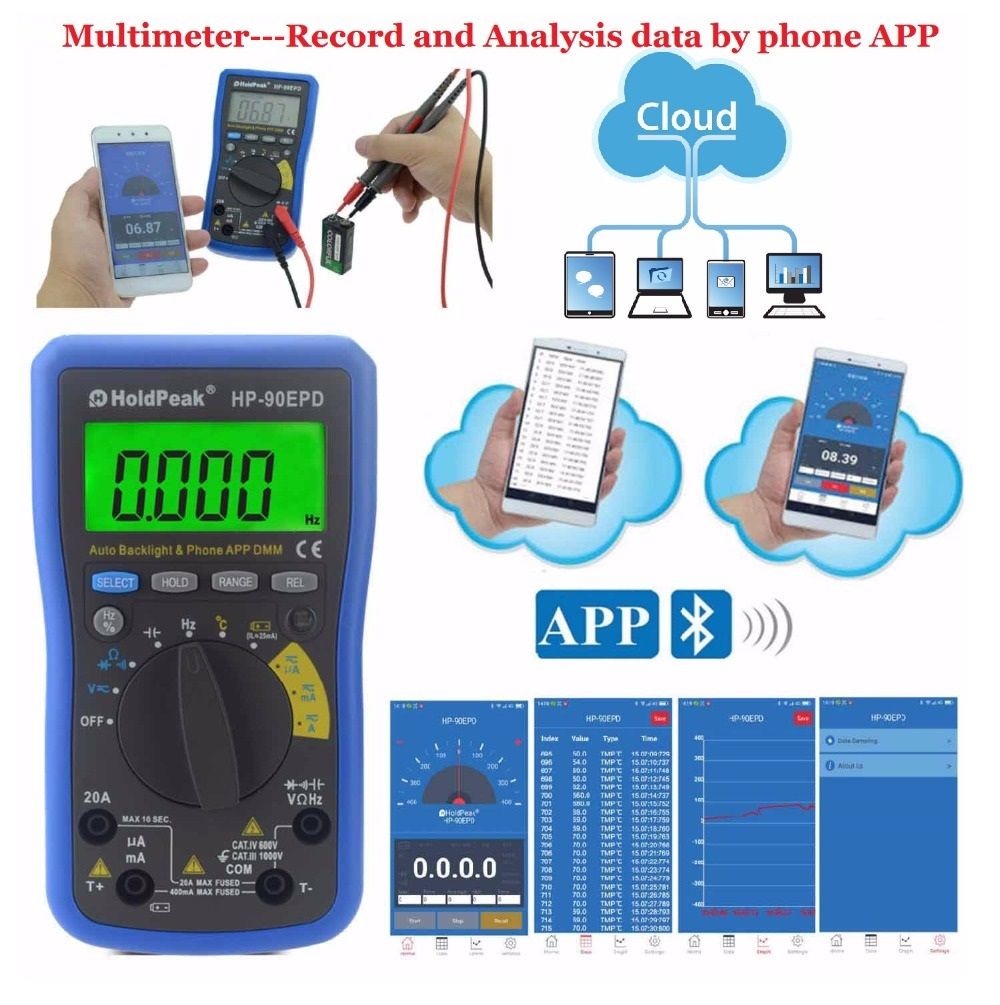

?HP-90EPD can be connected with mobile phone by bluetooth, and display on phone by APP, you can remote monitoring the measurement condition, the distance control is 10~
?HP-90EPD can be used to measure DC & AC voltage, DC & AC current, resistance, capacitor, frequency, duty cycle, temperature, battery test, positive diode voltage fall and audible continuity.

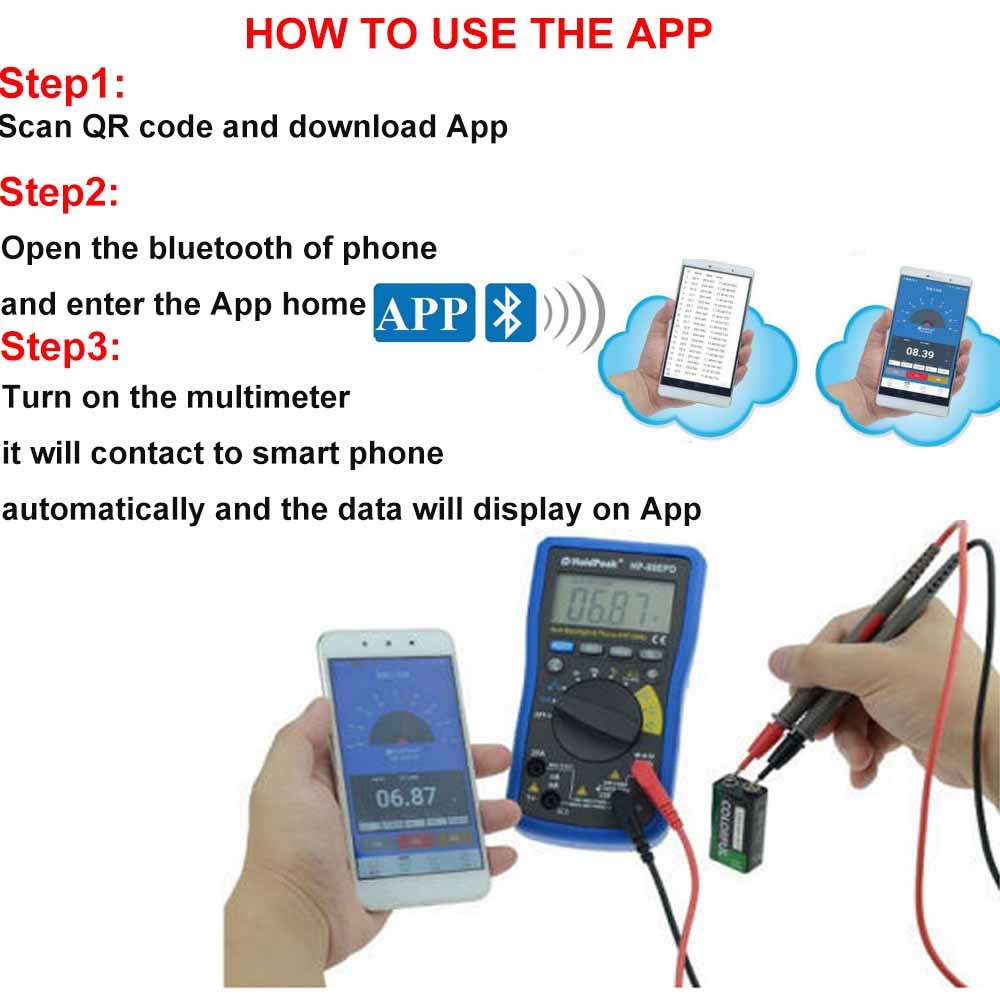

?Note: Connect to mobile phone APP-The meter has serial data output function. It can be connected with mobile phone by bluetooth, so the measured data can be recorded, analyzed, and processed by mobile phone APP. Before use this function, you need install the mobile phone APP by scan the QR code.

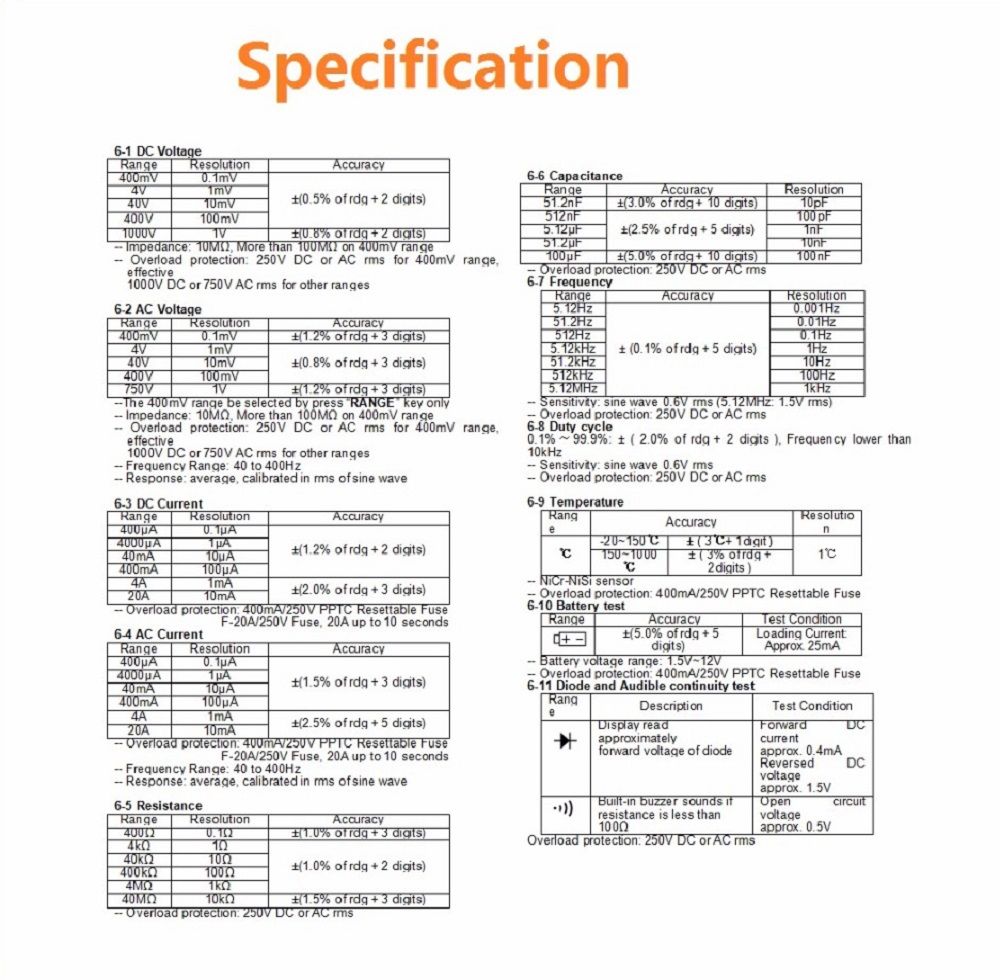

Specifications:
●Max Voltage between input terminal and Earth Ground: CAT Ⅳ 600V
●Over-range Indication: display “OL” for the significant digit.
●Automatic display of negative polarity “-” .
●Low Battery Indication: YES
● Max LCD display: 4000 counts digit.
●Auto range & Manual range control
● Auto LCD backlight
●Testing Specifications:Accuracy is specified for a period of year after calibration and at 18℃ to 28℃
(64℉ to 82℉) with relative humidity to 70%.
●Measuring Temperature Range: -20~1000℃/-4F-1832℉
●Measuring Capacitance Range: 51.2nF/512nF/5.12uF/51.2uF/100uF
●Measuring Voltage Range: 400mV/4V/40V/400V/750V/1000V
●Measuring Current Range:400uA/4mA/40mA/400mA/4A/20A
●Measuring Resistance Range: 400/4K/40K/400K/4M/40M
●Frequency: 5.12Hz/51.2Hz/512HZ/5.12KHz/51.2KHz/512KHZ/5.12MHz
●Duty Cycle: 0.1%~99.9%
●Battery Test: 1.5~12V
●Relative Value: YES
●Fuse protection: 400mA/250V PPTC Resettable Fuse
F-20A/250V Fuse (Ø5x20mm)
●Power supply: 9V battery (6F22) (Not included)
●Operating Temp.: 0℃ to 40℃ (relative humidity <85%)
● Storage Temp.:-10℃ to 50℃ (relative humidity <85%)
● Guaranteed precision Temp.: 23±5℃ (relative humidity <70%)
●Dimension: 166x88x51mm

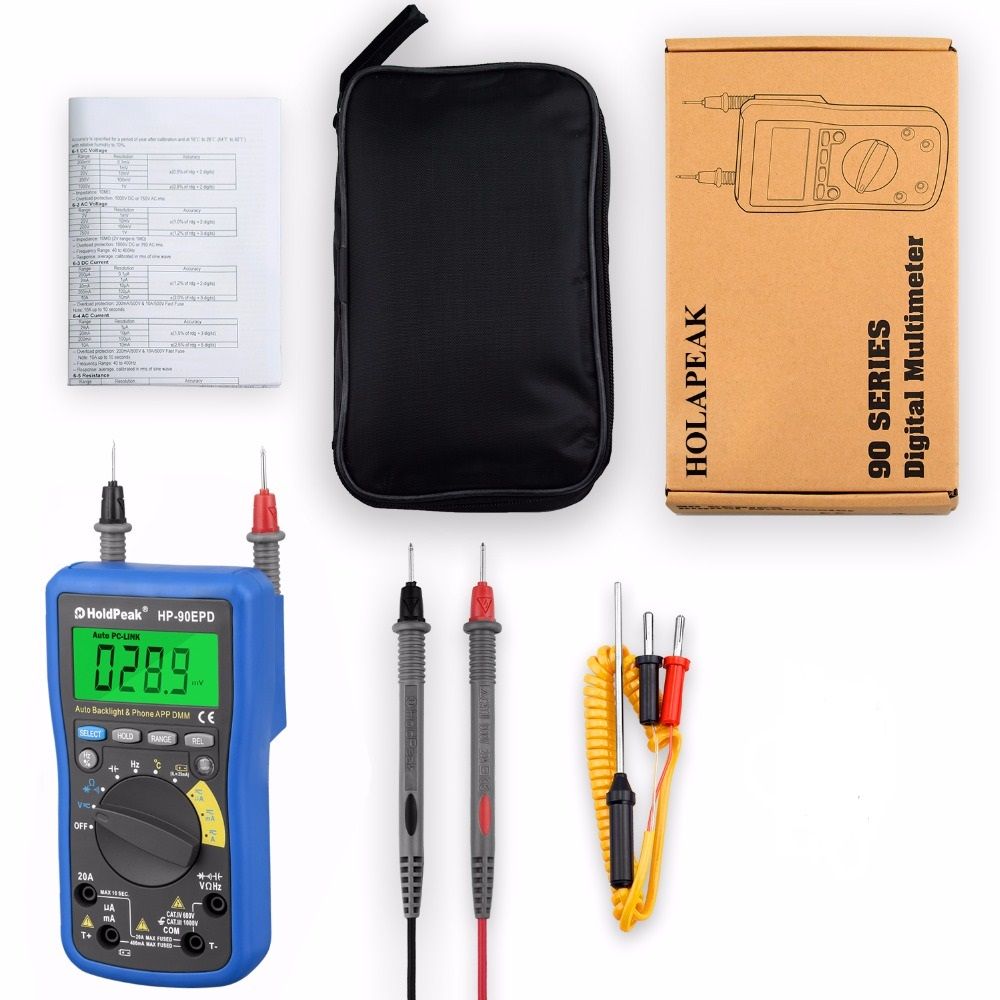

Package Includes:
1 x HP-90EPD Digital Multimeter
1 x English Manual
1 x One Pair Test Leads
1 x Temperature Test Probe
1 x Carry Bag
Details Pictures:
