Dual Channel Virtual Oscilloscope PC Oscilloscope OSC482 50M Sampling 20M Bandwidth PK 1008C 6022BL
- Stock: In Stock
- Model: EB004681
- SKU: EB004681
Product outline:

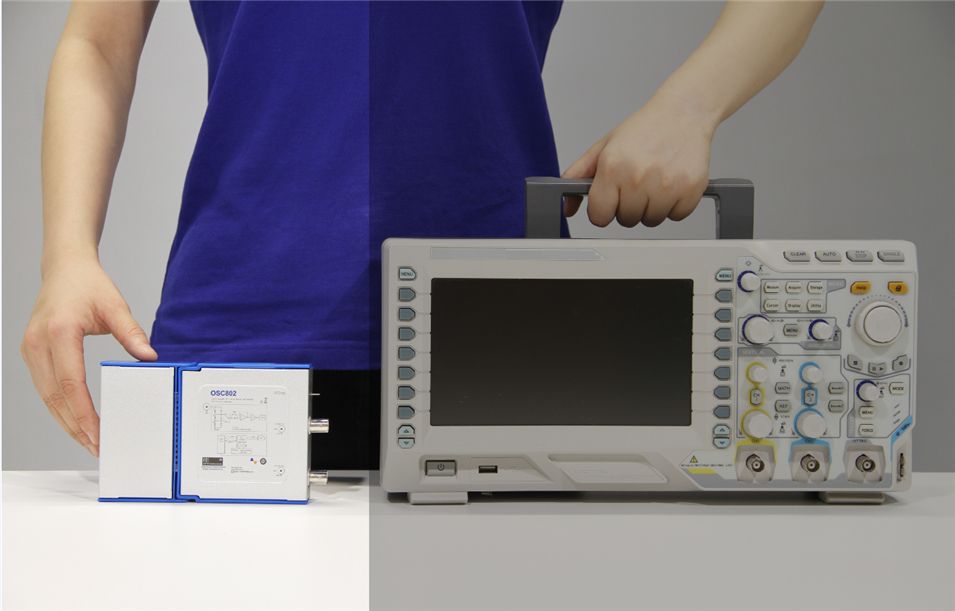

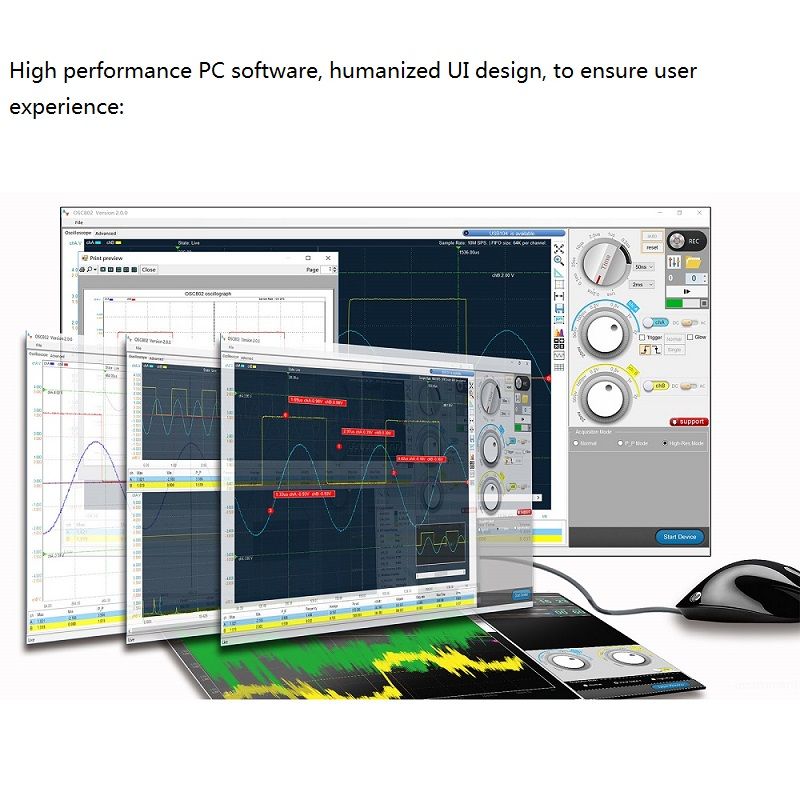

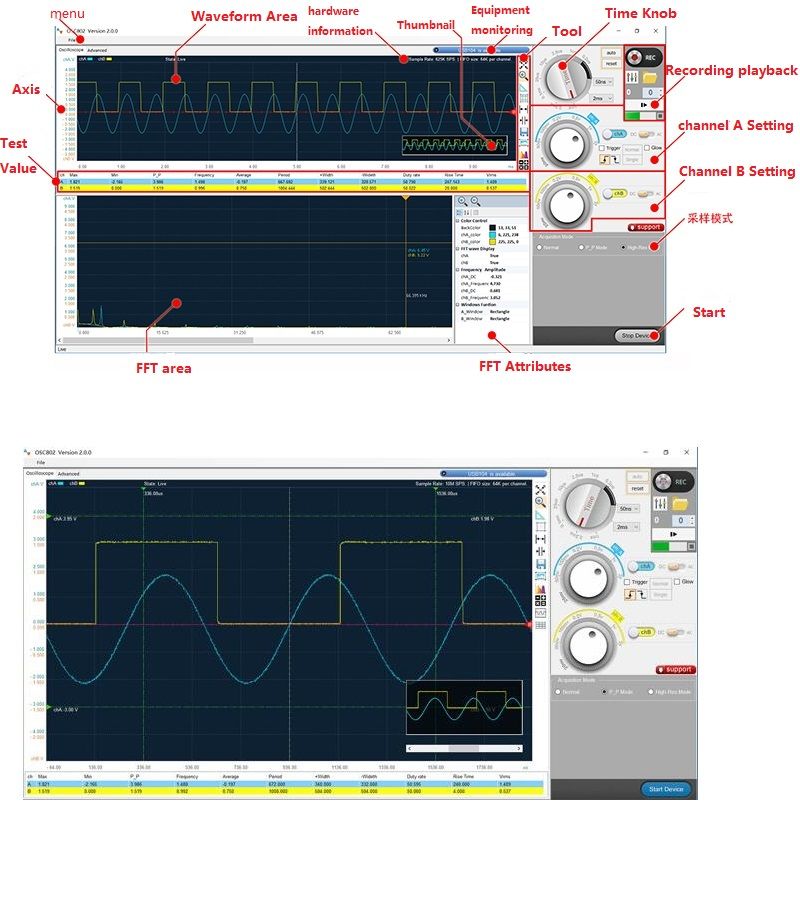

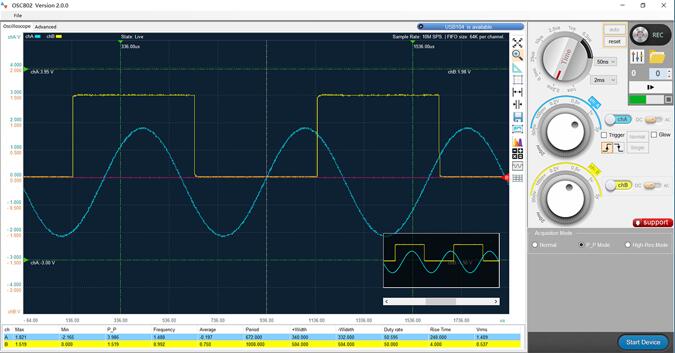

| entry | content |
| USB 2.0 | USB 2 high speed transmission, USB power supply, no additional power, plug and play. |
| Portable and compact | Product length: 15.25 cm; width 9.32 cm; height 2.31 cm. weight 230 G. |
| .net software architecture | The new.Net architecture is more stable and beautiful, with more reliable compatibility. |
| Support for multiple operating systems | Support XP, Win 7, Win 8, & nbsp; Win10 32-bit and 64-bit systems, and automatically identify and install drivers on Win 8.1 and Win10 systems. |
| Support HD HD screen | The software supports high DPI screens and will not appear blurred interfaces on high resolution displays except for Vista systems. |
| Hardware trigger function | Hardware triggering can be used for single triggering in all sampling rates, and analysis of accidental non periodic signals. |
| Phn | Record the voltage changes for 72 hours, generate curves, and save data. |
| Function | Explain |
| Real time dual trace oscilloscope | Collect and display voltage data waveform of 2 independent channels in real time. |
| Waveform recording and playback | Interested waveforms can be recorded into dynamic waveform video files and can be replayed at any time as waveform image observation. & nbsp; playback can pause, exit, or jump to the specified frame playback, as well as forward and backward browsing. |
| Printing function | Print the report form at any time. |
| Trigger function | Hardware triggering can be used for single triggering in all sampling rates, and analysis of accidental non periodic signals. |
| AC and DC coupling | It supports AC coupling and DC coupling. |
| Automatic measurement function | Automatic measurement and display of multi-channel data sets: & nbsp; max imum, min imum, average, RMS, frequency, period, positive pulse width, negative pulse width, duty cycle, rise time, Pea'k and Pea'k value. |
| Cursor manual measurement | You can choose the area to be measured through the mouse frame to show the data of the horizontal and vertical coordinates selected by the box. |
| Waveform zoom | The specified waveform area can be enlarged and reduced arbitrarily in order to better observe the waveform details, and there are thumbnails showing the current zoom position. |
| FFT frequency domain analysis | The amplitude frequency curve of FFT is displayed in real time. |
| Wave translation | Keyboard (left/right arrow) key or drag the control bar with the mouse to move the waveform left and right to find new points of interest. |
| Mathematical operation | It provides the function of adding, subtracting and multiplying waveforms of two channels. Lissajous figure supports X_Y plotting method to measure frequency or phase difference. |
| Text storage | Save the waveform on the screen as a text sampling point data file. |
| Screen screenshot | Screen the current software interface and waveform window to facilitate later analysis. |
| Overrun warning | When the data exceeds the acquisition range, a red exclamation mark is displayed on the voltage knob of the corresponding channel to warn that the waveform has exceeded the range, but this function only warns the user and does not affect the operation of the software. |
| Shortcut key function | (Enter) - start / stop |
| (Ctrl & nbsp; + & nbsp; & lt; & mdash;)/(Ctrl & nbsp; + & nbsp; & mdash; & gt; & nbsp; -& nbsp; waveform moving left and right (after software pause) | |
| (Ctrl + P) - screenshot | |
| Data buffer thumbnail function | It can visually display the ratio of waveform data of the current screen to the size of the whole data buffer and the position relationship between them. It is convenient to locate new interest points by referring to moving left and right in the whole data buffer. |
| User calibration Zer'oing function | When the Zer'o voltage input caused by temperature difference or aging of the original is not returned to Zer'o, the user can calibrate the Zer'o voltage to Zer'o position by this function. |
| Afterglow display | You can choose the afterglow display to analyze waveform jitter and change track. |
| Acquisition mode | Pea'k and Pea'k acquisition mode and high resolution acquisition mode. |
| interpolation | Sine interpolation and linear interpolation are optional, in 80M SPS sampling 0.2us and 50ns two high-speed sampling gear default open sine interpolation algorithm, using four-fold interpolation. |
| data record | Collecting and recording for 72 hours, generating voltage curve and generating data text. |

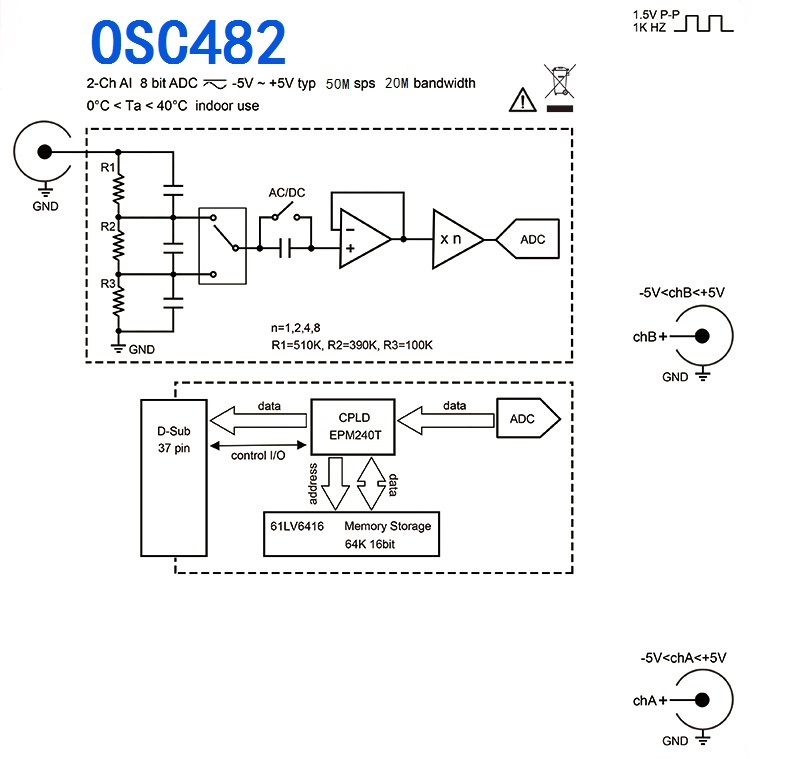

Hardware parameters:

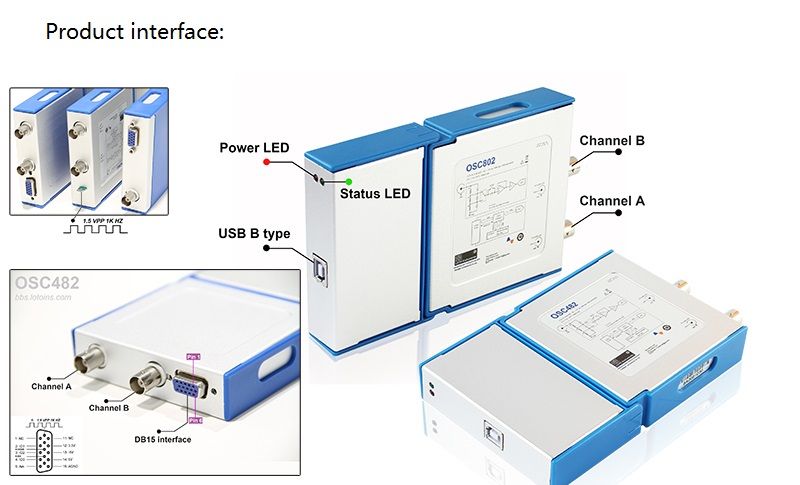

| index | parameter | |
| Interface | USB 2.0 | |
| Number of channels | 2 | |
| output | 1k HZ amplitude 1.5V; duty cycle: 50% square wave signal. | |
| Maximum sampling rate | 80M s/ps each channel | |
| Vertical resolution | 8 bit | |
| Voltage range | Plussmn; 5V & nbsp; can be extended to & plusmn through X10 probe; 50v, through X100 probe (purchased separately) to & plusmn; 500V | |
| Typical noise | ±50mv | 1v/div stalls. |
| ±25mv | 500mv/div stalls. | |
| ±10mv | 200mv/div stalls. | |
| ±8mv | 100mv/div stalls. | |
| ±4mv | 50mv/div stalls. | |
| ±2mv | 20mv/div stalls. | |
| Trigger coupling mode | AC AC coupling, DC DC coupling optional. | |
| Time range | 50ns ~ 2S each horizontal bar. | |
| Trigger condition | Hardware trigger | |
| Trigger level + rising / falling edge triggering | ||
| Trigger mode | Automatic, regular single trigger | |
| Trigger source | Channel A | |
| Input impedance | 1M / 25pf | |
| Storage depth | 64k byte each channel | |
| Power waste | < 2 tile | |
| weight | 230 grams | |
| automatic measurement | Maximum, minimum, Pea'k, frequency, average, RMS, rise time, positive pulse width, negative pulse width, duty cycle | |
| size | 15.25 cm X9.32 cm X2.31 cm | |
Package Includes:

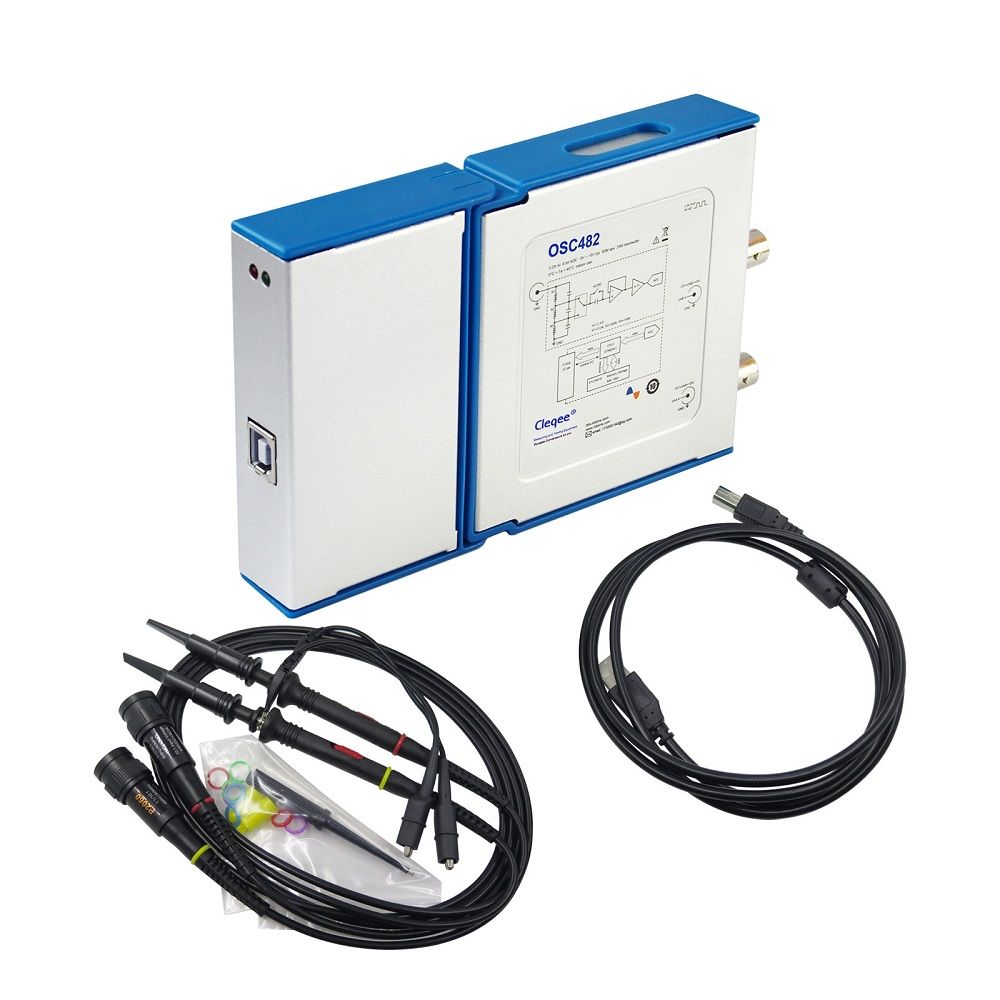

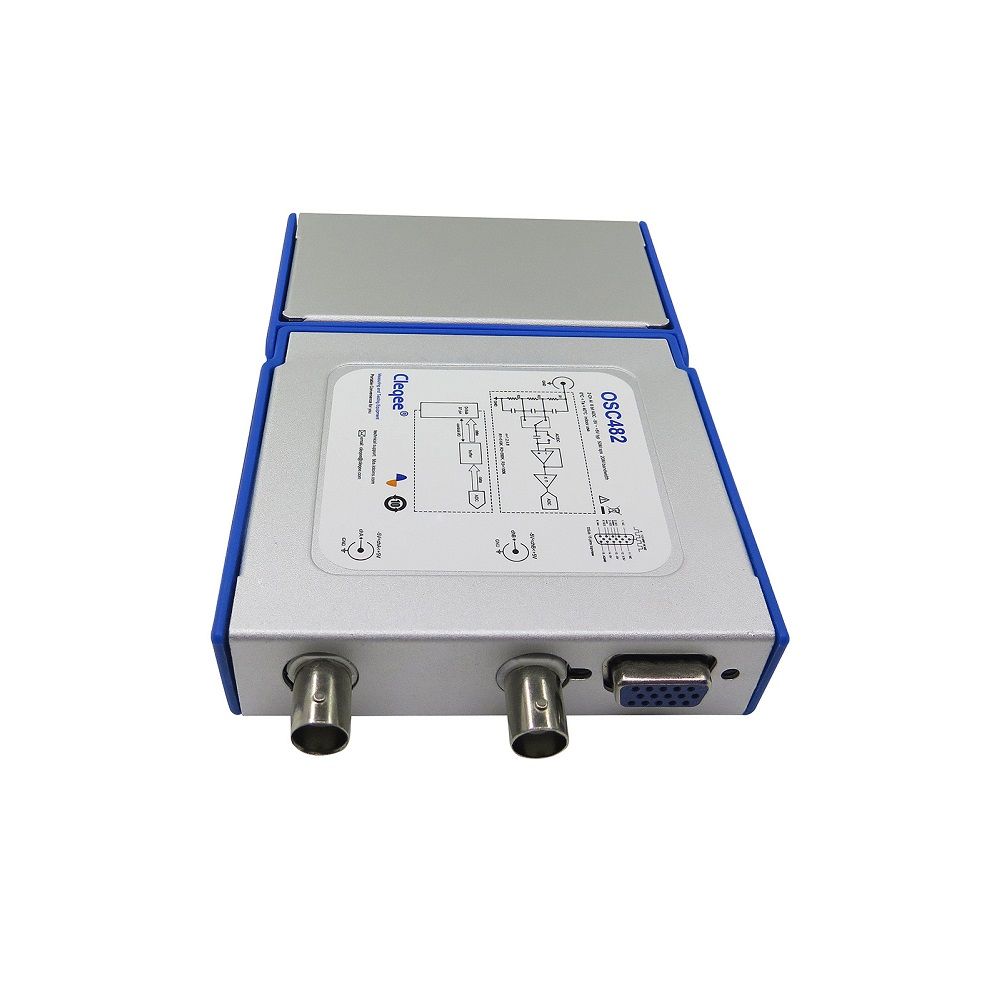

1 x OSC482 Oscilloscope
2 x Probes
1 x USB Cable
1 x Set Accessories

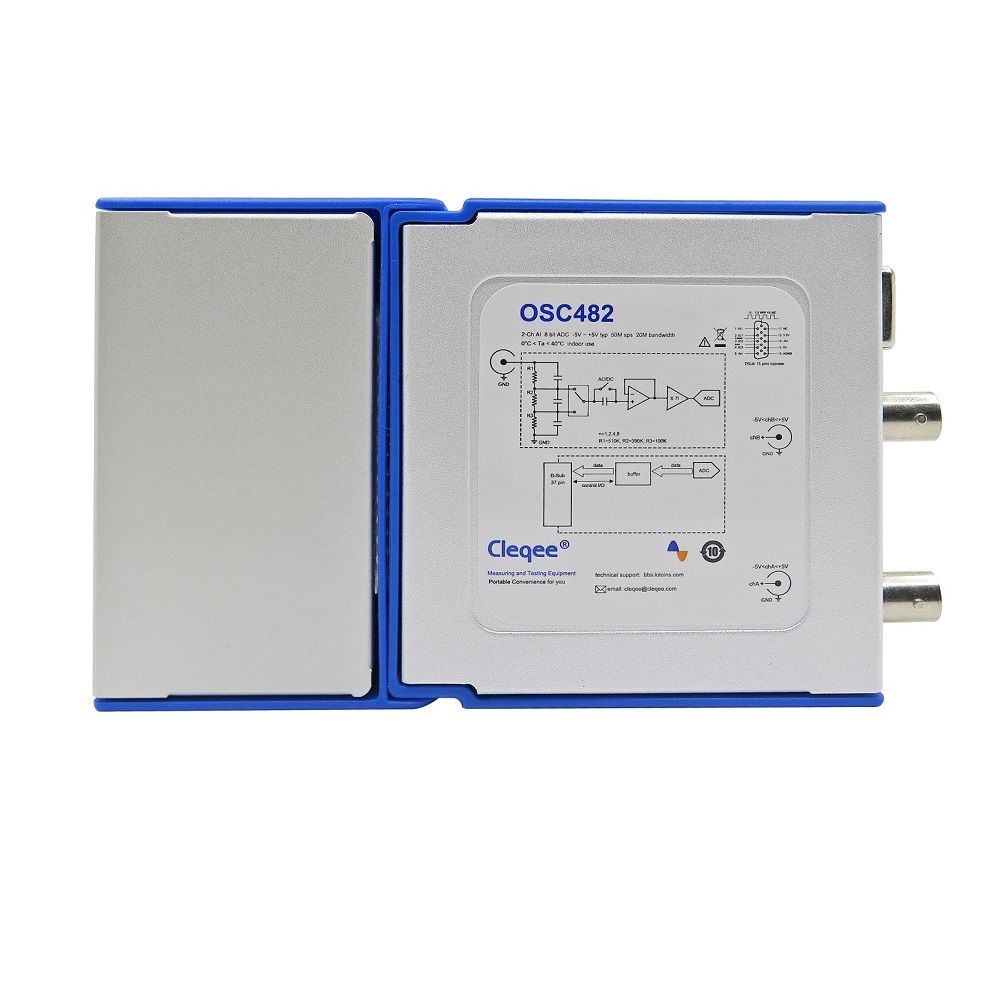

Details Pictures:
