$28.99
Ex Tax: $28.99
  • Stock: In Stock
  • Model: EB0041465
  • SKU: EB0041465


The Latest Upgraded Version : Click to buy 1720510

This is without watch accessories,If you like with watch accessories
>>>with watch accessories: Click here to BUY<<<

>>>More M5Stack Item: Click here to open<<<

Description:

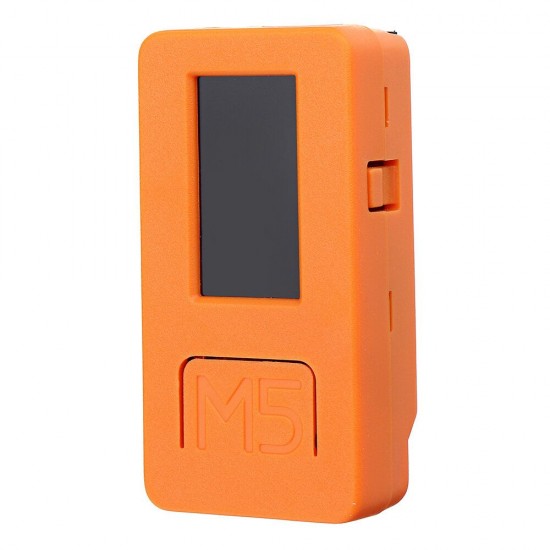

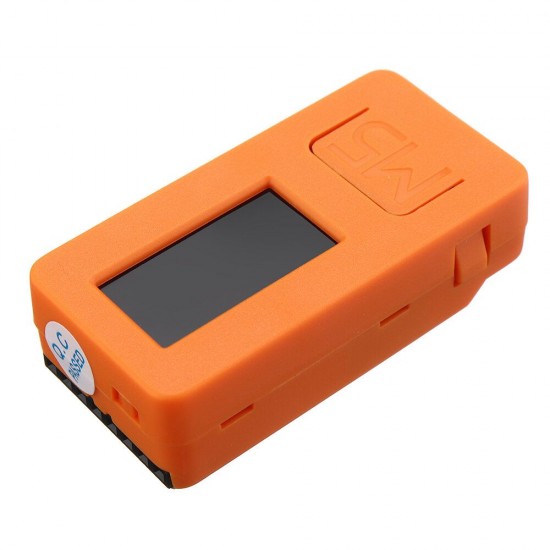

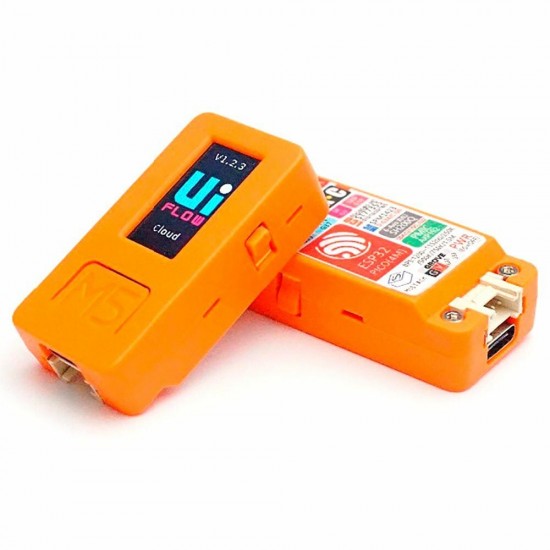

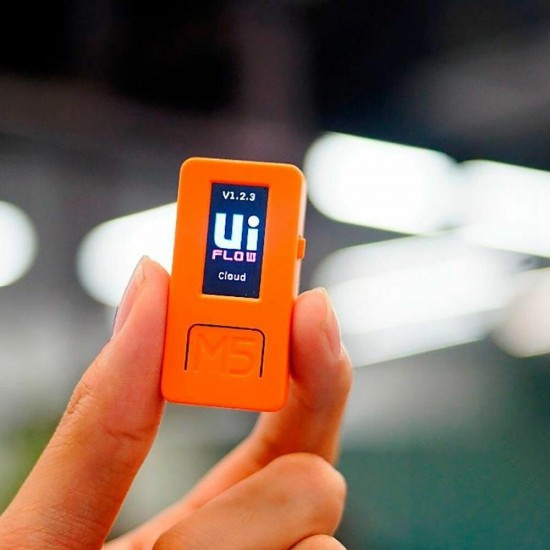

M5Stick is a mini M5Stack, powered by ESP32. It is a portable, easy-to-use, open source, IoT development board.
What it can do? This tiny block is able to realize your idea, enlight your creativity, and help with your IoT prototying in a very short time. It will takes away a lot of the pains form the development process.
M5stick is one of the core devices in M5Stack product series which is built in a continues growing hardware & software ecosystem. It has a lot of compatible modules & units, as well as the open source code & engineering community that will help you maximum your good in every step of the developing process.

Item Features:

- 5V DC power supply
- USB Type-C
- ESP32-based
- 4 MByte Flash
- 6-Axis IMU MPU6886
- Red LED
- Buzzer
- IR transmitter
- 1 Buttons, OLED(1.3 inch), 1 Reset
- 2.4G Antenna: Proant 440
- 95 mAh Lipo Battery
- Extendable Socket
- Grove Port
- Wearable & Wall mounted
- Development Platform UIFlow, MicroPython,  for

ESP32 Features:

- 240 MHz dual core Tensilica LX6 microcontroller with 600 DMIPS
- Integrated 520 KB SRAM
- Integrated 802.11b/g/n HT40 Wi-Fi transceiver, baseband, stack and LWIP
- Integrated dual mode Bluetooth
- Hall sensor
- 10x capactive touch interface
- 32 kHz crystal oscillator
- PWM/timer input/output available on every GPIO pin
- SDIO master/salve 50MHz
- SD-card interface support

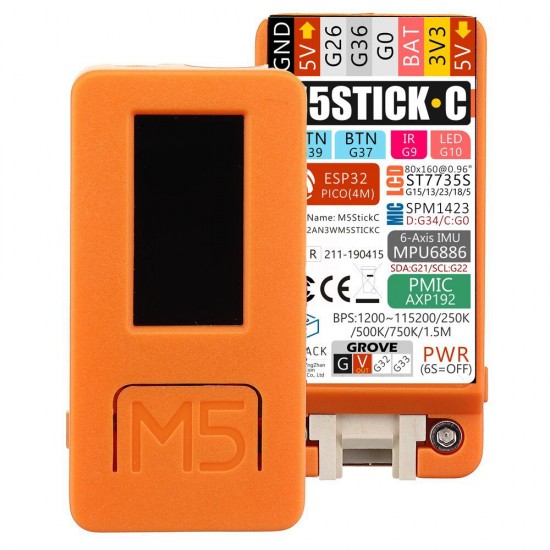

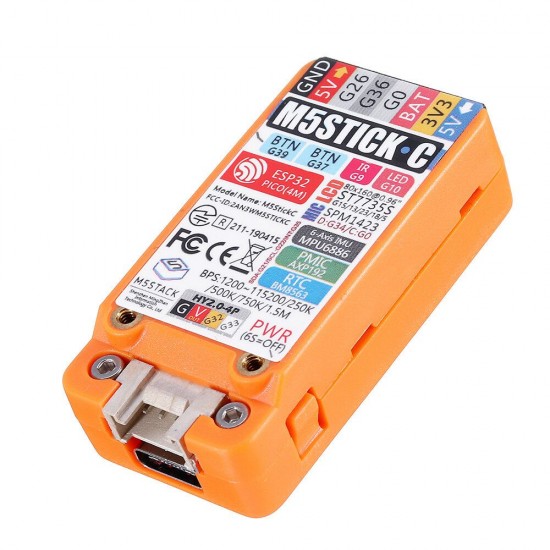

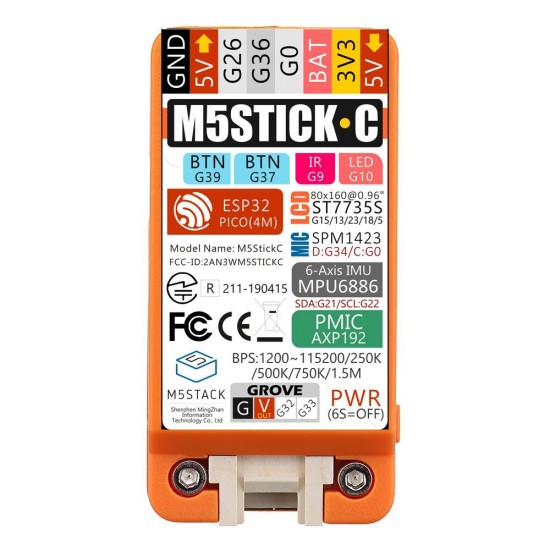

PinMap:

RED LED & IR Transmitter & BUTTON A & BUTTON B
ESP32 GPIO10 GPIO9 GPIO37 GPIO39
RED LED LED PIN
IR Transmitter   Transmitter Pin
Button A     Button Pin
Button B       Button Pin

TFT LCD
Driver IC:ST7735S
Resolution:80 * 160

ESP32 GPIO15 GPIO13 GPIO23 GPIO18 GPIO5
TFT LCD TFT_MOS1 TFT_CLK TFT_DC TFT_RST TFT_CS

GROVE PORT
ESP32 GPIO33 GPIO32 5V GND
GROVE port SCL SDA 5V GND

MIC (SPM1423)
ESP32 GPIO0 GPIO34
MICPHONE SCL SDA

6-Axis posture sensor (MPU6886) & power management IC (AXP192)
ESP32 GPIO22 GPIO21
6-Axis posture sensor SCL SDA
power management IC SCL SDA

Power on / off:

Power on: Click the reset button
Shutdown: Double the reset button

datasheet


Example

Comparision Between Different Development Kits of M5



  • For details click here

  • Download chart click here





  • M5StickC facory test code

  • M5StickC Vending Machine

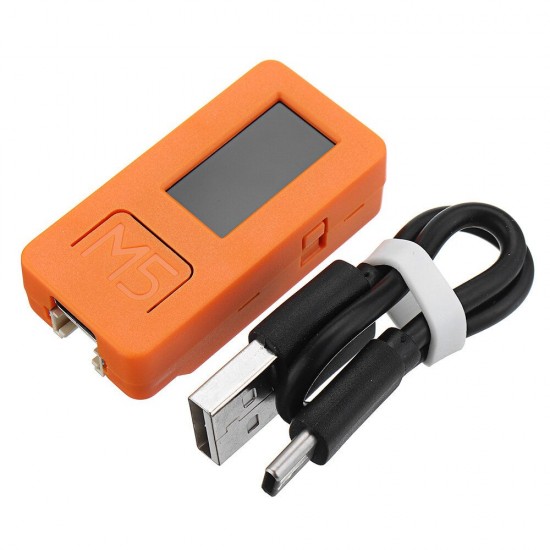

Package Included:

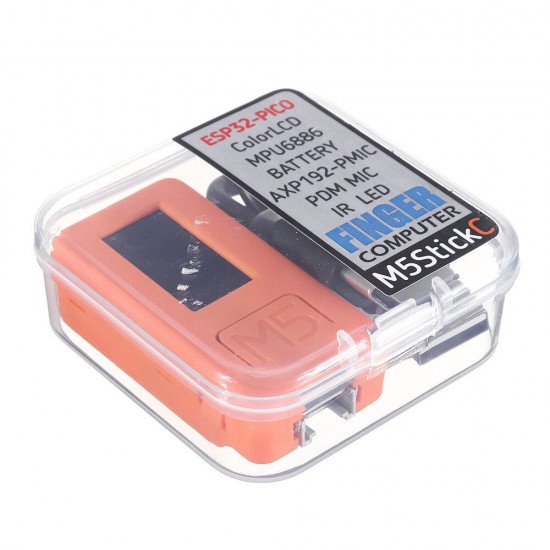

1x M5StickC

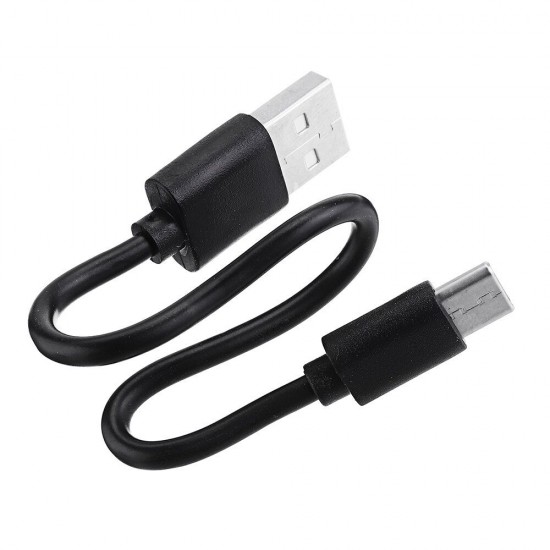

1x USB Type-C cable
