$21.23
Ex Tax: $21.23
  • Stock: In Stock
  • Model: EB0042018
  • SKU: EB0042018
This is without watch accessories,If you like with watch accessories
>>>with watch accessories: Click here to BUY<<<

>>>More M5Stack Item: Click here to open<<<

Description:

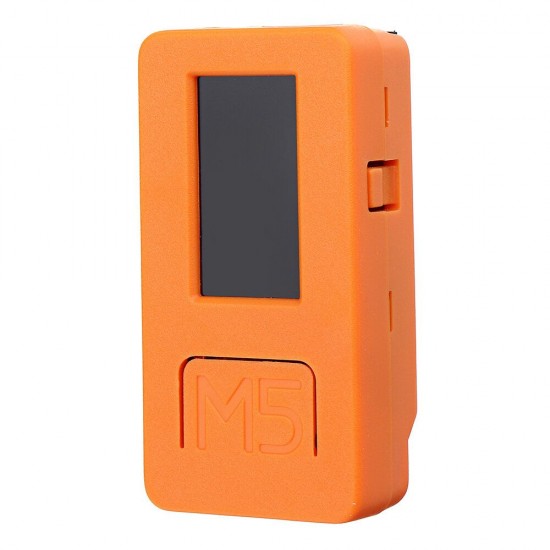

M5Stick is a mini M5Stack, powered by ESP32. It is a portable, easy-to-use, open source, IoT development board.
What it can do? This tiny block is able to realize your idea, enlight your creativity, and help with your IoT prototying in a very short time. It will takes away a lot of the pains form the development process.
M5stick is one of the core devices in M5Stack product series which is built in a continues growing hardware & software ecosystem. It has a lot of compatible modules & units, as well as the open source code & engineering community that will help you maximum your good in every step of the developing process.

Item Features:

- 5V DC power supply
- USB Type-C
- ESP32-based
- 4 MByte Flash
- 6- IMU MPU6886
- Red LED
- Buzzer
- IR transmitter
- 1 Buttons, OLED(1.3 inch), 1 Reset
- 2.4G Antenna: Proant 440
- 95 mAh Lipo Battery
- Extendable Socket
- Grove Port
- Wearable & Wall mounted
- Development Platform UIFlow, MicroPython,  for

ESP32 Features:

- 240 MHz dual core Tensilica LX6 microcontroller with 600 DMIPS
- Integrated 520 KB SRAM
- Integrated 802.11b/g/n HT40 Wi-Fi transceiver, baseband, stack and LWIP
- Integrated dual mode Bluetooth
- Hall sensor
- 10x capactive touch interface
- 32 kHz crystal oscillator
- PWM/timer input/output available on every GPIO pin
- SDIO master/salve 50MHz
- card interface support

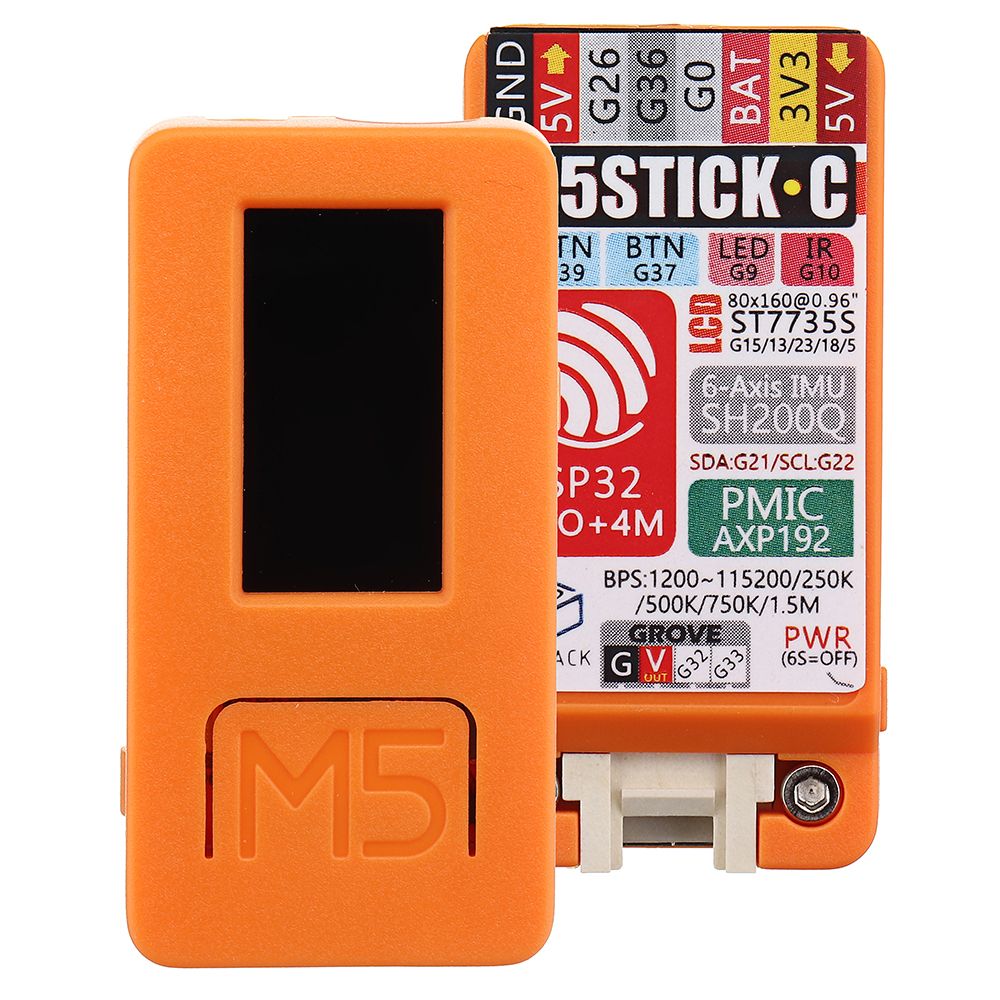

PinMap:

RED LED & IR Transmitter & BUTTON A & BUTTON B
ESP32GPIO10GPIO9GPIO37GPIO39
RED LEDLED PIN


IR Transmitter
Transmitter Pin

Button A

Button Pin
Button B


Button Pin

TFT LCD
Driver IC:ST7735S
Resolution:80 * 160

ESP32GPIO15GPIO13GPIO23GPIO18GPIO5
TFT LCDTFT_MOSITFT_CLKTFT_DCTFT_RSTTFT_CS

GROVE PORT
ESP32GPIO33GPIO325VGND
GROVE portSCLSDA5VGND

MIC (SPM1423)
ESP32GPIO0GPIO34
MICPHONESCLSDA

6- posture sensor (MPU6886) & power management IC (AXP192)
ESP32GPIO22GPIO21
6- posture sensorSCLSDA
power management ICSCLSDA

Power on / off:

Power on: Click the reset button
Shutdown: Double the reset button

datasheet


Example

Comparision Between Different Development Kits of M5


  • For details click here

  • Download chart click here



  • M5StickC facory test code

  • M5StickC Vending Machine

Description:

Hat SPK is an M5StickC compatible speaker, integrated PAM8303 amplifier (3w single channel type D power amplifier), High PSRR and differential inputs eliminate noise and rf interference, thus it has the characteristics of simple functions and high audio reproduction.

Product Feature:

  • Ultra-low EMI interference, 20dB better than FCC class B standard at 300MHz
  • Voltage 5 v power supply, with 4 Ω load power output 3 w, 10% of the total harmonic distortion.
  • Ultra-low noise without input
  • Power: 2.8V - 5.5V
  • Shortcut protection.

Description:

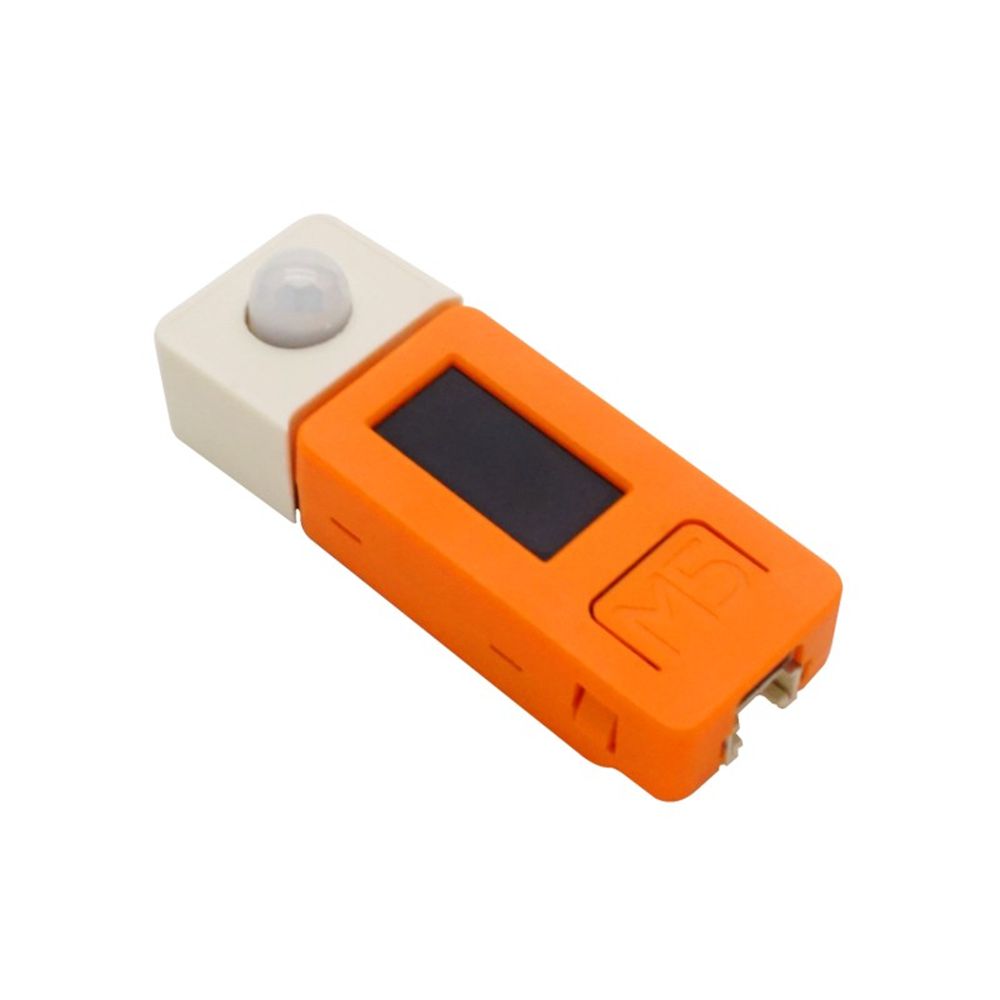

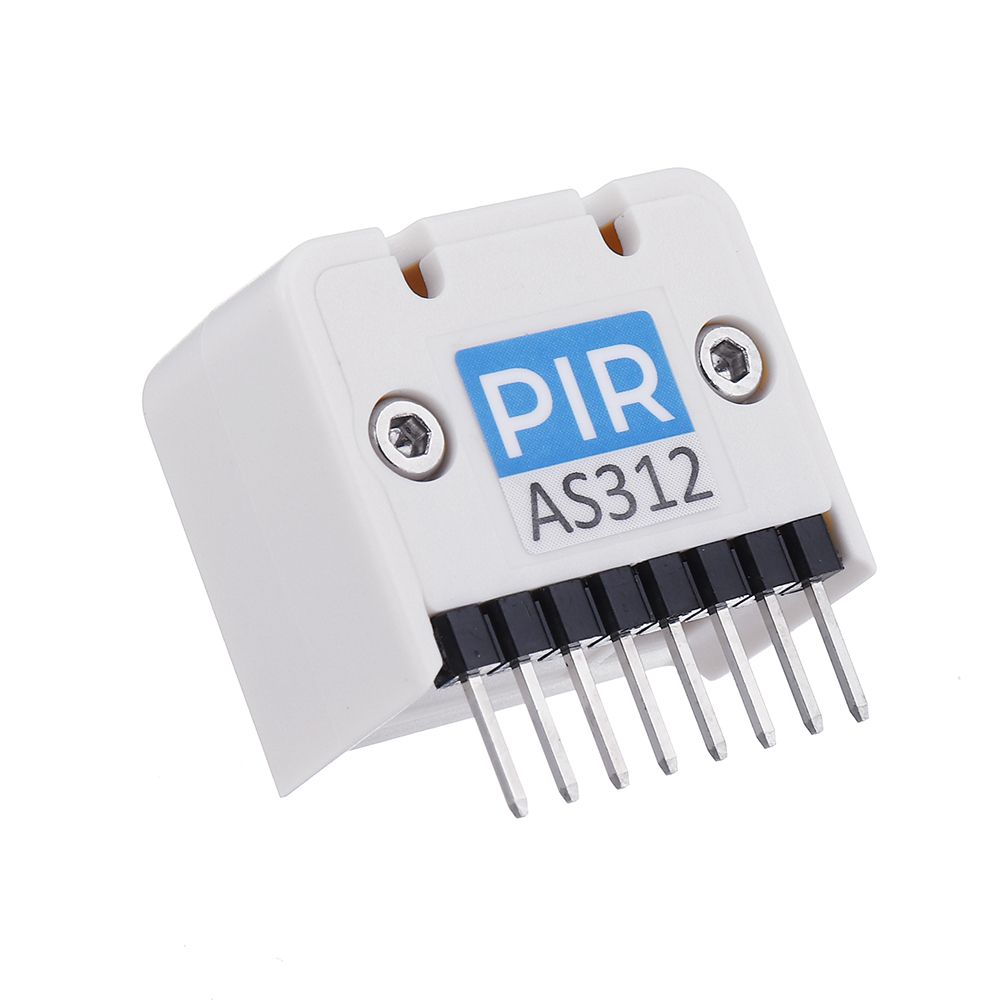

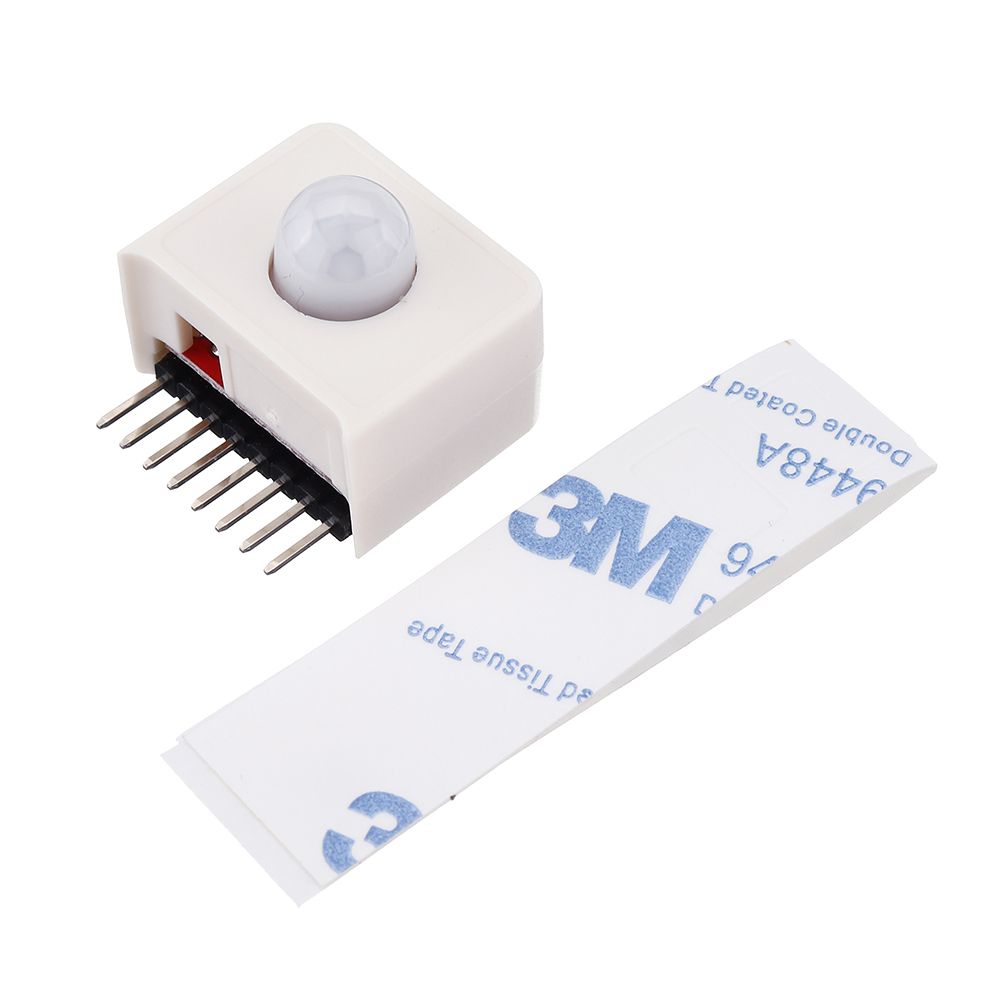

Hat PIR is an M5StickC compatible human body induction sensor, it belongs to "Passive pyroelectric infrared detector", that detect the infrared come from the human body. When the infrared is detected, the sensor will output HIGH and last for two seconds until the next detecting round.

Notice: There exist 2 seconds delay

Product Feature:

  • Detecting: 150cm
  • Delay time: 2s
  • Induction Angle: < 100°
  • IDDQ : < 60uA
  • Op.T: -20 - 80 °C

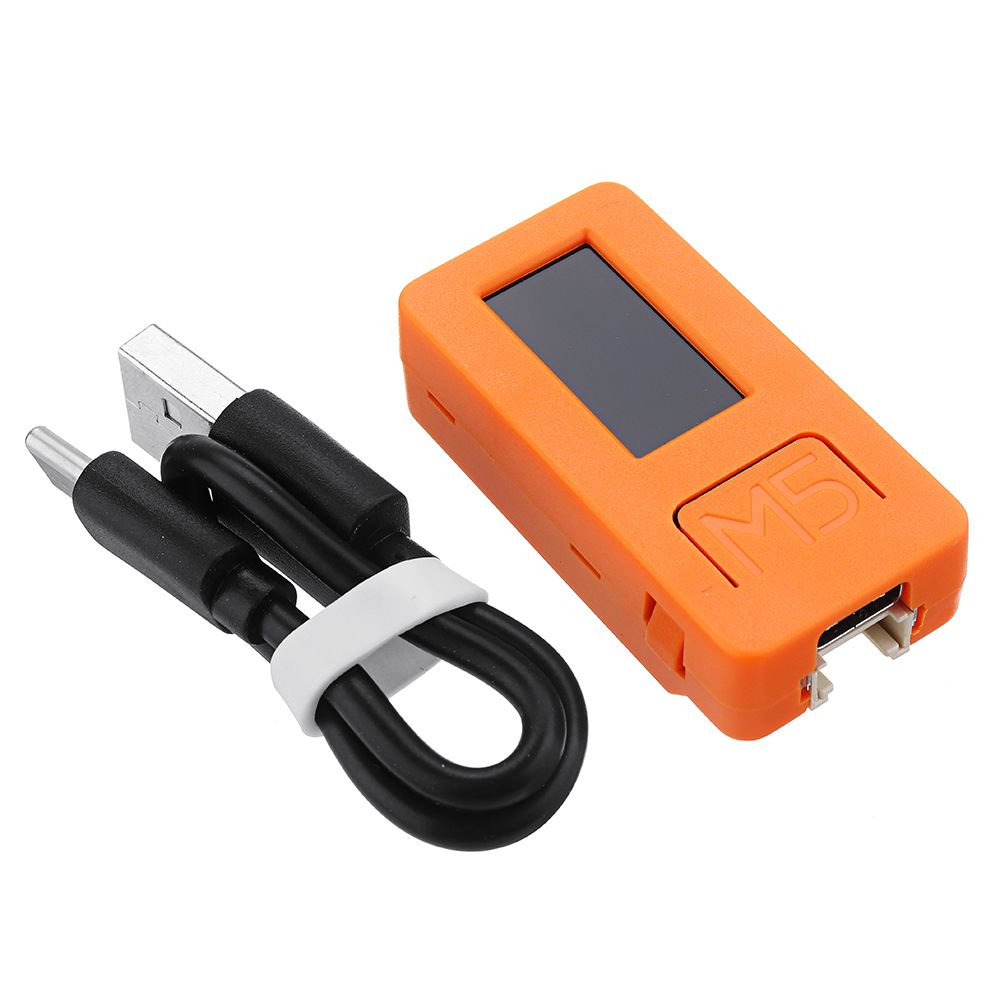

Package Included:


1 x M5StickC
1 x USB Type-C cable
 1 x PIR Hat
