$19.99
Ex Tax: $19.99
  • Stock: In Stock
  • Model: EB0042810
  • SKU: EB0042810
If you need to buy 868MHz version, please click here to buy: Product ID EB0045296

Description:

The main chip using Lexin ESP32, Tensilica LX6 dual-core processor, clocked at 240MHz, computing power up to 600DMIPS, chip built-in
520 KB SRAM, 802.11 b / g / N HT40 Wi-Fi transceiver, baseband, protocol stack and LWIP, integrated dual-mode  bluetooth (traditional bluetooth and BLE low power bluetooth).
This product is based on the WIFI 32 added SX1276 chip, that is, LoRa remote modem, 915MHz frequency, about -148dBm high sensitivity,
 +20 dBm power output, high reliability.
Onboard 128MByte Flash, WiFi antenna,  lithium battery charging circuit and interface, USB to serial chip, the perfect support for  development environment, can be very simple and fast for program verification and product development.


Feature:

Operating voltage: 3.3V to 7V
Operating temperature range: -40 ° C to + 90 ° C
Supports Sniffer, Station, softAP and Wi-Fi Direct modes
Data rate: 150 Mbps @ 11n HT40,72 Mbps @ 11n HT20,54 Mbps @ 11g, 11 Mbps @ 11b
Transmit power: 19.5 dBm @ 11b, 16.5 dBm @ 11g, 15.5 dBm @ 11n
Receiver sensitivity up to - 98 dBm
UDP continues to throughput by 135 Mbps

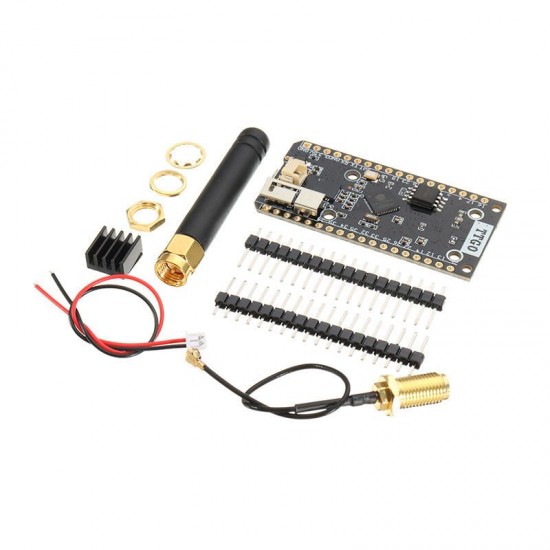

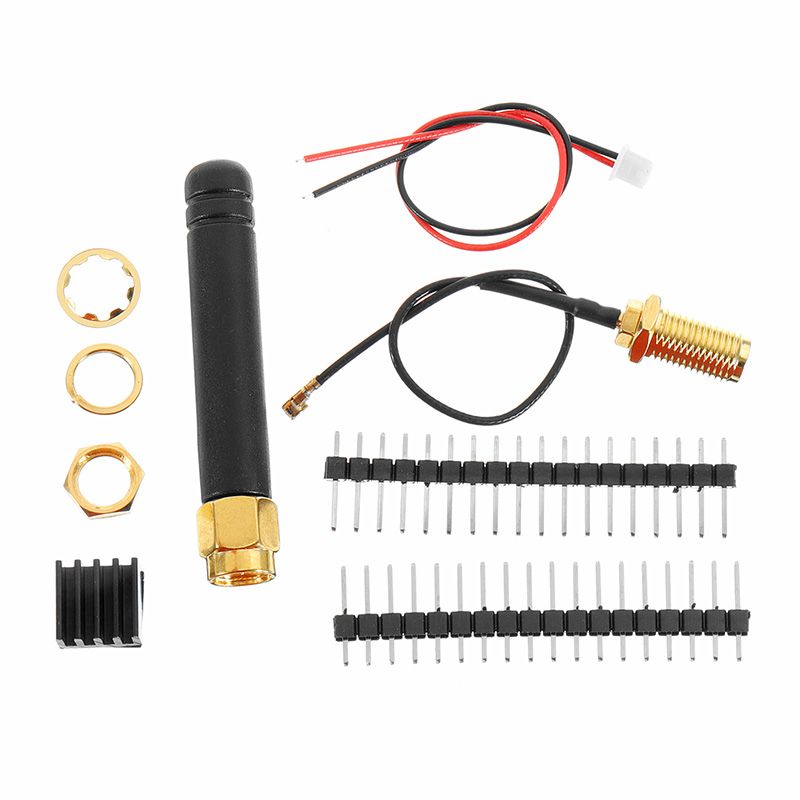

Package included:


1 x SX1276 LoRa ESP32 915MHz
1 x Line
1 x heatsink
2 x pin

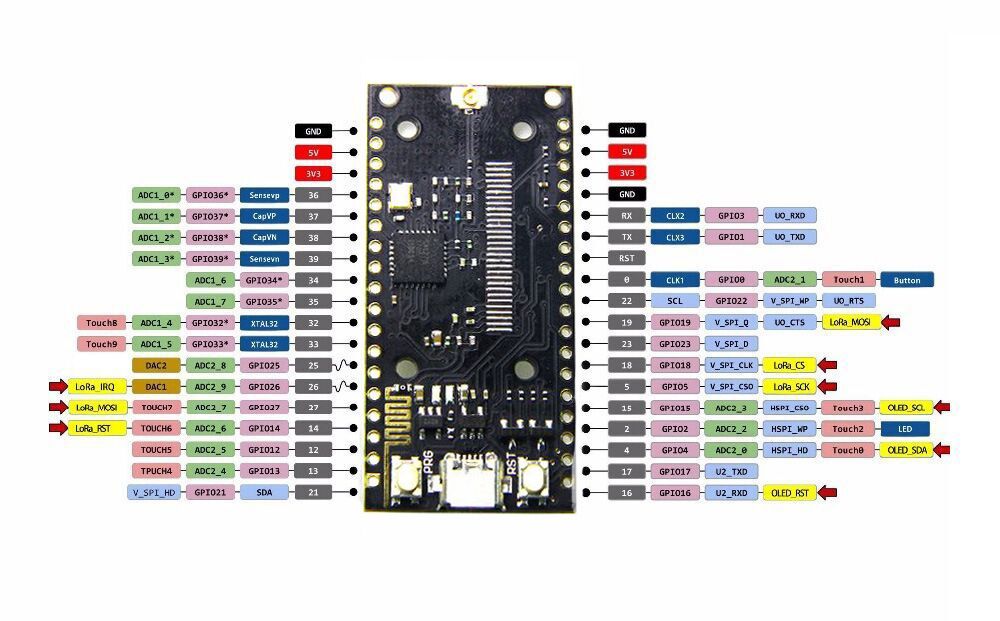

Pin diagram:
