PM9805 Bench TRMS AC Voltage Current Power Factor & Power Meter Analyzer Alarm Function RS232 Communication
- Stock: In Stock
- Model: EB003261
- Dimensions: 355.00mm x 223.00mm x 112.00mm
- SKU: EB003261
Features:
Four window shows at the same time: frequency and voltage, current, power, power factor /
All measurements were Trms true effective value
The automatic range
Accuracy: 0.5
With a high immunity to external noise
Instrument 100-240V AC power supply, suitable for all kinds of used electric field
Shell is made of soft rubber material, beautiful, durable, shatter resistant
Support data locking
The standard RS232 communication interface and software
Applicable to the production line test: if the lighting products, household electrical appliances, electrical products, power products.
Application field:
Energy consumption test of household appliances
Energy consumption test of air conditioner
Power consumption of electrical lighting
Power test of LED lamp
Motor and motor testing
Charger and switch power supply test
Specifications:
| Connection mode | Single-phase |
| display | LED digital screen |
| Measurement items | Voltage V, current A, active power W, power factor, frequency of Hz PF |
| Measuring form | Trms true RMS |
| Voltage range | 3V ~ 600V AC (automatic range switching) Peak voltage: 700V AC Minimum test voltage 3V AC (less than 3V can be customized) |
| current range | 5mA~20A AC (Range automatic switching) Peak current: 26A AC |
| The power range | 0.1W-12kW |
| Power factor range | 0.001-1.000 |
| Calculation method: Watts (W) ÷ [Voltage (V) × Current (A)] = Power factor (PF) | |
| Frequency range | 45-65Hz |
| Basic accuracy | (0.4% + 0.1% range reading 1 words) |
| Measuring speed | 5 times / sec |
| Input impedance | More than 1m omega (all voltage) |
| Power supply | 85 - 265V AC 50/60 Hz, 85 ~ 265V DC |
| Volume and weight. | 355mm * 223mm * 112mm width is 1.7kg high. |
| communication interface | Standard RS232 or RS 485, matching Relay output function |
| Enclosure | Power Cable, manual, communication line, software CD |

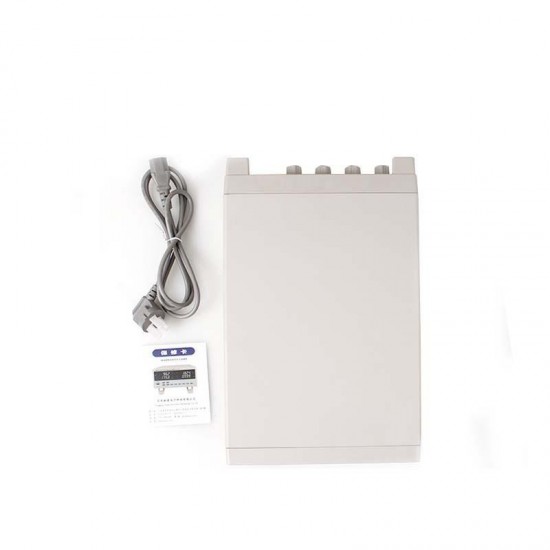

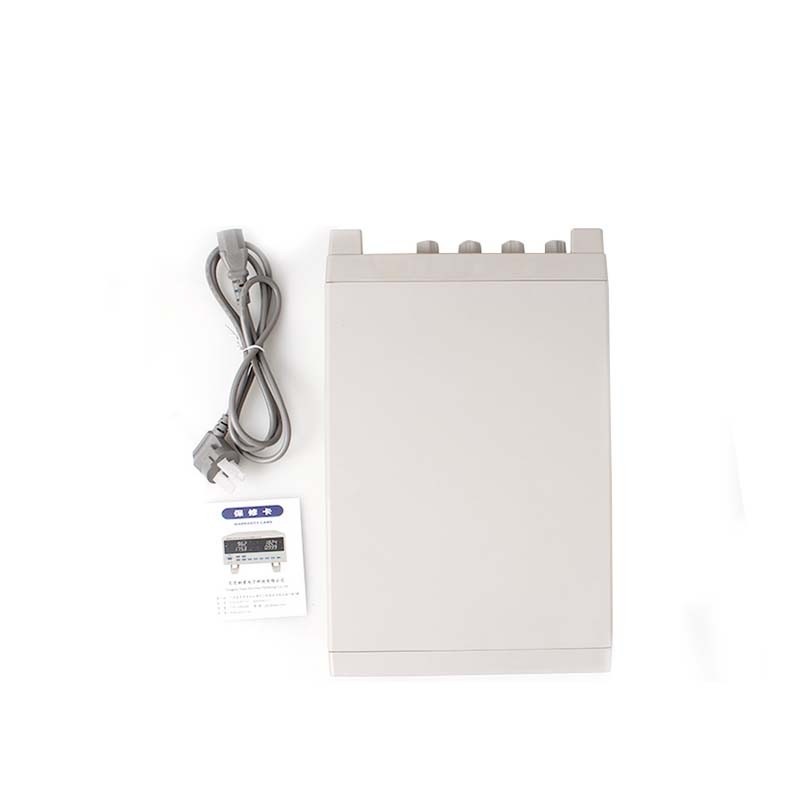

Package Includes:
1 x Power Meter
1 x Power Cable,
1 x Manual
1 x Communication line
1 x Software CD
Note:
We will send you a plug adapter according to your country.

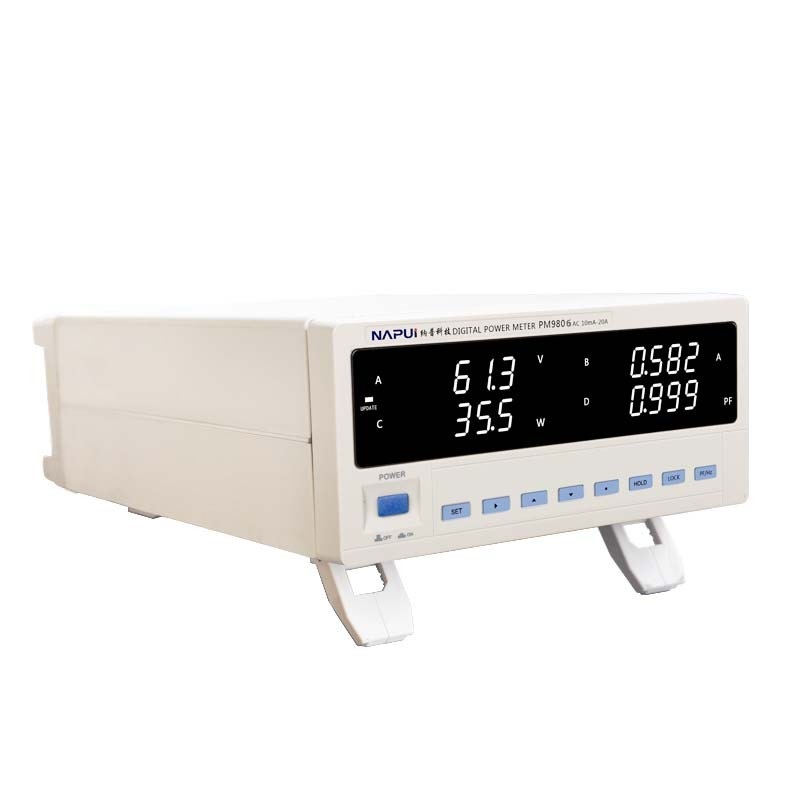

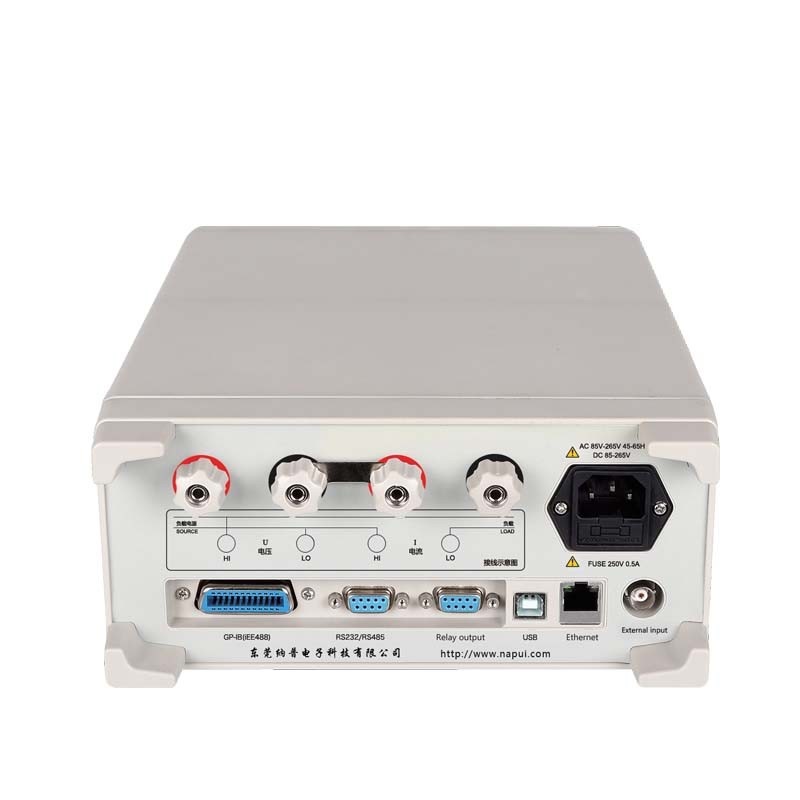

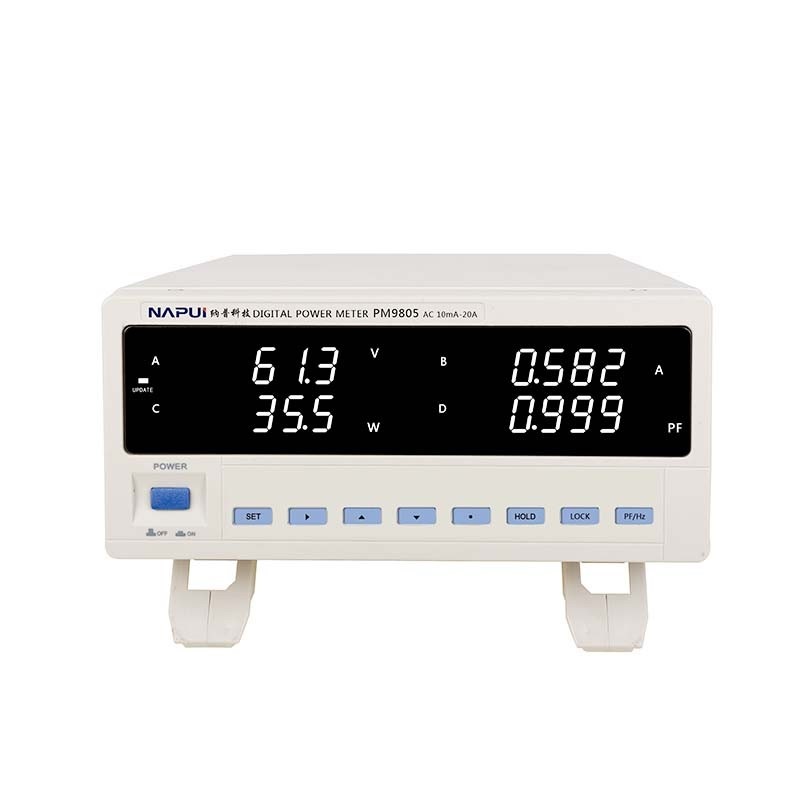

Details Pictures:
