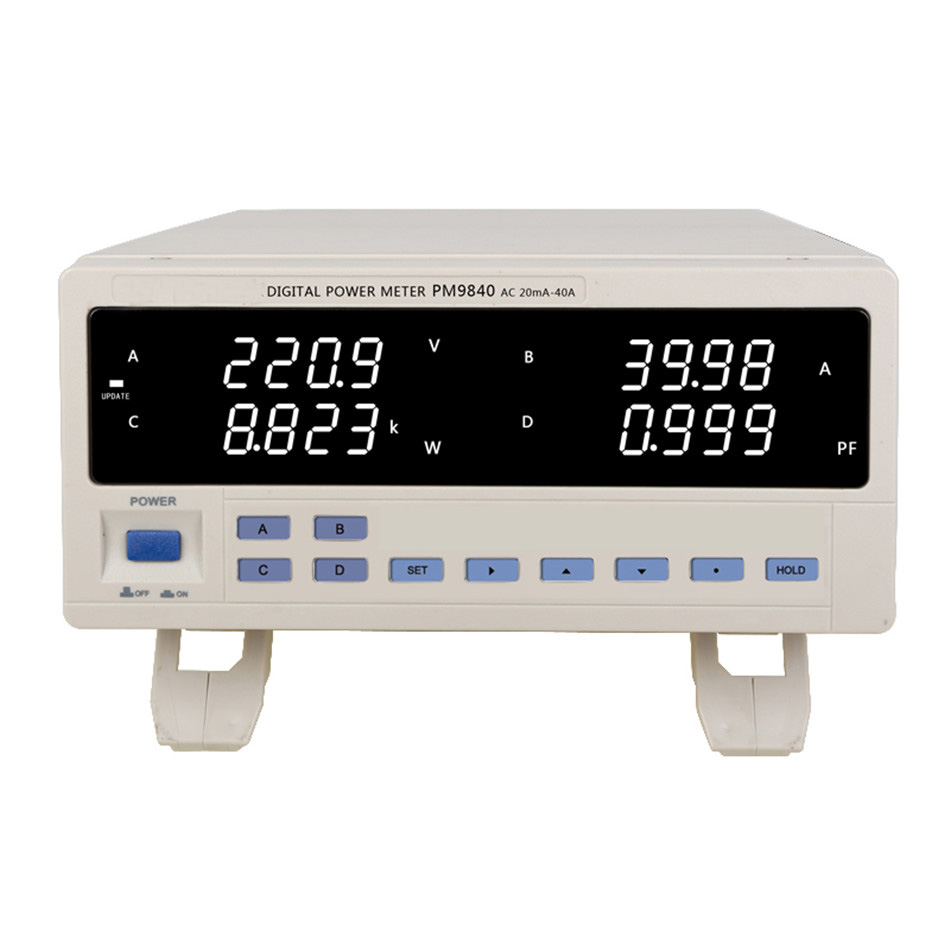

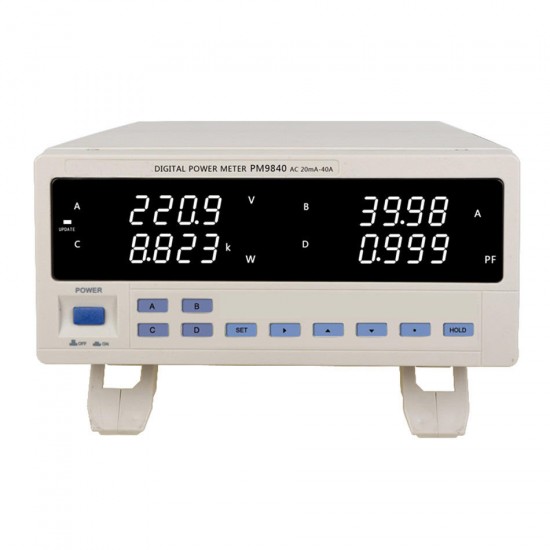

PM9840 Bench TRMS AC Voltage Current Power Meter High-power Electric Type 600V 40A
- Stock: In Stock
- Model: EB003262
- Dimensions: 355.00mm x 223.00mm x 112.00mm
- SKU: EB003262
LED digital display: voltage, current, power, power factor/frequency
Speacifications:
| Connection mode | Single phase |
| According to | LED digital screen |
| Measuring project | V voltage, current, power factor, active power W A PF, Hz frequency |
| Measuring form | True RMS Trms |
| Voltage range | 5 v to 600 v AC (automatic range switching) |
| Current range | 20 ma ~ 40 a AC (automatic range switching) |
| Power range | 0.1W-24kW |
| Power factor range | 0.001 to 1.000 |
| Calculation: watt (W) present [voltage (V) by current (A)] = power factor (PF) | |
| The frequency range | 45-400Hz |
| Basic precision | Plus or minus 0.4% + 0.1% range + 1 r, speaking, reading and writing |
| Measurement speed | 5 times/SEC. |
| The input impedance | 1 m or more omega (all voltage) |
| The power supply | 85~265V AC 50/60 Hz,85~265V DC |
| Size and weight | 355 mm long x 223 mm wide x 112 mm high, 1.7 kg of material |
| Communication interface | optional RS232/485, optional relay output |
| The attachment | The power cable, fuse, manual |
Package Includes:
1 x Powetr Meter
1 x Power Cable(EU)
1 x Fuse
1 x Manual
Note:
We will send you a plug adapter according to your country.

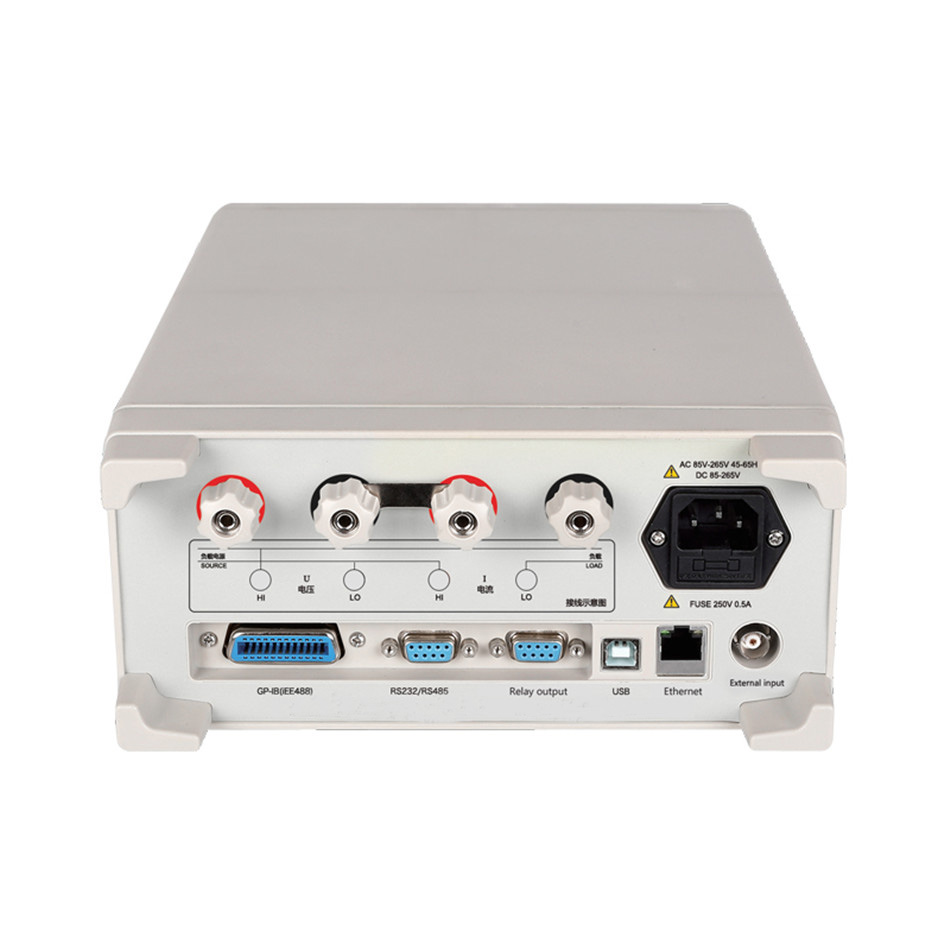

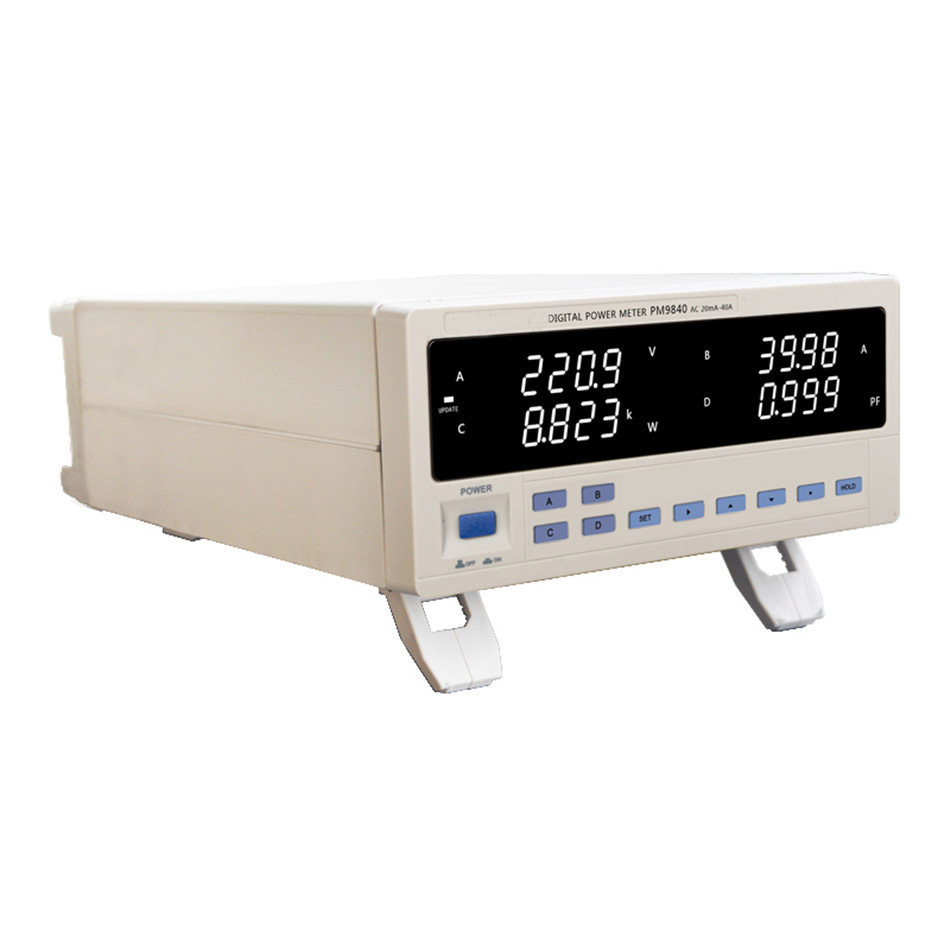

Details Pictures:
