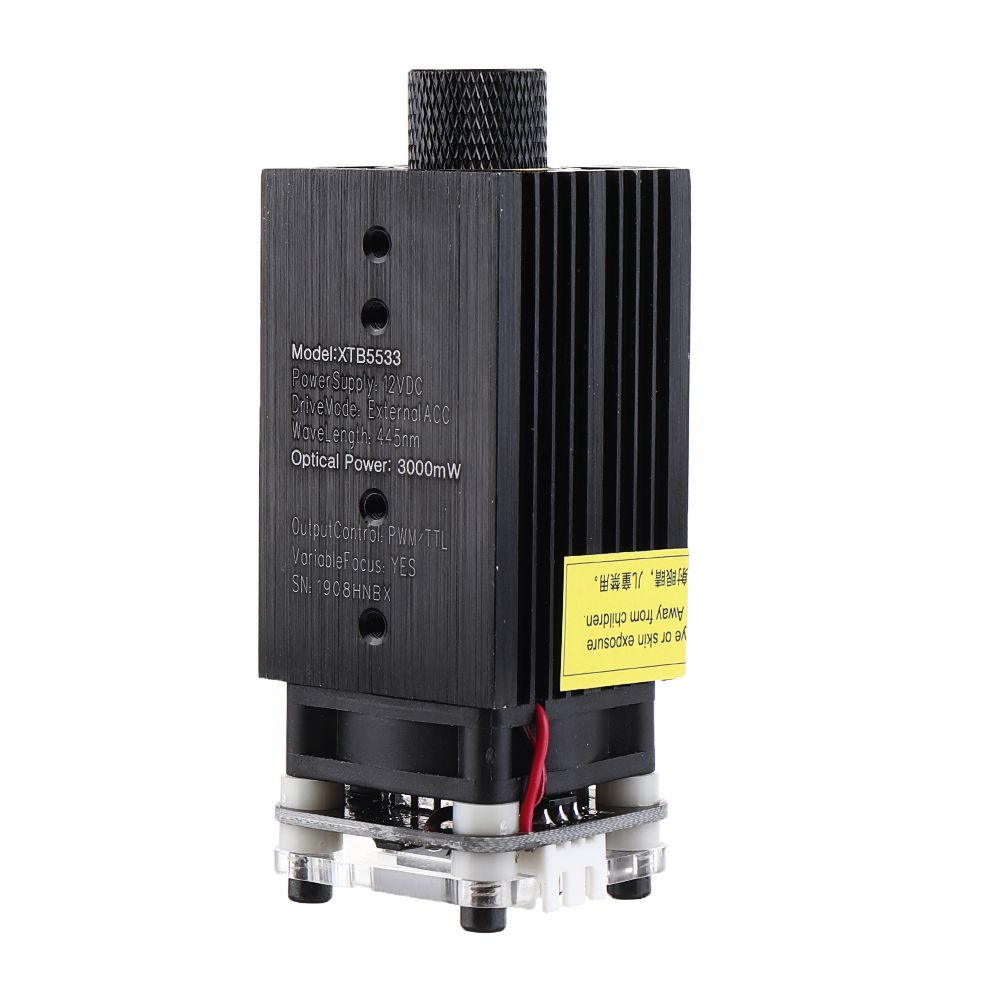

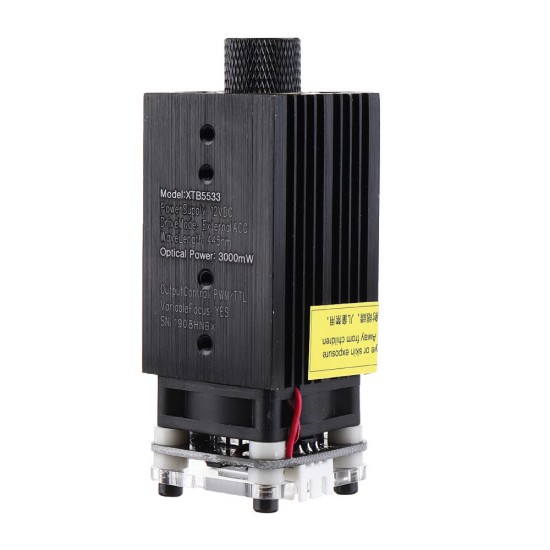

FB03-3000 3000mW 445nm Blue Laser Module 2.54-3P TTL/PWM Modulation DIY Engraver

FB03-3000 3000mW 445nm Blue Laser Module 2.54-3P TTL/PWM Modulation DIY Engraver
FB03-3000 3000mW 445nm Blue Laser Module 2.54-3P TTL/PWM Modulation DIY Engraver
FB03-3000 3000mW 445nm Blue Laser Module 2.54-3P TTL/PWM Modulation DIY Engraver
FB03-3000 3000mW 445nm Blue Laser Module 2.54-3P TTL/PWM Modulation DIY Engraver
FB03-3000 3000mW 445nm Blue Laser Module 2.54-3P TTL/PWM Modulation DIY Engraver
FB03-3000 3000mW 445nm Blue Laser Module 2.54-3P TTL/PWM Modulation DIY Engraver
FB03-3000 3000mW 445nm Blue Laser Module 2.54-3P TTL/PWM Modulation DIY Engraver
FB03-3000 3000mW 445nm Blue Laser Module 2.54-3P TTL/PWM Modulation DIY Engraver
FB03-3000 3000mW 445nm Blue Laser Module 2.54-3P TTL/PWM Modulation DIY Engraver
FB03-3000 3000mW 445nm Blue Laser Module 2.54-3P TTL/PWM Modulation DIY Engraver
FB03-3000 3000mW 445nm Blue Laser Module 2.54-3P TTL/PWM Modulation DIY Engraver
FB03-3000 3000mW 445nm Blue Laser Module 2.54-3P TTL/PWM Modulation DIY Engraver
FB03-3000 3000mW 445nm Blue Laser Module 2.54-3P TTL/PWM Modulation DIY Engraver
FB03-3000 3000mW 445nm Blue Laser Module 2.54-3P TTL/PWM Modulation DIY Engraver
FB03-3000 3000mW 445nm Blue Laser Module 2.54-3P TTL/PWM Modulation DIY Engraver
FB03-3000 3000mW 445nm Blue Laser Module 2.54-3P TTL/PWM Modulation DIY Engraver
FB03-3000 3000mW 445nm Blue Laser Module 2.54-3P TTL/PWM Modulation DIY Engraver
FB03-3000 3000mW 445nm Blue Laser Module 2.54-3P TTL/PWM Modulation DIY Engraver
FB03-3000 3000mW 445nm Blue Laser Module 2.54-3P TTL/PWM Modulation DIY Engraver
$78.99
Ex Tax: $78.99
  • Stock: In Stock
  • Model: EB0017367
  • SKU: EB0017367
Description:
New series of laser modules, suitable for EleksMaker® laser engraver, and also other engraver that ensures XH2.54-3P interface and DC 12V input voltage.

Specification:
General Specification
 Model  FB03-3000
 Heatsink Material  Aircraft Aluminum
 Luminous Color  Blue
 Section Size  33mm x 33mm
 Cooling Mode  Heat Sink Groove, Cooling Fan
 Dimension  76 * 33 * 33mm
 Adapter Plug  US Plug
 Adapter Input Voltage  AC 100-240V
 Adapter Output Voltage  DC 12V 2.5A
 Can Engrave  MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum
 Can Not Engrave  Metal/Glass/Stone/Ceramics/Stainless Steel/Reflective Material/ Transparent Material
 Technical Parameters
 Laser Power  3000mW
 Wavelength  445nm
 Beam Shape  Dot (Focusable)
 Working Voltage  DC 12V
 TTL/PWM Modulation  YES
 Input Interface  XH2.54-3P
 Drive Mode  External ACC
 Life Time  >10,000 hours

Features:

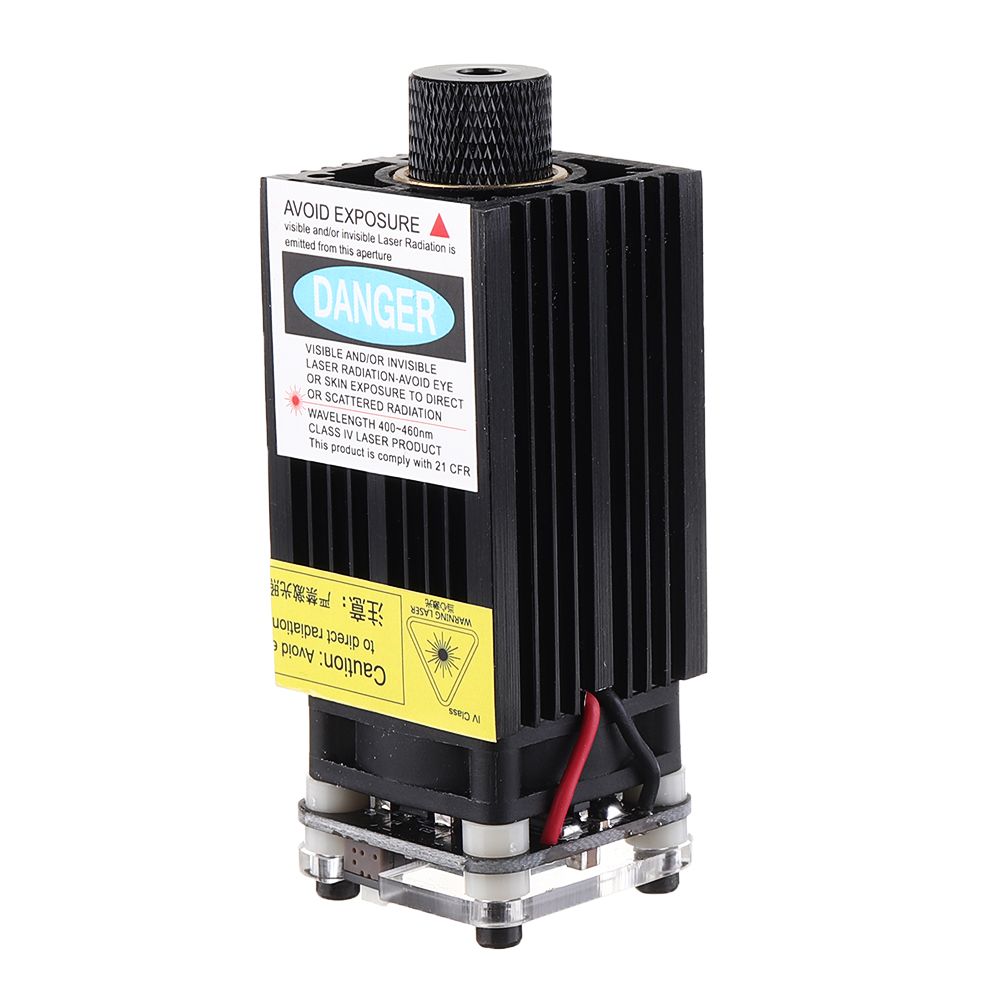

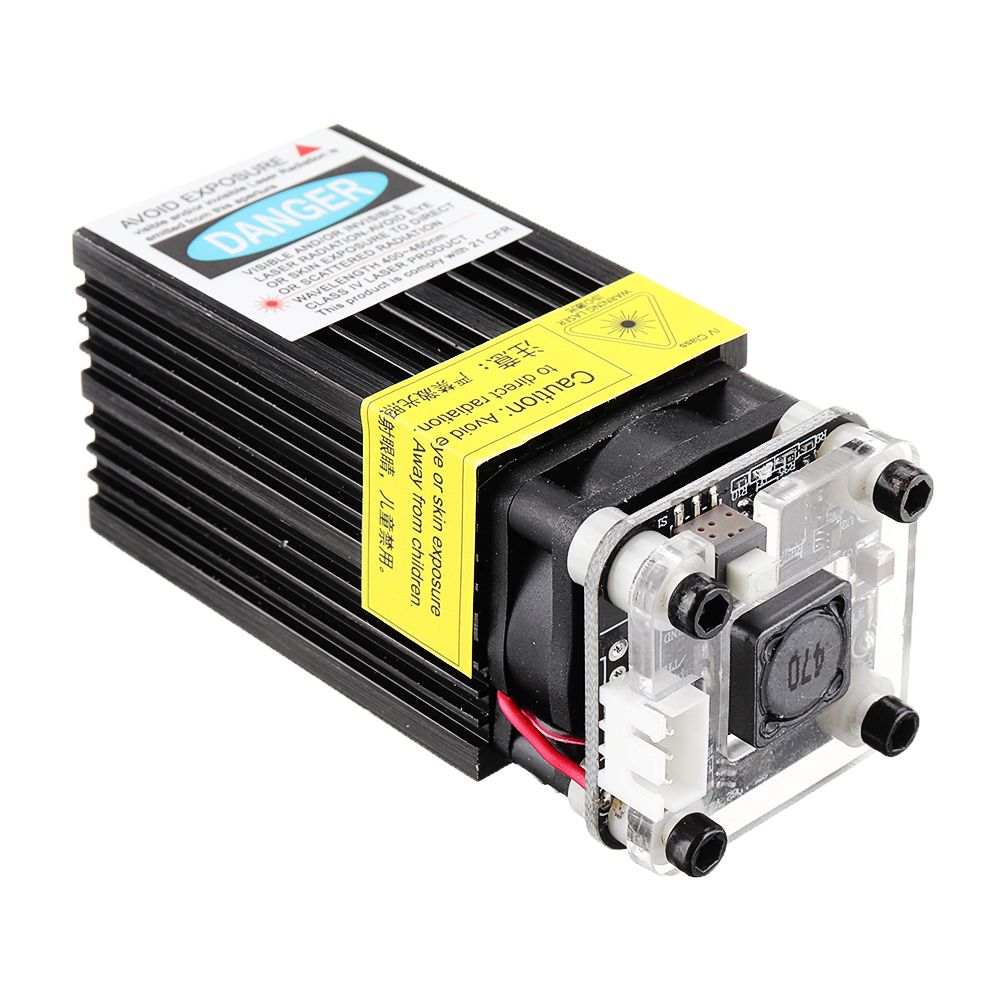

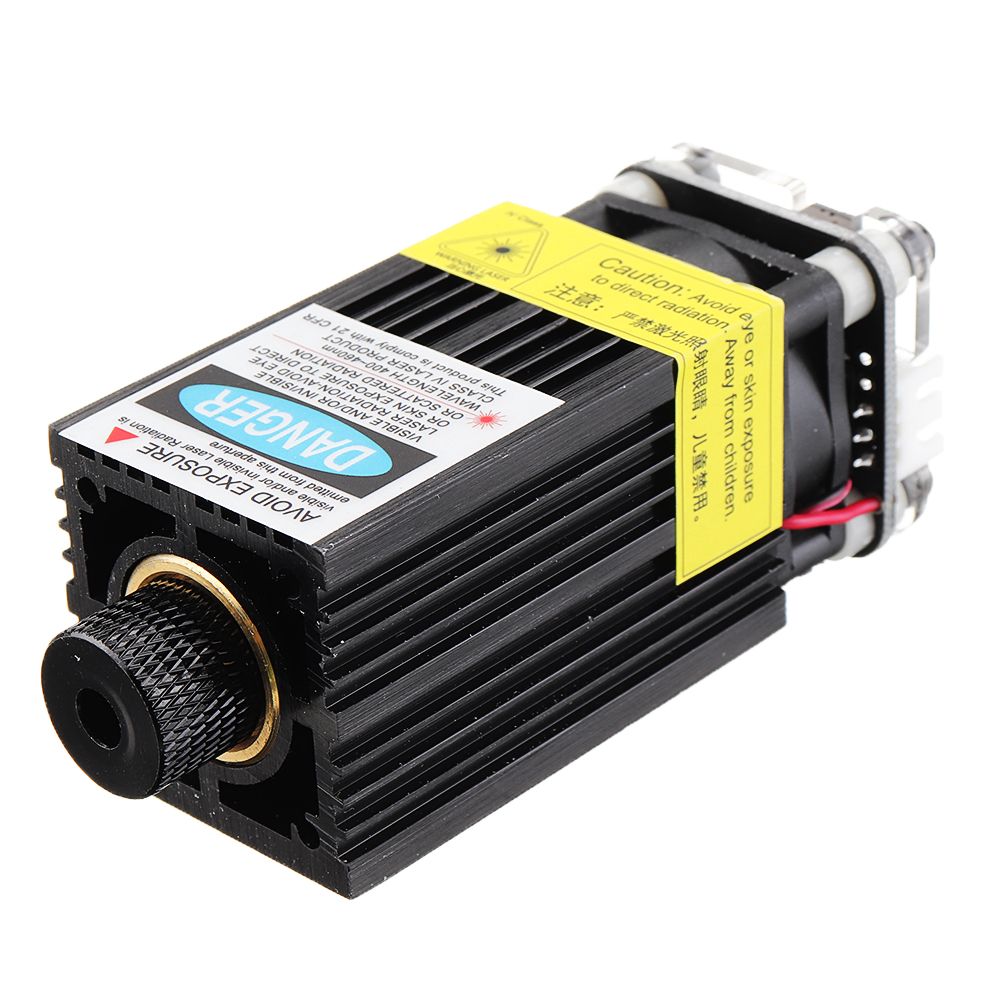

- FB03 new series of laser modules, exquisite workmanship and nice appearance.
- 445nm 3000mW focusable blue laser module, with TTL/PWM functions.
- Aircraft aluminum heatsink with cooling fan ensure long working time continuously.

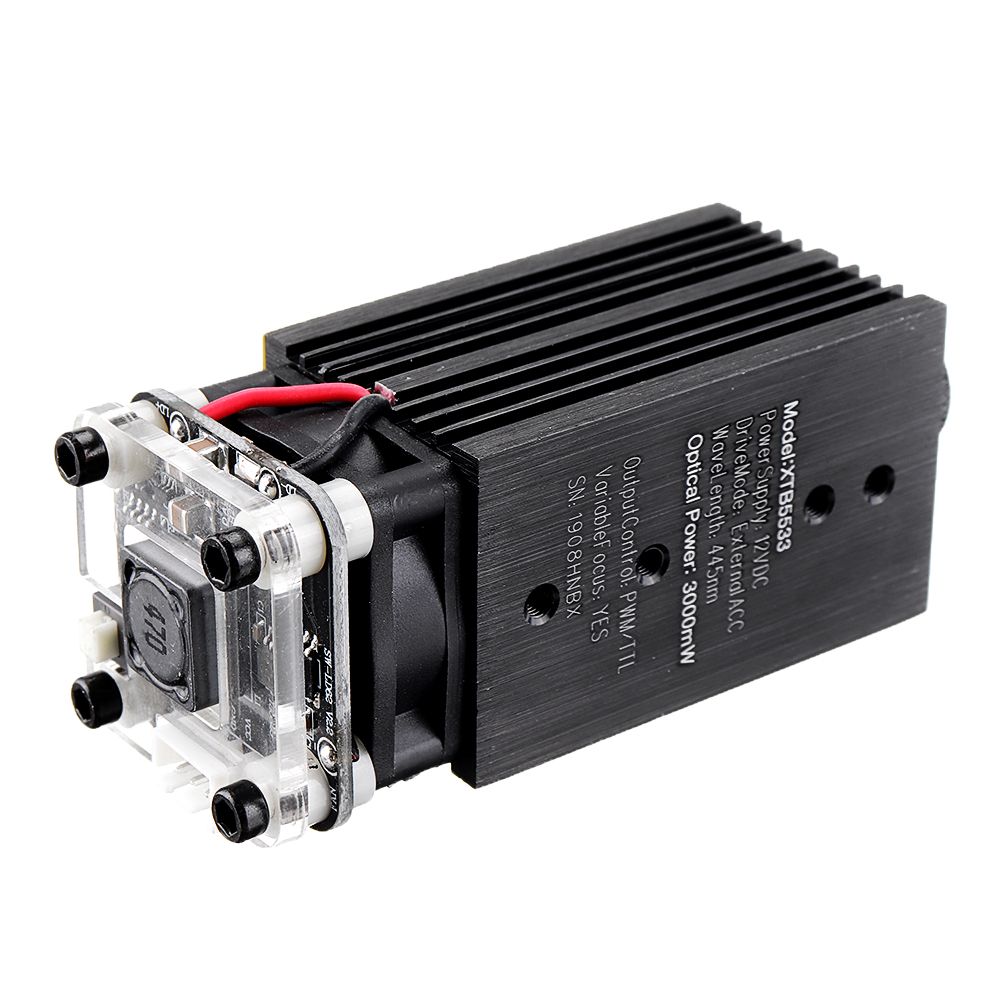

- Equipped with constant-current driver board ensure stable output optical power, low heat no external driver board needed, easy to use.
- 3 pins plug, TTL/PWM drive mode, suitable for laser engraving machine equipment usage.
- Can Engrave: Wood, Plastic, PCB, Paper, Bamboo, Ox Horn, Leather, Sponge Paper, etc.
  Can Not Engrave: Metal, Stone, Ceramics, Glass, Reflective or Transparent Material.

* This module can be compatible with TTL or PWM modulation, (But it can just select either function at a time.) while TTL can control the switch on/off and PWM can control the adjustment of laser power.
* There is a button on the driver board which control ON/OFF of weaklight mode.
- Press it, the module turns to weaklight mode, then the laser light emitting becomes weak and won't work on material. At this time, it can used for positioning as preparation before engraving.
- Press it again, it returns to normal engraving mode, the laser light is powerful to work on material.

Notice:
1. Please wear laser goggles during usage, avoid to touch the laser directly to the eyes and skin! Keep away from children and pets.
2. Usually used for EleksMaker® laser machine, 3 pins connector cable is needed to connect to the EleksMaker Board. This item will come with the cable, and the cable from your A3 machine is also suitable.
3. Note that the laser module works less than half an hour in one time, and please wait until it has cooled down before continuing the work.
4. The warranty period of laser module is one month. If you have any quality problem (Except individual situation like using the laser module more than 30 minute one time and casue the damage ), please feel free to ask our customer service for a help. Thanks for your understanding.

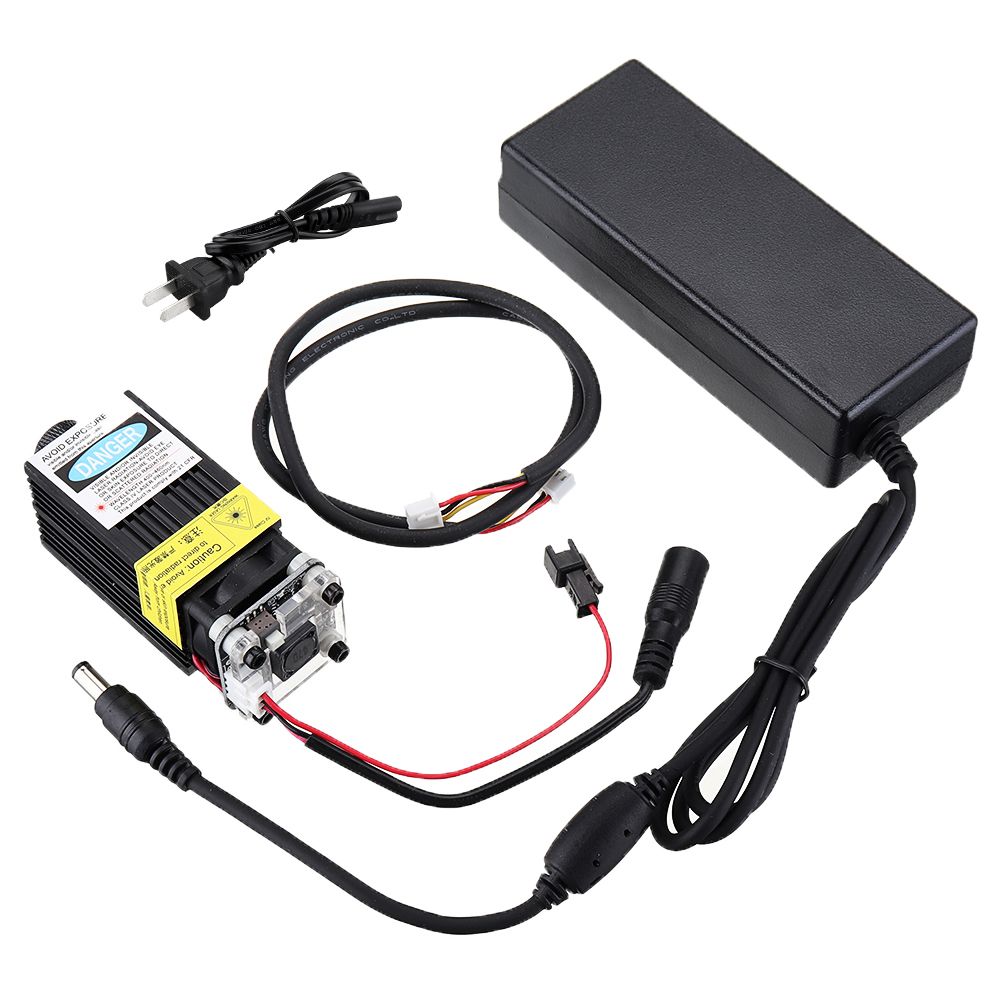

Package Included:
1 x 3000mW Blue Laser Module

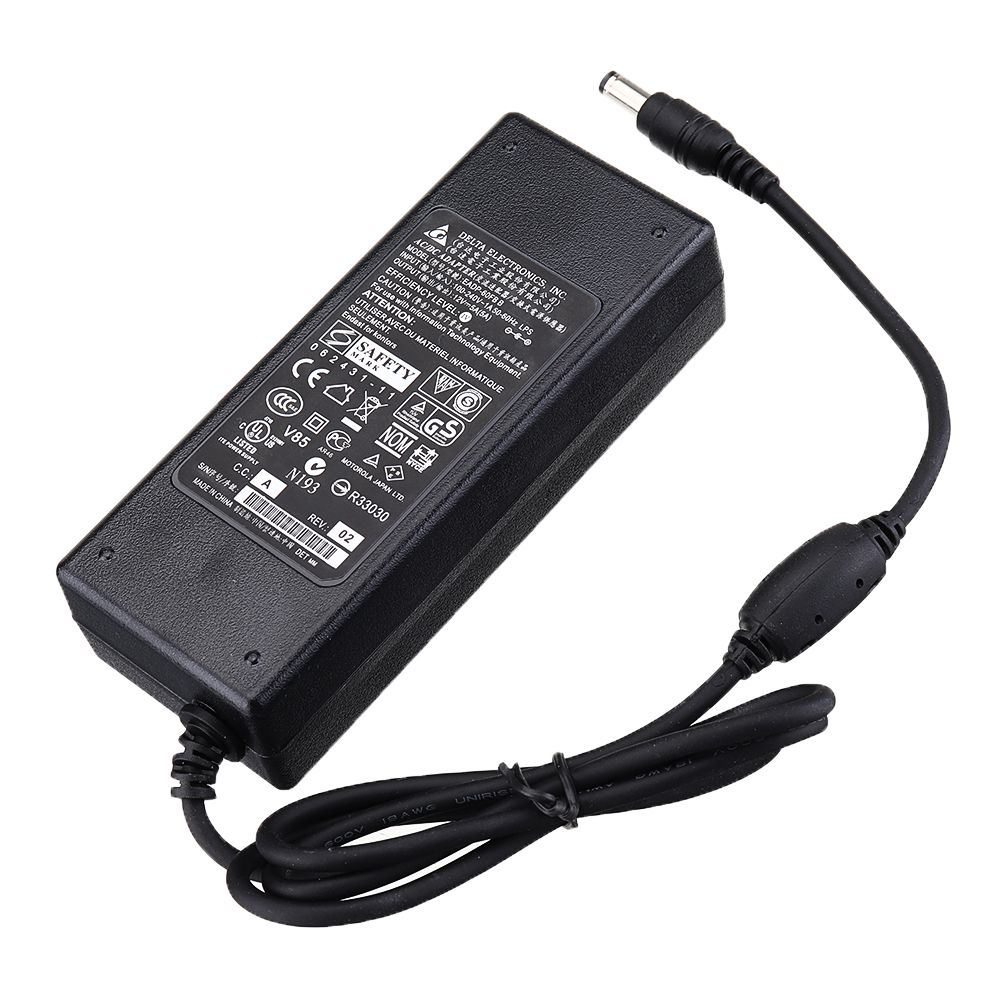

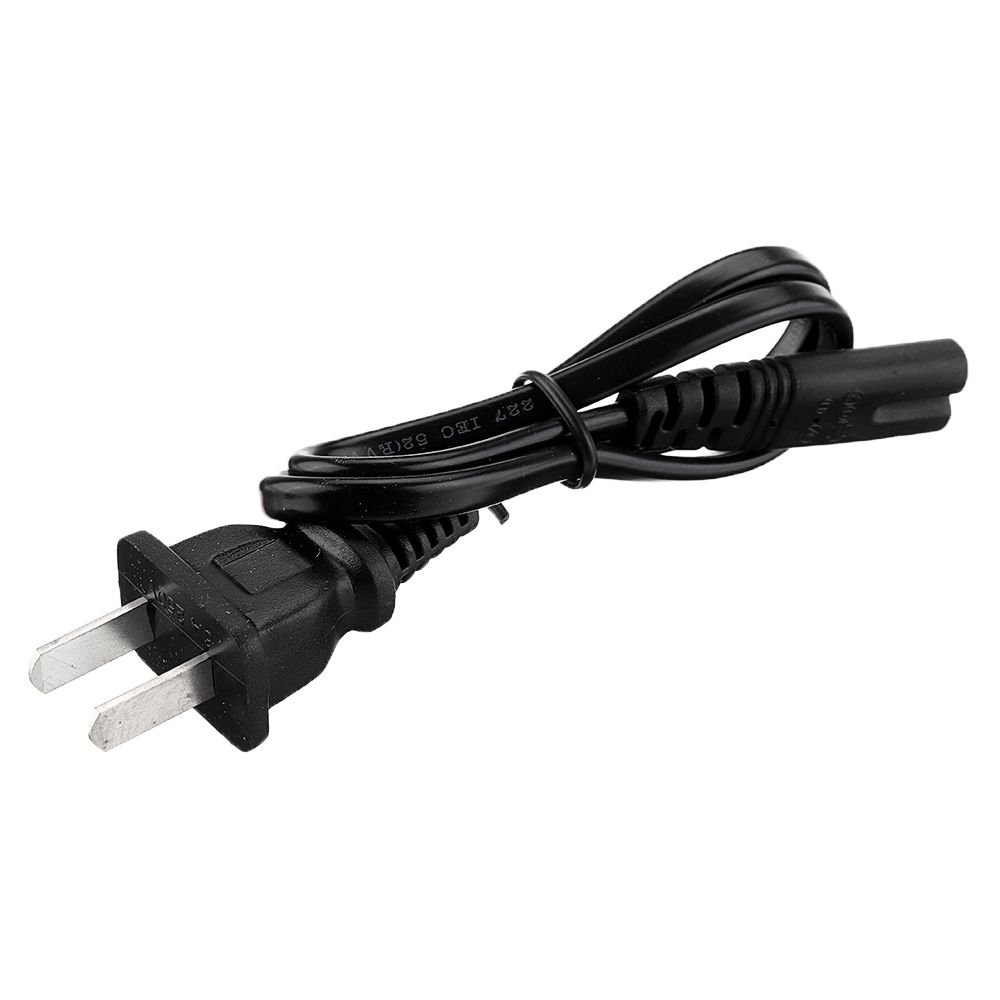

1 x Power Adapter

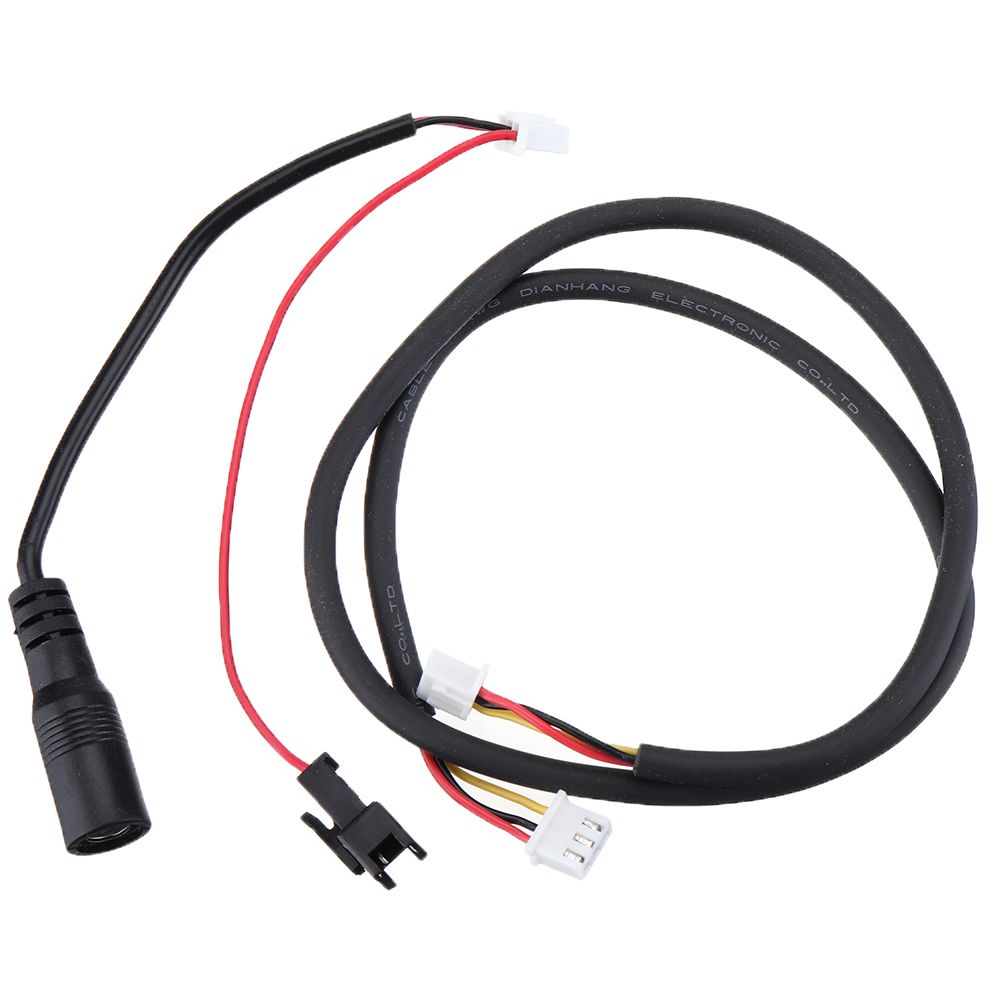

2 x Connector Cables
(Carboard Box Packing)
