FB04-2500 2500mW 445nm Blue Laser Module 2*2.54-2P TTL/PWM Modulation DIY Engraver

FB04-2500 2500mW 445nm Blue Laser Module 2*2.54-2P TTL/PWM Modulation DIY Engraver
FB04-2500 2500mW 445nm Blue Laser Module 2*2.54-2P TTL/PWM Modulation DIY Engraver
FB04-2500 2500mW 445nm Blue Laser Module 2*2.54-2P TTL/PWM Modulation DIY Engraver
FB04-2500 2500mW 445nm Blue Laser Module 2*2.54-2P TTL/PWM Modulation DIY Engraver
FB04-2500 2500mW 445nm Blue Laser Module 2*2.54-2P TTL/PWM Modulation DIY Engraver
FB04-2500 2500mW 445nm Blue Laser Module 2*2.54-2P TTL/PWM Modulation DIY Engraver
FB04-2500 2500mW 445nm Blue Laser Module 2*2.54-2P TTL/PWM Modulation DIY Engraver
FB04-2500 2500mW 445nm Blue Laser Module 2*2.54-2P TTL/PWM Modulation DIY Engraver
FB04-2500 2500mW 445nm Blue Laser Module 2*2.54-2P TTL/PWM Modulation DIY Engraver
FB04-2500 2500mW 445nm Blue Laser Module 2*2.54-2P TTL/PWM Modulation DIY Engraver
FB04-2500 2500mW 445nm Blue Laser Module 2*2.54-2P TTL/PWM Modulation DIY Engraver
FB04-2500 2500mW 445nm Blue Laser Module 2*2.54-2P TTL/PWM Modulation DIY Engraver
FB04-2500 2500mW 445nm Blue Laser Module 2*2.54-2P TTL/PWM Modulation DIY Engraver
FB04-2500 2500mW 445nm Blue Laser Module 2*2.54-2P TTL/PWM Modulation DIY Engraver
FB04-2500 2500mW 445nm Blue Laser Module 2*2.54-2P TTL/PWM Modulation DIY Engraver
FB04-2500 2500mW 445nm Blue Laser Module 2*2.54-2P TTL/PWM Modulation DIY Engraver
FB04-2500 2500mW 445nm Blue Laser Module 2*2.54-2P TTL/PWM Modulation DIY Engraver
$73.99
Ex Tax: $73.99
  • Stock: In Stock
  • Model: EB0017432
  • SKU: EB0017432
What's the diference between FB03 Series and FB04 Series Laser Module? When or why do i need to have a FB04 Series Laser Module?
It depends on what the interface for laser module on your controller board is like.
- If the controller board of some other no-name engravers is designed with 2*2-Pin (1 for DC voltage, 1 for PWM/TTL modulation) interfaces, then you need to buy a FB04 series module to fit it.

Specification:
General Specification
 Model  FB04-2500
 Heatsink Material  Aircraft Aluminum
 Luminous Color   Blue
 Section Size  33mm x 33mm
 Mounting Hole  M5 (central), M3 (around)
 Cooling Mode   Heat Sink Groove, Cooling Fan
 Adapter Plug   US Plug
 Adapter Input Voltage   AC 100-240V
 Adapter Output Voltage   DC 12V 2.5A
 Can Engrave   MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum
 Can Not Engrave   Metal/Glass/Stone/Ceramics/Stainless Steel/Reflective Material/ Transparent Material
 Technical Parameters
 Laser Power   2500mW /2.5W
 Wavelength   445nm
 Beam Shape   Dot (Focusable)
 Working Voltage   DC 12V
 TTL/PWM Modulation   YES
 Power Input Interface  2.54-2P
 TTL Interface  2.54-2P
 Drive Mode   External ACC Constant Current Drive
 Life Time   >10,000 hours

Features:
1. The voltage for power port((VCC, GND 2 Pins Port) is DC 12V, the voltage for PWM port (PWM, GND 2 Pins Port) is DC 5V.
2. 445nm 2500mW focusable blue violet laser module, with TTL or PWM functions (TTL and PWM are compatibe while TTL can control the switch and PWM can control the power).
3. Aircraft aluminum heatsink with cooling fan ensure long working time continuously.
4. Equipped with constant-current driver board ensure stable output optical power, low heat, no external driver board needed,easy to use.
5. Suitable for industrial laser engraving machine equipment usage.

FAQ:
1. Where is the TTL port? I can only see the PWM?

For this item, TTL and PWM is compatible and you can only choose one of them. It means that you can connect this module's PWM port to the PWM (or TTL) port on the control board of your engraver. But make sure the voltage supply of that port is DC 5V.

2. How can I connect this module to the my engraver, like EleksMaker A3?
If you don't need the PWM function, you can directly connect the power port to Motor Port (12V, GND) on Eleksmaker board and leave the PWM port unconnected.

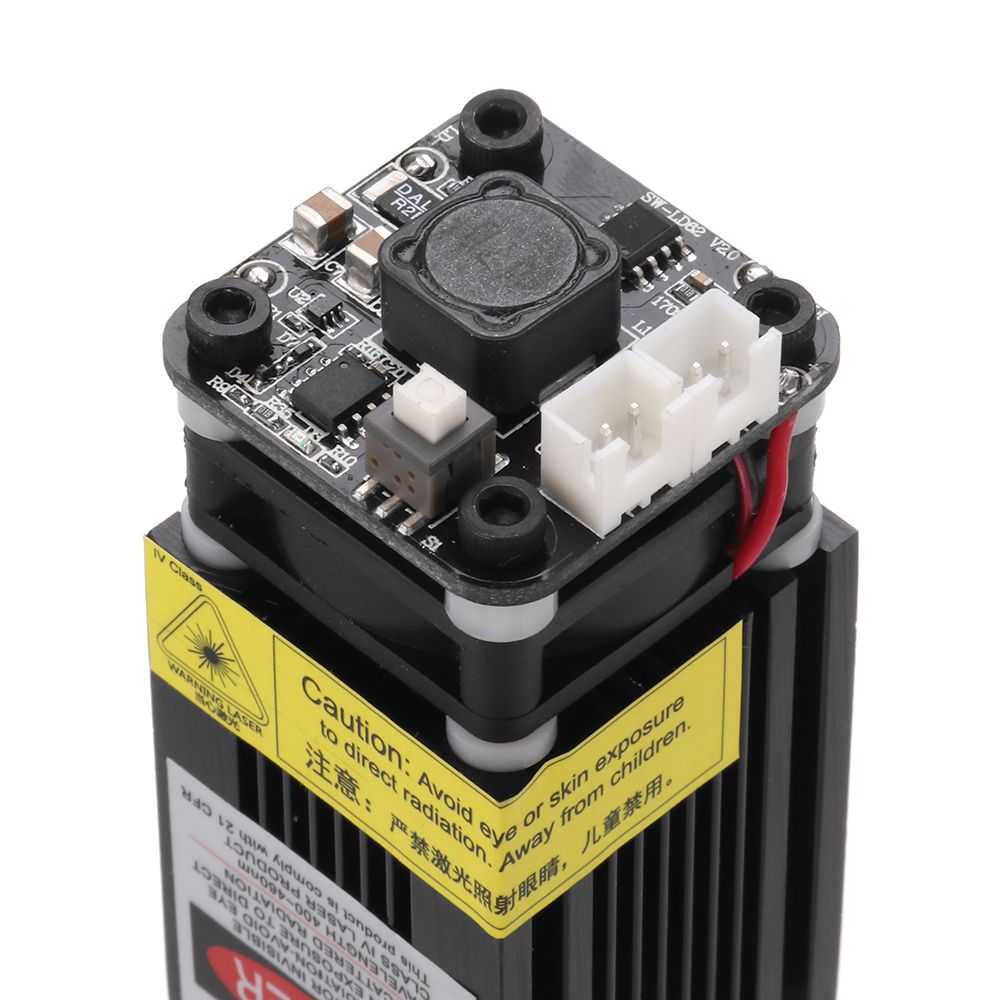

3. What does the white button on the driver board do?
Press the button, the laser will switch to weak light mode and the LED light on the driver board keep shining. At this state, the laser beam can be used for positioning but not for engraving. Press it again, the laser will return to normal mode (for engraving).

Note :
1. Avoid to touch the laser directly to the eyes and skin! Keep away from children and pets.
2. Note that the laser module works less than half an hour in one time, and please wait until it has cooled down before continuing the work.
3. The warranty period of laser module is one month. If you have any quality problem(Except individual situation like using the laser module more than 30 minute one time and casue the damage ), please feel free to ask our customer service for a help. Thanks for your understanding.

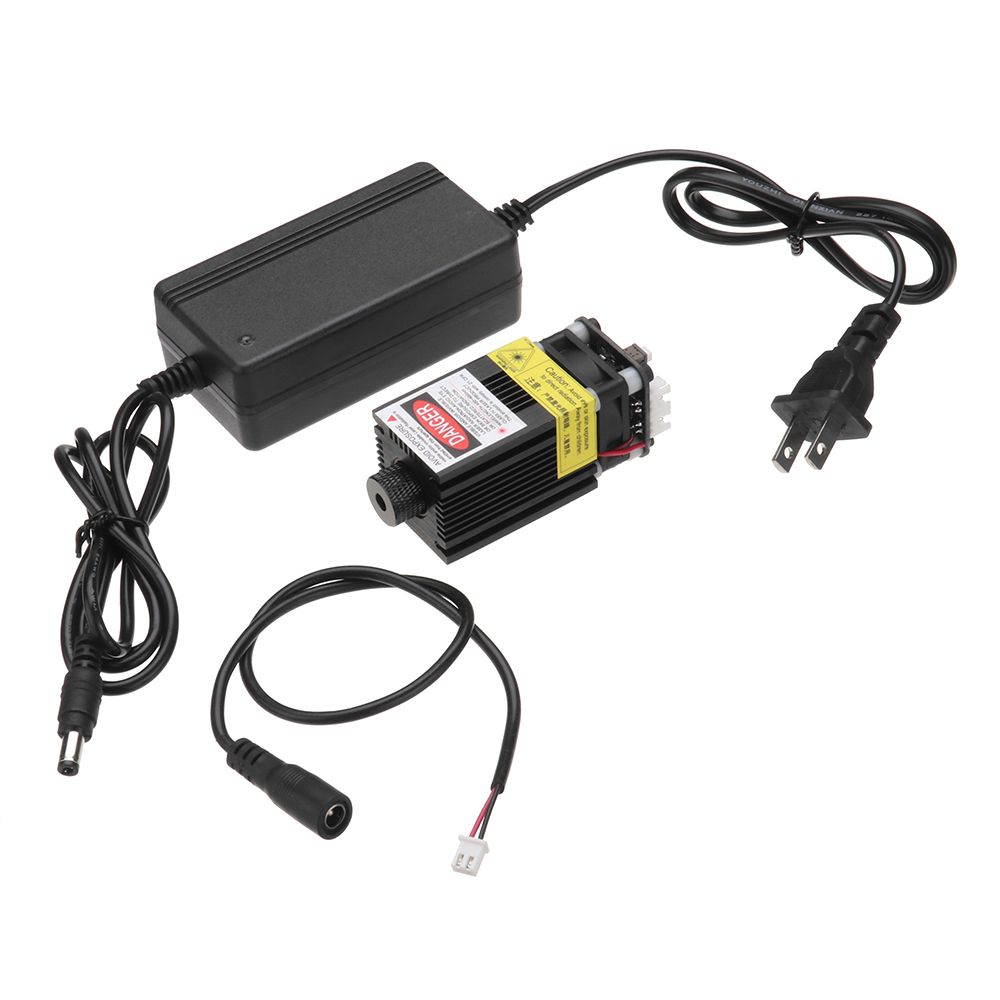

Package Included:
1 x 2500mW Focusable Blue Laser Module
1 x Power Adapter


FB04-2500-2500mW-445nm-Blue-Laser-Module-2254-2P-TTLPWM-Modulation-DIY-Engraver-for-EleksMaker-1400452

FB04-2500-2500mW-445nm-Blue-Laser-Module-2254-2P-TTLPWM-Modulation-DIY-Engraver-for-EleksMaker-1400452

FB04-2500-2500mW-445nm-Blue-Laser-Module-2254-2P-TTLPWM-Modulation-DIY-Engraver-for-EleksMaker-1400452

FB04-2500-2500mW-445nm-Blue-Laser-Module-2254-2P-TTLPWM-Modulation-DIY-Engraver-for-EleksMaker-1400452

FB04-2500-2500mW-445nm-Blue-Laser-Module-2254-2P-TTLPWM-Modulation-DIY-Engraver-for-EleksMaker-1400452

FB04-2500-2500mW-445nm-Blue-Laser-Module-2254-2P-TTLPWM-Modulation-DIY-Engraver-for-EleksMaker-1400452

FB04-2500-2500mW-445nm-Blue-Laser-Module-2254-2P-TTLPWM-Modulation-DIY-Engraver-for-EleksMaker-1400452
