FHD 1080P Industry Autofocus SONY IMX290 Video Microscope Camera U Disk Recorder CS C Mount Camera For SMD PCB Soldering

FHD 1080P Industry Autofocus SONY IMX290 Video Microscope Camera U Disk Recorder CS C Mount Camera For SMD PCB Soldering
FHD 1080P Industry Autofocus SONY IMX290 Video Microscope Camera U Disk Recorder CS C Mount Camera For SMD PCB Soldering
FHD 1080P Industry Autofocus SONY IMX290 Video Microscope Camera U Disk Recorder CS C Mount Camera For SMD PCB Soldering
FHD 1080P Industry Autofocus SONY IMX290 Video Microscope Camera U Disk Recorder CS C Mount Camera For SMD PCB Soldering
FHD 1080P Industry Autofocus SONY IMX290 Video Microscope Camera U Disk Recorder CS C Mount Camera For SMD PCB Soldering
FHD 1080P Industry Autofocus SONY IMX290 Video Microscope Camera U Disk Recorder CS C Mount Camera For SMD PCB Soldering
FHD 1080P Industry Autofocus SONY IMX290 Video Microscope Camera U Disk Recorder CS C Mount Camera For SMD PCB Soldering
FHD 1080P Industry Autofocus SONY IMX290 Video Microscope Camera U Disk Recorder CS C Mount Camera For SMD PCB Soldering
FHD 1080P Industry Autofocus SONY IMX290 Video Microscope Camera U Disk Recorder CS C Mount Camera For SMD PCB Soldering
FHD 1080P Industry Autofocus SONY IMX290 Video Microscope Camera U Disk Recorder CS C Mount Camera For SMD PCB Soldering
FHD 1080P Industry Autofocus SONY IMX290 Video Microscope Camera U Disk Recorder CS C Mount Camera For SMD PCB Soldering
FHD 1080P Industry Autofocus SONY IMX290 Video Microscope Camera U Disk Recorder CS C Mount Camera For SMD PCB Soldering
FHD 1080P Industry Autofocus SONY IMX290 Video Microscope Camera U Disk Recorder CS C Mount Camera For SMD PCB Soldering
FHD 1080P Industry Autofocus SONY IMX290 Video Microscope Camera U Disk Recorder CS C Mount Camera For SMD PCB Soldering
FHD 1080P Industry Autofocus SONY IMX290 Video Microscope Camera U Disk Recorder CS C Mount Camera For SMD PCB Soldering
FHD 1080P Industry Autofocus SONY IMX290 Video Microscope Camera U Disk Recorder CS C Mount Camera For SMD PCB Soldering
FHD 1080P Industry Autofocus SONY IMX290 Video Microscope Camera U Disk Recorder CS C Mount Camera For SMD PCB Soldering
$495.65
Ex Tax: $495.65
  • Stock: In Stock
  • Model: EB004932
  • SKU: EB004932

Feature:

1080P FULL HD 60FPS high speed camera
UI design menu, easy to control by mouse
Autofocus, when observation Objects of different heights(MAX 10CM), you do not need adjust the lens's Working distance
When you adjust the lens's Magnification, you do not need adjust the lens's Working distance
When you adjust the lens's Working distance(MAX 10CM), you do not need adjust the lens's Magnification, The camera can Autofocus

Specification:

Sensor: SONY IMX290
Image Sensor : Colour CMOS
Pixel size : 1/2.8〞
Menu : Fully digital UI design
Method of Operation : Mouse

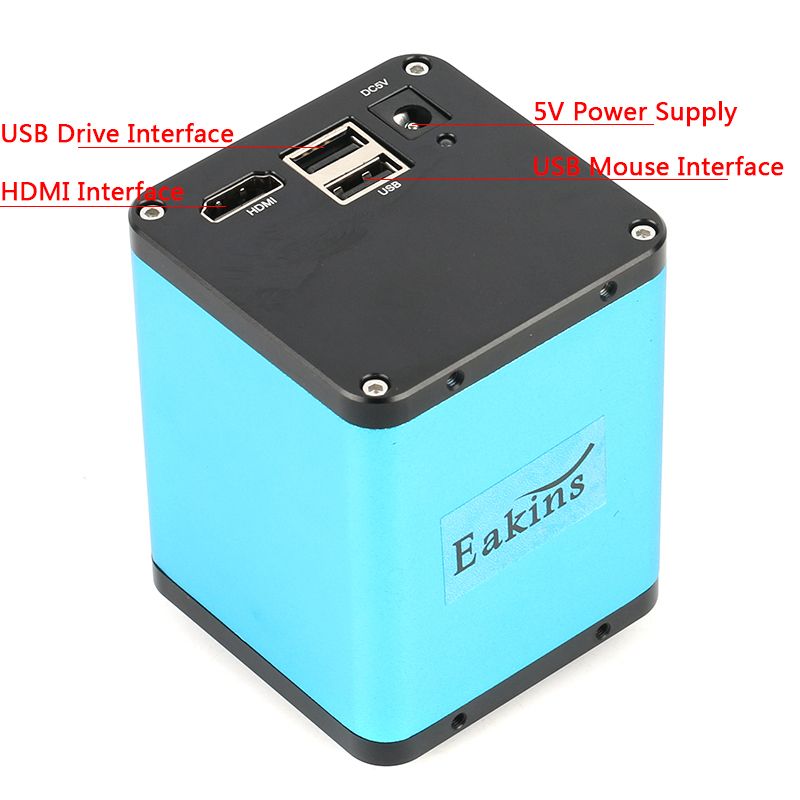

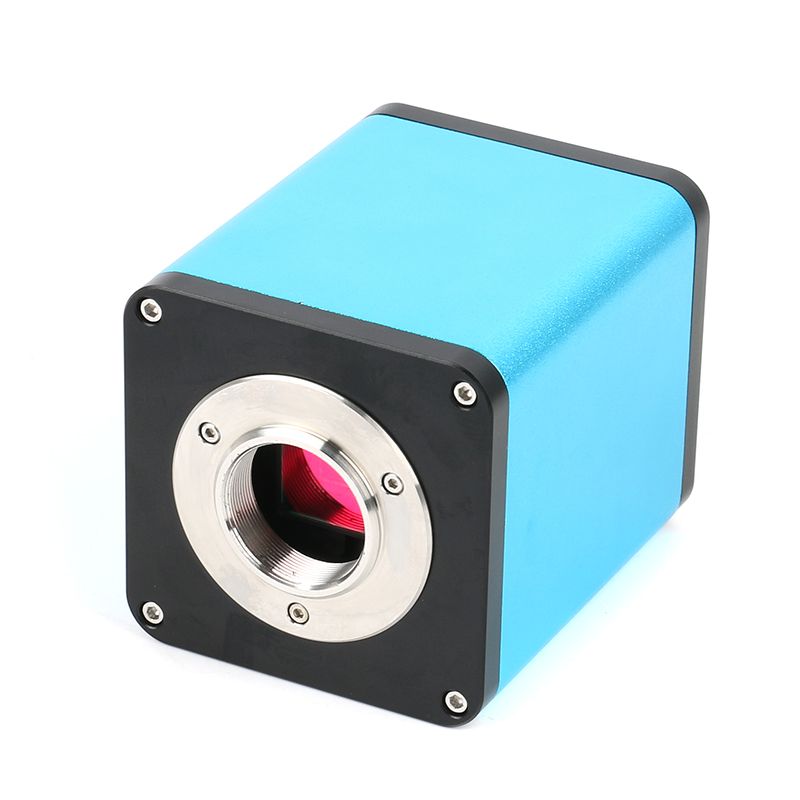

Lens interface : C/CS-type
Power DC : DC5V

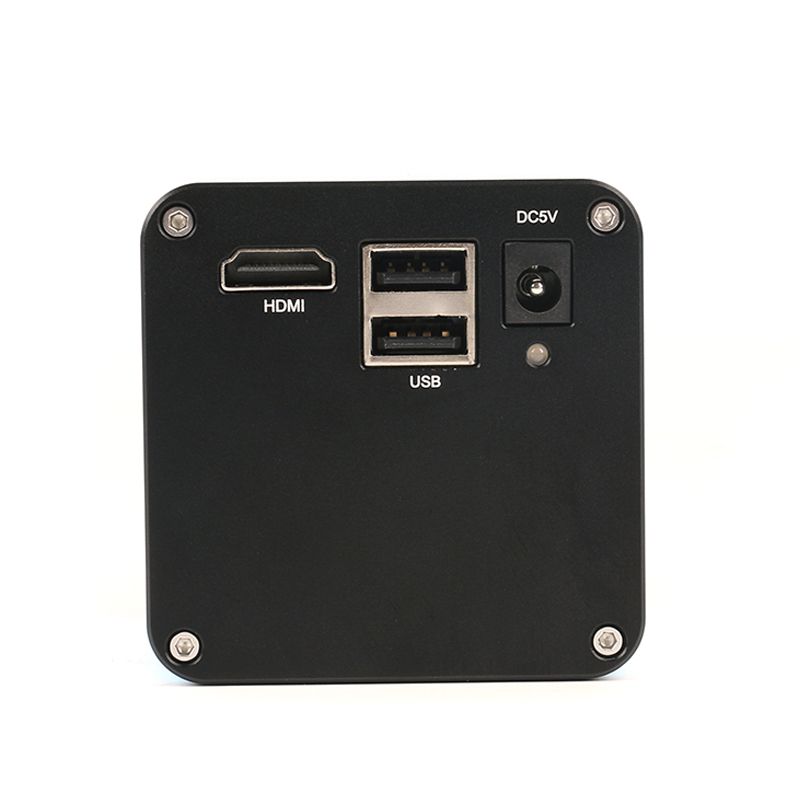

Output method : HDMI
White Balance : Auto / Manual / One-push control
Exposure : Auto / Manual
Display Frame rate : 1080P@60fps
Scanning method : Line by line scanning
Shutter Speed : 1/50s(1/60s)~1/10000s
Operating Temperature : 0℃~50℃
Magnification / Zoom : Renhotec
Saving function : Support  U disk(optional)

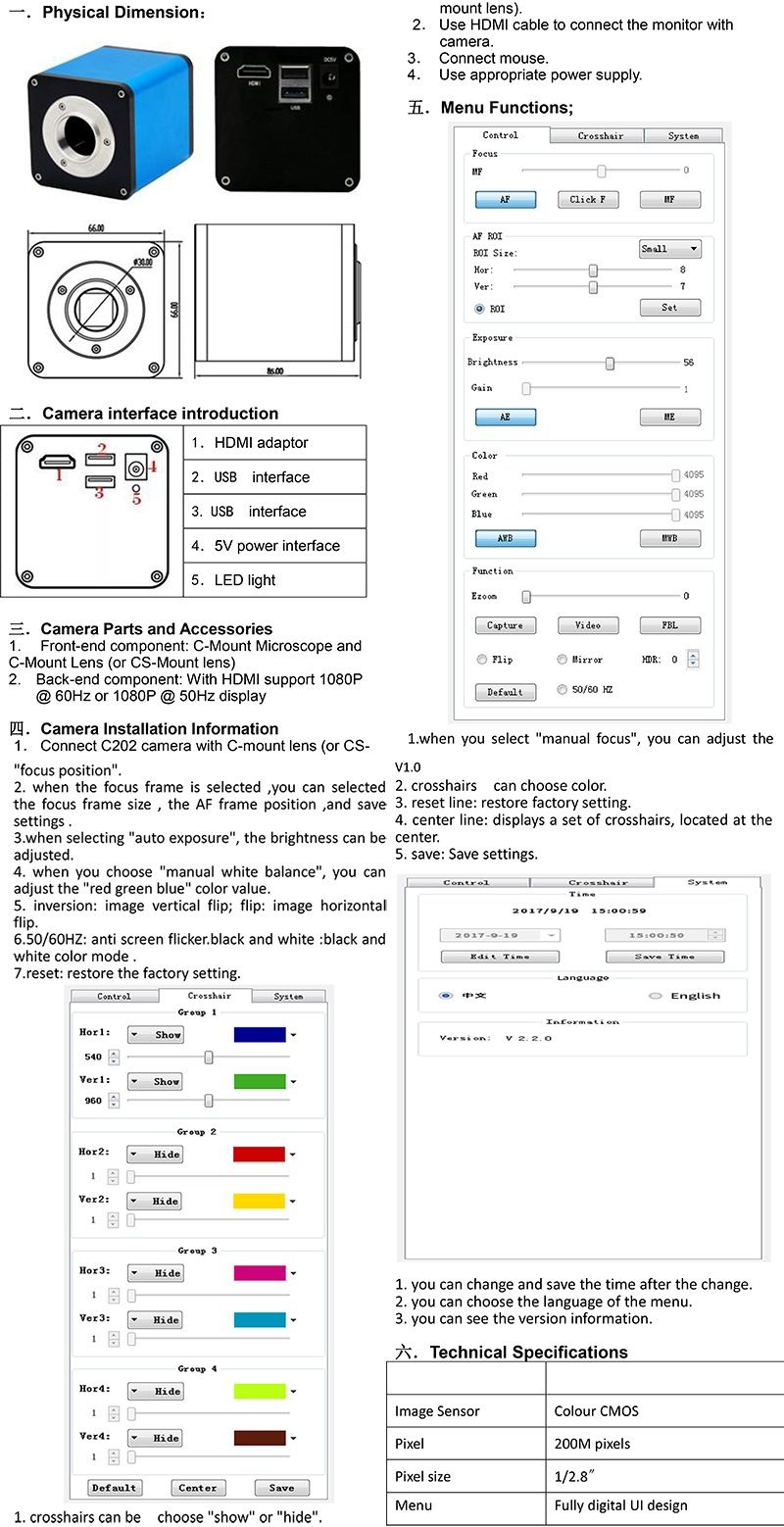

1.Before connecting power supply, please connect  mouse to the camera.
2.Under AF mode, the program will automatically adjust the focus to provide a clear image; Switching to "Click F" mode, it will lock the focus after the system performed autofocus on the required image; Even if the image is blurry, with focus being locked, it will not trigger autofocus again; When “MF” (Manual Focus) is set, the MF can be adjusted .
3.If autofocus cannot operate under special circumstances (e.g. Smooth reflect surface).  Move the focus frame to objects with details, change to “Click F” mode to perform one-off auto focus operation, or switch to “MF” mode for manual focus operation.
4.it needs to wait for a period of time When "Save Image" is selected, icons appear in the center of the screen and are automatically saved to U disk in jpg format.
5.When pressing “Video” button to start recording, •Rec will appear at the lower right hand corner of the camera screen. By pressing “Video” button again, video recording will be stopped and automatically saved to TF card with H.264 format
6.When saving the image / video, the folder and files will be named according to date and time respectively.
7.When you need to correct the rear focus of the lens, select the "motor in the middle" and then adjust the mechanical rear focus to make the image clear.

C-MOUNT Lens:
Working distance: 95mm
Zoom c-mount Lens
0.5X C-mount adapter
Zoom ratios: 6.5:1
Objective Magnification Power by 0.7 - 4.5X(about 10 - 180X on the display)
 Size: 180mm(L) * 50mm(DIA)

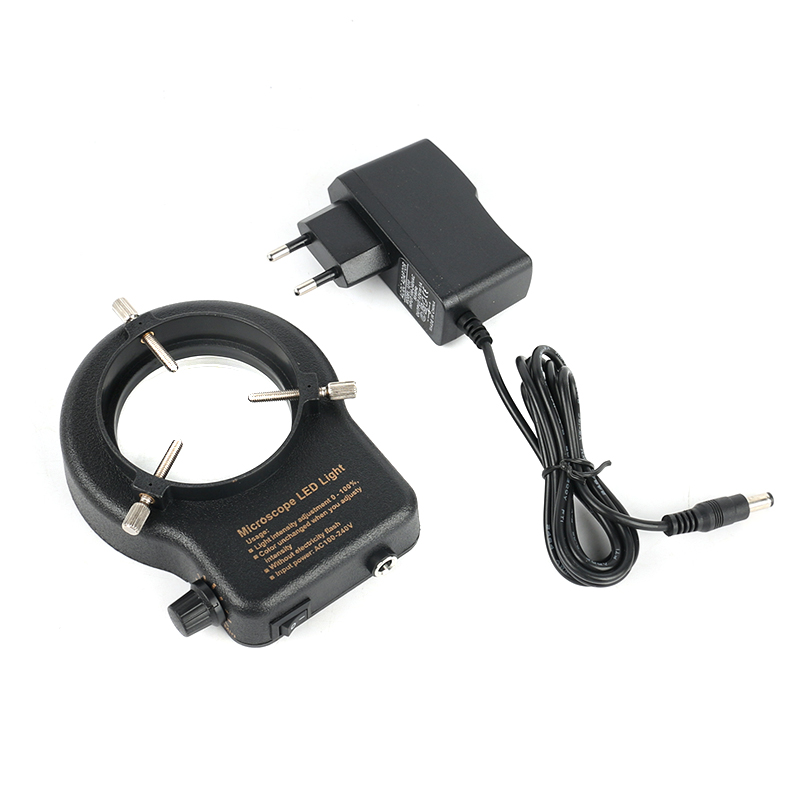

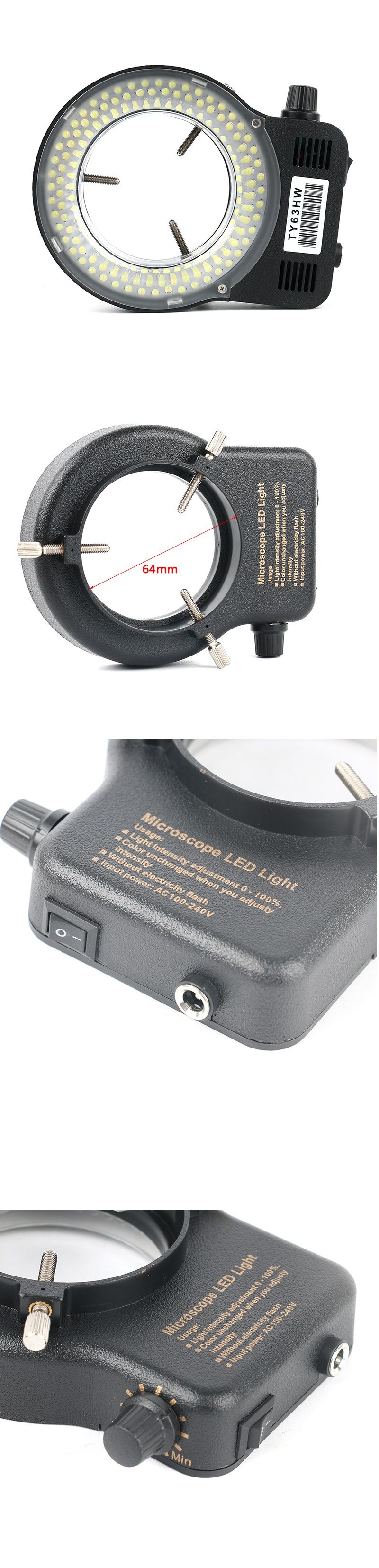

144 bright white LED bulbs
100,000 hours of life
Intense and focused shadow-free illumination
The brightness of 0-100%Adjustable,high brightness
Variable intensity control
Power input: 100-240V, 50-60HZ
 Suit for the dia of the lens: 30mm-63mm
FHD-1080P-Industry-Autofocus-SONY-IMX290-Video-Microscope-Camera-U-Disk-Recorder-CS-C-Mount-Camera-F-1481301

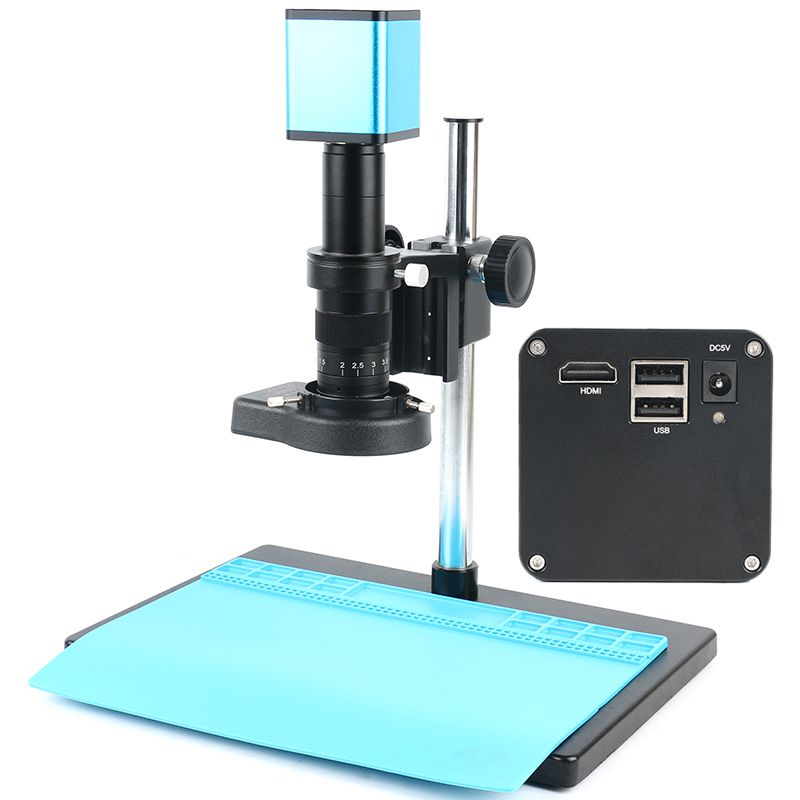

Package Include:

1 x Microscope Camera
1 x Power supply(EU)
1 x HDMI Cable
1 x USB Mouse
1 x 180X C-MOUNT Lens
1 x 144 LED Ring Light

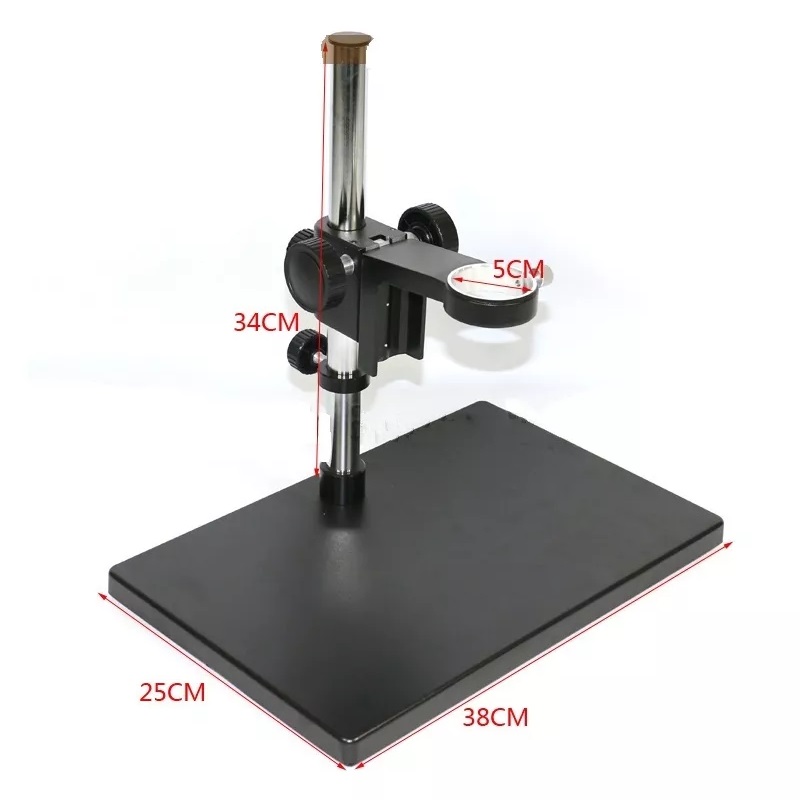

1 x Big Stand
Note:
We will send you a plug adapter according to your country.

Details Pictures:




FHD-1080P-Industry-Autofocus-SONY-IMX290-Video-Microscope-Camera-U-Disk-Recorder-CS-C-Mount-Camera-F-1481301

FHD-1080P-Industry-Autofocus-SONY-IMX290-Video-Microscope-Camera-U-Disk-Recorder-CS-C-Mount-Camera-F-1481301

FHD-1080P-Industry-Autofocus-SONY-IMX290-Video-Microscope-Camera-U-Disk-Recorder-CS-C-Mount-Camera-F-1481301

FHD-1080P-Industry-Autofocus-SONY-IMX290-Video-Microscope-Camera-U-Disk-Recorder-CS-C-Mount-Camera-F-1481301

FHD-1080P-Industry-Autofocus-SONY-IMX290-Video-Microscope-Camera-U-Disk-Recorder-CS-C-Mount-Camera-F-1481301

FHD-1080P-Industry-Autofocus-SONY-IMX290-Video-Microscope-Camera-U-Disk-Recorder-CS-C-Mount-Camera-F-1481301

FHD-1080P-Industry-Autofocus-SONY-IMX290-Video-Microscope-Camera-U-Disk-Recorder-CS-C-Mount-Camera-F-1481301

FHD-1080P-Industry-Autofocus-SONY-IMX290-Video-Microscope-Camera-U-Disk-Recorder-CS-C-Mount-Camera-F-1481301

FHD-1080P-Industry-Autofocus-SONY-IMX290-Video-Microscope-Camera-U-Disk-Recorder-CS-C-Mount-Camera-F-1481301

FHD-1080P-Industry-Autofocus-SONY-IMX290-Video-Microscope-Camera-U-Disk-Recorder-CS-C-Mount-Camera-F-1481301
