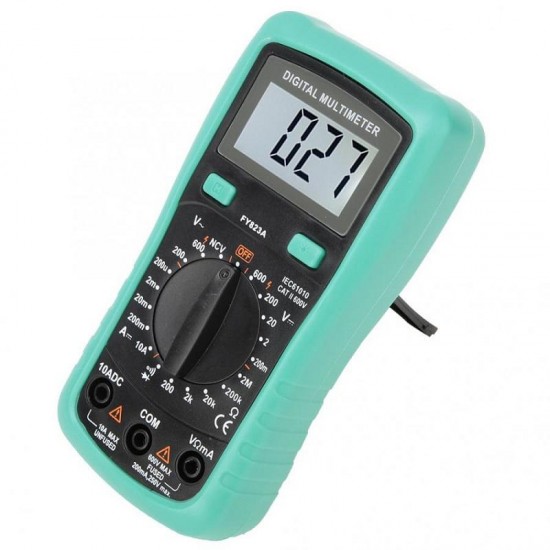

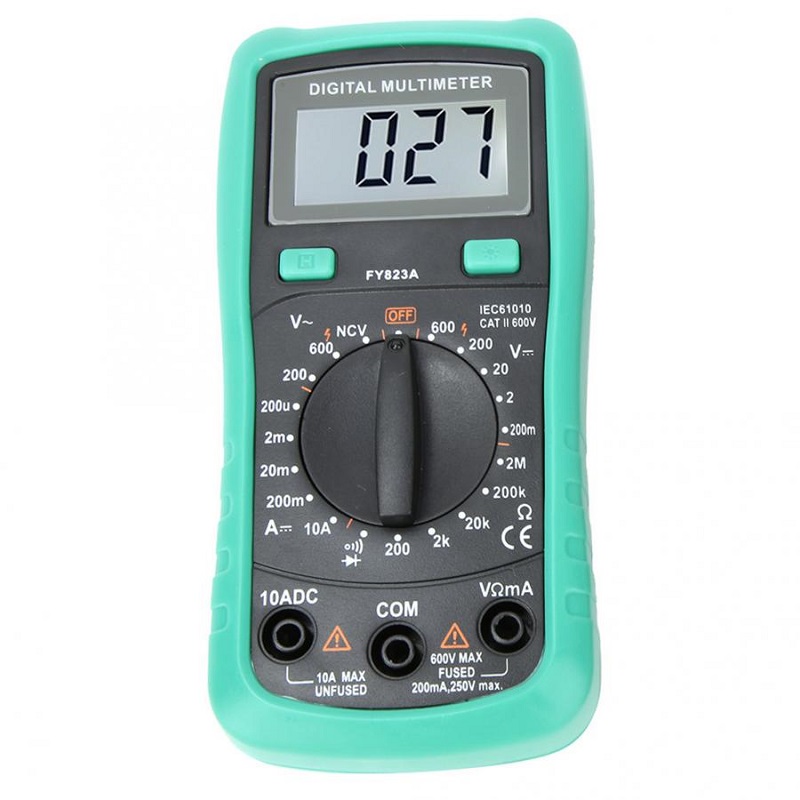

FY823A Mini Digital Display Multimeter for AC DC Current Voltage Resistance Test With Data Display Backlight
- Stock: In Stock
- Model: EB004523
- Dimensions: 138.00mm x 68.00mm x 305.40mm
- SKU: EB004523
| Accuracy parameters | Ambit | Resolution | Accuracy |
| DC Voltage | 200mV/2V/20V/200V | 100μV/1mV/10mV/100mV | ±0.5% reading ±2 words |
| 600V | 1V | ±0.8% reading ±2 words | |
| DC current | 200μA/2mA/20mA | 0.1μA/1μA/10μA | ±1% reading ±2 words |
| 200mA | 100μA | ±1.5% reading ±2 words | |
| AC voltage | 200V | 100mV | ±1% reading ±3 words |
| 600V | 1V | ±1.2% reading ±3 words | |
| resistance | 200Ω | 0.1Ω | ±0.8% reading ±3 words |
| 2KΩ/20KΩ/200KΩ | 1Ω/10Ω/100Ω | ±0.8% reading ±2 words | |
| 2MΩ | 1KΩ | ±1% reading ±2 words | |
| Function | |||
| Protective tube | 200mA/205V | Power | 9V Battery NEDA 1604or6F22 (Battery not included) |
| Size | 138 x 68 x 30mm / 5.4 x 2.7x1.2in | Weight | 110g |
| Excess indicator | "1" | Low pressure tip | Display shows low voltage power supply |
| Polarity Display | Negative polarity display "-" | Maximum display | 1999 |
| Working Temperature | 0°C - 40°C | Storage Temperature | -10°C - 50°C |
