F-35 Lightning Flight Controller + AirSpeed Sensor + GPS Module + bluetooth Module

Out Of Stock

F-35 Lightning Flight Controller + AirSpeed Sensor + GPS Module + bluetooth Module

Based on 2 reviews. - Write a review

$112.19

Ex Tax: $112.19

Stock: Out Of Stock
Model: EB000436
Dimensions: 27.00cm x 21.00cm x 10.50cm
SKU: EB000436

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Description:

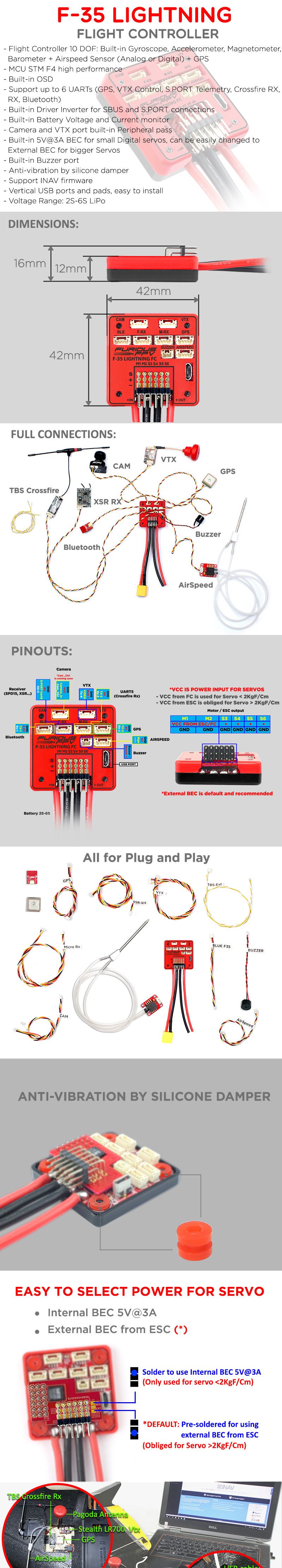

Furious FPV F-35 Lightning FC - Elevate Your Horizons.

Step into the all new F-35 Lightning FC - Furious FPV's 1st dedicated wing flight controller, ready and waiting to open all new worlds to winged FPV.

Encompassed by a robust case for maximum levels of protection and strength, the F-35 FC offers the ultimate levels of FPV capability that is dedicated & purpose built for the demands and capabilities of FPV winged flight.

Ultra easy to install with a massively powerful MCU STM F4 micro controller, the F-35 Lightning FC supports a full (6) UART's for GPS, VTX Control, S.PORT Telemetry,

Crossfire RX, RX, bluetooth functionality. With these systems in play, the F-35 offers worlds of capability & performance for maximum levels of FPV flight.

Integrating a built in 5V@3A BEC, buzzer port, anti vibration silicone dampeners and battery monitor with current sensor, the F-35 Lightning FC packs a massive punch in an ultra compact form. Pair this with a built in Barometer & OSD system, the F-35 FC is the game changing flight controller that is ready for anything and everything a pilot could possibly desire.

Take your winged FPV flight to new worlds and beyond with the Furious FPV F-35 Lightning FC - the ultimate winged FPV flight control system.

Specifications:

Brand Name: FuriousFPV
Item Name: F-35 Lightning Flight Controller Full Option
Item NO.: FPV-F35-H

Specifications of AirSpeed Sensor:

Brand Name:Renhotec

Item Name: AirSpeed Sensor

Item NO.: FPV-0369-S

Power Input: 5V

Output Voltage: 0 to 5V

Sensor Type: Analog

Dimension: 27x21x10.5mm

Weight: 3.6g

Application: Optimize for F-35 Lightning FC

Pressure Range: -2 to 2 kPa (-0.3 to 0.3 psi)

Specifications of bluetooth Module:

Brand Name:Renhotec

Item Name: bluetooth Module

Item NO.: FPV-0358-S

Power Input: 3.3V

Protocol: BLF V4.0

Dimension: 15x19x5.5mm

Weight: 1.3g

Working Range: 30m

Working Frequency: 2.4GHz

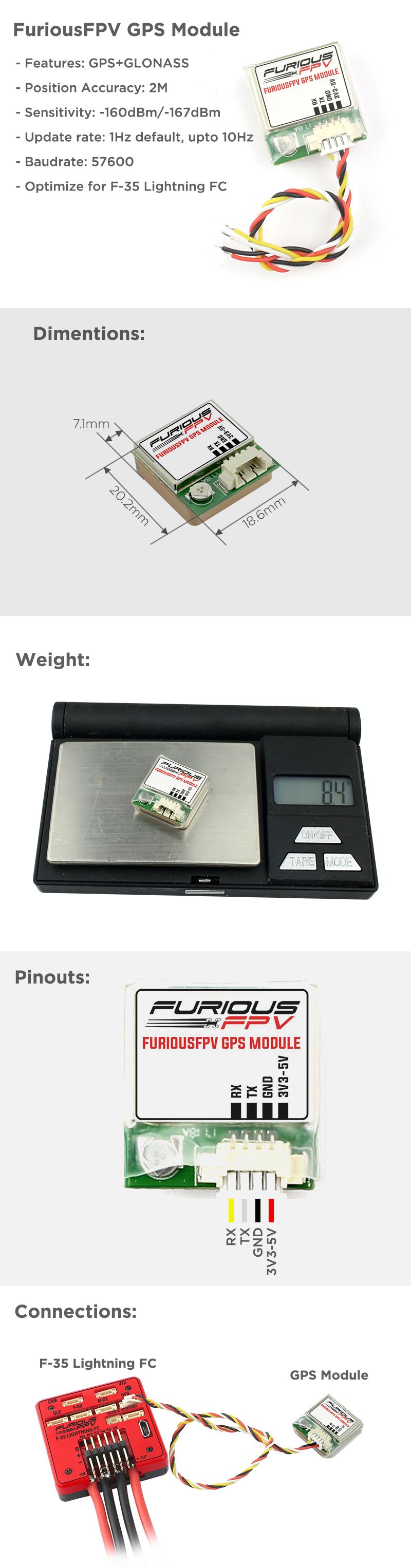

Specifications of GPS Module:

Brand Name:

Item Name:

Item NO.:

Features: GPS+GLONASS

Position Accuracy: 2m

Sensitivity: -160dBm/-167dBm

Update Rate: 1Hz default,up to 10Hz

Baudrate: 57600

Dimension: 18.6x20.2x7.1mm

Weight: 8.4g

Application: Optimize for F-35 Lightning FC

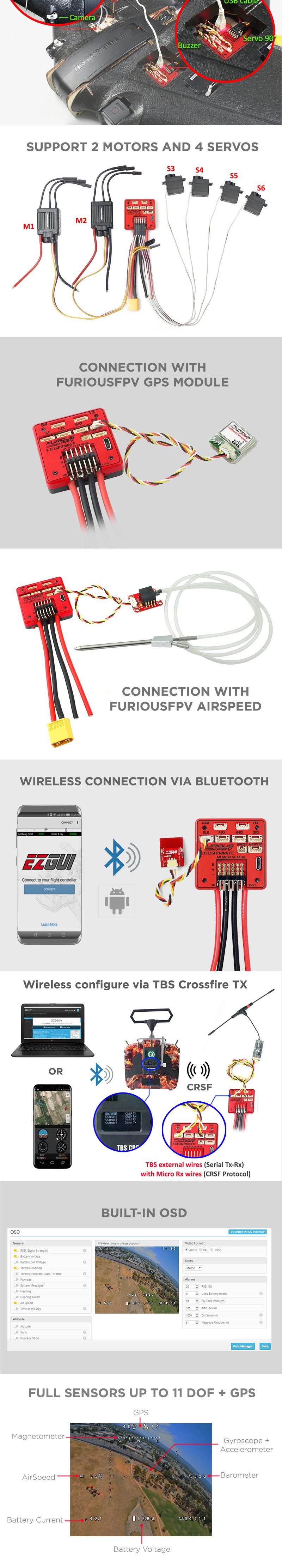

Features:

• Flight controller 6 DOF + 30 DOF MAG

• MCU STM F4 high performance

• Built-in OSD

• Support up to 6 UARTs (GPS, VTX Control, S.PORT Telemetry, Crossfire RX, RX, bluetooth)

• Support 2 motors and 4 servos

• Built-in Driver Inverter for SBUS and S.PORT connections

• Built-in Battery Voltage and Current monitor

• Camera and VTX port built-in Peripheral pass

• Built-in 5V@3A BEC for small Digital servos, can be easily changed to External BEC for bigger Servos

• Built-in Buzzer port

• High quality silicone wires with optimized lengths are included

• Support INAV firmware

• Vertical USB ports and pads, easy to install

Package Included:
1x F-35 Lightning FC
1x AirSpeed Sensor
1x bluetooth Module
1x GPS Module
