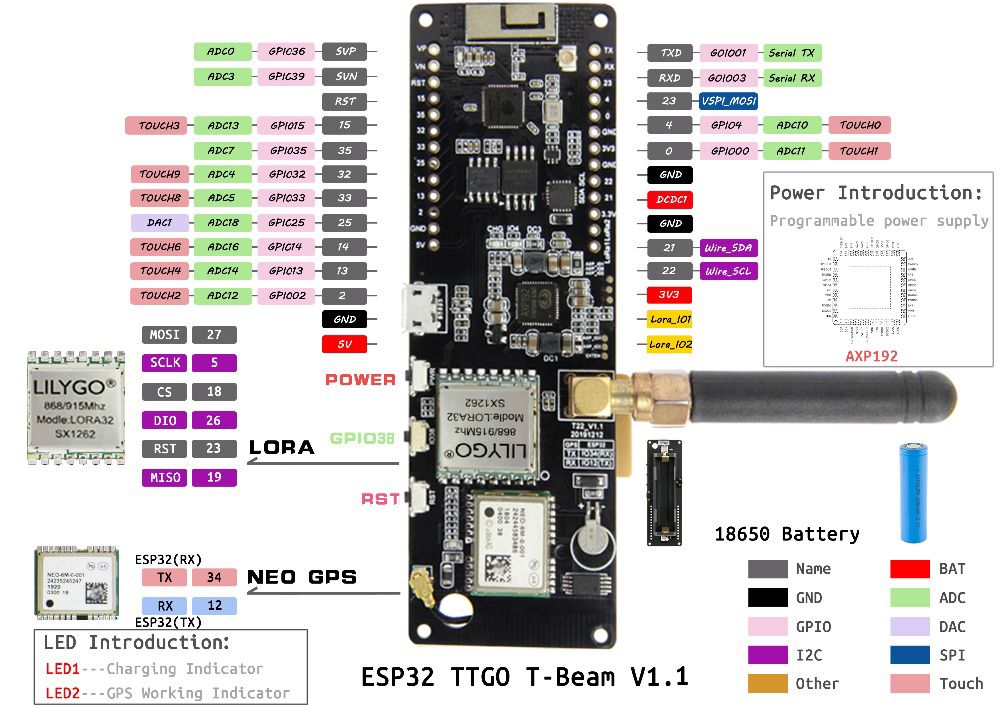

V1.1 SX1262 868Mhz ESP32 WiFi Wireless Bluetooth Module GPS NEO-6M SMA 32 18650 Battery Holder
- Stock: In Stock
- Model: EB000468
- SKU: EB000468
| Electrical Parameters | |||||
| Test conditions: power supply 3.3V, temperature 25℃ | |||||
| Parameter | Minimum | Typical value | Max | Unit | Condition |
| Working conditions | |||||
| Operating voltage | 1.8 | 3.3 | 3.7 | V | |
| Working temperature | -40 | 25 | 85 | ℃ | |
| Power consumption | |||||
| Emission current | 89 | 100 | 114 | mA | 400~520MHz |
| 124 | 130 | 135 | 830~945MHz | ||
| Receiving current | 4.2 | 5.3 | 8.2 | 400~520MHz | |
| Sleep current | 0.016 | 1.2 | 1.5 | uA | Sleep mode |
| RF parameters | |||||
| Operating frequency | 400 | 433.92/470 | 520 | MHz | 400~520MHz |
| 840 | 868/915 | 945 | 830~945MHz | ||
| Transmit power | 19.2 | 20.6 | 21.2 | dBm | 400~520MHz |
| 21 | 21.3 | 21.5 | 830~945MHz | ||
| Receiving sensitivity | -116 | -118 | -120 | 868MHz@GFSK DR=1.2Kbps,Δf=+/-35KHz | |
| -133 | -136 | -139 | 868MHz@Lora BW=125KHz，SF=12，CR=4/5 | ||
| Harmonic | 0 | -38 | 433.92MHz，2~6harmonics | ||
| 0 | -43 | 470MHz，2~6 harmonics | |||
| 0 | -37 | 868MHz，2~6 harmonics | |||
| 0 | -40 | 915MHz，2~6 harmonics | |||
| Frequency error | -0.434 | 0 | 0.434 | KHz | 433.92MHz |
| -0.915 | 0 | 0.915 | 915MHz | ||
| Transmission rate | 0.6K~300Kbps@FSK | ||||
| 0.018K~62.5Kbps@ LoRaTM | |||||
| Modulation method | FSK, GFSK, MSK, GMSK, LoRaTM，OOK | ||||
| Data interface | SPI | ||||
| Antenna interface | Need to weld external antenna | ||||
