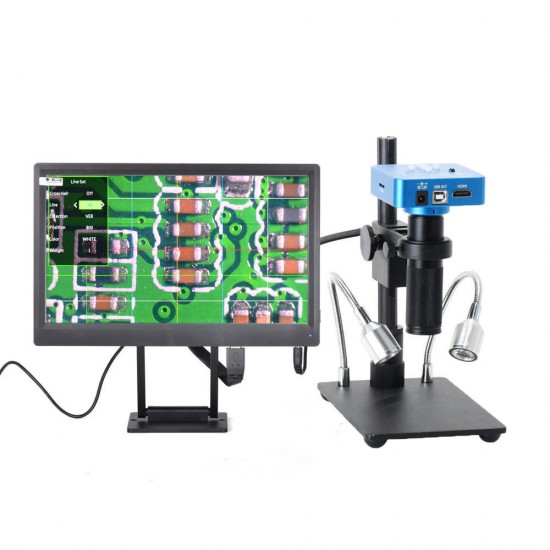

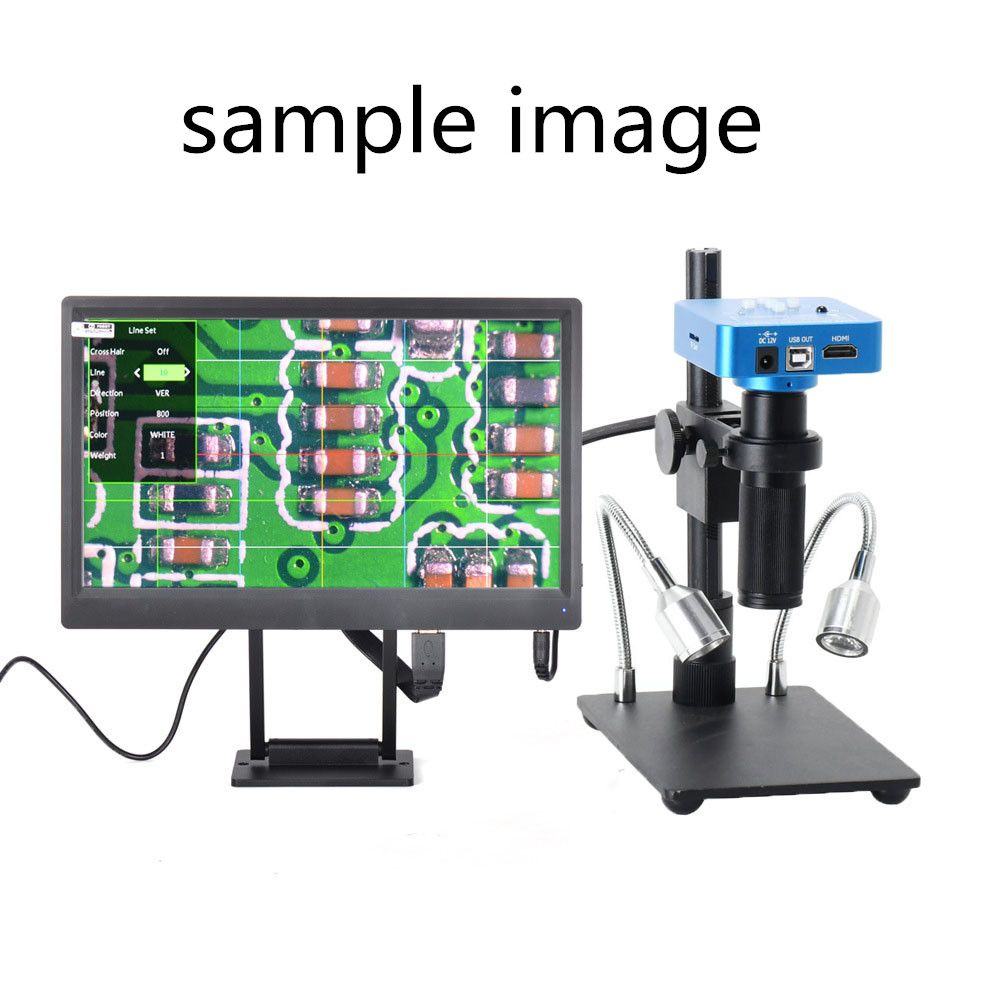

34MP 2K 1080P 60FPS HDMI USB Industrial Electronic Digital Video Soldering Microscope Camera Magnifier for Phone PCBTHT Reparing

34MP 2K 1080P 60FPS HDMI USB Industrial Electronic Digital Video Soldering Microscope Camera Magnifier for Phone PCBTHT Reparing
34MP 2K 1080P 60FPS HDMI USB Industrial Electronic Digital Video Soldering Microscope Camera Magnifier for Phone PCBTHT Reparing
34MP 2K 1080P 60FPS HDMI USB Industrial Electronic Digital Video Soldering Microscope Camera Magnifier for Phone PCBTHT Reparing
34MP 2K 1080P 60FPS HDMI USB Industrial Electronic Digital Video Soldering Microscope Camera Magnifier for Phone PCBTHT Reparing
34MP 2K 1080P 60FPS HDMI USB Industrial Electronic Digital Video Soldering Microscope Camera Magnifier for Phone PCBTHT Reparing
34MP 2K 1080P 60FPS HDMI USB Industrial Electronic Digital Video Soldering Microscope Camera Magnifier for Phone PCBTHT Reparing
34MP 2K 1080P 60FPS HDMI USB Industrial Electronic Digital Video Soldering Microscope Camera Magnifier for Phone PCBTHT Reparing
34MP 2K 1080P 60FPS HDMI USB Industrial Electronic Digital Video Soldering Microscope Camera Magnifier for Phone PCBTHT Reparing
34MP 2K 1080P 60FPS HDMI USB Industrial Electronic Digital Video Soldering Microscope Camera Magnifier for Phone PCBTHT Reparing
34MP 2K 1080P 60FPS HDMI USB Industrial Electronic Digital Video Soldering Microscope Camera Magnifier for Phone PCBTHT Reparing
34MP 2K 1080P 60FPS HDMI USB Industrial Electronic Digital Video Soldering Microscope Camera Magnifier for Phone PCBTHT Reparing
$129.99
Ex Tax: $129.99
  • Stock: In Stock
  • Model: EB004987
  • SKU: EB004987
Noting:

1:PC Support : Windows XP/7/8/10 system
2:For USB output, the white balance, exposure and color adjustment are automatic, they can't be adjusted. For HDMI output, the functions can only be adjusted while connecting with monitor, if you connect the camera with computer, the functions also can not be adjusted.
3:When use USB connection, please make sure no TF card in the camera ,TF card storage is only for HDMI output. USB output will be storage in PC.
4:when connect the camera with computer, just plug the USB line is OK ( no need to use the power supply)

Features:

Model: Camera with HDMI USB2.0 two output
Image format: jpg
Image resolution: 34 MegaPixel
Video format: MP4(for TF card)
Video recorder: 2K@30FPS, 1080P@60FPS
HDMI Video resolution: 1920*1080 @ 60FPS
USB Video resolution: 1920*1080@30FPS; 1280*720@30FPS; 640*480@30FPS; 320*240@30FPS
White Balance: Auto/Manual
Light: Auto/Manual
Exposure: Auto/Manual, value adjustable
Color: Color
Morror: Left/right,Up/Down
Freeze: Renhotec
OSD: English/Chinese/French/Spanish/Japanese/German
Line: different color,5 horizontal line , 5 vertical line,any positions

Specification:

Image sensor: 34 megapixel  CMOS sensor 1/2.33 inch
Effective pixel: 34 megapixel
Pixel size:1.335μm × 1.335μm
Frame rate:60fps
Definition:FULL HD
Housing:metal
Lens:C/CS
Video format: MOV
Digital Zoom:Renhotec
Brightness control:Auto/manual
Color:R/G/B adjustable
Film and record:Renhotec
Cross cursor:Support multi-color, size adjustable
Transverse and vertical line:
Support multi-color, 5 pcs of transverse lines/vertical lines, moveable
Different color,5 horizontal line , 5 vertical line,any positions
TF card interface:Max 64G

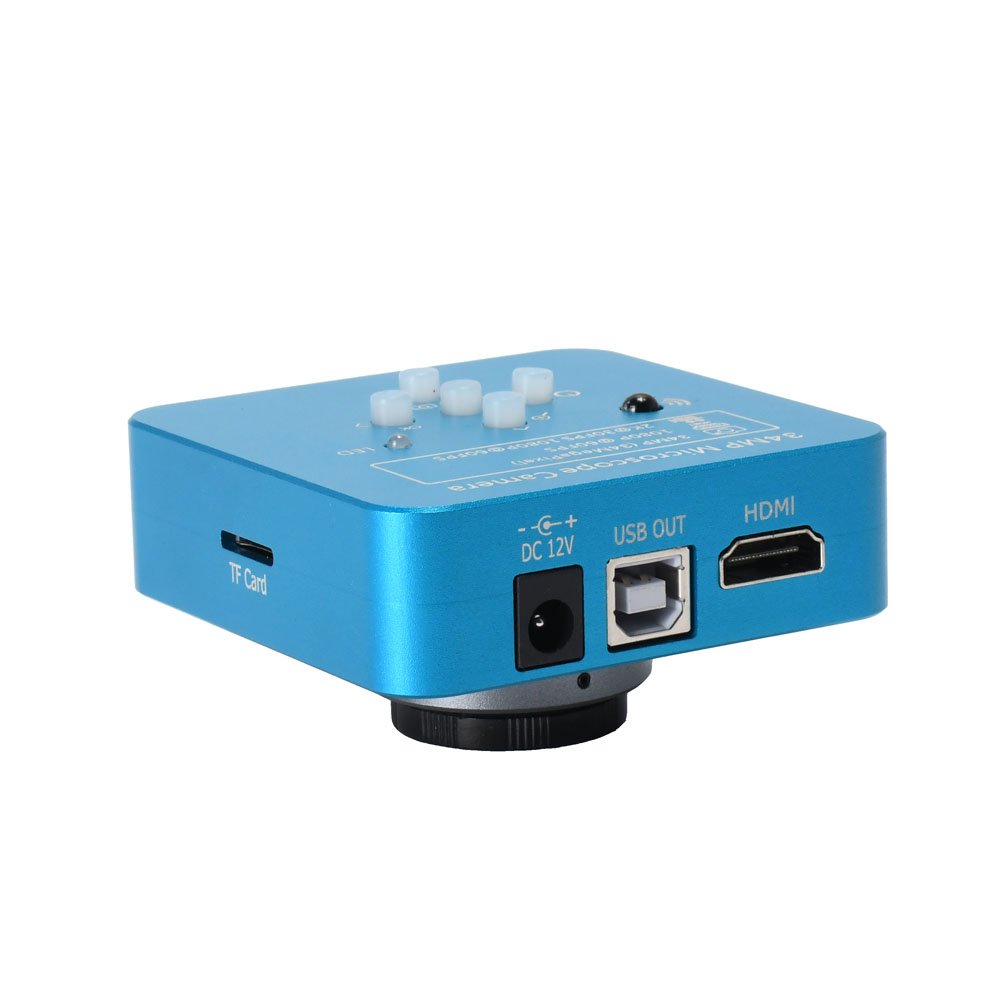

HDMI interface:Standard HDMI output (Type A)
USB interface:Standard usb2.0 interface (Type B)
Input Voltage: DC 12V

HAYEAR CCD Industry microscope camera C-mount lens glass 5X-150X Camera Zoom Eyepiece Magnifier for HDMI USB 4k Microscope

Feature:

Working distance: 50mm-350mm
Field of view: 3.1mm-66mm

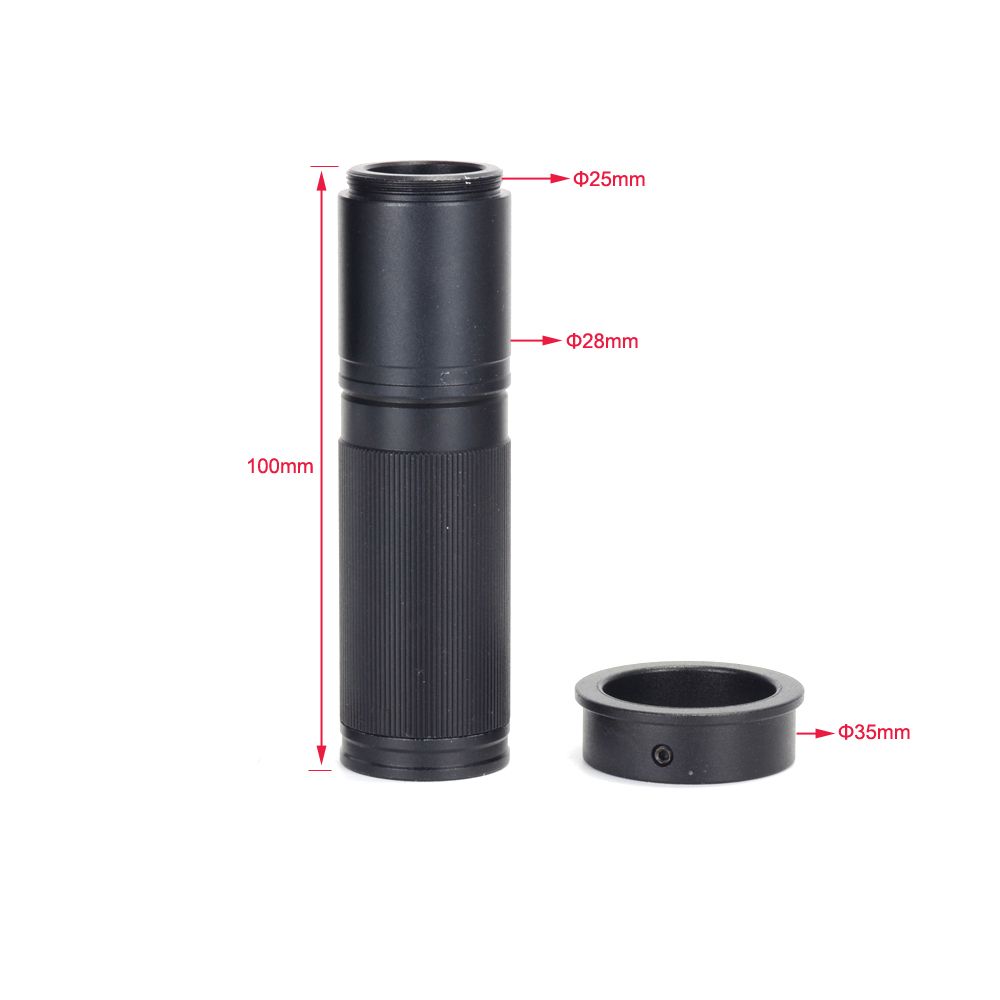

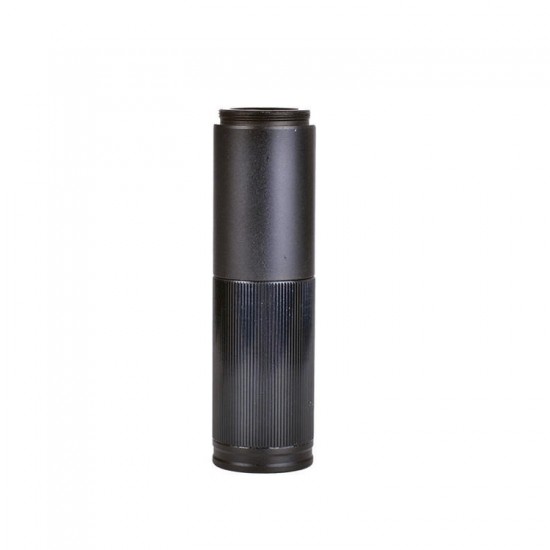

zoom c-mount Lens
zoom ratios: 5:1
Magnification Power by 0.11X - 2X
Size: 100mm(L) * 28mm(DIA)
Ring adapter: 35mm

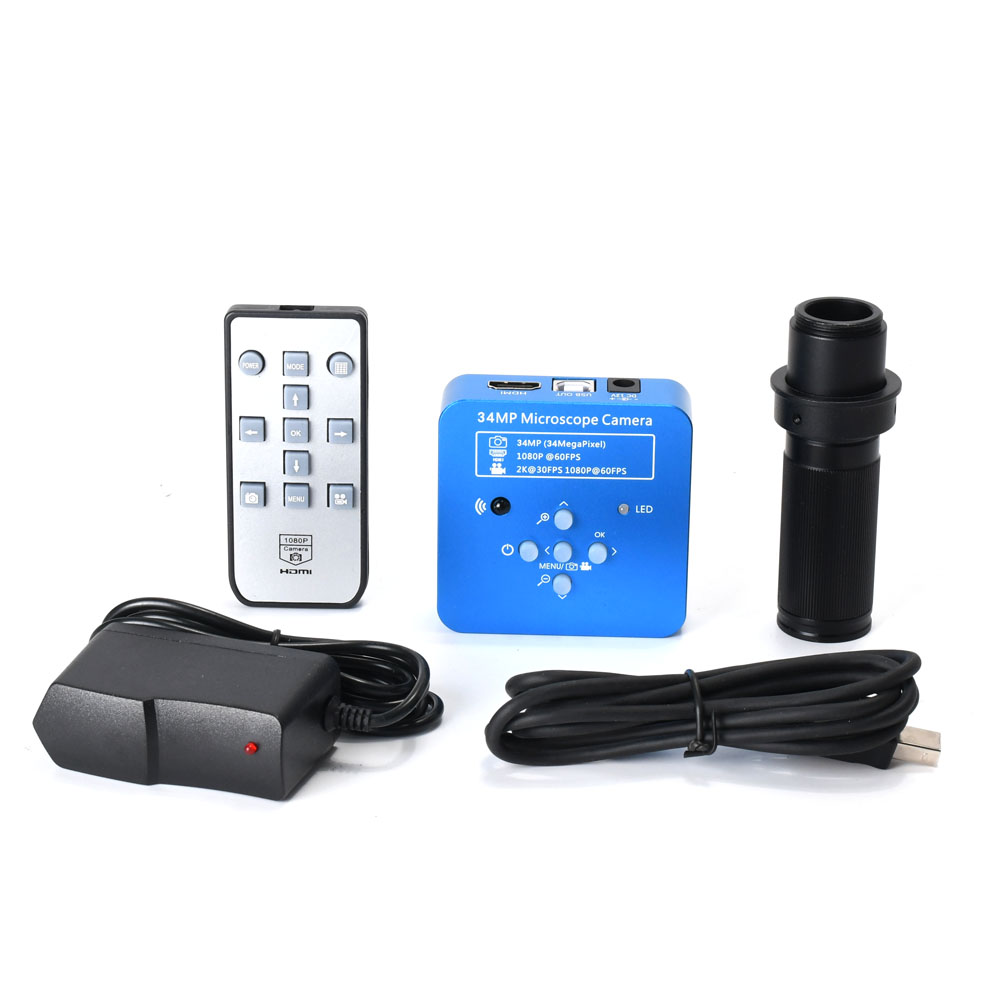

Package including:

1 x 34MP Microscope Camera
1 x Power supply
1 x USB line
1 x Software DISC

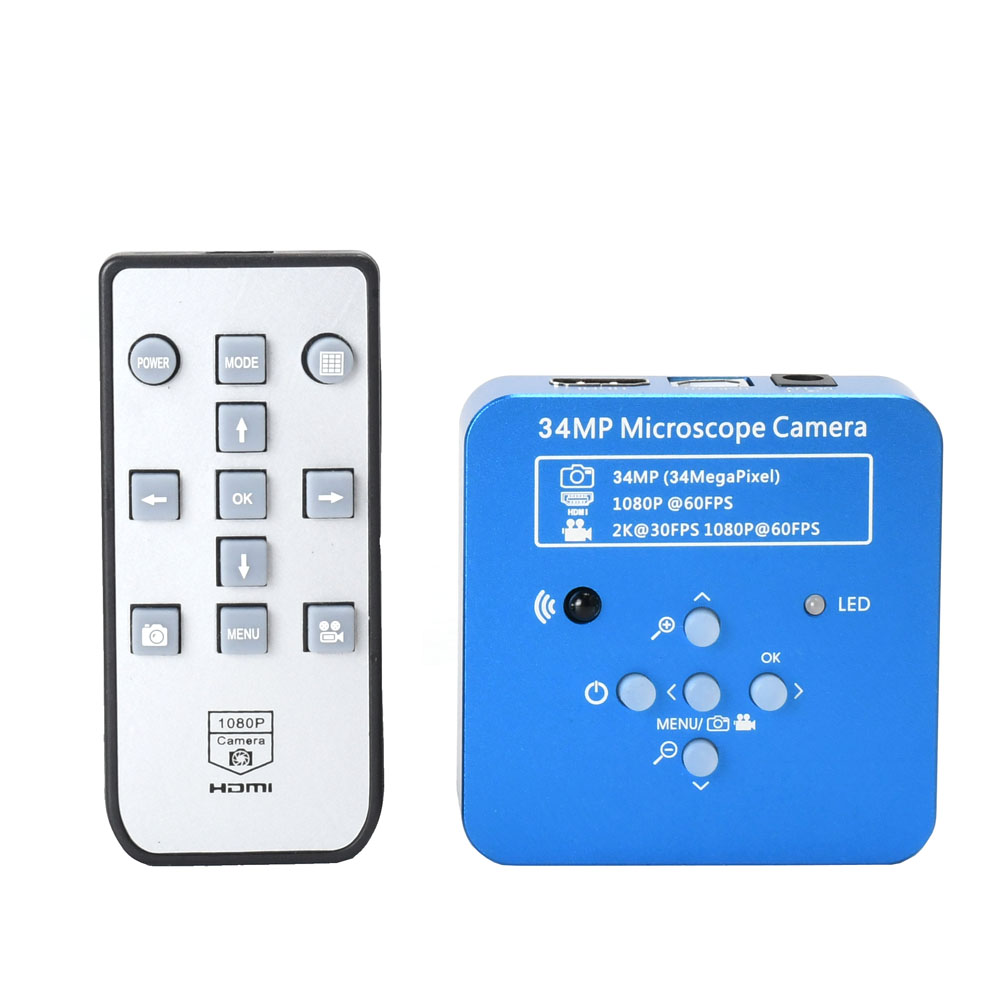

1 x Remote Control
1 x 120X zoom Lens

Details pictures:


HAYEAR-34MP-2K-1080P-60FPS-HDMI-USB-Industrial-Electronic-Digital-Video-Soldering-Microscope-Camera--1465107
HAYEAR-34MP-2K-1080P-60FPS-HDMI-USB-Industrial-Electronic-Digital-Video-Soldering-Microscope-Camera--1465107
HAYEAR-34MP-2K-1080P-60FPS-HDMI-USB-Industrial-Electronic-Digital-Video-Soldering-Microscope-Camera--1465107
HAYEAR-34MP-2K-1080P-60FPS-HDMI-USB-Industrial-Electronic-Digital-Video-Soldering-Microscope-Camera--1465107
HAYEAR-34MP-2K-1080P-60FPS-HDMI-USB-Industrial-Electronic-Digital-Video-Soldering-Microscope-Camera--1465107
