FHD 34MP USB Industrial Electronic Digital Video Microscope Camera 130X 180X 300X C Mount Lens For Phone PCB Soldering

FHD 34MP USB Industrial Electronic Digital Video Microscope Camera 130X 180X 300X C Mount Lens For Phone PCB Soldering
FHD 34MP USB Industrial Electronic Digital Video Microscope Camera 130X 180X 300X C Mount Lens For Phone PCB Soldering
FHD 34MP USB Industrial Electronic Digital Video Microscope Camera 130X 180X 300X C Mount Lens For Phone PCB Soldering
FHD 34MP USB Industrial Electronic Digital Video Microscope Camera 130X 180X 300X C Mount Lens For Phone PCB Soldering
FHD 34MP USB Industrial Electronic Digital Video Microscope Camera 130X 180X 300X C Mount Lens For Phone PCB Soldering
FHD 34MP USB Industrial Electronic Digital Video Microscope Camera 130X 180X 300X C Mount Lens For Phone PCB Soldering
FHD 34MP USB Industrial Electronic Digital Video Microscope Camera 130X 180X 300X C Mount Lens For Phone PCB Soldering
FHD 34MP USB Industrial Electronic Digital Video Microscope Camera 130X 180X 300X C Mount Lens For Phone PCB Soldering
FHD 34MP USB Industrial Electronic Digital Video Microscope Camera 130X 180X 300X C Mount Lens For Phone PCB Soldering
FHD 34MP USB Industrial Electronic Digital Video Microscope Camera 130X 180X 300X C Mount Lens For Phone PCB Soldering
FHD 34MP USB Industrial Electronic Digital Video Microscope Camera 130X 180X 300X C Mount Lens For Phone PCB Soldering
FHD 34MP USB Industrial Electronic Digital Video Microscope Camera 130X 180X 300X C Mount Lens For Phone PCB Soldering
FHD 34MP USB Industrial Electronic Digital Video Microscope Camera 130X 180X 300X C Mount Lens For Phone PCB Soldering
$115.64
Ex Tax: $115.64
  • Stock: In Stock
  • Model: EB004893
  • SKU: EB004893

Available Options

Noting:

1:PC Support : Windows XP/7/8/10 system
2:For USB output, the white balance, exposure and color adjustment are automatic, they can't be adjusted. For HDMI output, the functions can only be adjusted while connecting with monitor, if you connect the camera with computer, the functions also can not be adjusted.
3:When use USB connection, please make sure no TF card in the camera ,TF card storage is only for HDMI output. USB output will be storage in PC.
4:when connect the camera with computer, just plug the USB line is OK ( no need to use the power supply)

Features:

Model: Camera with HDMI USB2.0 two output
Image format: jpg
Image resolution: 34 MegaPixel
Video format: MP4(for TF card)
Video r ecorder: 2K@30FPS, 1080P@60FPS
HDMI Video resolution: 1920*1080 @ 60FPS
USB Video resolution: 1920*1080@30FPS; 1280*720@30FPS; 640*480@30FPS; 320*240@30FPS
White Balance: Auto/Manual
Light: Auto/Manual
Exposure: Auto/Manual, value adjustable
Color: Color
Morror: Left/right,Up/Down
Freeze: Renhotec
OSD: English/Chinese/French/Spanish/Japanese/German
Line: different color,5 horizontal line , 5 vertical line,any positions

Specification:

Image sensor: 34, 21, 16, 14 megapixel p anasonic CMOS sensor 1/2.33 inch
Effective pixel: 34 megapixel
Pixel size:1.335μm × 1.335μm
Frame rate:60fps
Definition:FULL HD
Housing:metal
Lens:C/CS
Video format: MOV
Digital Zoom:Renhotec
Brightness control:Auto/manual
Color:R/G/B adjustable
Film and r ecord:Renhotec
Cross cursor:Support multi-color, size adjustable
Transverse and vertical line:
Support multi-color, 5 pcs of transverse lines/vertical lines, moveable
Different color,5 horizontal line , 5 vertical line,any positions
TF card interface:Max 64G
HDMI interface:Standard HDMI output (Type A)
USB interface:Standard usb2.0 interface (Type B)
Input Voltage: DC 12V

180X C-MOUNT Lens
Working distance: 95mm
Zoom c-mount Lens
0.5X C-mount adapter
Zoom ratios: 6.5:1
Objective Magnification Power by 0.7 - 4.5X(about 10 - 180X on the display)
Size: 180mm(L) * 50mm(DIA)
(180x maximum working distance 16CM)

300X C-MOUNT Lens
Working distance: 95mm
Zoom c-mount Lens
1X C-mount adapter
Zoom ratios: 6.5:1
Objective Magnification Power by 0.7 - 4.5X(about 10 - 300X on the display)
Size: 248mm(L) * 50mm(DIA)
(300x maximum working distance 11CM)

100X C-MOUNT Lens
Magnification Power by 0.12 - 2X (about 8X - 100X on the display)
Work distance: 100mm
Visual field :2.4mm-32mm
Size: 115mm(L) * 40mm(DIA)
Weight: 210g

120X C-MOUNT Lens
Magnification Power by 0.12 - 2X (about 8X - 100X on the display)
Work distance: 250mm
Visual field :2.4mm-32mm
Weight: 100g

56 LED Adjustable Compact Microscope Ring Light
Provides intense and focused shadow-free illumination
56 bright LED
Lighting direction changeable
Variable intensit y control
Intense and focused shadow-free illumination
100,000 hours of life
Power input: 100-240V, 50-60HZ, auto switching
Inside diameter of the ring light: 1.0" (27mm)
Overall outside diameter: 1.77" (45mm)
Working Distance: 27mm-120mm

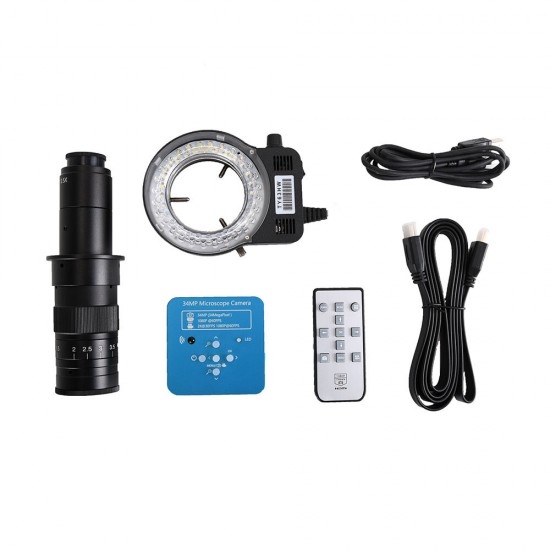

Package including:

1 x Microscope Camera
1 x Power supply(EU NOTE:We will send you a plug adapter according to your country.)
1 x USB cable
1 x HDMI cable
1 x Software DISC
1 x Remote control

Optional accessories incluede:

1 x C-MOUNT Lens(100X or 120X or 180X or 300X)
56 LED Adjustable Microscope Ring Light

Details pictures:



HAYEAR-FHD-34MP-USB-Industrial-Electronic-Digital-Video-Microscope-Camera-130X-180X-300X-C-Mount-Len-1553843


HAYEAR-FHD-34MP-USB-Industrial-Electronic-Digital-Video-Microscope-Camera-130X-180X-300X-C-Mount-Len-1553843


HAYEAR-FHD-34MP-USB-Industrial-Electronic-Digital-Video-Microscope-Camera-130X-180X-300X-C-Mount-Len-1553843


HAYEAR-FHD-34MP-USB-Industrial-Electronic-Digital-Video-Microscope-Camera-130X-180X-300X-C-Mount-Len-1553843


HAYEAR-FHD-34MP-USB-Industrial-Electronic-Digital-Video-Microscope-Camera-130X-180X-300X-C-Mount-Len-1553843


HAYEAR-FHD-34MP-USB-Industrial-Electronic-Digital-Video-Microscope-Camera-130X-180X-300X-C-Mount-Len-1553843

HAYEAR-FHD-34MP-USB-Industrial-Electronic-Digital-Video-Microscope-Camera-130X-180X-300X-C-Mount-Len-1553843
