FHD 41mpMP HDMI USB Industrial Electronic Digital Video Microscope Camera 300X C Mount Lens For Phone PCB Soldering

Based on 0 reviews. - Write a review

$174.85

Ex Tax: $174.85

Stock: In Stock
Model: EB004988
SKU: EB004988

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Features:

Model: Camera with HDMI USB2.0 two output

Image format: jpg

Image resolution: 34 MegaPixel

Video format: MP4(for TF card)

Video recor der: 2K@30FPS, 1080P@60FPS

HDMI Video resolution: 1920*1080 @ 60FPS

USB Video resolution: 1920*1080@30FPS; 1280*720@30FPS; 640*480@30FPS; 320*240@30FPS

White Balance: Auto/Manual

Light: Auto/Manual

Exposure: Auto/Manual, value adjustable

Color: Color

Morror: Left/right,Up/Down

Freeze: Support

OSD: English/Chinese/French/Spanish/Japanese/German

Line: different color,5 horizontal line , 5 vertical line,any positions

Specification:

Image sensor: 41 megapixel Panason ic CMOS sensor 1/2.33 inch

Effective pixel: 41 megapixel

Pixel size:1.335μm × 1.335μm

Frame rate:60fps

Definition:FULL HD

Housing:metal

Lens:C/CS

Video format: MOV

Digital Zoom:Support

Brightness control:Auto/manual

Color:R/G/B adjustable

Film and recor d:Support

Cross cursor:Support multi-color, size adjustable

Transverse and vertical line:

Support multi-color, 5 pcs of transverse lines/vertical lines, moveable

Different color,5 horizontal line , 5 vertical line,any positions

TF card interface:Max 64G

HDMI interface:Standard HDMI output (Type A)

USB interface:Standard usb2.0 interface (Type B)

Input Voltage: DC 12V

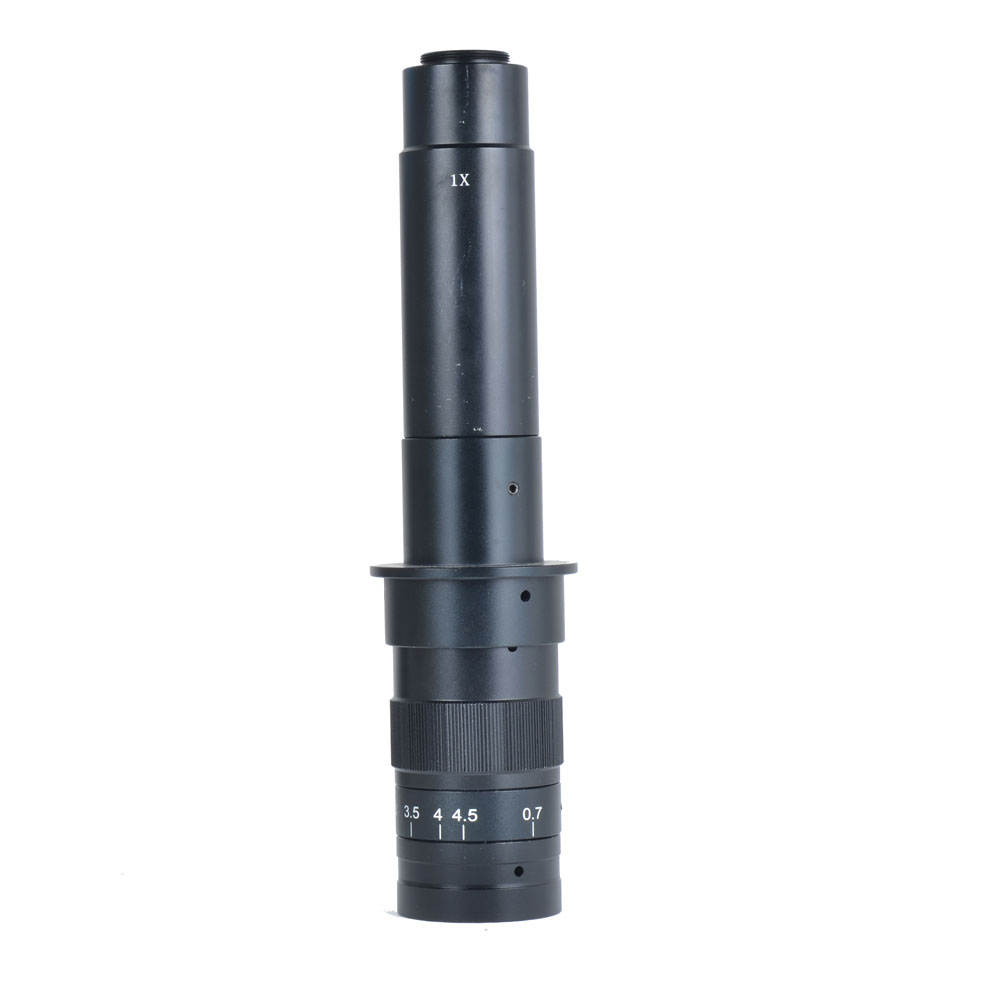

300X C-MOUNT Lens

Working distance: 95mm

Zoom c-mount Lens

1X C-mount adapter

Zoom ratios: 6.5:1

Objective Magnification Power by 0.7 - 4.5X(about 10 - 300X on the display)

Size: 248mm(L) * 50mm(DIA)

(300x maximum working distance 11CM)

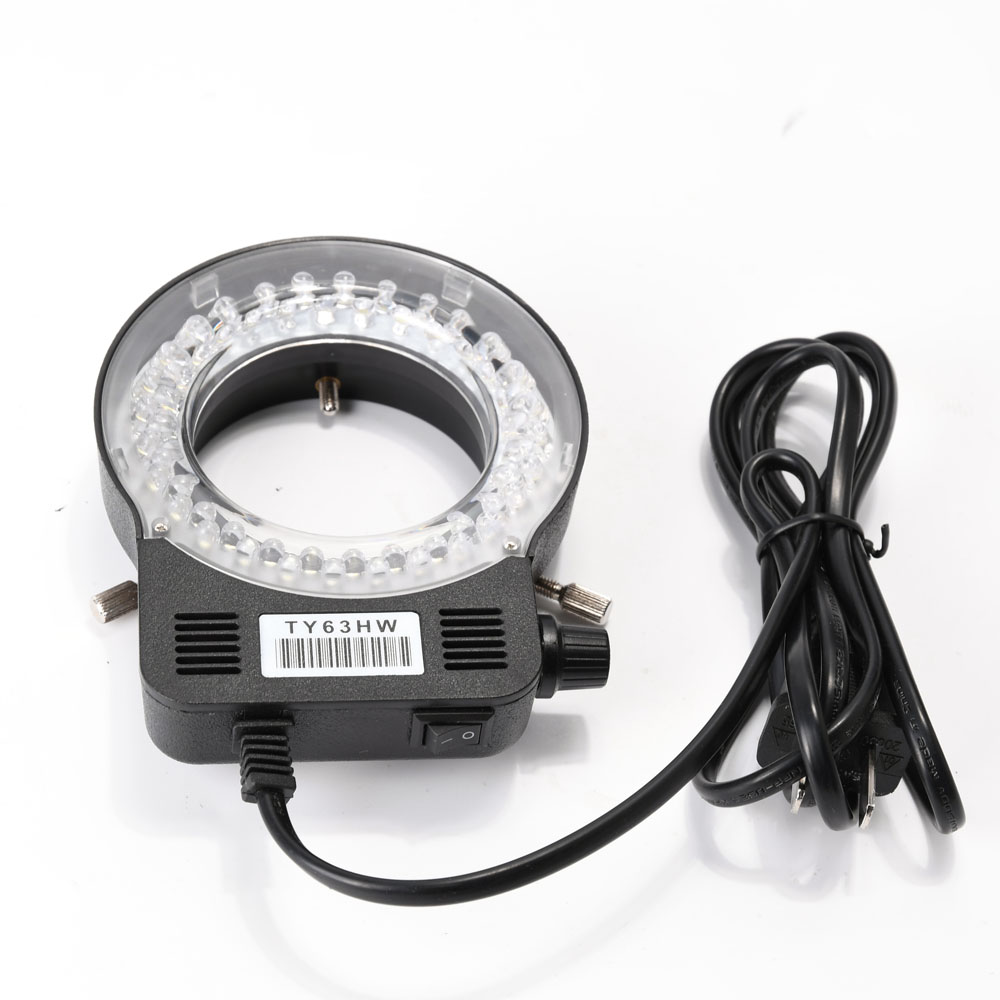

56 LED Adjustable Compact Microscope Ring Light

Provides intense and focused shadow-free illumination

56 bright LED

Lighting direction changeable

Variable intensit y control

Intense and focused shadow-free illumination

100,000 hours of life

Power input: 100-240V, 50-60HZ, auto switching

Inside diameter of the ring light: 1.0" (27mm)

Overall outside diameter: 1.77" (45mm)

Working Distance: 27mm-120mm

Noting:

1:PC Support : Windows XP/7/8/10 system

2:For USB output, the white balance, exposure and color adjustment are automatic, they can't be adjusted. For HDMI output, the functions can only be adjusted while connecting with monitor, if you connect the camera with computer, the functions also can not be adjusted.

3:When use USB connection, please make sure no TF card in the camera ,TF card storage is only for HDMI output. USB output will be storage in PC.

4:when connect the camera with computer, just plug the USB line is OK ( no need to use the power supply)

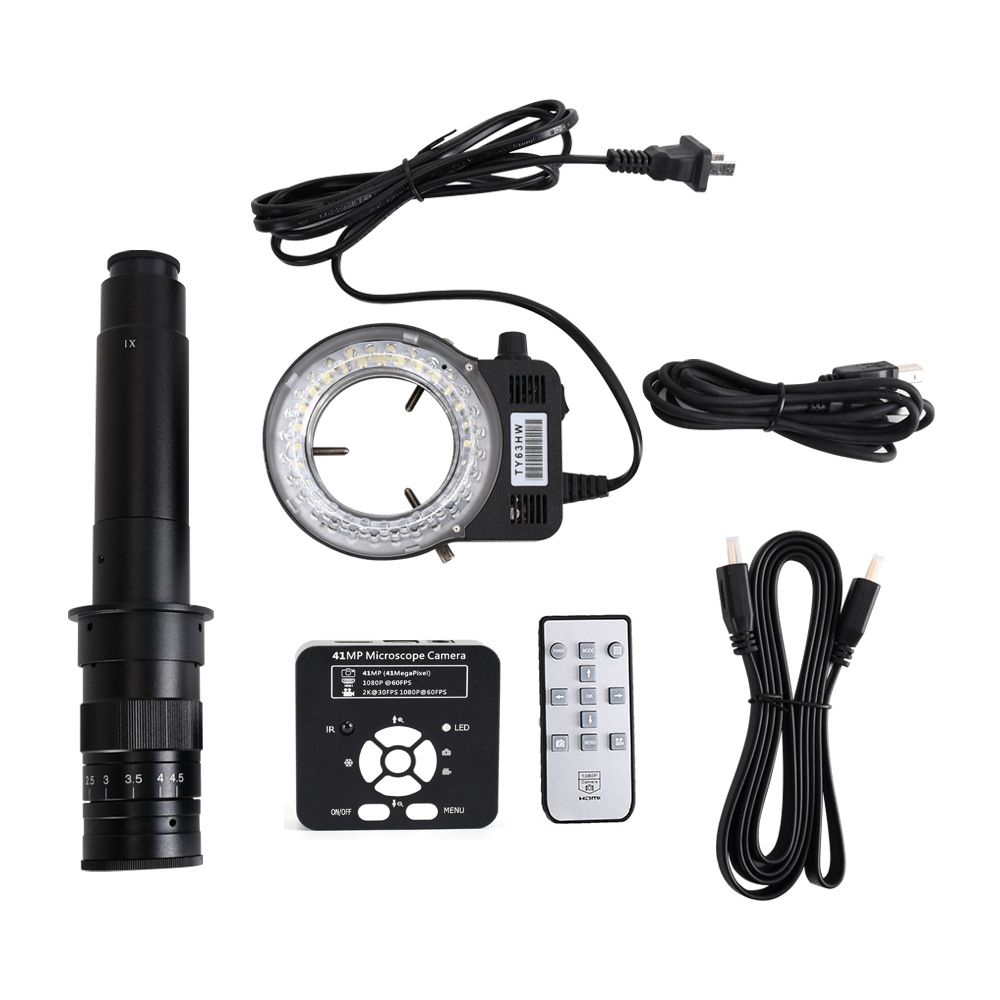

Package including:

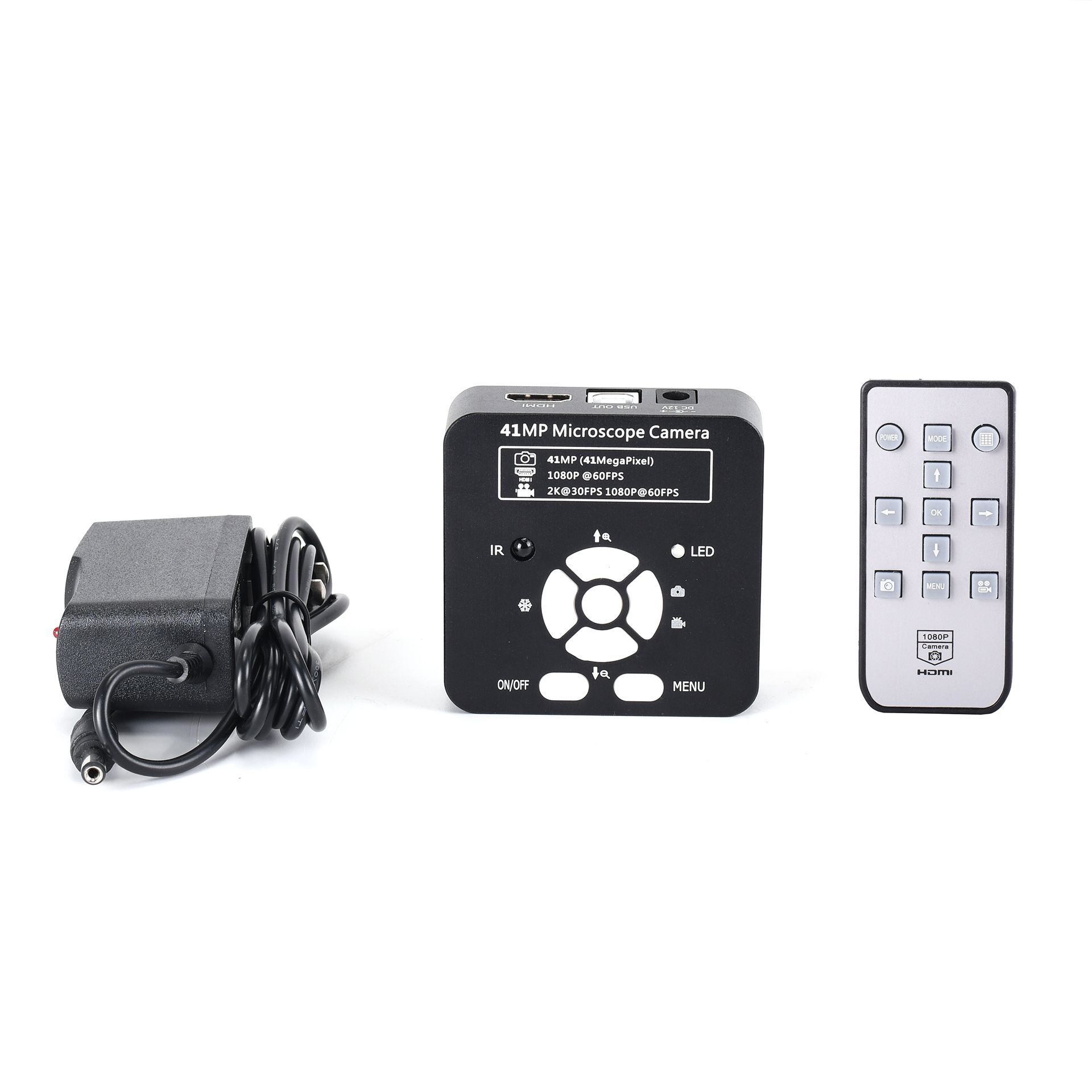

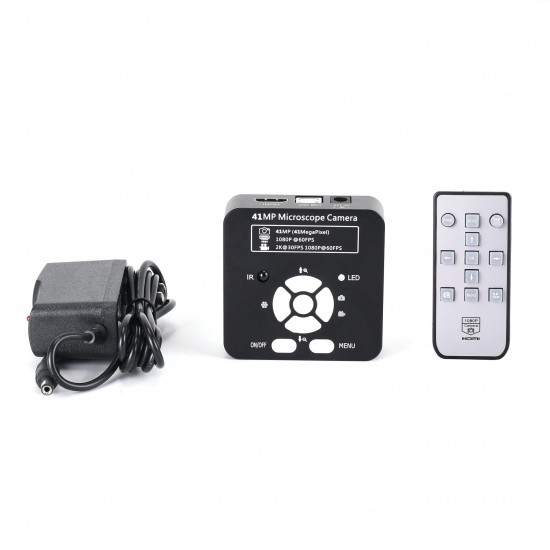

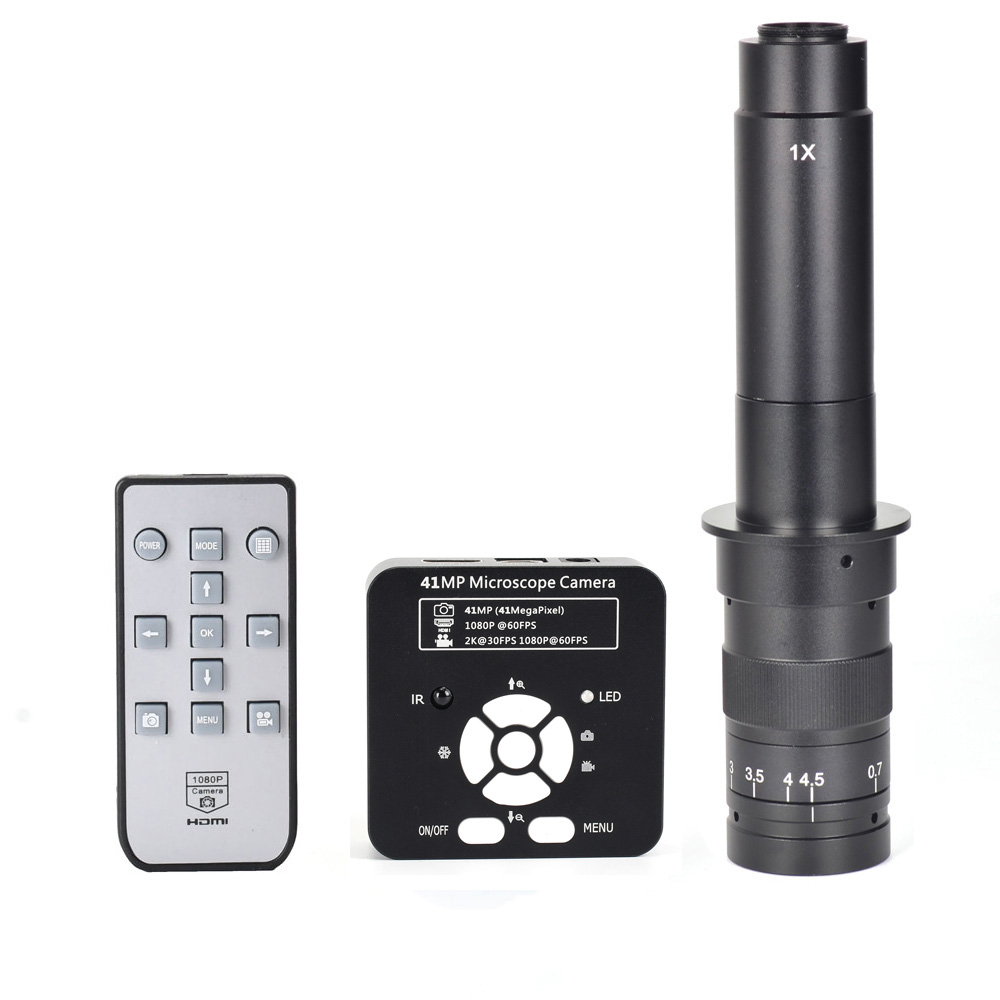

1 x Microscope Camera

1 x Power supply(We will send you a plug adapter according to your country.)

1 x USB cable

1 x HDMI cable

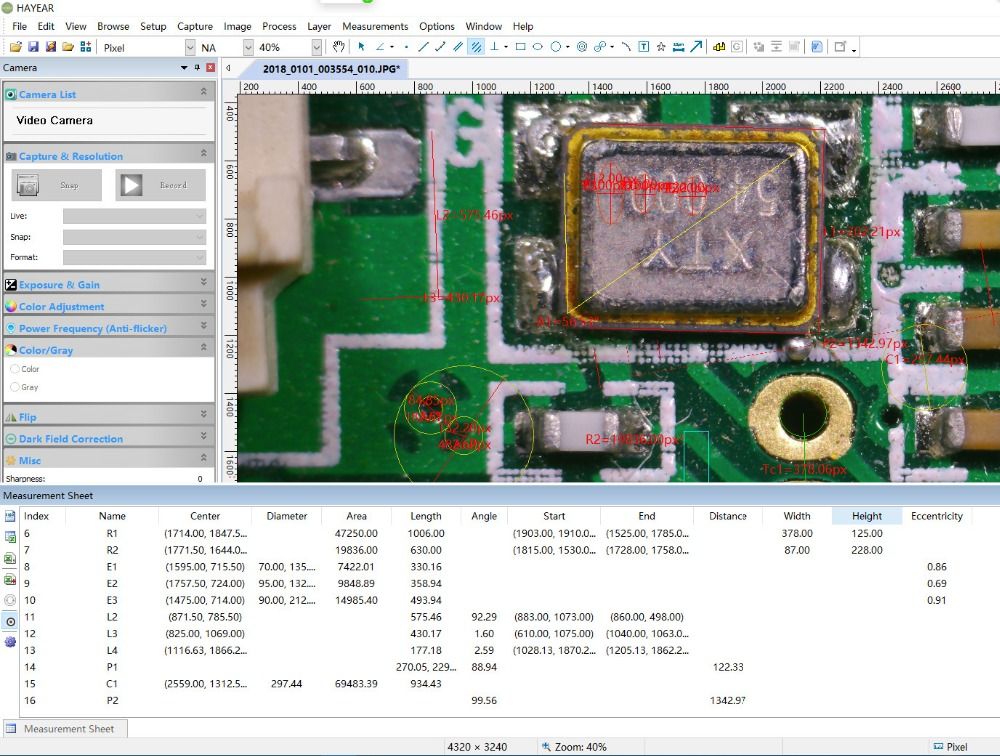

1 x Software DISC

1 x Remote control

1 x C-MOUNT Lens 300X

1x 56 LED Adjustable Microscope Ring Light

this is mainly a hdmi camera, if you need it get higher image quality for usb output pls choose the professional usb camera or contact us before place the order so we will give you some suggestion.

For USB output, the white balance, exposure and color adjustment are automatic, they can't be adjusted.

Details pictures:

HAYEAR-FHD-41mpMP-HDMI-USB-Industrial-Electronic-Digital-Video-Microscope-Camera--300X-C-Mount-Lens--1605448
