HBV-1466AF Auto Focus 5M Pixel OV5640 CMOS Camera Module with Flex Cable USB 5 Million Pixels

HBV-1466AF Auto Focus 5M Pixel OV5640 CMOS Camera Module with Flex Cable USB 5 Million Pixels
HBV-1466AF Auto Focus 5M Pixel OV5640 CMOS Camera Module with Flex Cable USB 5 Million Pixels
HBV-1466AF Auto Focus 5M Pixel OV5640 CMOS Camera Module with Flex Cable USB 5 Million Pixels
HBV-1466AF Auto Focus 5M Pixel OV5640 CMOS Camera Module with Flex Cable USB 5 Million Pixels
HBV-1466AF Auto Focus 5M Pixel OV5640 CMOS Camera Module with Flex Cable USB 5 Million Pixels
HBV-1466AF Auto Focus 5M Pixel OV5640 CMOS Camera Module with Flex Cable USB 5 Million Pixels
HBV-1466AF Auto Focus 5M Pixel OV5640 CMOS Camera Module with Flex Cable USB 5 Million Pixels
HBV-1466AF Auto Focus 5M Pixel OV5640 CMOS Camera Module with Flex Cable USB 5 Million Pixels
HBV-1466AF Auto Focus 5M Pixel OV5640 CMOS Camera Module with Flex Cable USB 5 Million Pixels
HBV-1466AF Auto Focus 5M Pixel OV5640 CMOS Camera Module with Flex Cable USB 5 Million Pixels
HBV-1466AF Auto Focus 5M Pixel OV5640 CMOS Camera Module with Flex Cable USB 5 Million Pixels
HBV-1466AF Auto Focus 5M Pixel OV5640 CMOS Camera Module with Flex Cable USB 5 Million Pixels
HBV-1466AF Auto Focus 5M Pixel OV5640 CMOS Camera Module with Flex Cable USB 5 Million Pixels
HBV-1466AF Auto Focus 5M Pixel OV5640 CMOS Camera Module with Flex Cable USB 5 Million Pixels
HBV-1466AF Auto Focus 5M Pixel OV5640 CMOS Camera Module with Flex Cable USB 5 Million Pixels
HBV-1466AF Auto Focus 5M Pixel OV5640 CMOS Camera Module with Flex Cable USB 5 Million Pixels
HBV-1466AF Auto Focus 5M Pixel OV5640 CMOS Camera Module with Flex Cable USB 5 Million Pixels
HBV-1466AF Auto Focus 5M Pixel OV5640 CMOS Camera Module with Flex Cable USB 5 Million Pixels
HBV-1466AF Auto Focus 5M Pixel OV5640 CMOS Camera Module with Flex Cable USB 5 Million Pixels
$28.99
Ex Tax: $28.99
  • Stock: In Stock
  • Model: EB0048216
  • SKU: EB0048216
>
Specifications:

Model No. HBVCAM-1466AF
Model Size 68.2mm × 26mm × 5.0mm±0.2MM
Temperature (Operation)  -30°C to 70°C
Temperature (Stable Image)  0°C to 50°C
Assembly technique  SMT (ROSH)
Focus  Auto
Object distance  30CM-infinit
Resolution  800LW/PH (Center)
Interface USB 2.0
Power  USB bus power
Maximum Power consumption 800mW
Package Anti-electrostatic tray
Operating system request  Win XP/win 7,8 / vista /android 4.0/ mac0 /Linux
with uvc
Certifications FCC and CE
Active Array Size

2592*1944

Sensor

OV5640 (1/4” )

Sensitivity

7500e /(lux-sec)

Pixel Size  1.4µm x1.4µm
Maximum Image Transfer Rate  MJPEG 1024x768 30FPS / YUY2 160x120 30FPS
MJPEG 1280x720 40FPS / YUY2 320x240 30FPS
MJPEG 1600x1200 30FPS / YUY2 640x480 30FPS
MJPEG 1920x1080 15FPS / YUY2 800x600 30FPS
MJPEG 2048x1536 15FPS / YUY2 1024x768 15FPS
MJPEG 2592x1944 15FPS / YUY2 2592x1944 3FPS
S/N Ratio  36db
Dynamic Range  66db
Package CSP,Bare Die
Output Formats YUY2/MJPEG
Microphone NO
Lens Type
Lens Construction  4P
F/No  2.8
EFL  2.7m
FOV  65°
TV Distortion  <0.24%
Relative Illumination (Sensor)  70%
R Filter 650 ± 10nm
DSP Type  HBV5640
AGC/AEC/Whiter balance  Auto
Output Formats USB suspend out
Fixed Pattern Noise  < 0.03% of V PEAK-TO-PEAK
Package  LQFN-40pin

Package Inlcuded:

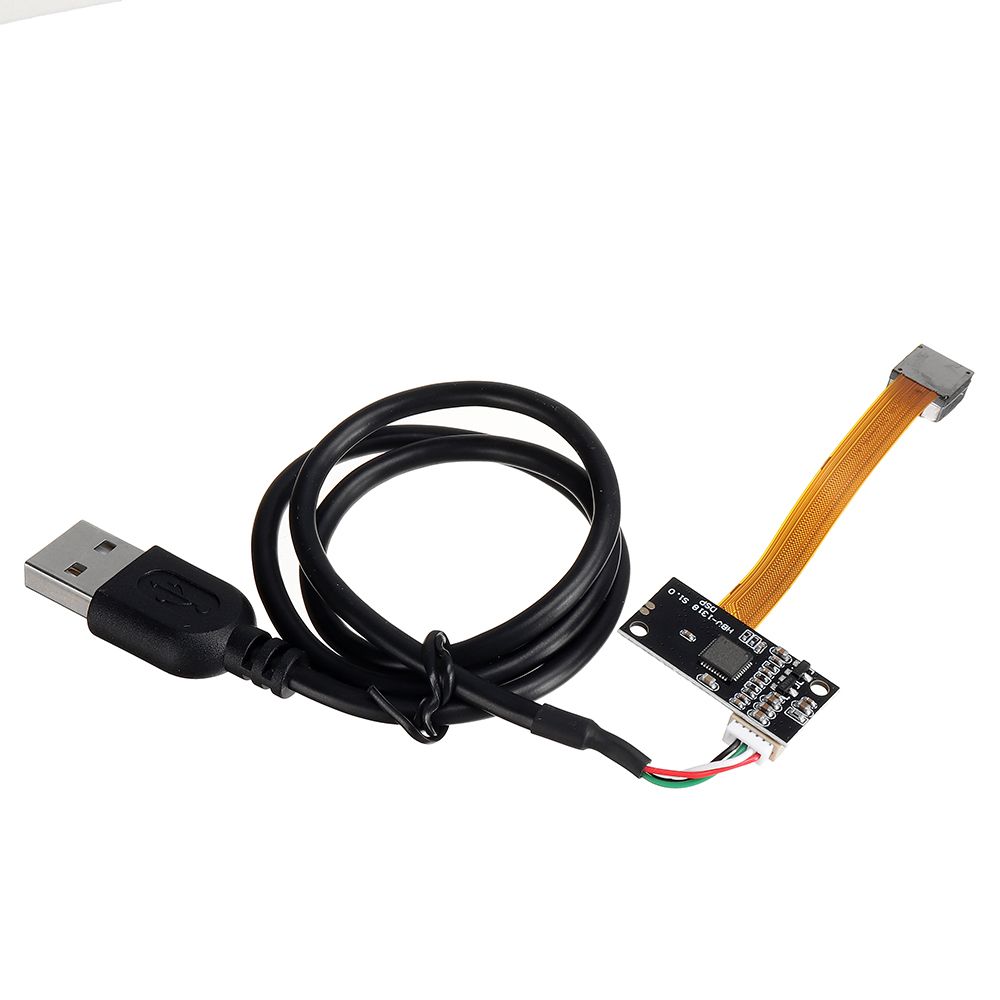

1 x HBV-1466AF Auto Focus 5M Pixel OV5640 CMOS Camera Module
1 x USB Cable

Note:

A. Purchase quantity ≥20, support lens replacement

B. Purchase quantity ≥500, support customization

1. First explain the specific parameter requirements of the product you need, the more detailed the better.
2. Provide product size structure diagram, PIN angle definition, etc.
