HT-201 Mini Mobile Phone Thermal Imaging Camera Thermal Infrared Imager Thermal Camera

HT-201 Mini Mobile Phone Thermal Imaging Camera Thermal Infrared Imager Thermal Camera
HT-201 Mini Mobile Phone Thermal Imaging Camera Thermal Infrared Imager Thermal Camera
HT-201 Mini Mobile Phone Thermal Imaging Camera Thermal Infrared Imager Thermal Camera
HT-201 Mini Mobile Phone Thermal Imaging Camera Thermal Infrared Imager Thermal Camera
HT-201 Mini Mobile Phone Thermal Imaging Camera Thermal Infrared Imager Thermal Camera
HT-201 Mini Mobile Phone Thermal Imaging Camera Thermal Infrared Imager Thermal Camera
HT-201 Mini Mobile Phone Thermal Imaging Camera Thermal Infrared Imager Thermal Camera
HT-201 Mini Mobile Phone Thermal Imaging Camera Thermal Infrared Imager Thermal Camera
HT-201 Mini Mobile Phone Thermal Imaging Camera Thermal Infrared Imager Thermal Camera
HT-201 Mini Mobile Phone Thermal Imaging Camera Thermal Infrared Imager Thermal Camera
HT-201 Mini Mobile Phone Thermal Imaging Camera Thermal Infrared Imager Thermal Camera
HT-201 Mini Mobile Phone Thermal Imaging Camera Thermal Infrared Imager Thermal Camera
HT-201 Mini Mobile Phone Thermal Imaging Camera Thermal Infrared Imager Thermal Camera
$359.00
Ex Tax: $359.00
  • Stock: In Stock
  • Model: EB005357
  • SKU: EB005357
Features:

The product is connected via a mobile phone and operated on the phone via the "ht xintai" software.
It is very easy to check the infrared image and measure the temperature of the surface object.
Support media library, photo and video functions to check images and videos.
With a pallet, you can choose white heat, black heat, iron red, rainbow and lava.
Supports normal mode and can be restored to the default infrared image viewing mode.
Support cursor mode, can display the cursor of the center point, prevent the temperature point of positioning.
High temperature/low temperature capture mode to capture the lowest temperature and highest temperature.
Full frame mode is supported to display multiple temperature data.
Visible light and infrared modes are supported, and visible light images are displayed side by side with infrared images.
The product can be used for heating, ventilation, air conditioning and building temperature testing, equipment troubleshooting, preventive and predictive maintenance.

Specification:

Condition:100% Brand New
Item Type: Infrared Imager
Material: ABS
Color: As shown in the picture
Model: HT-201
Resolution: 320x240
Temperature range: -40°C to 330°C
Wavelength range: 8-14μm
Field angle/focus length: 26°x34°
Image format: jpg
Video format: mp4
Frame rate: 9Hz
Detection mode: Fixed
Detection scope: 300m
Detection definition: When one object is found in the field of view, the image of the object must occupy more than 1.5 pixel in the directionof critical size.  Shortest focal length: 0.15m
Target size: Cover 4 pixels
Work temperature: 0 ℃ to 40 ℃
Storage temperature: -20℃ to 60 ℃
Plug: Type-C , micro USB
Power provision: 5V(External equipment power supply)
Item Weight: 40g/1.4oz
Item size: 52 * 33 * 23mm / 2.0 * 1.3 * 0.9in
Package size: 175 * 102 * 62mm / 6.9 * 4.0 * 2.4in
Package weight: 248g / 8.7ounce

Package Includes:

1 x Thermal Imager
1 x Instruction Manual
1 x Box
1 x Adapter

Details Pictures:

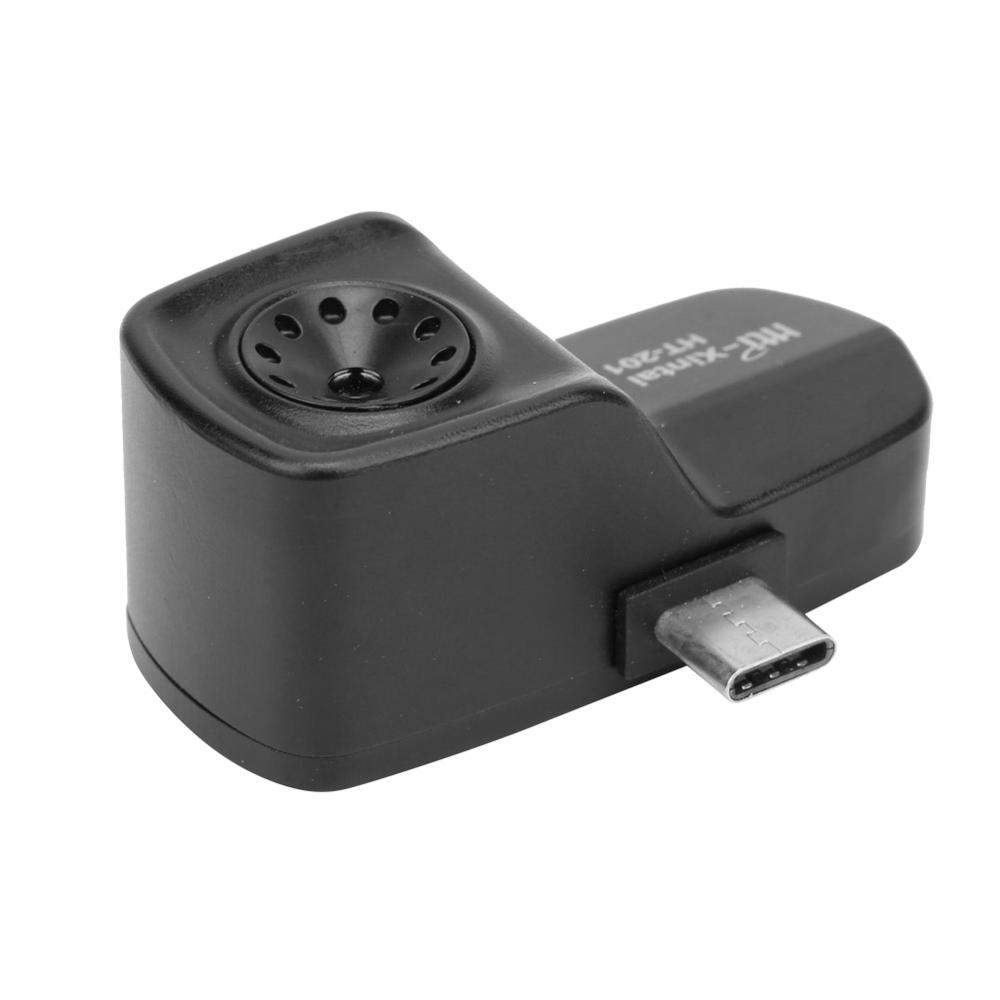

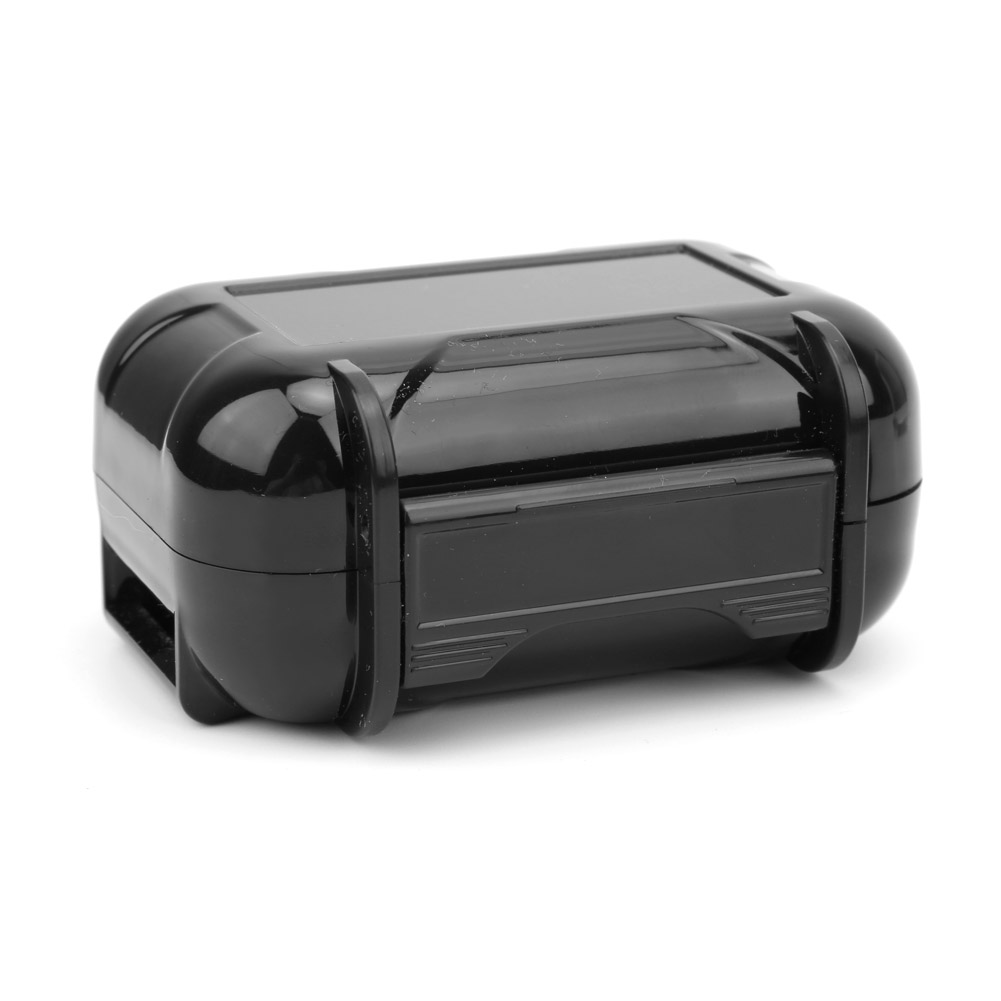

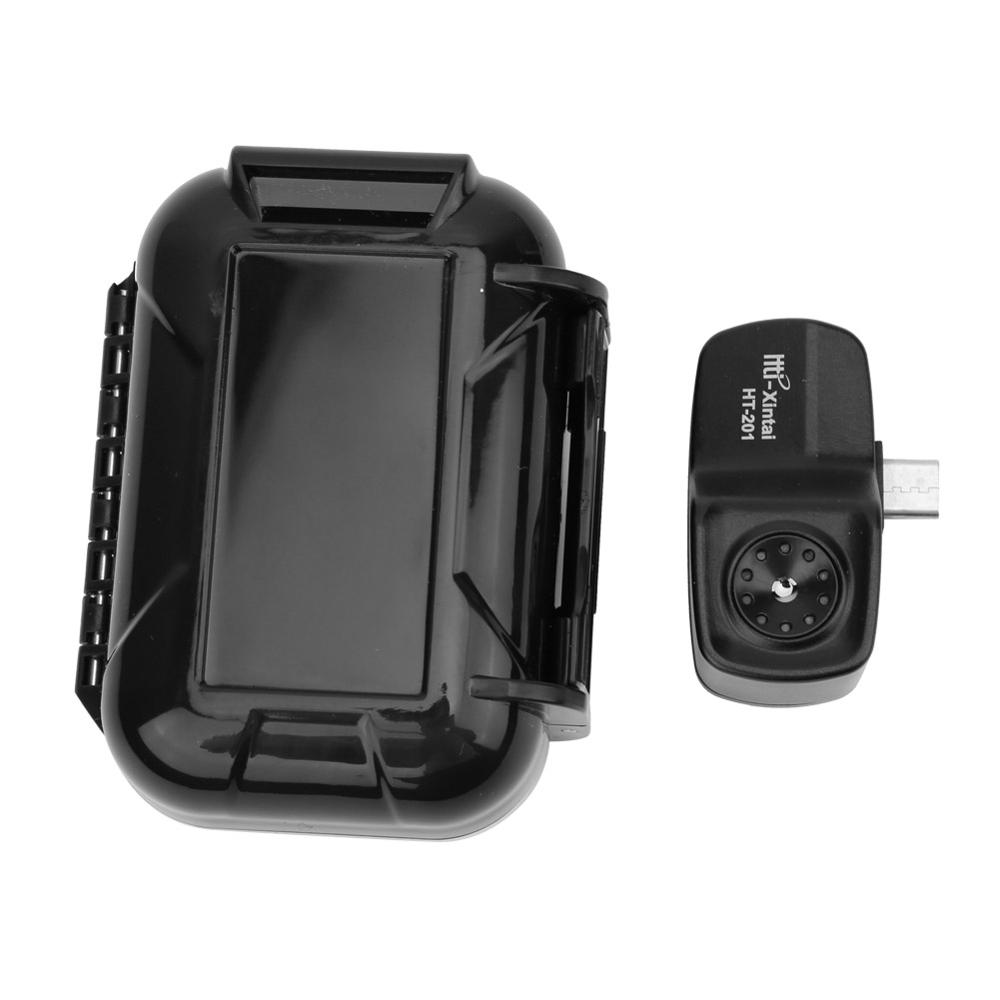

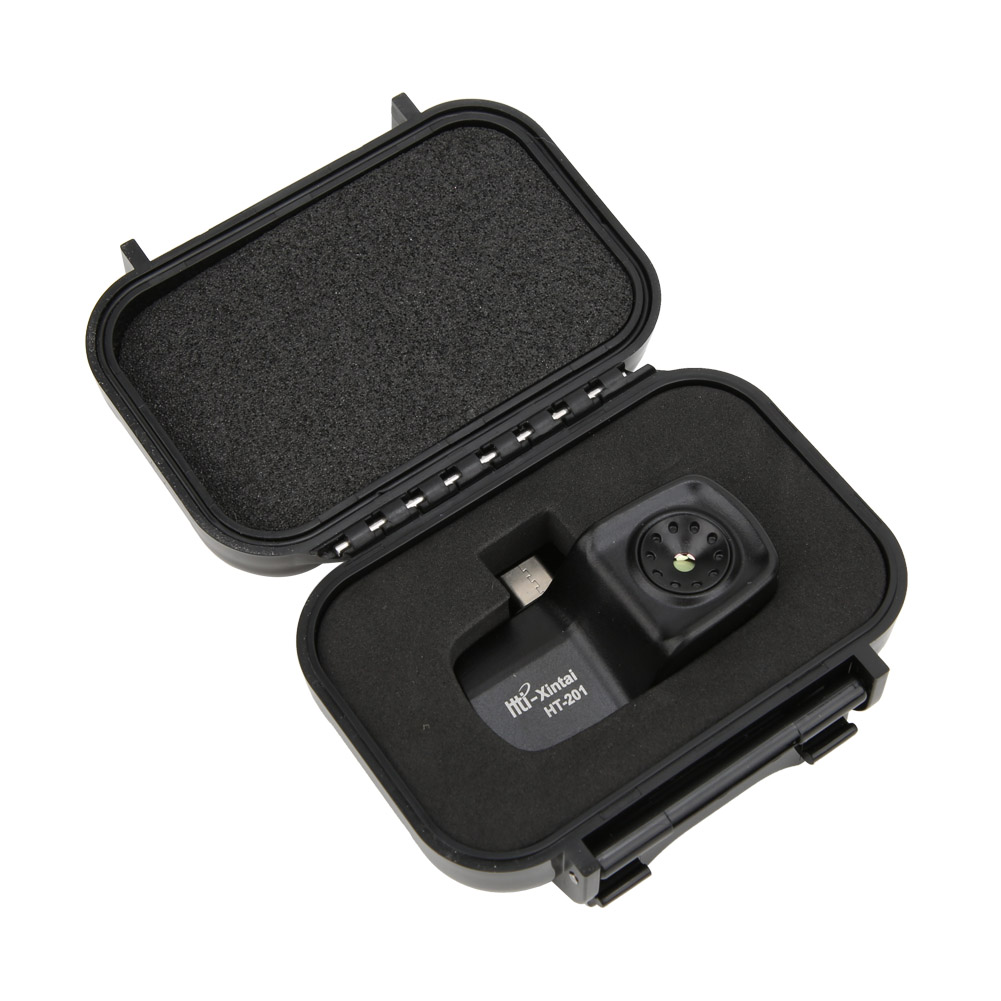

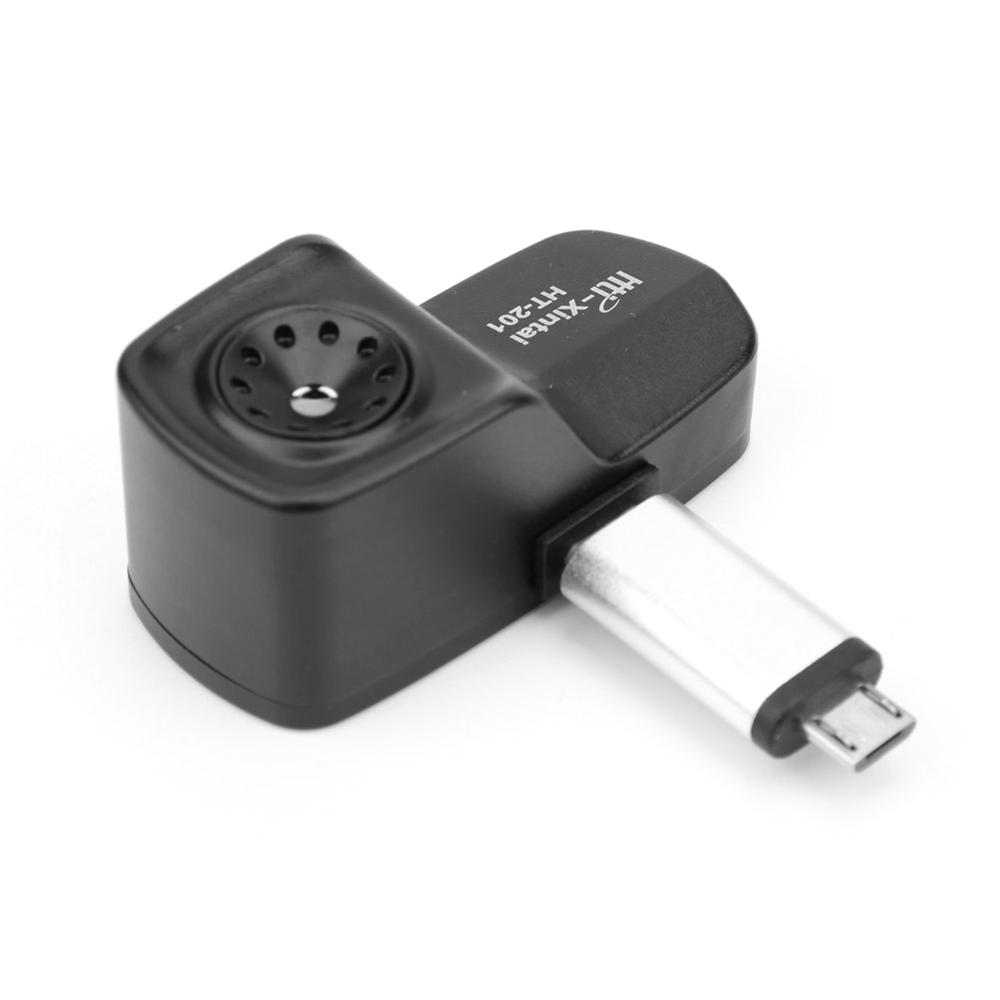

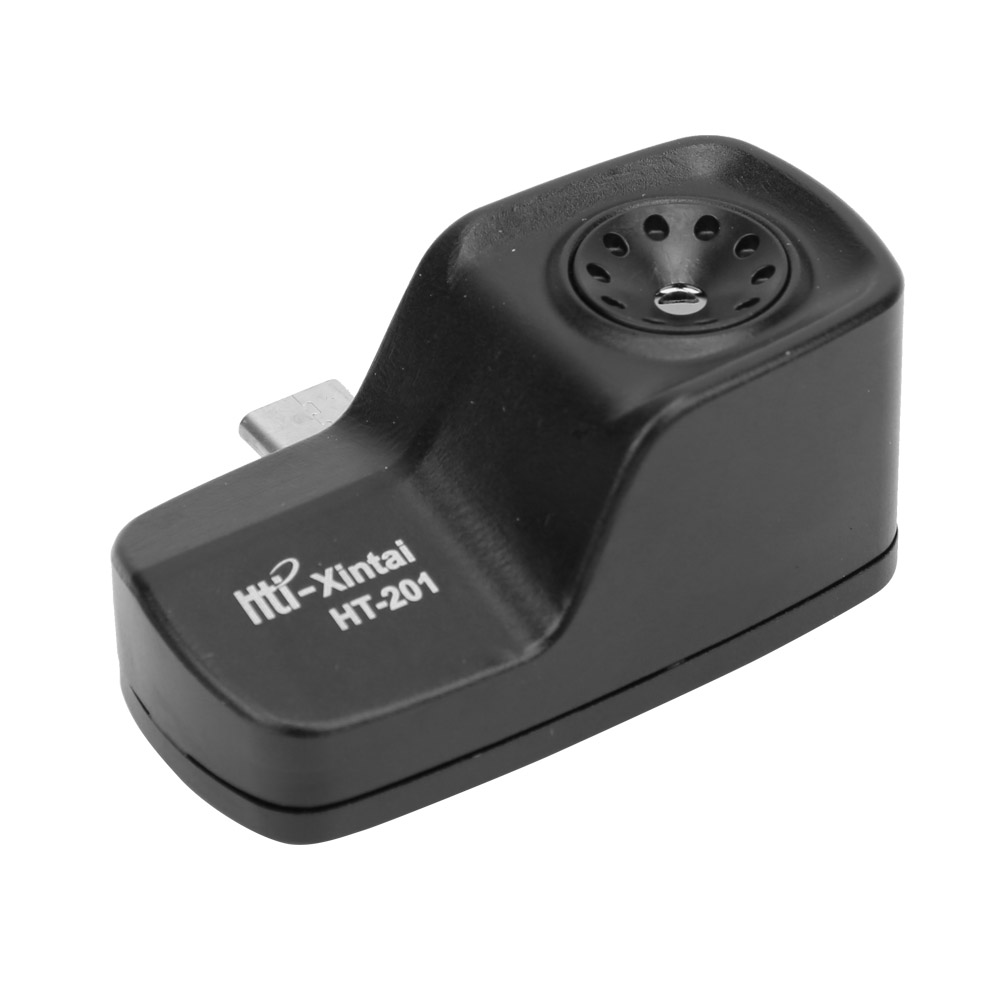

HT-201-Mini-Mobile-Phone-Thermal-Imaging-Camera-Thermal-Infrared-Imager-Thermal-Camera-1561116

HT-201-Mini-Mobile-Phone-Thermal-Imaging-Camera-Thermal-Infrared-Imager-Thermal-Camera-1561116

HT-201-Mini-Mobile-Phone-Thermal-Imaging-Camera-Thermal-Infrared-Imager-Thermal-Camera-1561116

HT-201-Mini-Mobile-Phone-Thermal-Imaging-Camera-Thermal-Infrared-Imager-Thermal-Camera-1561116

HT-201-Mini-Mobile-Phone-Thermal-Imaging-Camera-Thermal-Infrared-Imager-Thermal-Camera-1561116

HT-201-Mini-Mobile-Phone-Thermal-Imaging-Camera-Thermal-Infrared-Imager-Thermal-Camera-1561116
