One 1 MHz - 6 GHz SDR Platform Software Defined Radio Development Board With FM Antenna And USB Cable

One 1 MHz - 6 GHz SDR Platform Software Defined Radio Development Board With FM Antenna And USB Cable
One 1 MHz - 6 GHz SDR Platform Software Defined Radio Development Board With FM Antenna And USB Cable
One 1 MHz - 6 GHz SDR Platform Software Defined Radio Development Board With FM Antenna And USB Cable
One 1 MHz - 6 GHz SDR Platform Software Defined Radio Development Board With FM Antenna And USB Cable
One 1 MHz - 6 GHz SDR Platform Software Defined Radio Development Board With FM Antenna And USB Cable
One 1 MHz - 6 GHz SDR Platform Software Defined Radio Development Board With FM Antenna And USB Cable
One 1 MHz - 6 GHz SDR Platform Software Defined Radio Development Board With FM Antenna And USB Cable
One 1 MHz - 6 GHz SDR Platform Software Defined Radio Development Board With FM Antenna And USB Cable
One 1 MHz - 6 GHz SDR Platform Software Defined Radio Development Board With FM Antenna And USB Cable
One 1 MHz - 6 GHz SDR Platform Software Defined Radio Development Board With FM Antenna And USB Cable
One 1 MHz - 6 GHz SDR Platform Software Defined Radio Development Board With FM Antenna And USB Cable
One 1 MHz - 6 GHz SDR Platform Software Defined Radio Development Board With FM Antenna And USB Cable
One 1 MHz - 6 GHz SDR Platform Software Defined Radio Development Board With FM Antenna And USB Cable
$189.99
Ex Tax: $189.99
  • Stock: In Stock
  • Model: EB004747
  • SKU: EB004747
Features:

Designed to enable testing and development of modern and next-generation radio technologies.
HackRF One is an open source hardware platform that can be used as a USB peripheral or programmed for stand-alone operation.
HackRF One housing is made of metal, which is not easy to rust and has a long service life.
1MHz to 6GHz operating frequency, half-duplex transceiver, up to 20 million samples per second, 8-bit quadrature samples (8-bit I and 8-bit Q).
Compatible with GNU Radio, SDR#, and more.
Software-configurable RX and TX gain and baseband filter, software-controlled antenna port power (50mA at 3.3V).

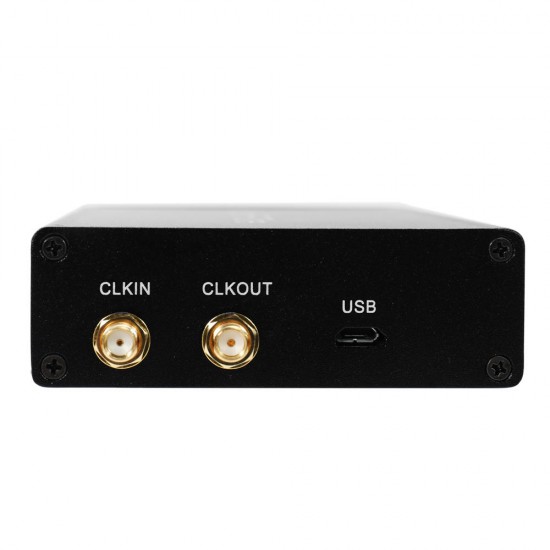

With SMA female antenna connector, SMA female clock input and output for synchronization.
Convenient buttons for programming, internal pin headers for expansion.
Hi-Speed USB 2.0, USB-powered, open source hardware.

Specification:

Material: metal
Color: black
Package size: 190 * 150 * 40mm / 7.5 * 5.9 * 1.6in
Package weight: 242g / 8.5ounce

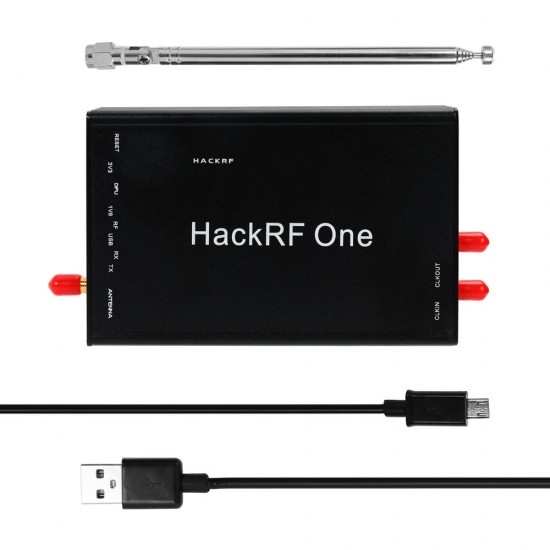

Package includes:

1 * HackRF One Software Defined Radio
1 * USB Cable
1 * FM Antenna

Details pictures:



HackRF-One-1-MHz---6-GHz-SDR-Platform-Software-Defined-Radio-Development-Board-With-FM-Antenna-And-U-1550983

HackRF-One-1-MHz---6-GHz-SDR-Platform-Software-Defined-Radio-Development-Board-With-FM-Antenna-And-U-1550983
HackRF-One-1-MHz---6-GHz-SDR-Platform-Software-Defined-Radio-Development-Board-With-FM-Antenna-And-U-1550983

HackRF-One-1-MHz---6-GHz-SDR-Platform-Software-Defined-Radio-Development-Board-With-FM-Antenna-And-U-1550983

HackRF-One-1-MHz---6-GHz-SDR-Platform-Software-Defined-Radio-Development-Board-With-FM-Antenna-And-U-1550983

HackRF-One-1-MHz---6-GHz-SDR-Platform-Software-Defined-Radio-Development-Board-With-FM-Antenna-And-U-1550983

HackRF-One-1-MHz---6-GHz-SDR-Platform-Software-Defined-Radio-Development-Board-With-FM-Antenna-And-U-1550983
