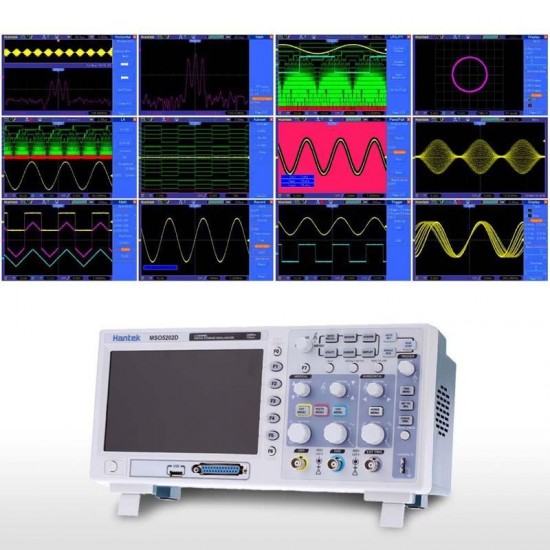

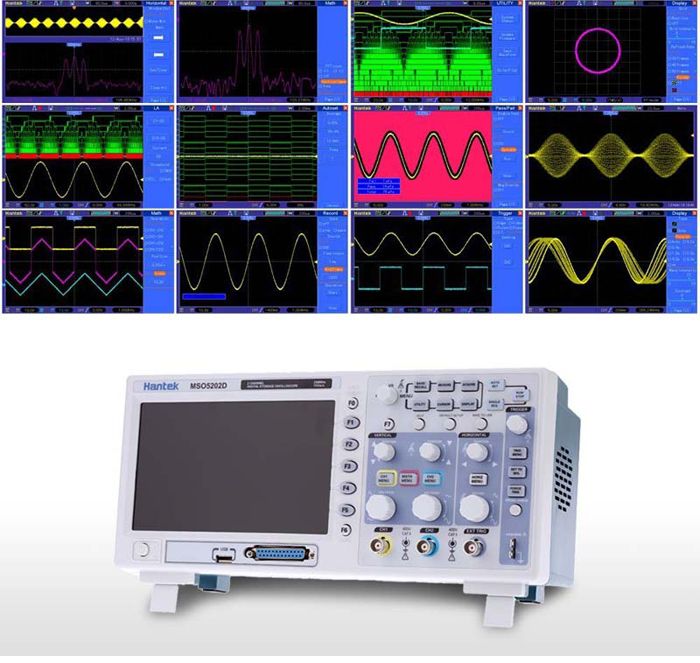

MSO5202D 2 in 1 Digital Oscilloscope 200MHz 2 Channels 1GSa/s + 16 Channels Logic Analyzer

Based on 0 reviews. - Write a review

$593.99

Ex Tax: $593.99

Stock: In Stock
Model: EB004551
SKU: EB004551

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Description:

Mixed Signal Oscilloscope; 200MHz Bandwidth; 1GSa/s Real Time Sample Rate;1MRecord Length; Large (7.0-inch) color display,WVGA (800x480); 16 channels Logic Analyzer, 500MSa/s sample rate; Power Trigger mode: edge/pulse width/line selectable video/slop/overtime etc.

Features:

16 channels logic analyzer + 2 channels oscilloscope + external trigger.

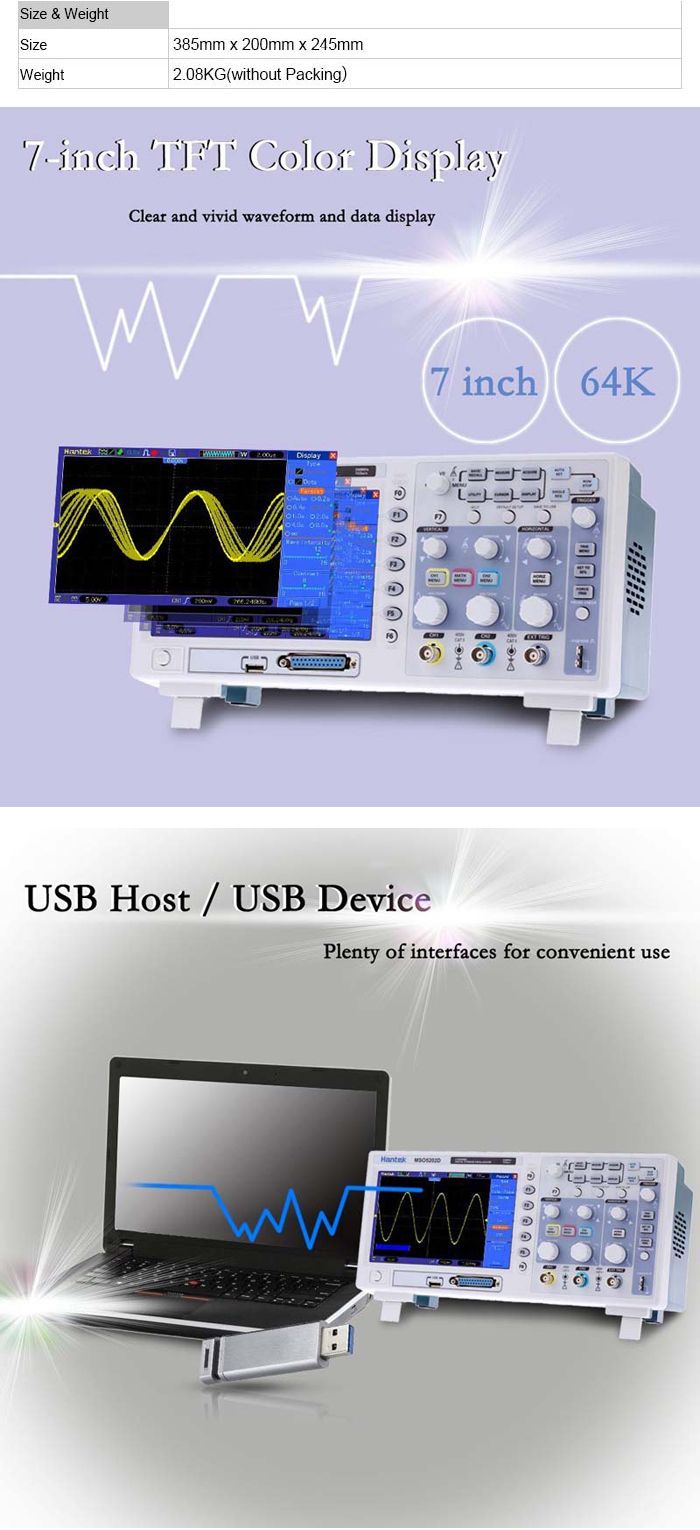

Big and clear display (7.0-inch color LCD, high revolution 800 x 480), clear lifelike waveform display.

1GSa/s real time sampling rate.

USB host, support flash memory card storage and USB interface system upgrade.

Ultrathin design, handy volume, easily portable.

Oscilloscope Function:

Bandwidth 200MHz.

Each channel record length up to 1M.

Real time sampling rate up to 1GSa/s.

Powerful trigger function.

32 kinds of automatic measurement function.

Logic Analyzer Function

16 channels divided into 2 groups which is able to setup threshold level individually.

Real time sampling rate up to 500MSa/s.

Powerful trigger function: edge, duration, pulse width, code-type, queen, repeat.

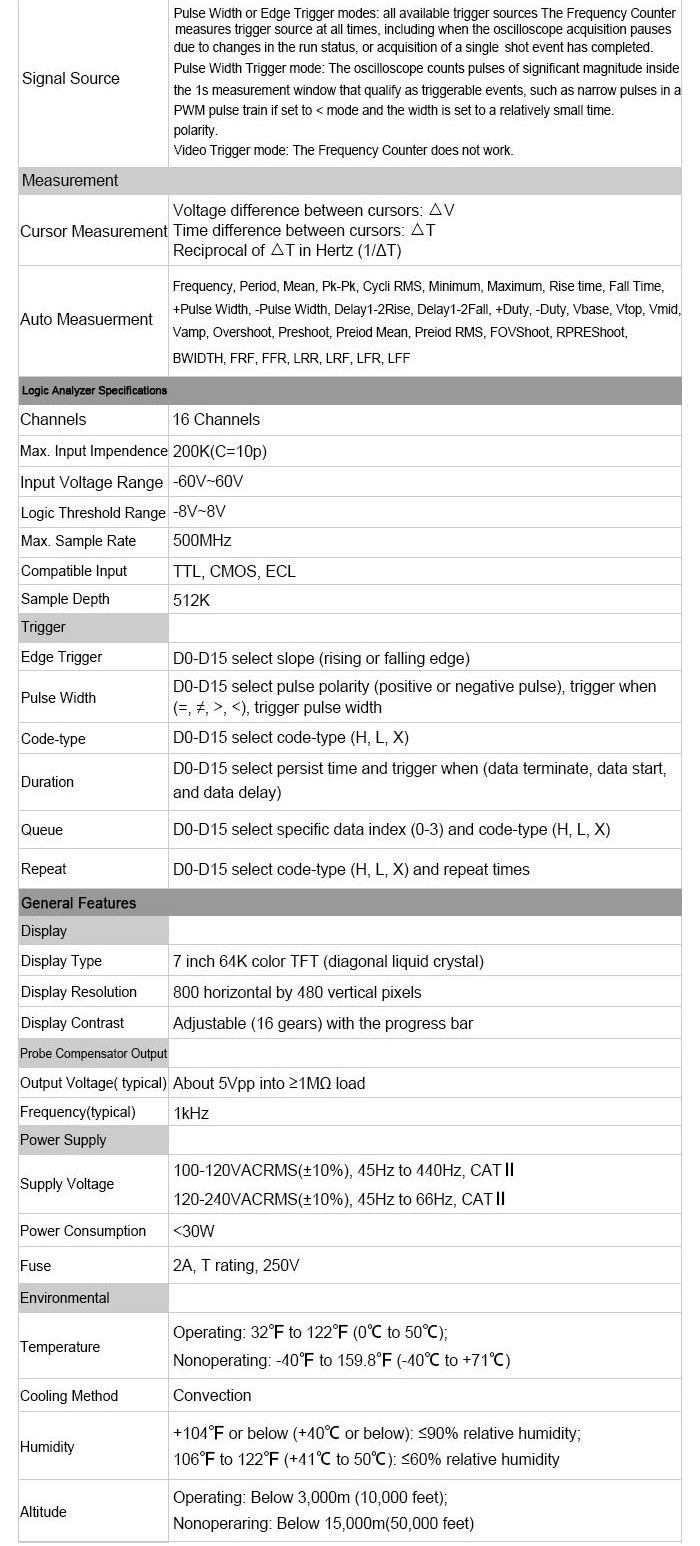

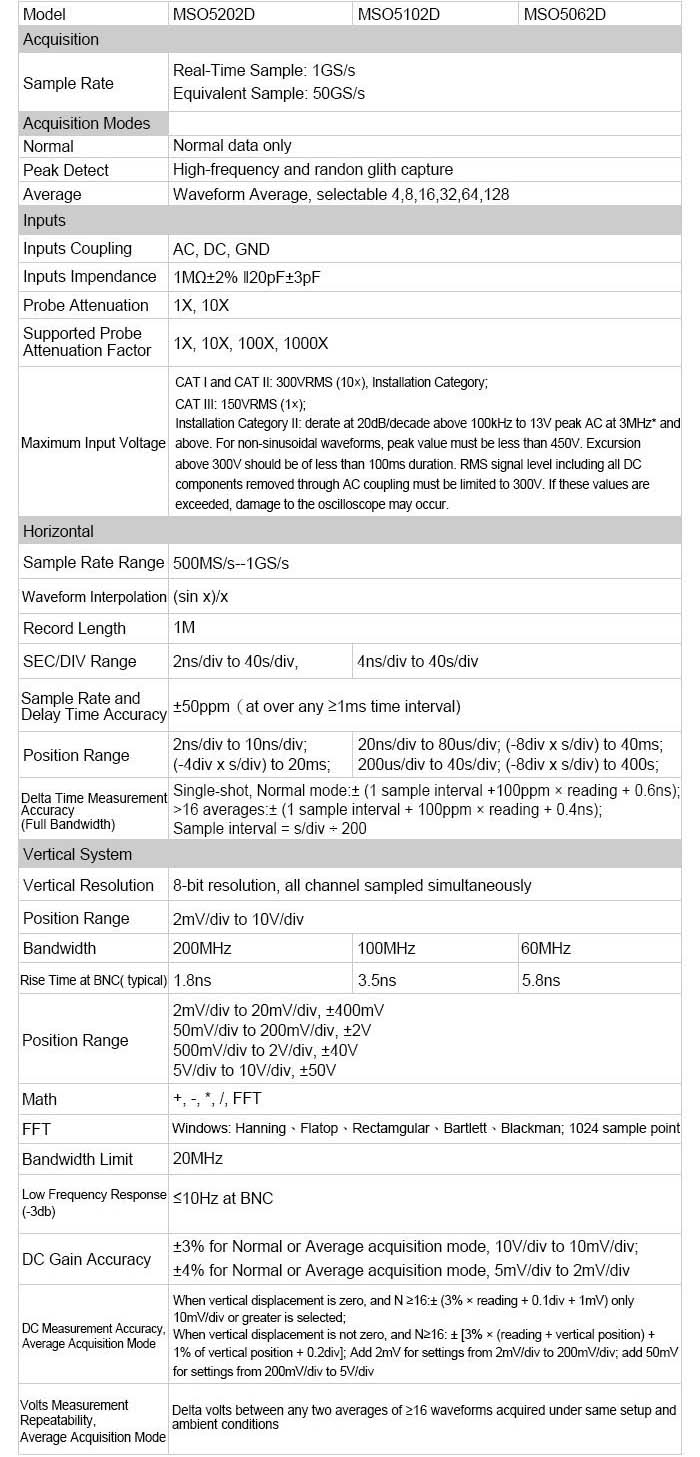

Specification:

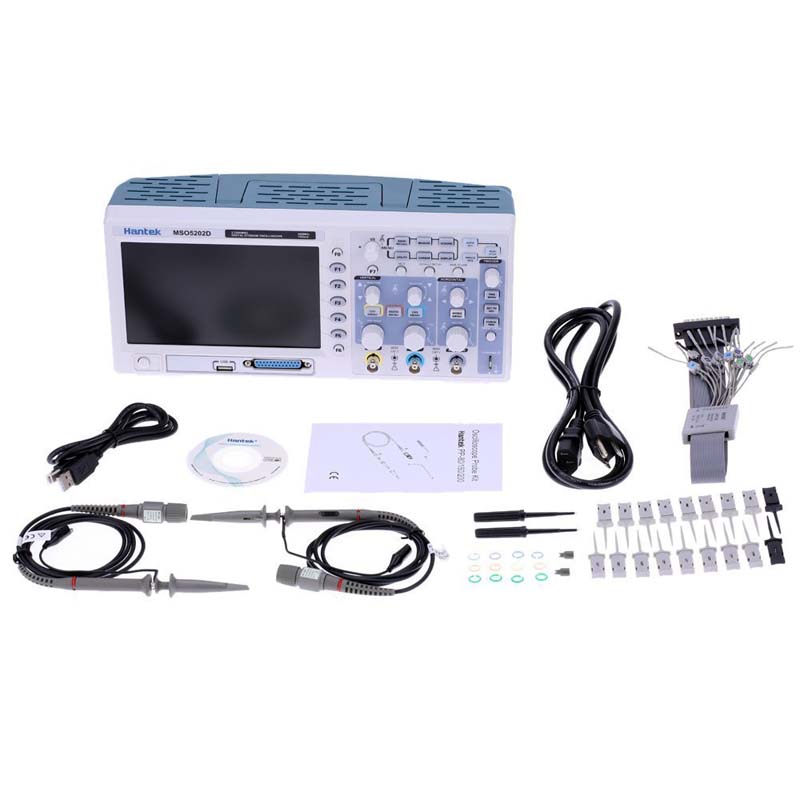

Package Included:

1 x Hantek MSO5202D 2 in 1 Digital Oscilloscope
1 x Full Set Accessories(Shown as pictures)

Detail Pictures:

Hantek-MSO5202D-2-in-1-Digital-Oscilloscope-200MHz-2-Channels-1GSas--16-Channels-Logic-Analyzer-1211801
