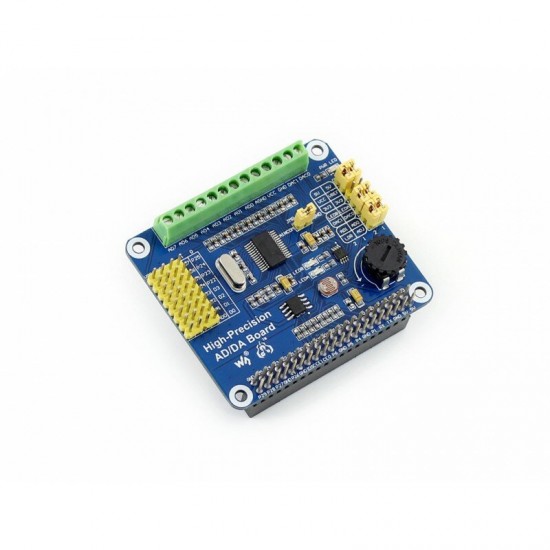

High-Precision ADS1256 DAC8552 AD/DA Expansion Board for Raspberry Pi

High-Precision ADS1256 DAC8552 AD/DA Expansion Board for Raspberry Pi
High-Precision ADS1256 DAC8552 AD/DA Expansion Board for Raspberry Pi
High-Precision ADS1256 DAC8552 AD/DA Expansion Board for Raspberry Pi
High-Precision ADS1256 DAC8552 AD/DA Expansion Board for Raspberry Pi
High-Precision ADS1256 DAC8552 AD/DA Expansion Board for Raspberry Pi
High-Precision ADS1256 DAC8552 AD/DA Expansion Board for Raspberry Pi
High-Precision ADS1256 DAC8552 AD/DA Expansion Board for Raspberry Pi
$43.99
Ex Tax: $43.99
  • Stock: In Stock
  • Model: EB0049637
  • SKU: EB0049637
>

Overview:


There's no AD/DA function on the Raspberry Pi GPIO interface, this may trouble you in the Pi development. However, it won't be a problem anymore. The High-Precision AD/DA Board allows you to add high-precision AD/DA functions to the Raspberry Pi.

Features:

● Standard Raspberry Pi 40PIN GPIO extension header, supports ● Raspberry Pi series boards, Jetson Nano
● Onboard ADS1256, 8ch 24bit high-precision ADC (4ch differential input), 30ksps sampling rate
● Onboard DAC8532, 2ch 16bit high-precision DAC
● Onboard input interface via pinheaders, for connecting analog signal
  the pinout is compatible with Waveshare sensor interface standard, easy to connect various analog sensor modules
● Onboard input/output interface via screw terminals, for connecting analog/digital signal
● Features AD/DA detect circuit, easy for signal demonstration


More info plz click here t: https://www.waveshare.com/wiki/High-Precision_AD/DA_Boardo know

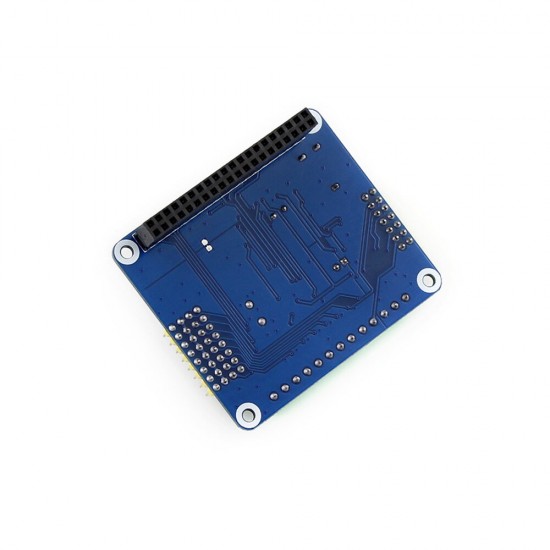

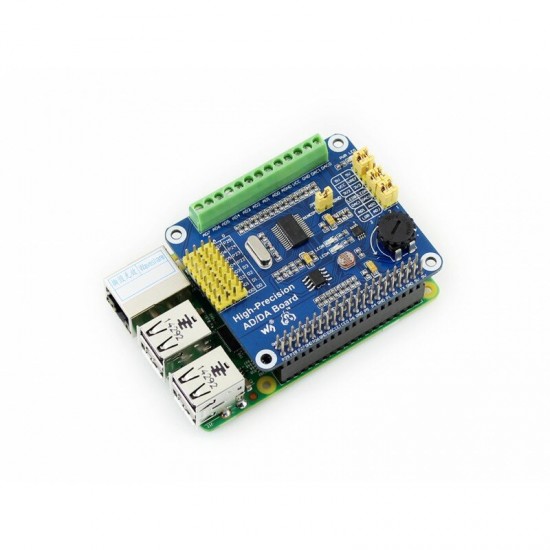

Note : the Raspberry Pi and sensors in the photo are NOT included.

Package Included:

High-Precision AD/DA Board x 1
RPi screws pack (2pcs) x 1


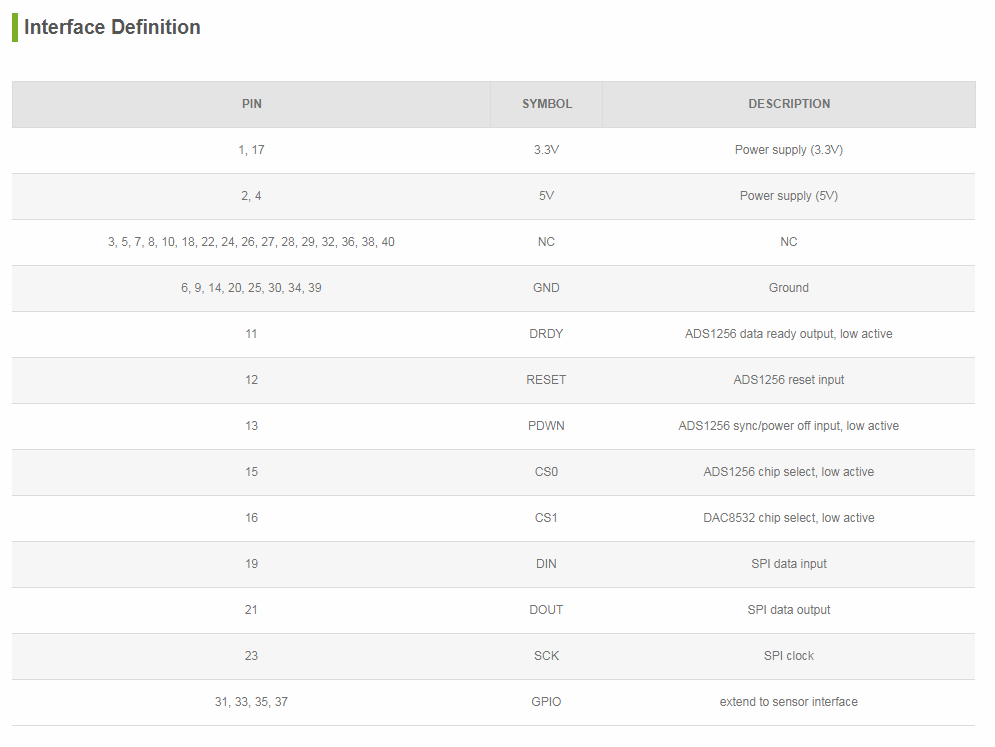

What's on Board:

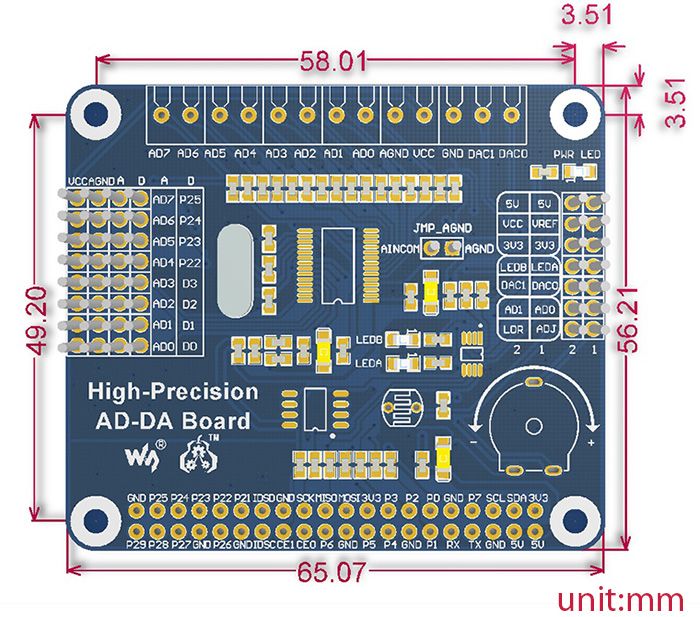

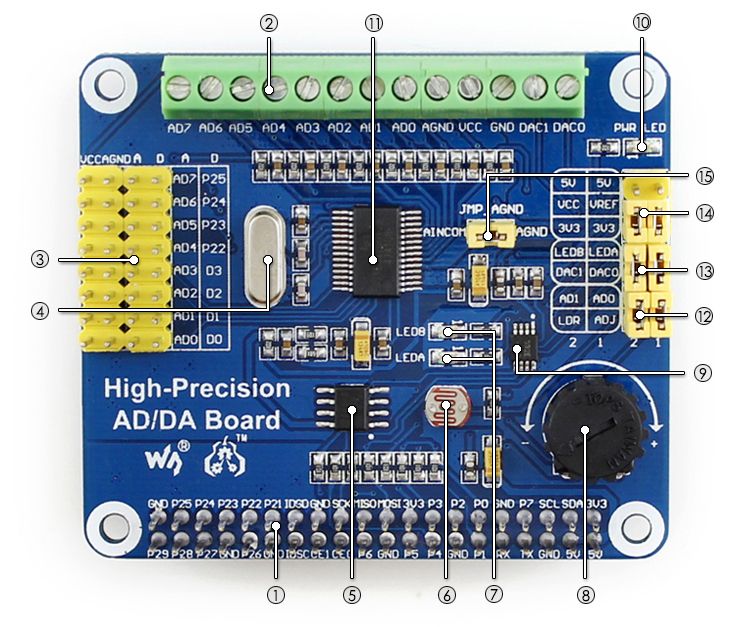

1. Raspberry Pi GPIO interface : for connecting with the Pi
2. AD/DA input/output : screw terminals
3. AD input : pinheaders, the pinout is compatible with Waveshare sensor interface standard, easy to connect various analog sensor modules
4. 7.68M crystal
5. LM285-2.5 : provides reference voltage for the ADC chip
6. Photo resistor
7. LED output indicator
8. 10K potentiometer
9. DAC8532 : 16bit high-precision DAC, 2ch
10. Power indicator
11. ADS1256 : 24bit high-precision ADC, 8ch (4ch differential input)
12. ADC testing jumper
13. DAC testing jumper
14. Power selection jumper
15. ADC reference ground configuration : when AD single inputted, the AINCOM is reference terminal, can be connected to GND or external reference voltage
