HP-770HD Autorange Digital Multimeter True RMS AC/DC Voltage Frequency Electrical Tester

Based on 0 reviews. - Write a review

$32.99

Ex Tax: $32.99

Stock: In Stock
Model: EB004354
SKU: EB004354

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Descriptions:

The high-precision and high-performance HP-770HD can measure AC/DC voltage, AC/DC current, resistance, capacitance, frequency, and duty cycle.

It can test diode, NCV (non-contact voltage), true RMS, the maximum / minimum, transistor and continuity.

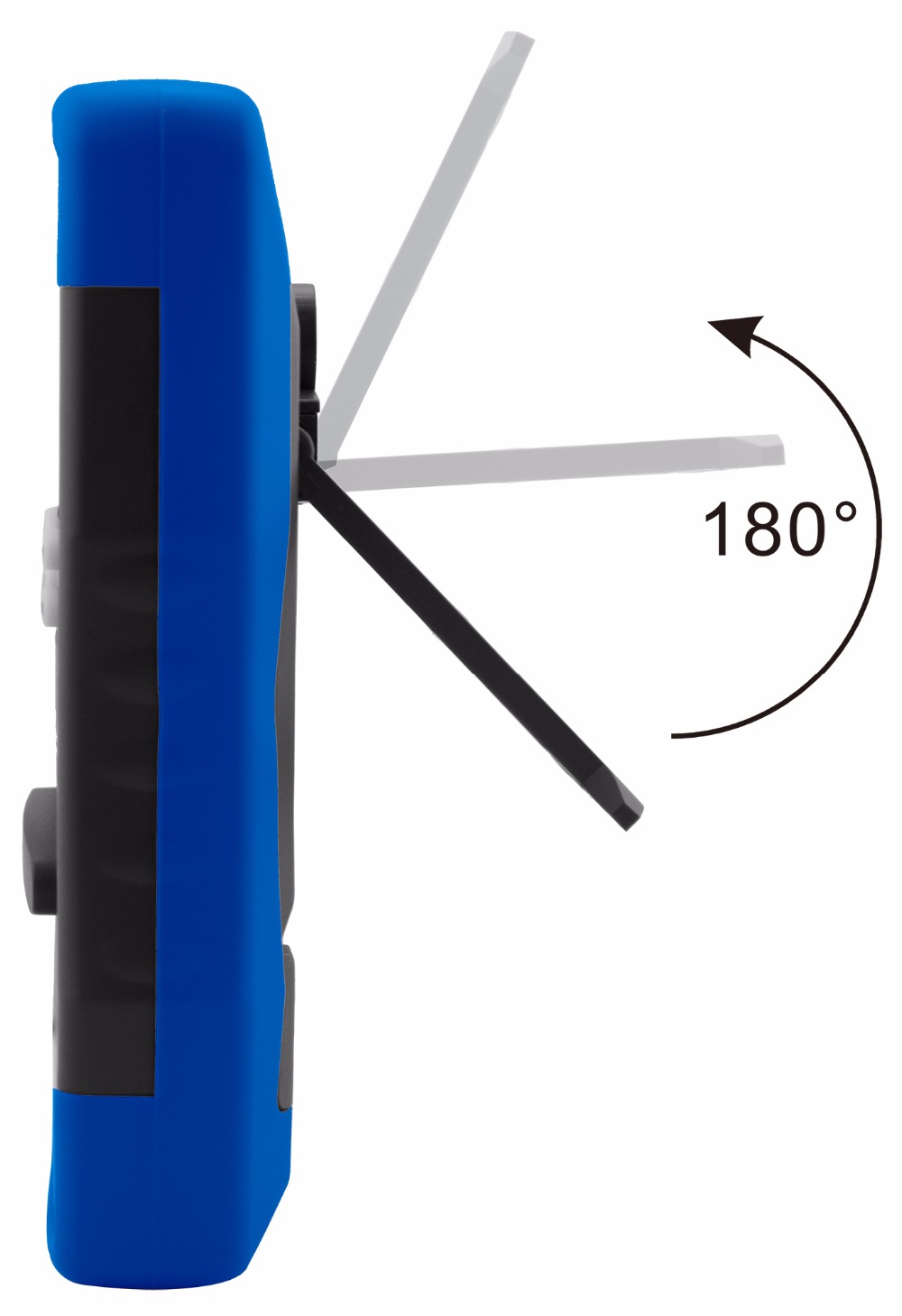

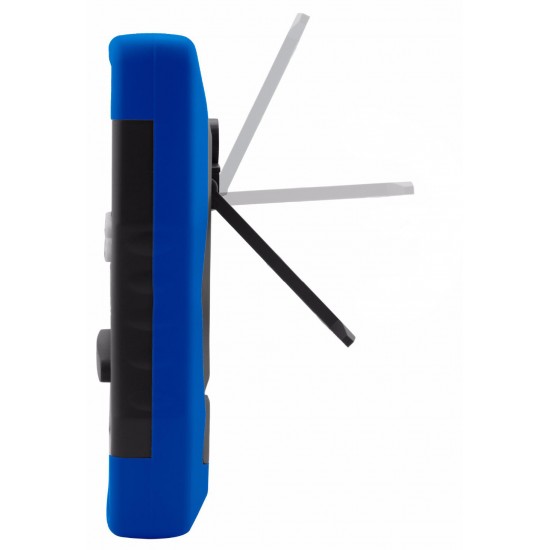

The meter has a data hold, auto power off, mechanical protection and other functions, easy to use, clear reading. Using the back bracket, which is easy on the table and read the value.

Specifications:

Brand Name:Renhotec

Operating Temperature:-20 - 10000 ℃

DC Voltage:600mV/6V/60V/600V/1000V

DC Current:60uA//600uA/6mA/60mA/600mA/20A

Measuring Resistance Range:600/6k/60k/600k/6M/60M

Model Number:HP-770HD

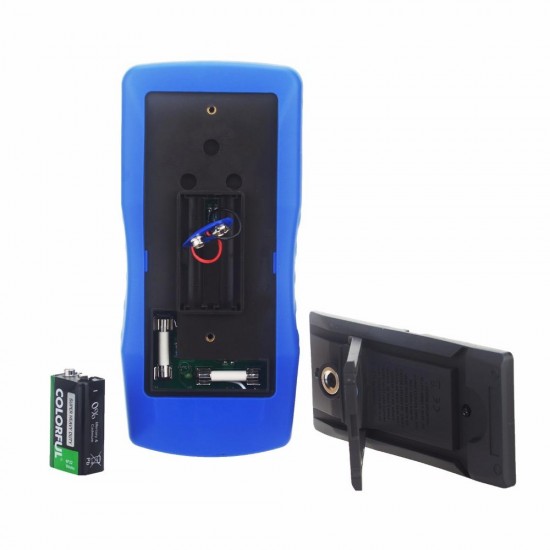

Power: 1 x 9V (not included)

Display Type:Digital Display

AC Voltage:6V/60V/600V/750V

DIY Supplies:Electrical

Dimensions:195*88*40mm

AC Current:6mA/600mA/20A

Measuring Capacitance Range:9.999nF/99.99nF/999.9nF/9.999uF/99.99uF/999.9uF/9.999mF/99.99mF

Measuring Frequnency Range:9.999Hz/99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.999MHz

Duty Cycle:0.1%-99.9%
Display:6000

Features:

Diode Test

hFE

Continuity Buzzer

Date Hold

Auto Back Light

Auto Power off

AC/DC 600A Clamp

Function Switch Indicator Lamp

Mechanical Blocking Syste

Celsius degree Fahrenheit conversion

Non-contact voltage measuremen

True RMS

Relative Value

MAX/MIN

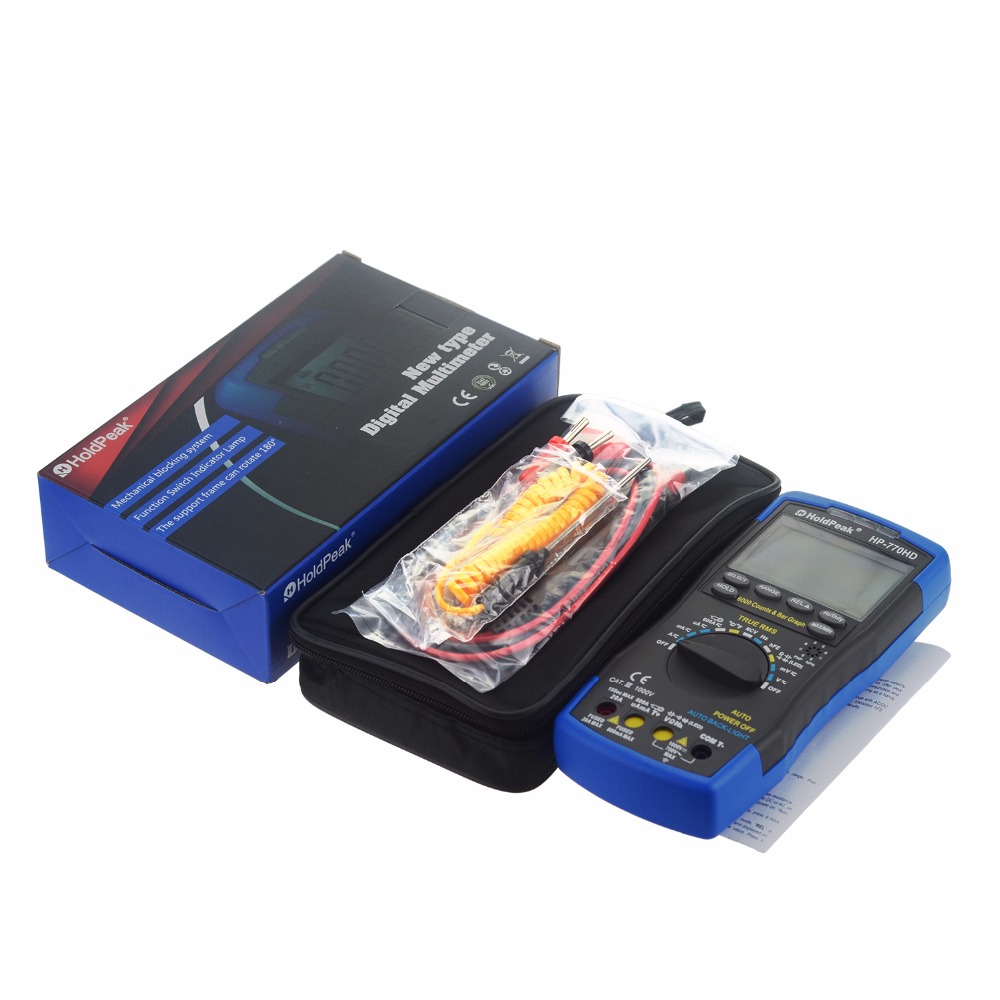

Package Included:

1 x HoldPeak HP-770HD Digital Multimeter

1 x Test Lead

1 x Instruction manual

1 x Temperature Test Probe

1 x Carrying Bag

Detail Pictures:

HoldPeak-HP-770HD-Autorange-Digital-Multimeter-True-RMS-ACDC-Voltage-Frequency-Electrical-Tester-1335425
