F9P Base UBLOX F9P GPS GLONASS Module compatible for Multirotor Multicopter RC Drone FPV Racing
- Stock: In Stock
- Model: EB000560
- SKU: EB000560
H-RTK F9P is the latest differential high-precision GNSS positioning system from Holybro. It uses a UBLOX F9P module, a IST8310 compass, and a tri-colored LED indicator. It also has a integrated safety switch for a simple and convenient operation.
Specification:
Brand: Renhotec
Item Name: H-RTK F9P Base
| GNSS | GPS L1 GLONASS L1 BeiDou L1 |
| Antennas Peak Gain(MAX) | 5.5dBi |
LNA Gain (typical) | 40±2dB |
| TIME-TO-FIRST Fix | Cold Start: ≤ 25s Hot Start: ≤ 1s |
RTK-SurveIn-Time | ≤5minute @2.0mCEP |
| Data & Update Rate | RAW: 10Hz MAX RTK: 5Hz MAX |
| Port | Port 1: GH1.23 10pin Port 2: USB Type-C |
| Antenna Connection Type | Board: SMA Female Antenna: TNC FeMale Male-male SMA-TNC cable length: 5m(Included) |
| Baud Rate | 38400 5Hz(default) can be set |
Working Voltage | 4.75V~5.25V |
Dimensions | Board: 34.8*36.311.9mm Antenna Diameter: 152mm Antenna Height: 62.2mm |
Weight | 469g |
User Manual, DOWNLOAD
H-RTK_F9P_GNSS_Spec
Description:
The board is the same as number 2 above, but it is equipped with a high-gain antenna. This model is best suited to use as base station. The search speed and positioning accuracy are the highest among the three models.
Package Included:

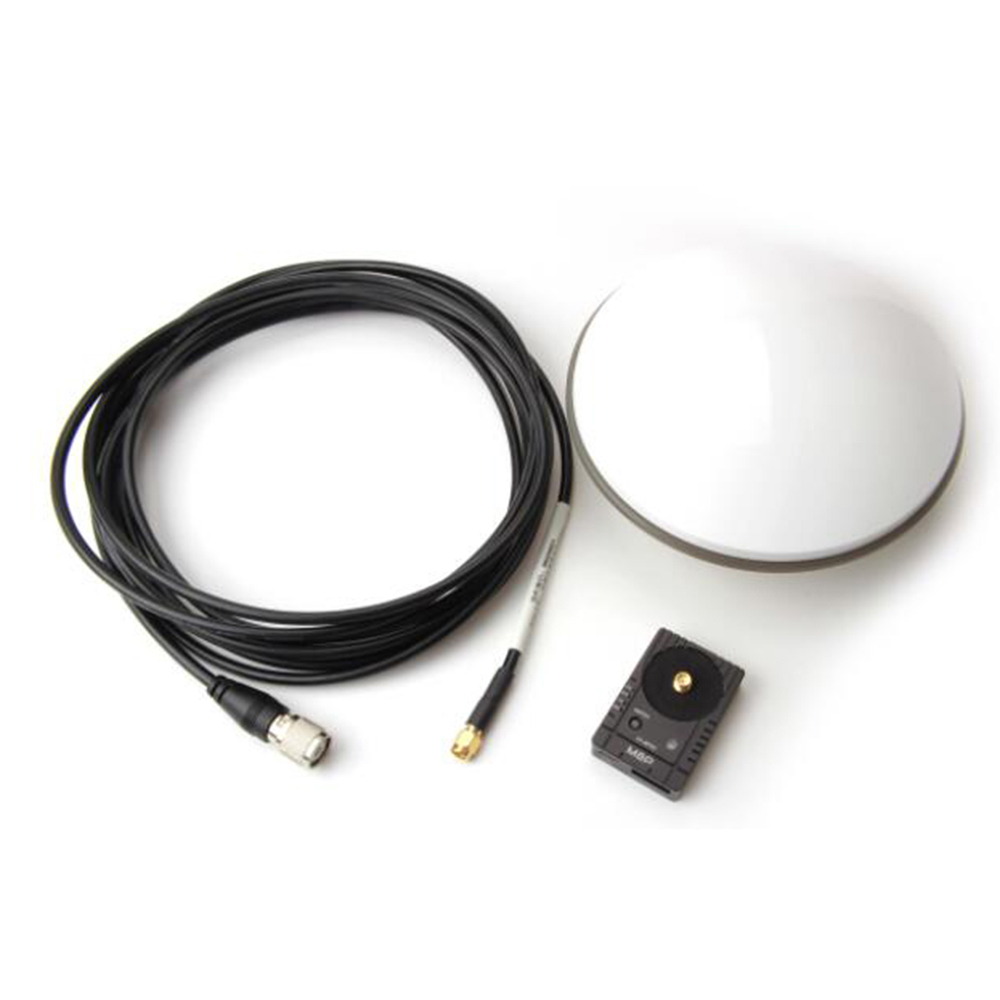

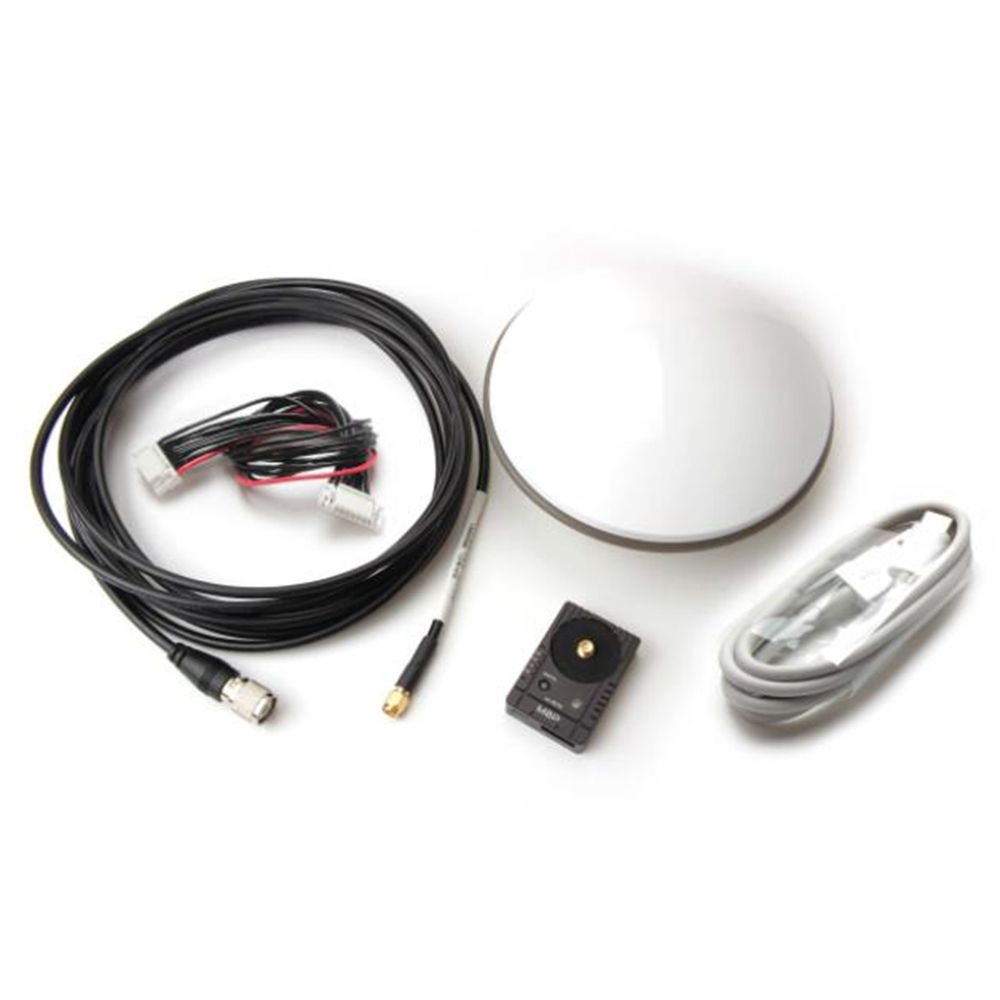

1 X Holybro H-RTK F9P Base
1 x - High Precision GNSS Antenna
1 x - Male-male SMA-TNC cable(length: 5m)
1 x - USB type-c cable
*Tripod mount not installed
