LINK1 AK7115 VFD Music Audio Spectrum Indicator VU Meter Precision Clock Adjustable AGC Mode with Remote Control

Based on 0 reviews. - Write a review

$67.97

Ex Tax: $67.97

Stock: In Stock
Model: EB0018512
SKU: EB0018512

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

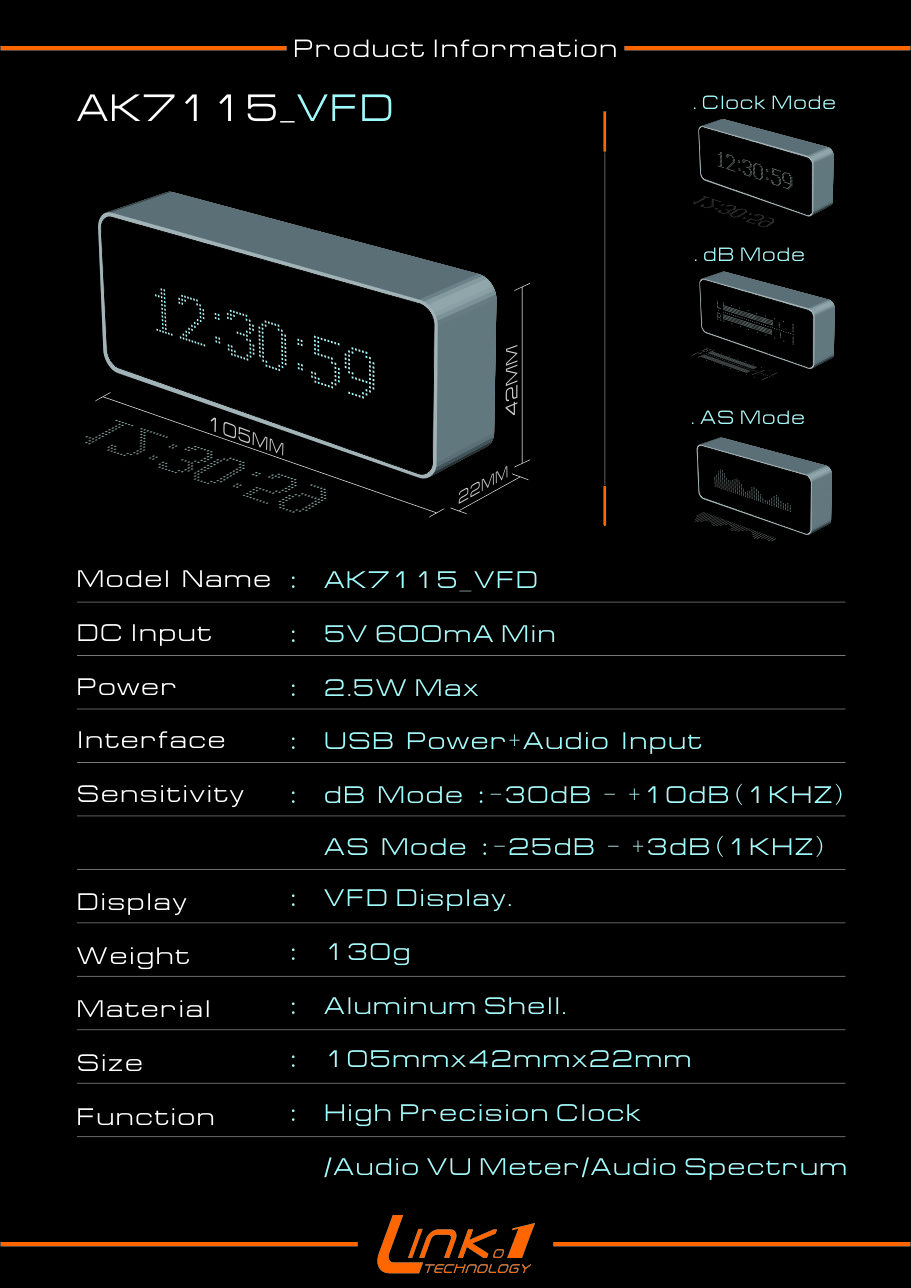

Features:

Dedicated VFD display, Resolution 71 x 15

Multi-Function Mode : Clock Mode ,Music Mode (Audio VU Meter Mode,Audio Spectrum Mode)

The brightness of the clock can be adjusted 15 levels, In the brightness auto mode, The brightness can be set for two different time periods

The rising speed and falling speed of the light bar, the holding time and the falling speed of the peak can be adjusted separately

Infrared remote control function

Accurate clock display function

SD3078 built-in crystal oscillator, the chip can ensure that the clock accuracy is plusmn3.8ppm (at 25 + 1 degrees Celsius), the Monthly error is less than 10 seconds

Software AGC + Custom output curve,In order to ensure that the input signal inlarge range of output effect is ideal

Unique spectrum smoothing algorithm to make the best balance between real and visual beauty

Specific operation :

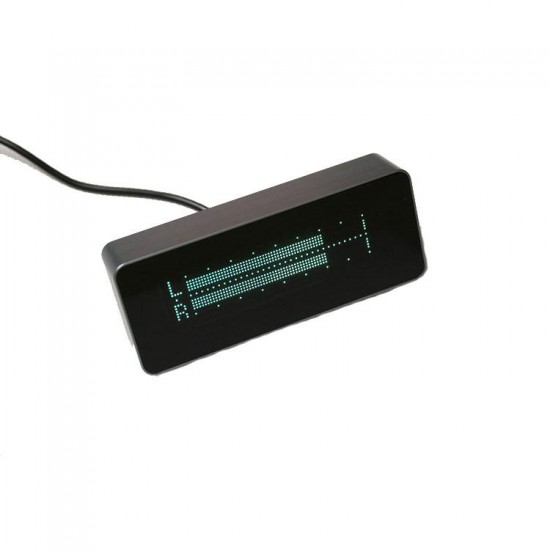

Audio Meter Mode:

Normal mode:

1. Single Click

OK ----- Bottom line display or no in UV meter mode

UP ----- Mode Change

Down ----- Mode Change

2. Longe Press Button

OK ------ 3 seconds to enter setting mode

UP ------ Brightness increase

Down ------ Brightness increase

3. Double Click

OK ----- Effect Mode change(3Effects)

UP ----- Switching display effect selected mode

Down ----- Switching display effect selected mode

4. Three Click

OK -- Menu effect switch, right -left transition / up - down transition / mid folding open

5.Four Click

OK - Switch from VU Meter mode to Spectrum mode

6. Five Click

OK - Enter the clock mode.

7.Six Click

OK - Clock enable or disable. No longer display clock after disable

8.Seven Click

OK - Close the display, enter the standby mode, and any key will return to normal mode.

Speed Setting Mode : (in normal mode,press the button for 2 seconds to enter,press the button for 2 seconds to exit.)

OK -

1.The rising speed of the light bar(15 optional)

2.The falling speed of the light bar (15 optional)

3.The holding time of the peak (15 optional)

4.The falling speed of the peak (15 optional)

Loop in these functions

UP - Time increases Speed decreases

Down - Time decrease Speed increases

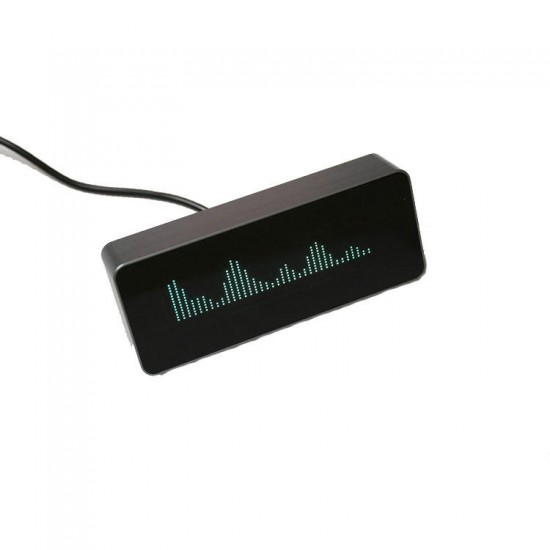

Audio spectrum Mode:

Normal Mode:

1.Single Click

OK - Bottom line display or no in spectrum mode.

UP - Mode Change

Down - Mode Change

2. Longe Press Button

OK - 3 seconds to enter setting mode

UP - Brightness increase

Down - Brightness increase

3. Double-Click

OK - Switching real /smooth I/smooth II output

UP - Switching 71 segments /36 segments /23 segments.

Down - Switching 71 segments /36 segments /23 segments.

4. Three Click

OK - Menu effect switch, right -left transition / up - down transition / mid folding open

5.Four Click

OK - Switch from Spectrum mode to VU Meter mode

6. Five Click

OK - Enter the clock mode.

7.Six Click

OK - Clock enable or disable. No longer display clock after disable

8.Seven - Click

OK - Close the display, enter the standby mode, and any key will return to normal mode.

Speed Setting Mode : (in normal mode,press the button for 2 seconds to enter,press the button for 2 seconds to exit.)

OK -

1.The falling speed of the light bar (15 optional)

2.The holding time of the peak (15 optional)

3.The falling speed of the peak (15 optional)

4.Output selection (Real output / smooth I output/ smooth II output)

Loop in these functions.

UP - Time increases Speed decreases

Down - Time decrease Speed increases

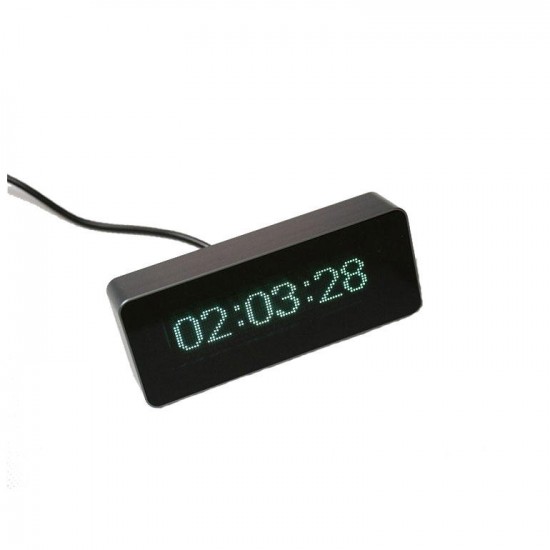

Clock Mode: Cycle display time / date / week

Clock Display Mode:

1.Single Click

OK - Exit the clock display state.

UP - Cyclic display time - date - week - time

Down - Cyclic display time - week - date - time

2.Long Press Button

OK - In the clock display status, press 2 seconds, enter the Clock Setting Mode.

UP - Clock Brightness increase.,After the highest brightness, the increase of one level is the brightness auto mode (the brightness of two different time periods can be set).

Down - Clock Brightness reduction.

Clock Setting Mode : (In normal mode,press the button for 5 seconds to enter,press the button for 2 seconds to exit).

1.Single Click

OK - Switching hours / min / sec / year / month / day/date mode

UP - Hours / minutes / sec / year / month / day increase.

Down - Hours / min / sec / year / month / day decrease.

Date Mode: YY-MM-DD/MM-DD-YY/DD-MM-YY

(In the auto mode of clock brightness, there will be more than 4 setting items, starting time, ending time, brightness in time period, and brightness outside the time interval, for example, setting 23 to 06 brightness level 2, and other time periods brightness level 10.)

Other Function Operation:

Self Check Function:

UP +OK+ DOWN - 2 Seconds Press (OK 2 Seconds exit)

Factory Default :

OK - 10 Seconds

Note:

(VFD)Vacuum fluorescent display Is the display tube and from the vacuum electronics development, the electrons emitted by the cathode (direct heating type, referred to as filament) and accelerate the control gate, the flow of electrons on the glass substrate printed on the electrode and the phosphor anode and grid and a glass lid. It uses electronic impact phosphor to make phosphor glow, it is a kind of self luminous display device

Because of the working conditions of VFD, there is a DC high voltage of about 54V, so don't touch the VFD pins when it is working

Because of the characteristics of VFD, long working brightness will be attenuated, so it will become uneven, is a normal phenomenon

Package Included:

1 x Audio Music Spectrum
1 x Remote Control
1 x USB Cable
