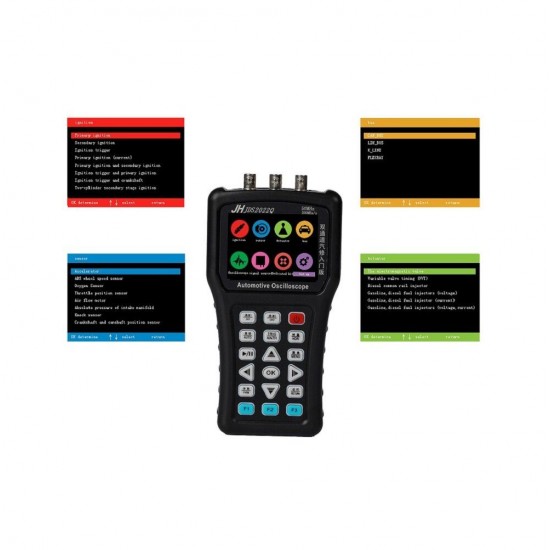

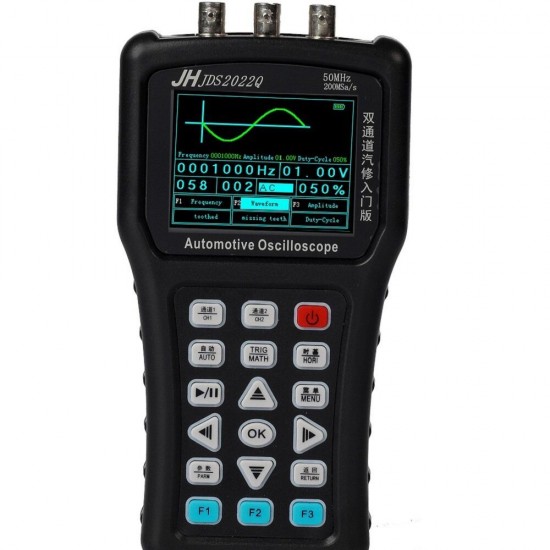

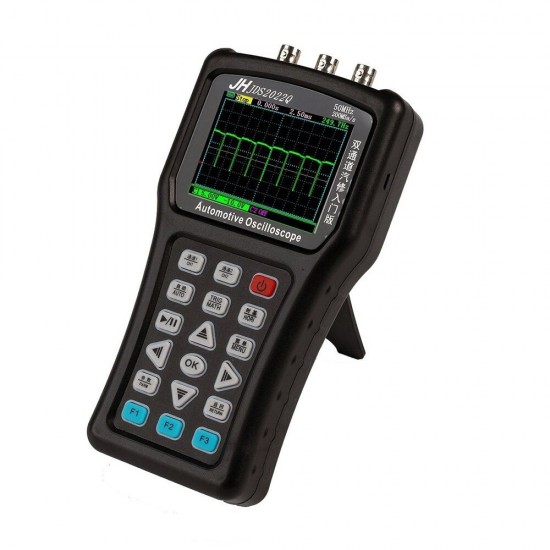

JDS2022Q Dual-channel Digital Oscilloscope + Car Signal Simulator Support Analog Bandwidth Storage Waveform Handheld
- Stock: In Stock
- Model: EB004610
- SKU: EB004610
2022Q | |
Functions | Oscilloscope, Car Signal Simulator |
Language | Chinese, English, Russian, Portuguese, Spanish |
Oscilloscope parameters | |

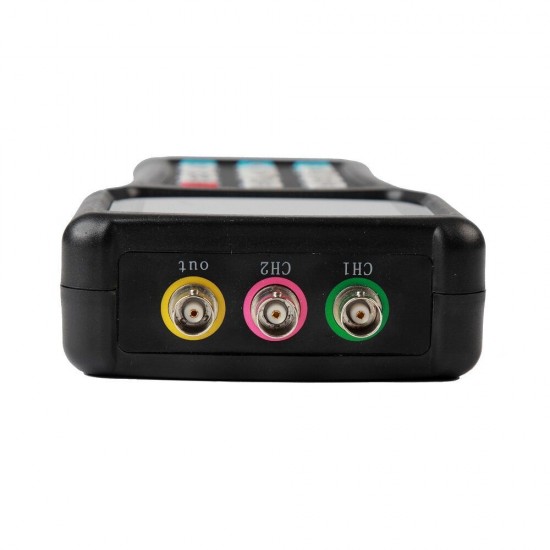

Number of channels | Dual channel |
Maximum real-time sampling rate | Single channel CH1 200MSa/s Dual-channel CH1,CH2 100MSa/s |
Bandwidth | 50M for single channel 25M for dual channel |
Vertical resolution | 8-bit |
Vertical gear | 10nV-5V(probe x1), 100nV-50V(probe x10), 1/2/5 steps |
Impedance | 1MΩ 25pF |
Coupling | DC,AC |
Display mode | Y-T/X-T |
Renhotec | 40V (probe x1); 400V (probe x10) Use high-voltage probes, the maximum voltage is determined by the quality of the probe |
Time base range | 12. 5ns-5s, 100ms_5s is the scan mode (scan) |
Storage depth | 3K per channel |
Trigger mode | Automatic, normal and single |
Trigger type | Rising edge, falling edge |
Automatic detection | 50Hz-20MHz |
Cursor measurement | Time, voltage, current, pressure (manual mode) |
Can record contrast waveform | 2 |
Screenshot function | Stand by |
Self-calibration | Stand by |
Number of screenshots available | 7 |
Number of waveforms that can be saved | 30 |
Duty cycle: 0%-100%
